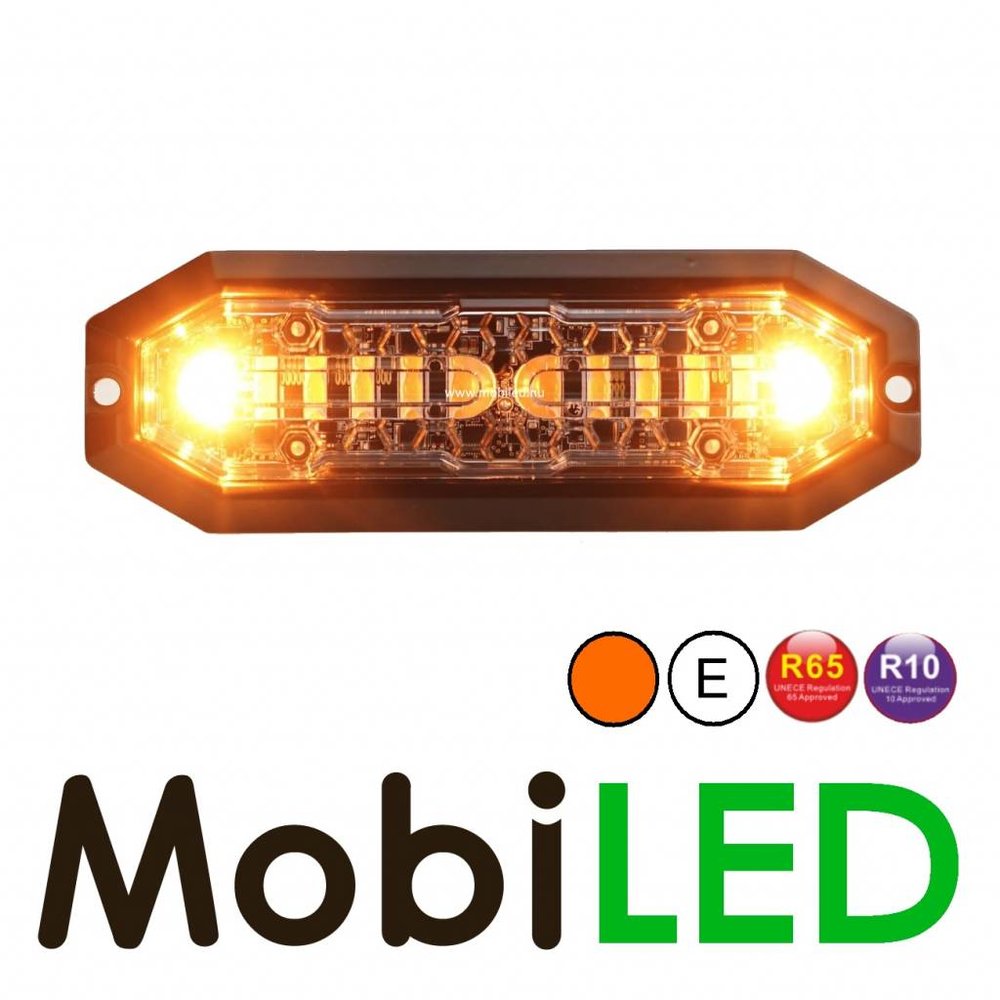

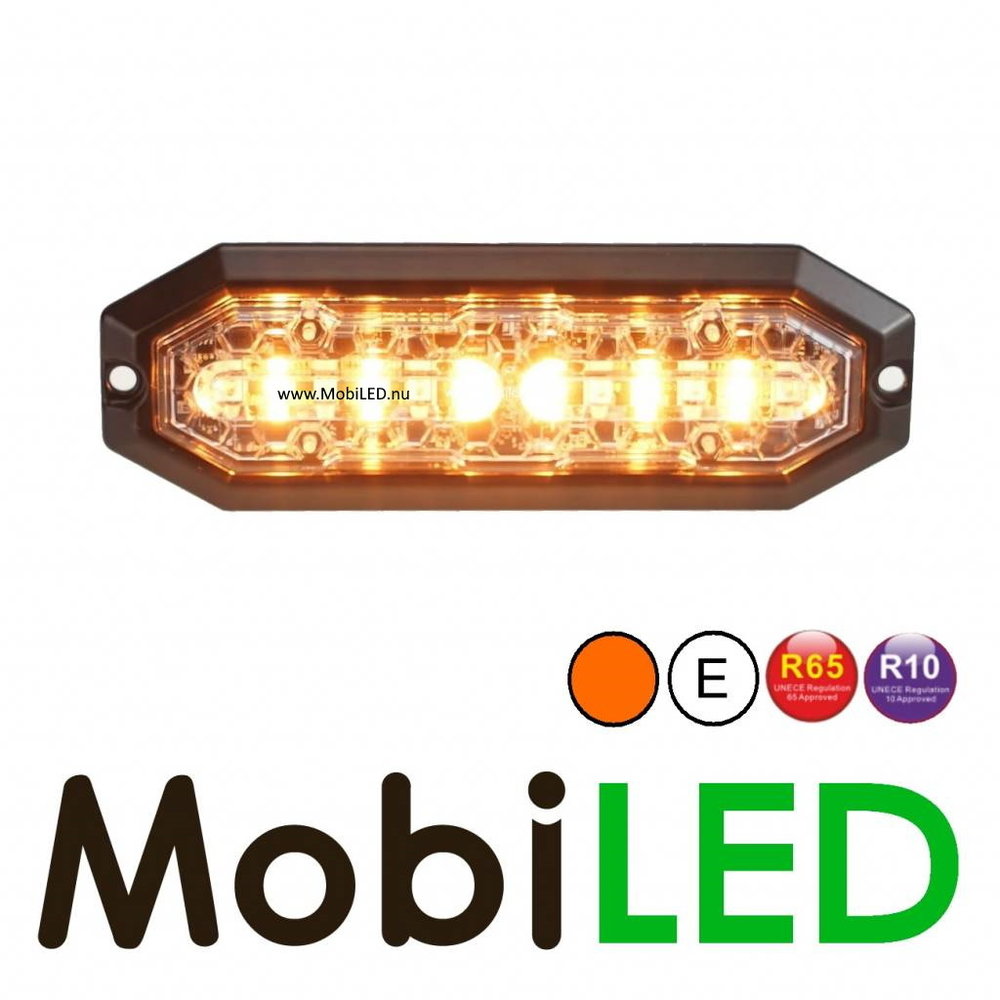

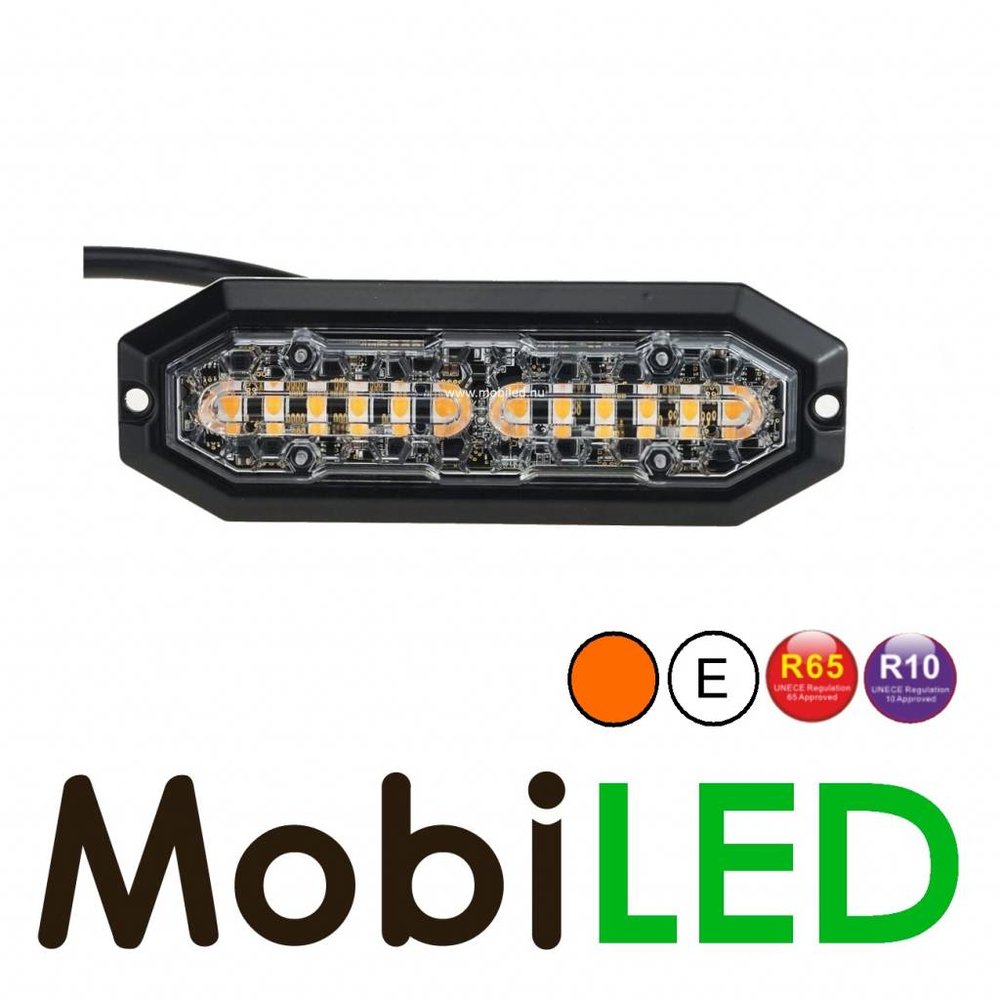

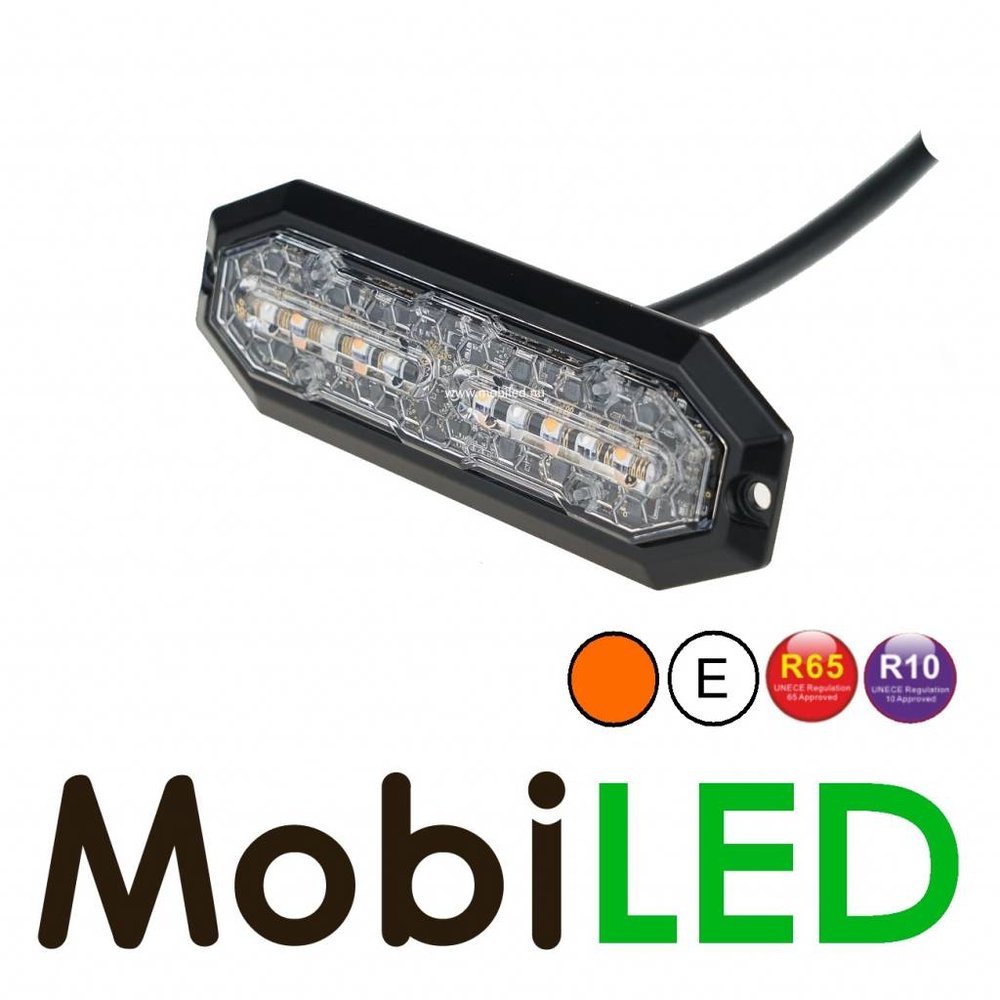

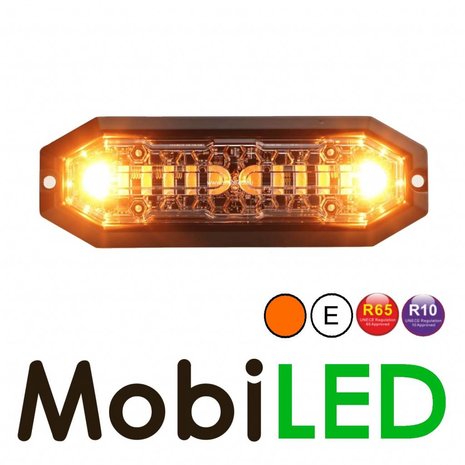

Class 2 LED Flash Amber Ultra thin E-mark Flash and Turn signal

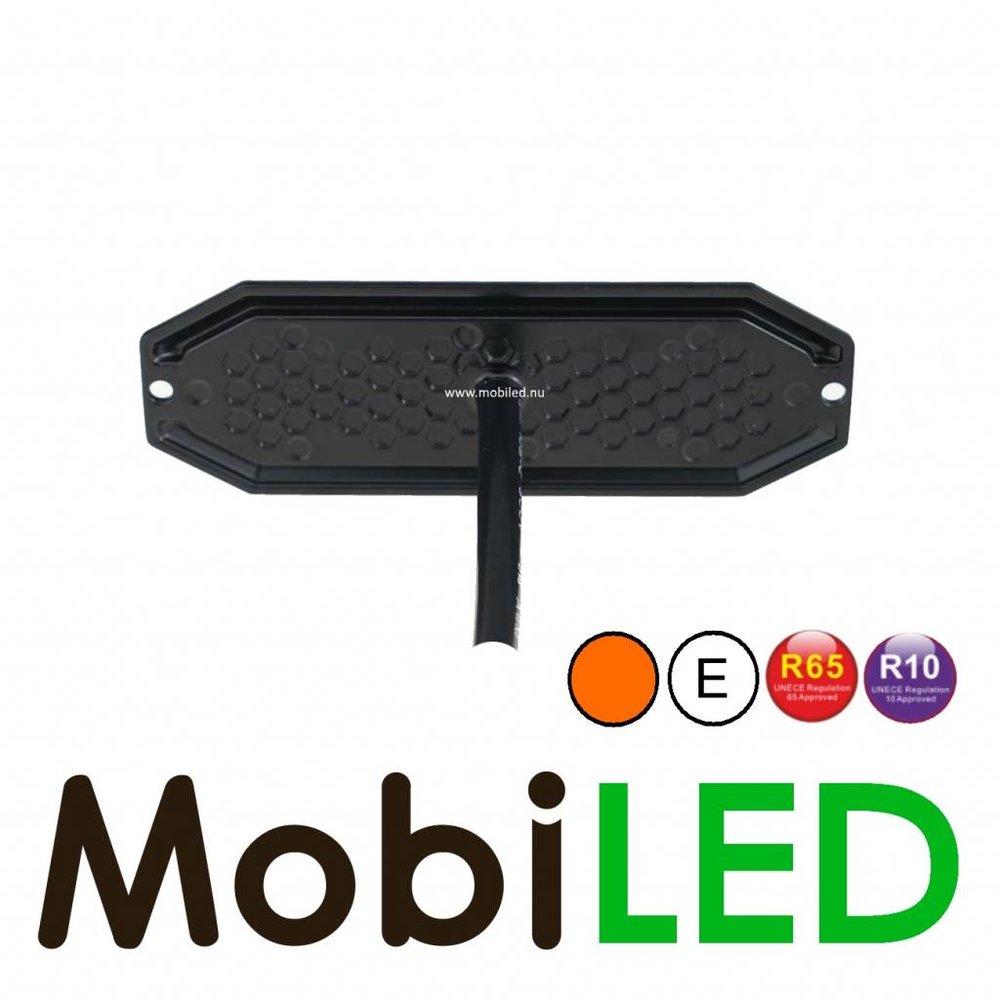

Professional compact amber flat flash with 26 flash patterns and 5 directional patterns. Suitable for professional use class 2 with E-mark, ECE R65/R10 certification. Installation within the grid and surface mounting are possible due to the super flat shape. Six powerful LEDs with a total power of 18 watts provide a high light output. The flash is equipped with a plastic lens, which amplifies the light extra and ensures a good spread, and a wide aluminum mounting plate. Can be used on both 12 and 24 volts (multivoltage). Multiple flashes can be linked so that they flash synchronously or alternately. There is a choice of 26 different flash patterns.
This flash is also available in white.

Connection diagram:

Connecting one flash
Red: Connect to +
Black: Connect to  –

Dim function (only pattern 1 – 10
Hold the white wire against the +, the light intensity now goes to 60%

Choose another flash pattern
Hold the blue wire against the + for a moment, the next flash pattern from the list will now be set. To reset the flash pattern to pattern 1, hold the blue wire against the plus for ~4 seconds

Directional patterns and steady lighting
Hold the green wire to the + for a moment, the flash will switch to a directional pattern. Choose the next pattern in the list by holding + the blue thread

Connecting two or more flashes to flash synchronously
1. First, make sure all the flashes are set to the same pattern!
2. Do you want to flash the flashes alternately? Follow these instructions, if not, continue at 3

Alternating flashing is possible by dividing the flashes into two groups. This must be set per flash. Hold the blue wire against the + for 7 seconds, the number of LEDs that will now flash will show you in which group the flash is classified: 1 (default) or 2. To switch groups, tap the blue wire against the +, the flash again indicates with the number of flashing LEDs in which group it is assigned. This setting is saved and remembered even when the flash is de-energized

3. Red: Connect all red wires bundled to +
Black: Connect all black wires bundled to –
Blue: Connect all blue wires together. (Make sure the flashers are set to the same pattern before pairing them!) Patterns can still be changed, this applies to all flashers connected with the blue wire.
