Headlight high and low beam universal E-mark

This universal headlight rectangle is suitable for several tractor models and is rectangular in shape. The lamp is mounted on almost all models on the tractor's flashing light posts, but can also be used on the roof. The lamp has an option to place the bracket on the other side so that the lamp can be hung. This way the headlight does not hang upside down and the light image remains good. For example, the lamp fits on a John Deere, Case or New Holland.

The Crawer LED headlight is universal and multifunctional. The lamp has two functions, namely high beam and low beam. Thanks to the 3-pin cable that is already attached to the lamp, you only need a connector that fits your tractor.

Specifications:

• Voltage: 10-32V
• Power: high beam 60W, low beam 30W
• Functions: high and low beam
• Connection: including 3 pin cable, 40 cm
• Housing: aluminum
• Lamp finish:  hard coated polycarbonate lens
• Water resistance: IP67
• Light color: 5500K (cold white)

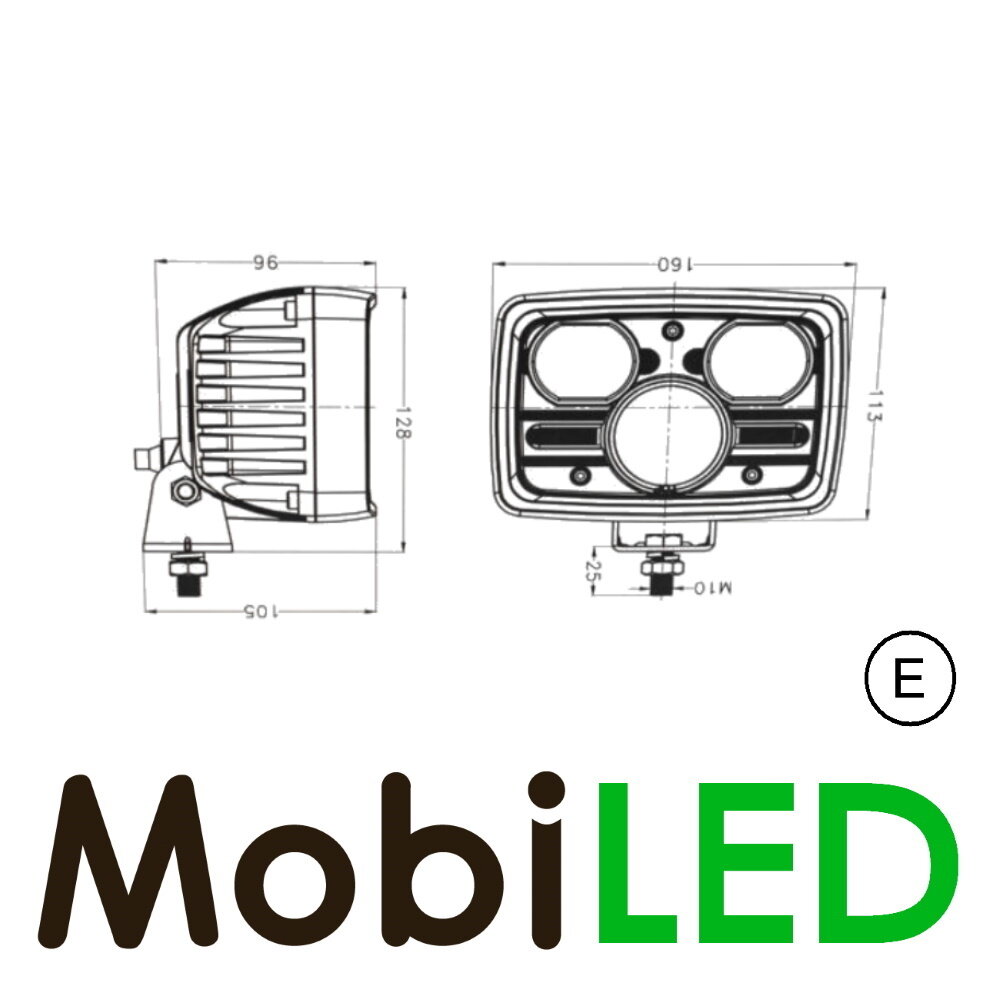

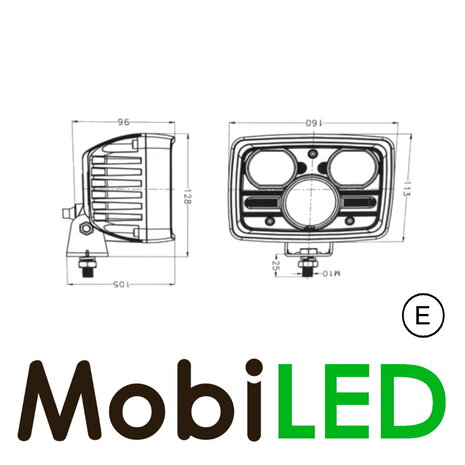

• Dimensions: 160 x 113 x 96mm
• Certification: E9, R112 and R10
• Radio suppressed: EMC Class CISPR 4

Connection diagram:

• Black: Mass
• Red: high beam
• Blue: low beam
