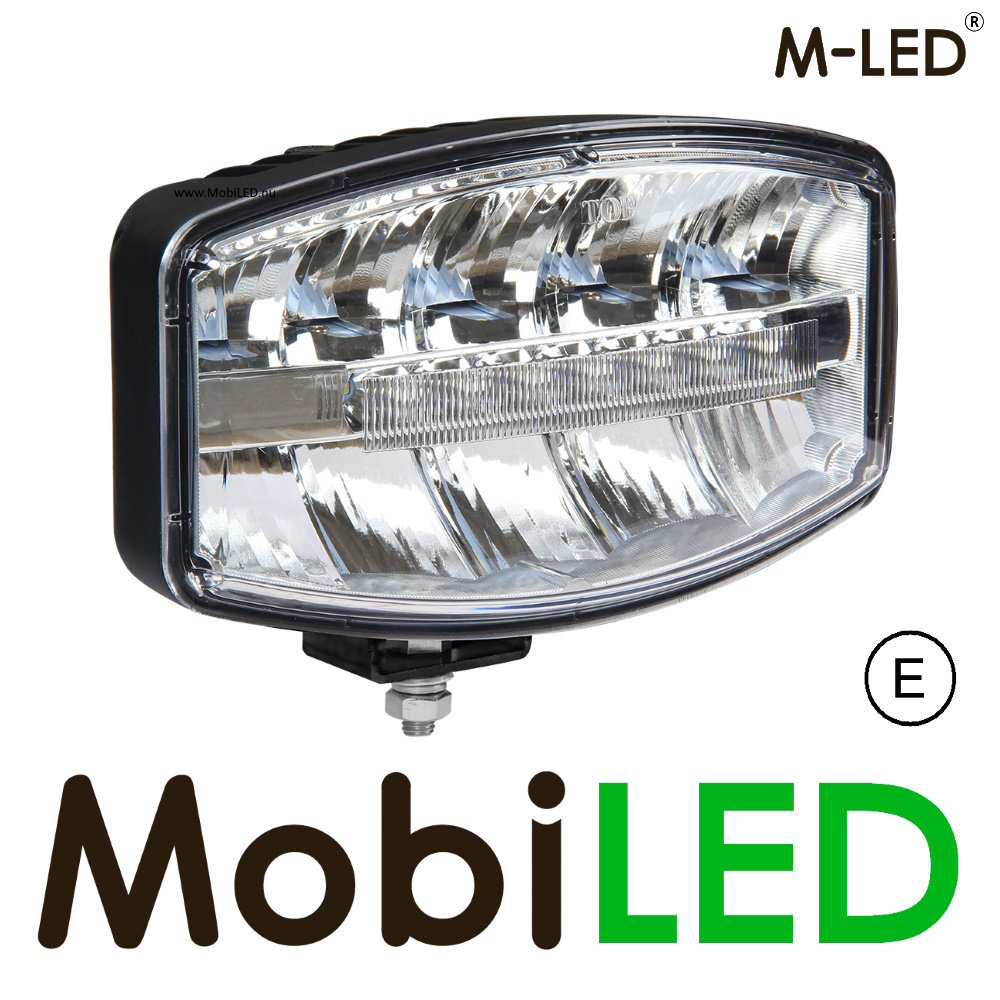

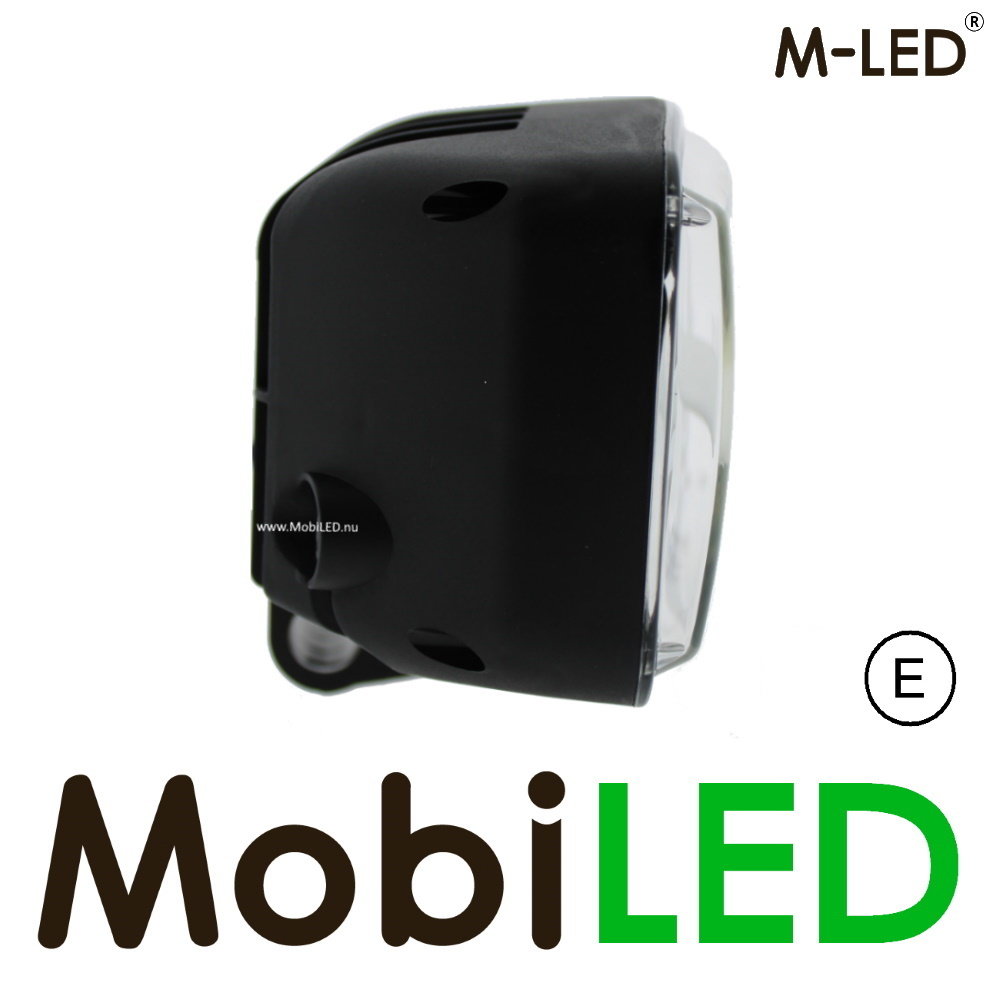

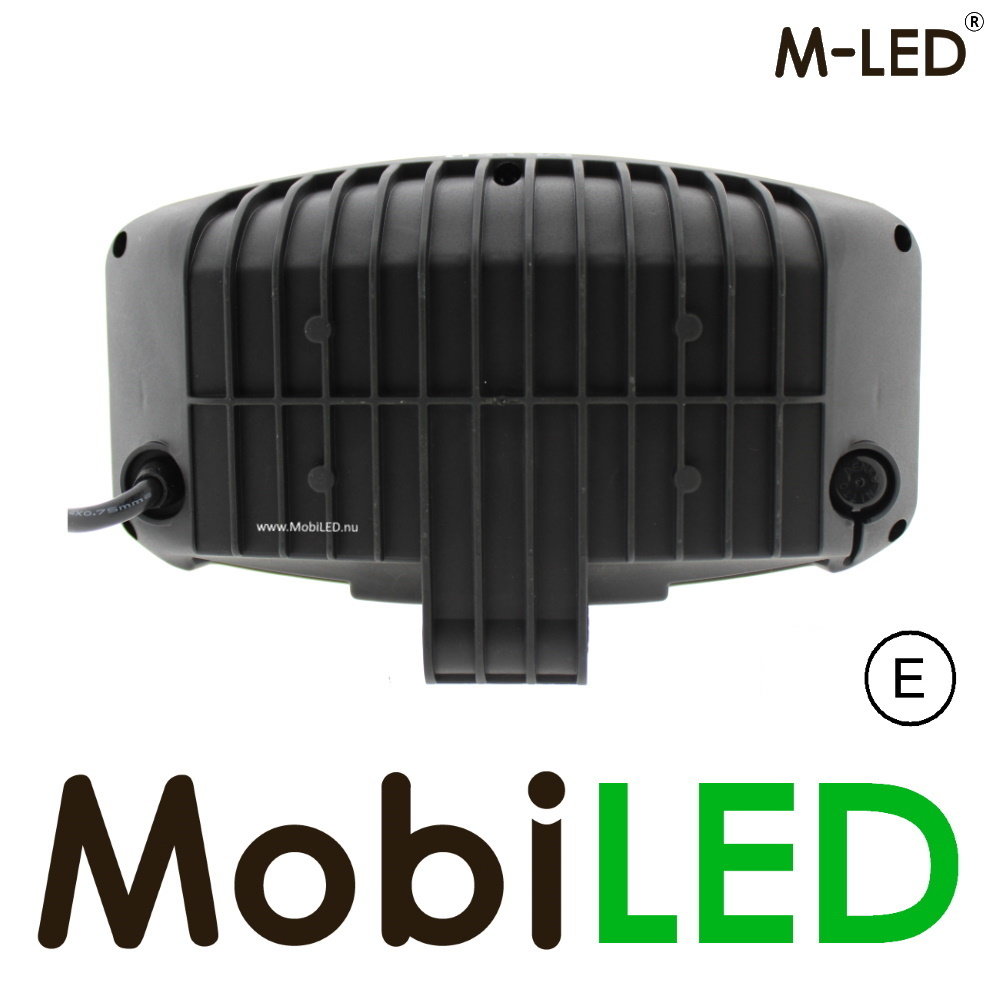

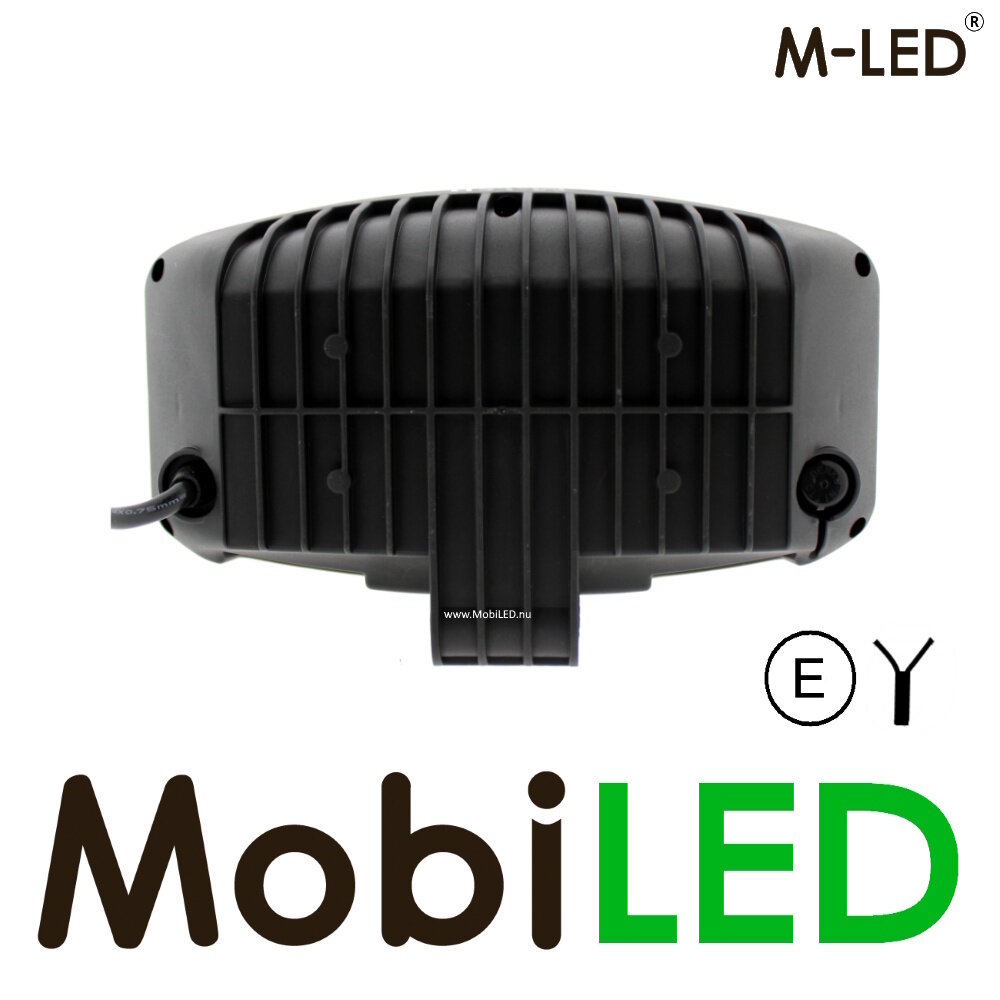

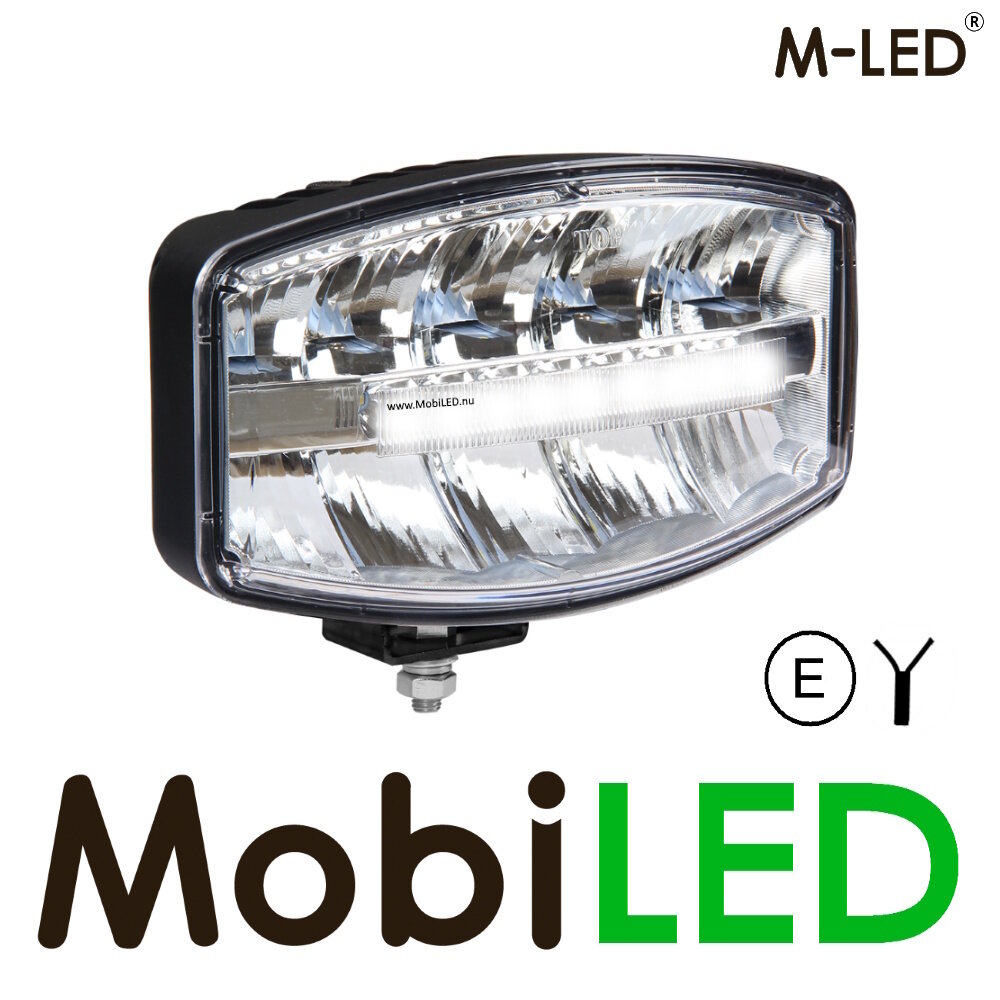

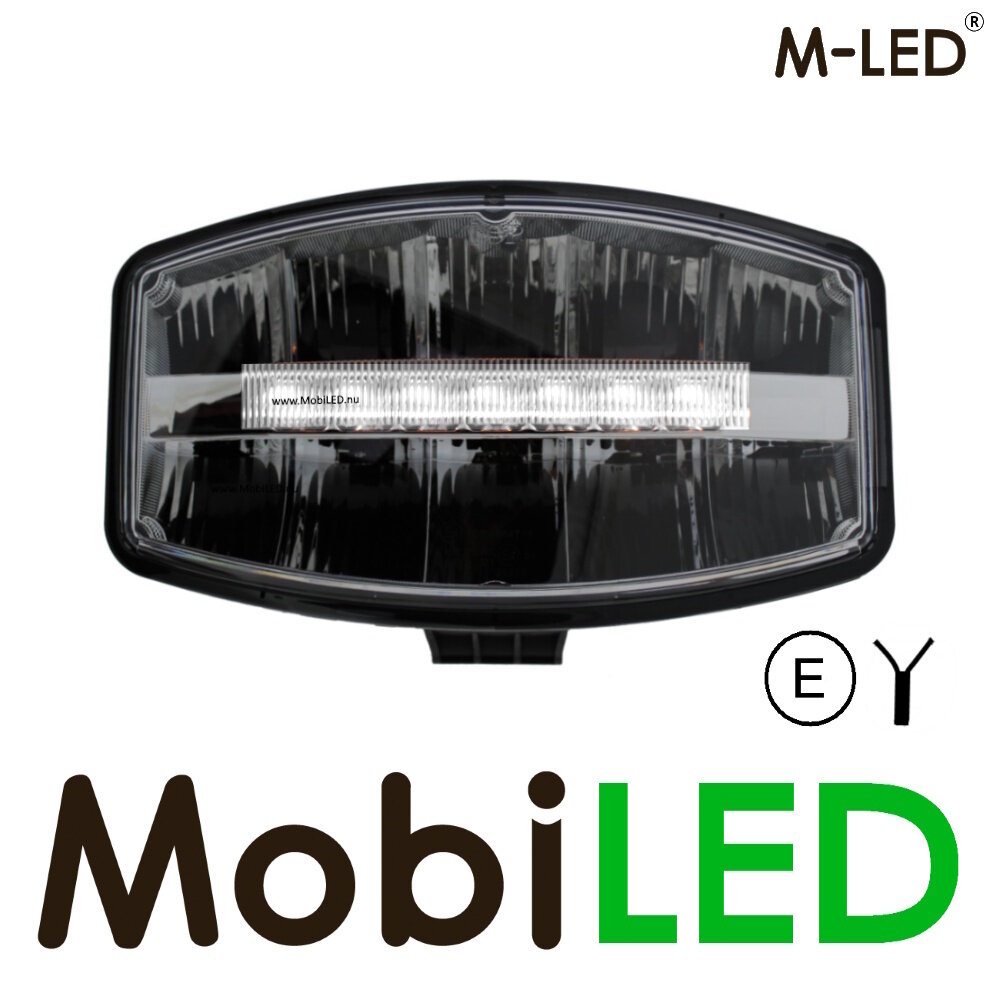

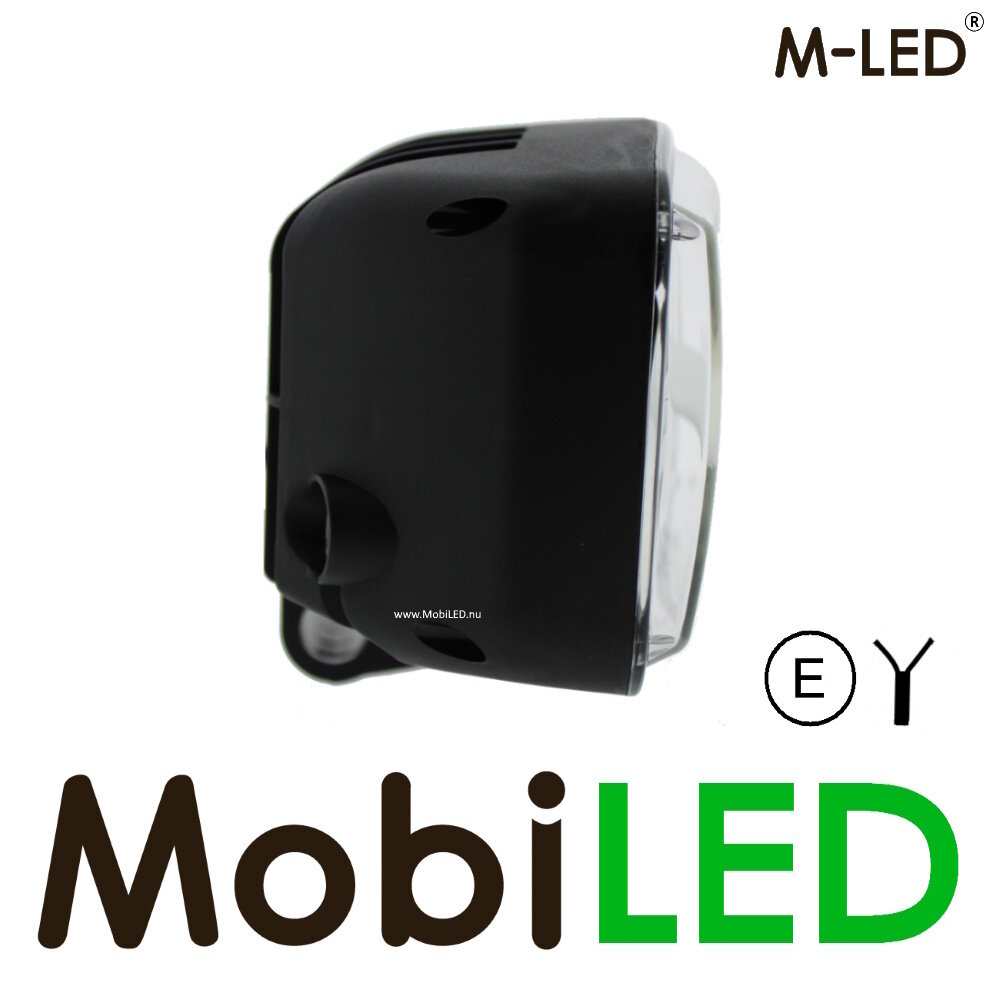

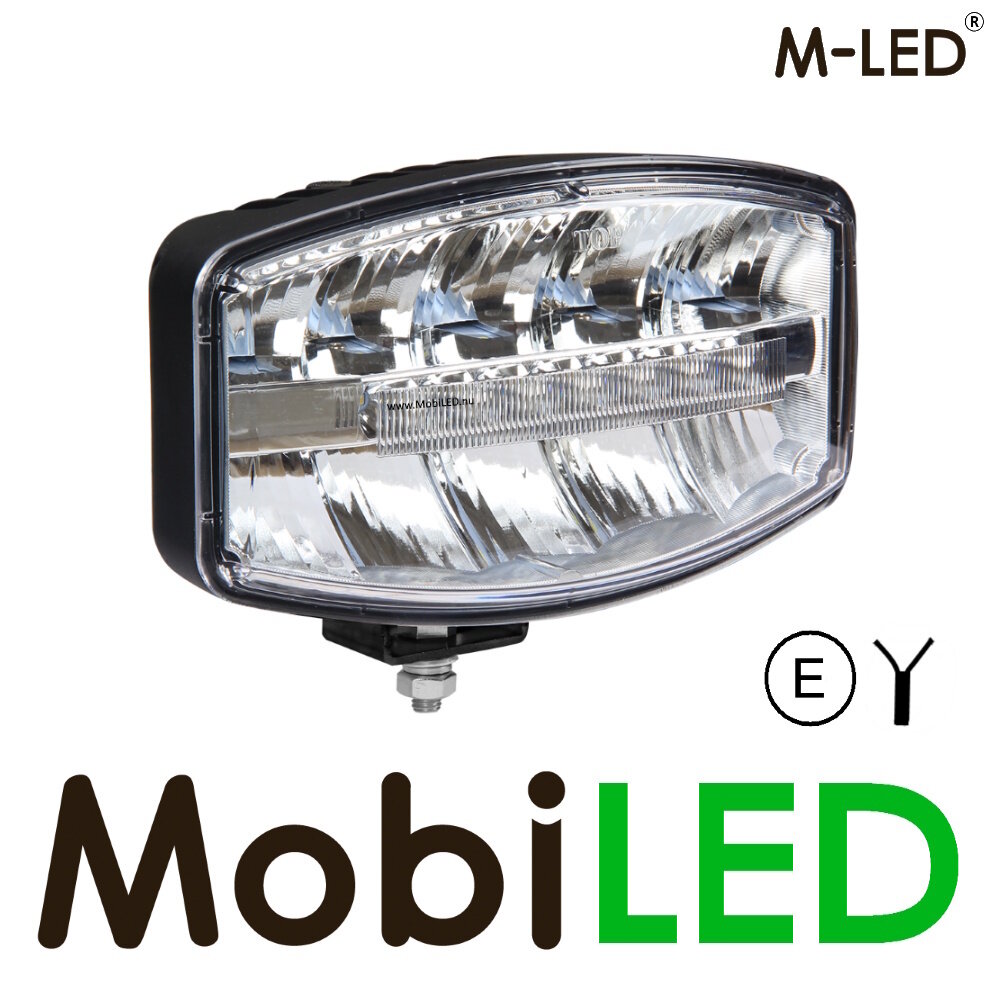

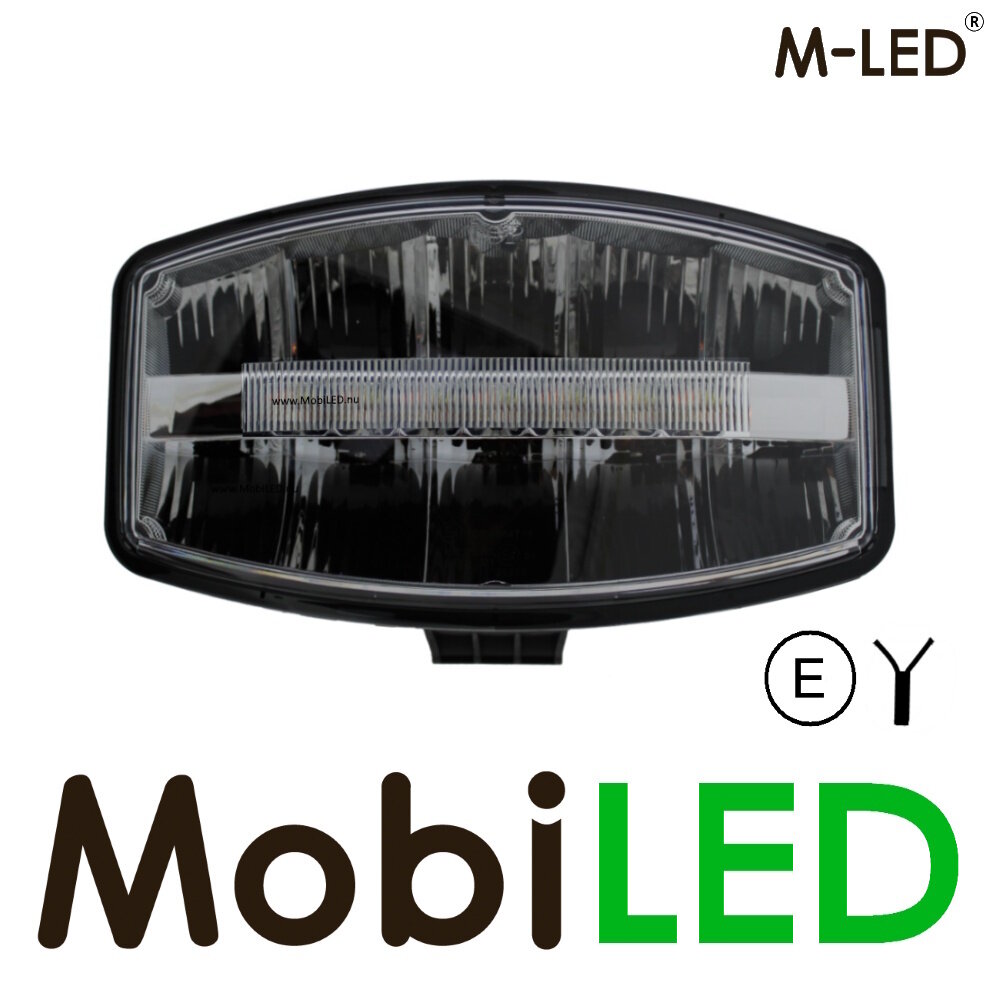

M-LED Spotlight with white/amber position light E-mark








M-LED Spotlight with white or amber position light E-approval

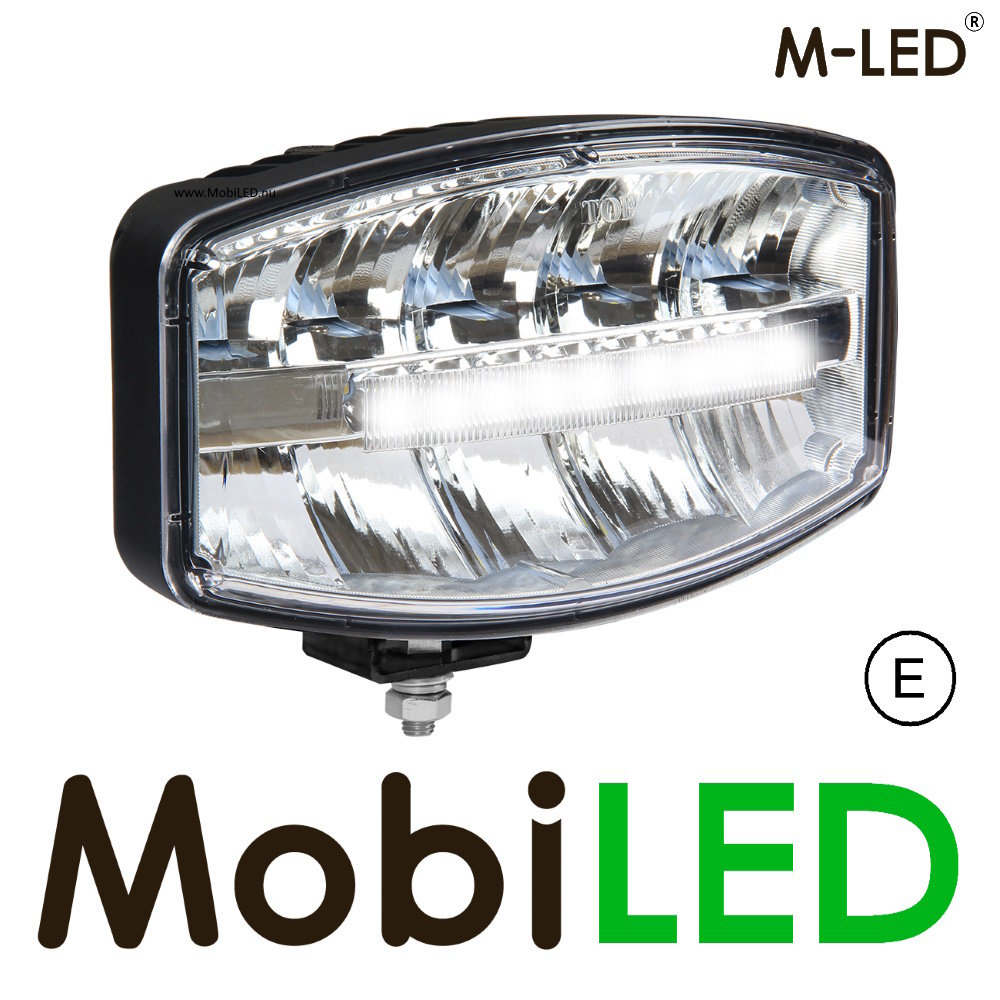

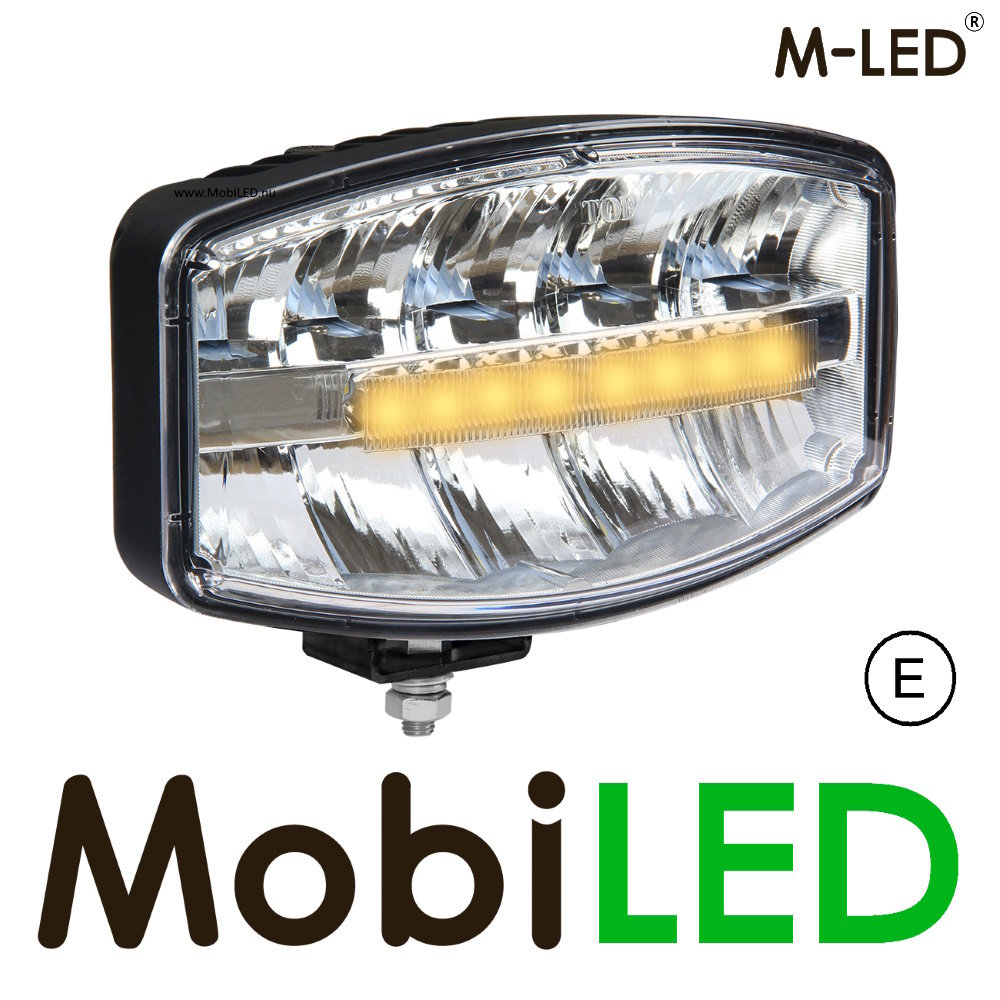

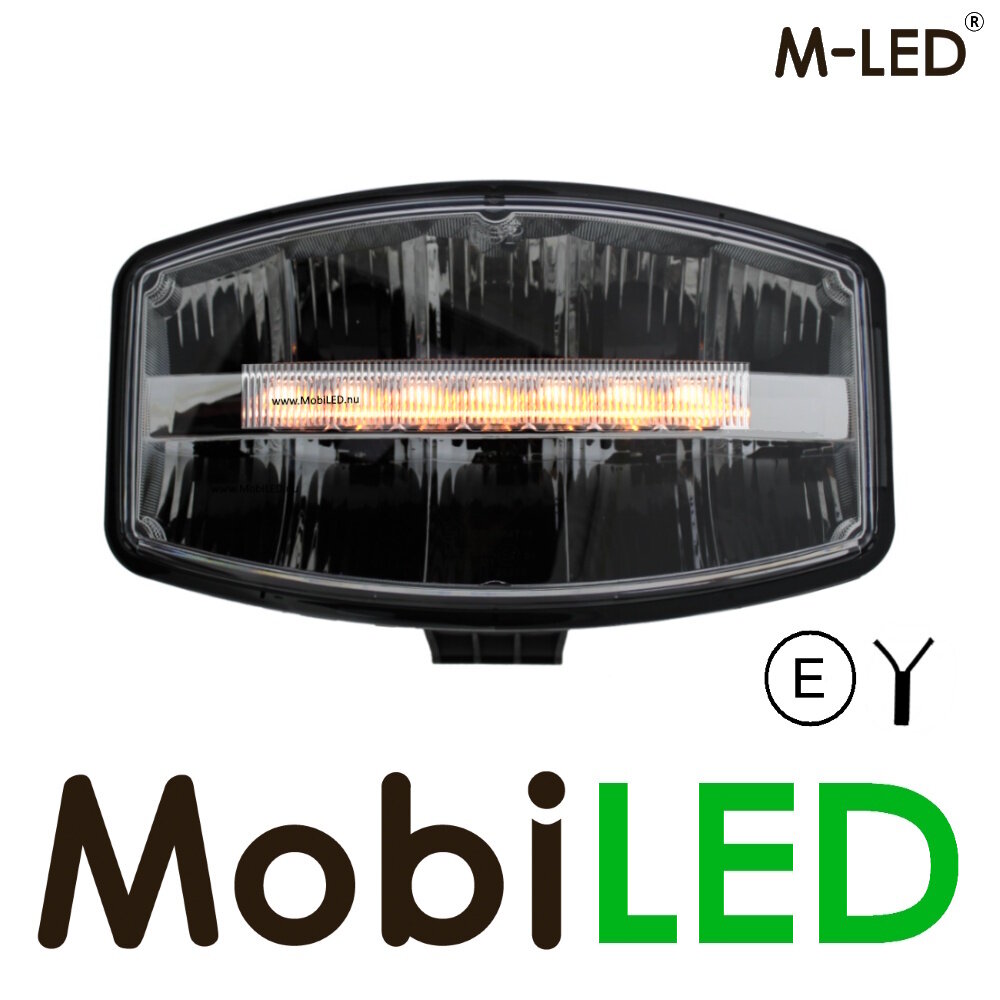

Beautifully designed high-beam unit with LED lighting from the brand M-LED. It is equipped with high beam and position light, you can choose from white and amber colored light. You will give this a lot of driving pleasure.
With its 12 LEDs of 4 Watt each, a strong luminous flux of 2100 effective lumen is created. It is, of course, multi-voltage. The lamp is fully certified with ECE R10, R112 and R7, EMC CISPR 25 class 5.
The driving lamp is made of graphene. Graphene is more than 200 times stronger than steel, an excellent thermal and electrical conductor, flexible, very thin and transparent. The lens is made of polycarbonate and the bracket for mounting is made of stainless steel.
Specifications:
- Voltage: 12-24V
- Power: 48 W
- Light output: 3000 lumens
- Color temperature: 5700-6500K
- Current at 24 V: 1.16-1.25 A, 0.025 A position light
- Number of LEDs: 12 x 4W high beam, 7 x 0.5 position light
- Water resistance: IP66 IP6K9K
- Light distance: 275 m @ 1 lux
- Lens: polycarbonate
- Housing: graphene
- Mounting: stainless steel bracket/M10 bolt/2m cable
- Dimensions: 244 x 138.4 x 110mm
- Certification: ECE R10, R112 and R7, EMC CISPR 25 class 5
Product specifications
- Article number
- VS105
