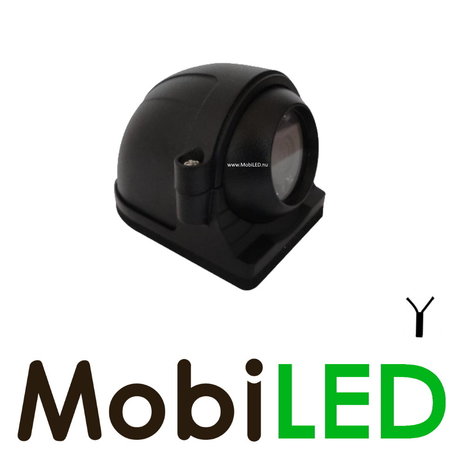

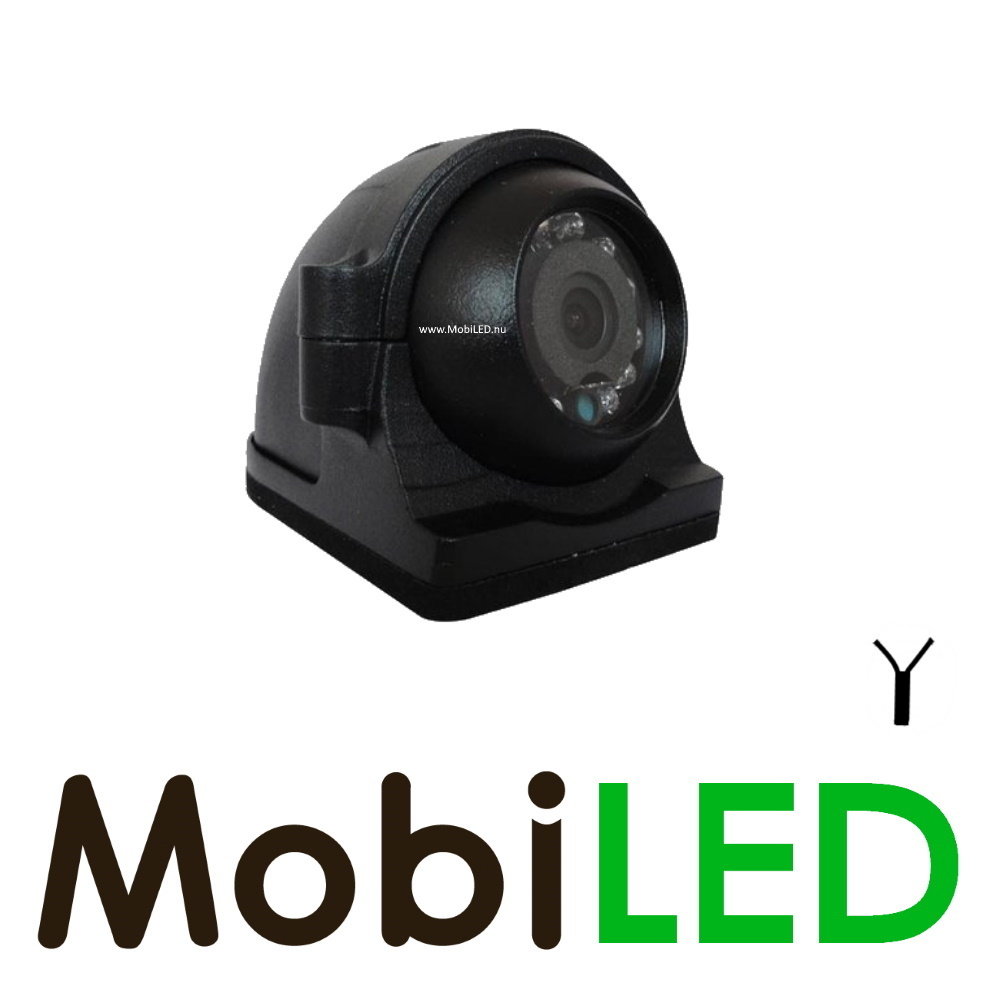

Reversing camera for side mount

This color camera is specially designed as an extension to the rear view camera sets. By mounting a second camera you have an even better view of what is going on behind your vehicle. No more surprises.

This camera can be combined with all wired screens and can be added as an extra camera to set CA001 / CA004 / CA012 / CA020.

Camera specifications:

• Voltage: 12 volts
• Operating System: CMOS
• TV: NTSC: 720 * 576, PAL: 720 * 487
• Horizontal resolution (TV lines): 550TVL
• Video output: 1.0Vpp / 75Ω
• Audio function: no
• Built-in lens: 2.5mm
• Viewing angle: 120 °
• Night vision: 10m
• Infrared LEDs: 12
• Cable connection: 4-pin
• Cable length from monitor: 550 mm
• Dimensions: 78 x 68 x 90 mm
• Water resistance: IP69
• Certification: CE
