OZZ XB1 54.4 cm dynamic start-up dual color, boost function and DRL
Where performance, design and technology go hand in hand. A solid, appealing design that feels at home on any vehicle. OZZ lamps are distinguished by the introduction of the "Dynamic" start-up. When starting the lamp, the position light goes through a pattern before it lights up completely. The position light can be switched white or amber depending on your personal style.
This lamp is equipped with a BOOST function. By activating the boost function, the lamp turns on at high power and increases the output by 50% to 150% of the normal output.
A solid aluminum housing that is neatly painted ensures sufficient cooling for this powerhouse. The front of the lightbar is made of high-quality impact-resistant polycarbonate.
A beautiful lamp that will certainly not look out of place on your vehicle.
Please note: cutting the connector will void the warranty.
Wiring connections & functions:
- Black: mass, -
- Red: connect boost function to plus (no E-mark)
- Blue: plus driving light (E-approval R112)

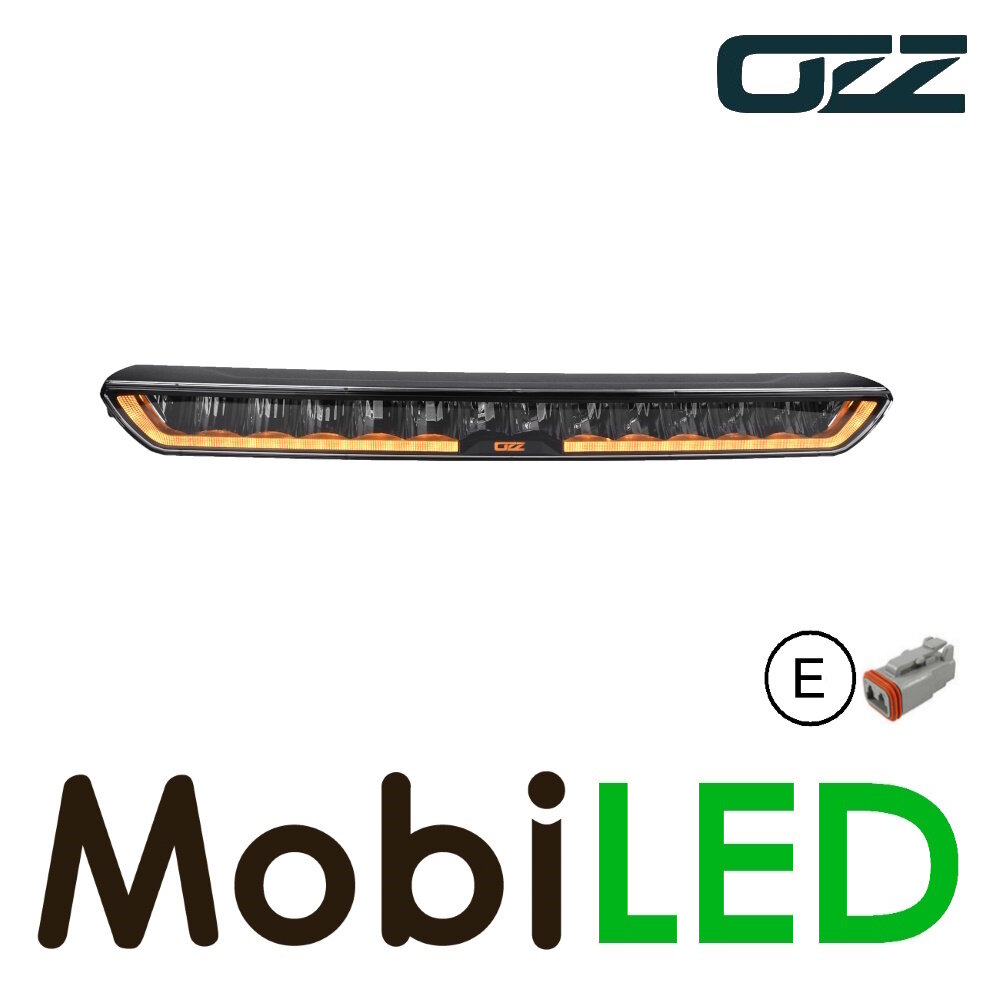

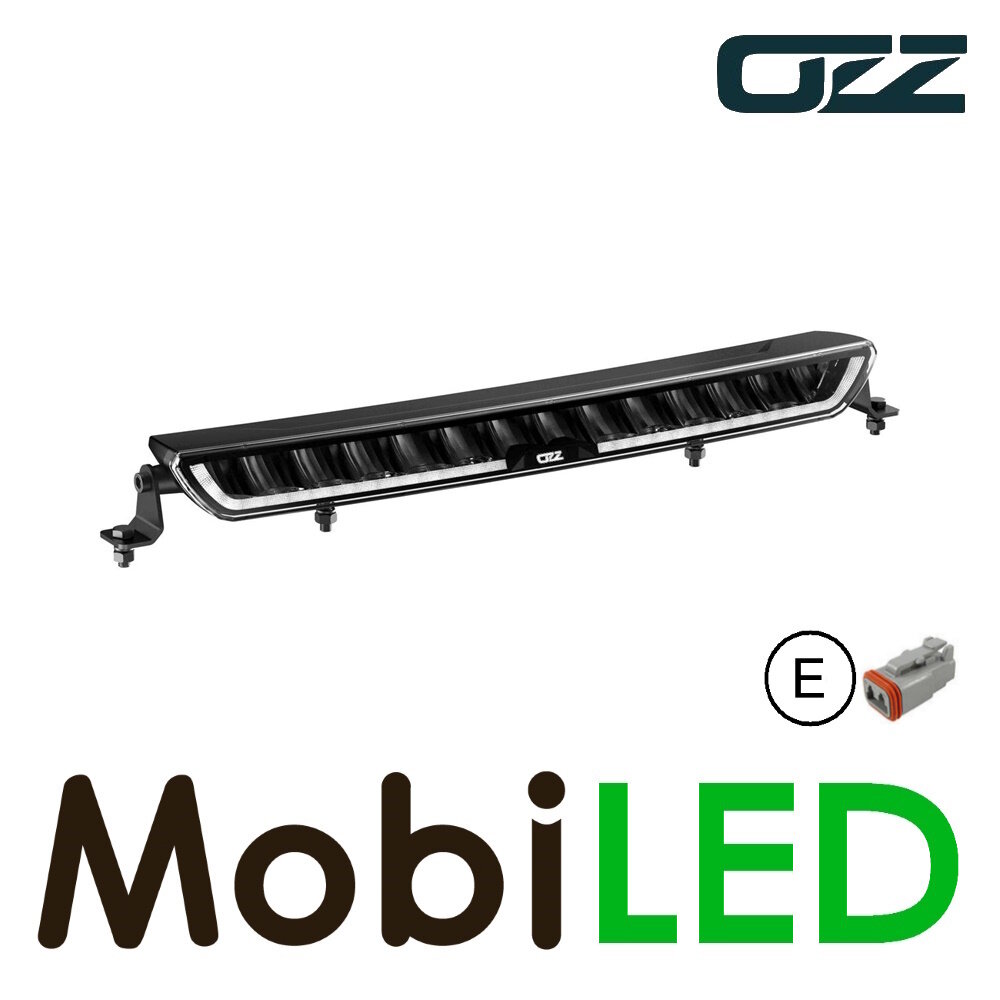

- White: plus white position light (E-approval R7)
- Yellow: plus amber position light (no E-mark)
Video:
Product specifications
- Article number
- LB383

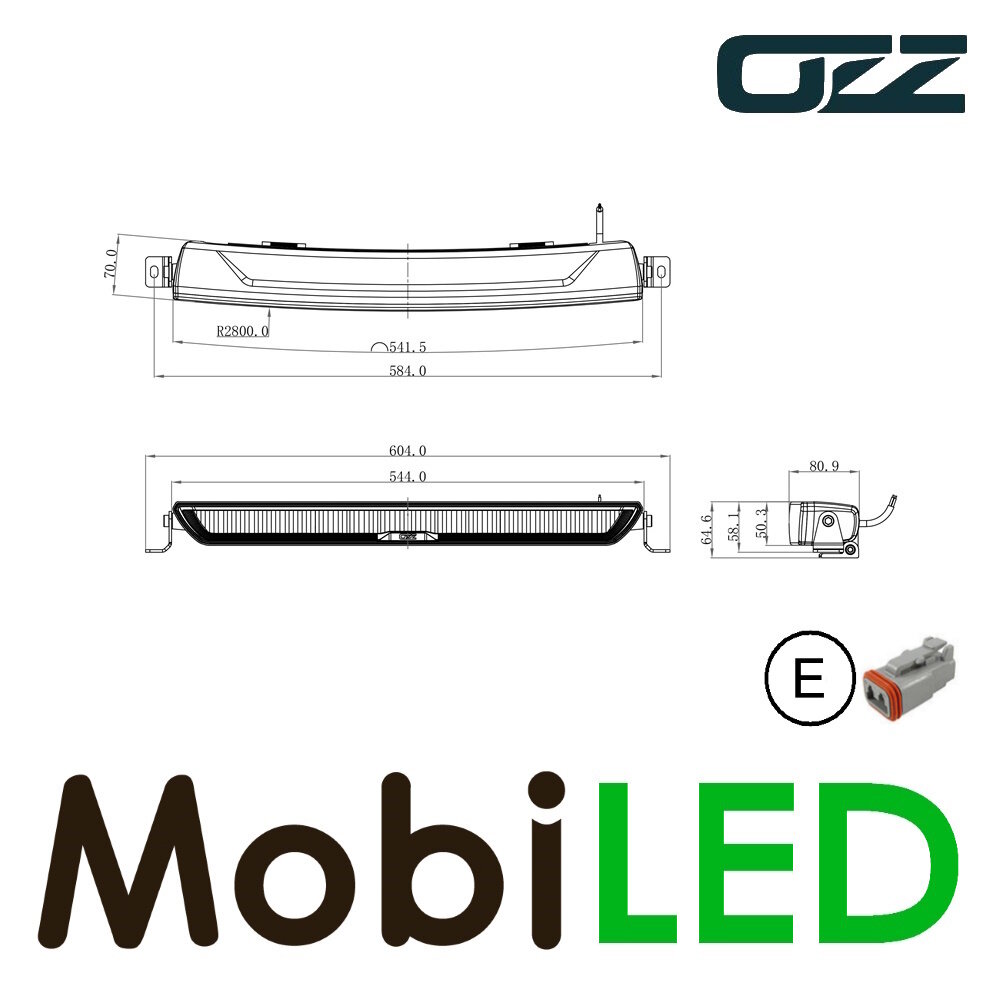

- Length (cm)
- 54,4 (+ bracket: 60,4)
- Height (cm)
- 5,03
- Height incl bracket (cm)
- 6,44
- Depth (cm)
- 8,09
- Weight (gr)
- 1580
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 140W
- Current draw
- 12V: 8,62A/24V: 4,31A
- Lumens
- 11200 (theoretical), 7000 (practical}
- Light colour
- Bright white (4500-6000K)
- Number of LEDs
- 22
- LED Type
- Osram P9 + CREE
- Position light function
- Yes, white or amber
- Light image
- Combo

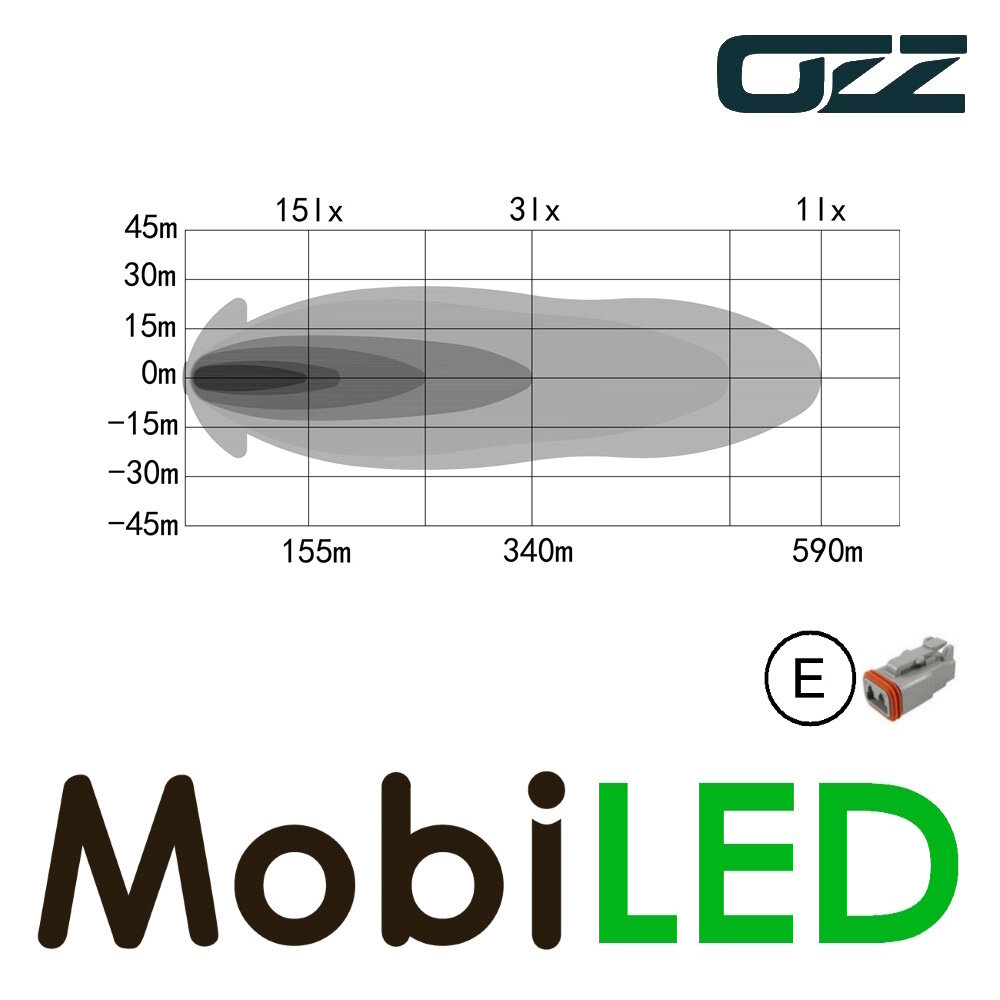

- Beam range
- 15 lux@155 m / 1 lux@ 590 m
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum
- Lens material
- PC
- Mounting bracket material
- Stainless steel

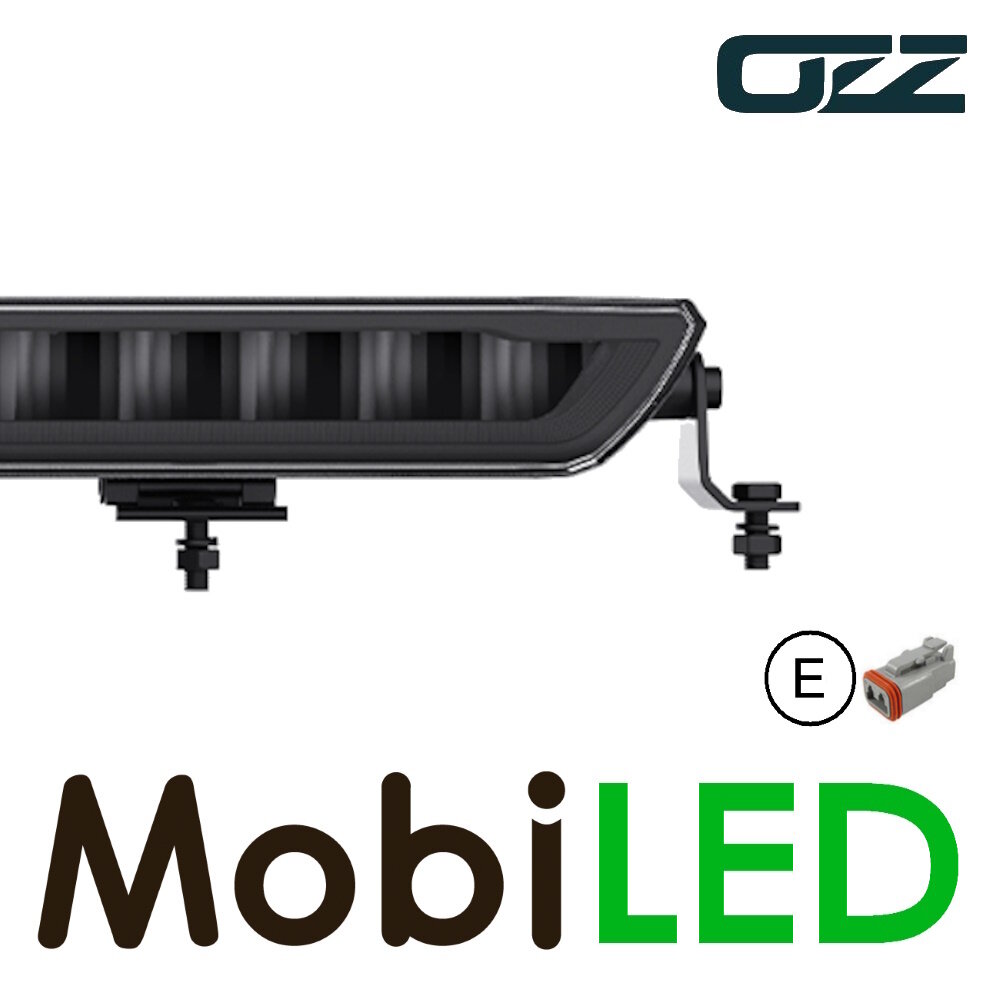

- Mounting type
- Bottom / side mounting with M8 bolt
- Connection
- DT-connector
- Cable Length (cm)
- 95
- Number of wire cores
- 5
- Operating temperature
- -40°C - +60°C
- IP rating
- IP68 & IP69K
- Certification
- ECE R10, R112, R7
- Packed per
- 1
- Manufacturer article number
- 7333213101497 / 88201
