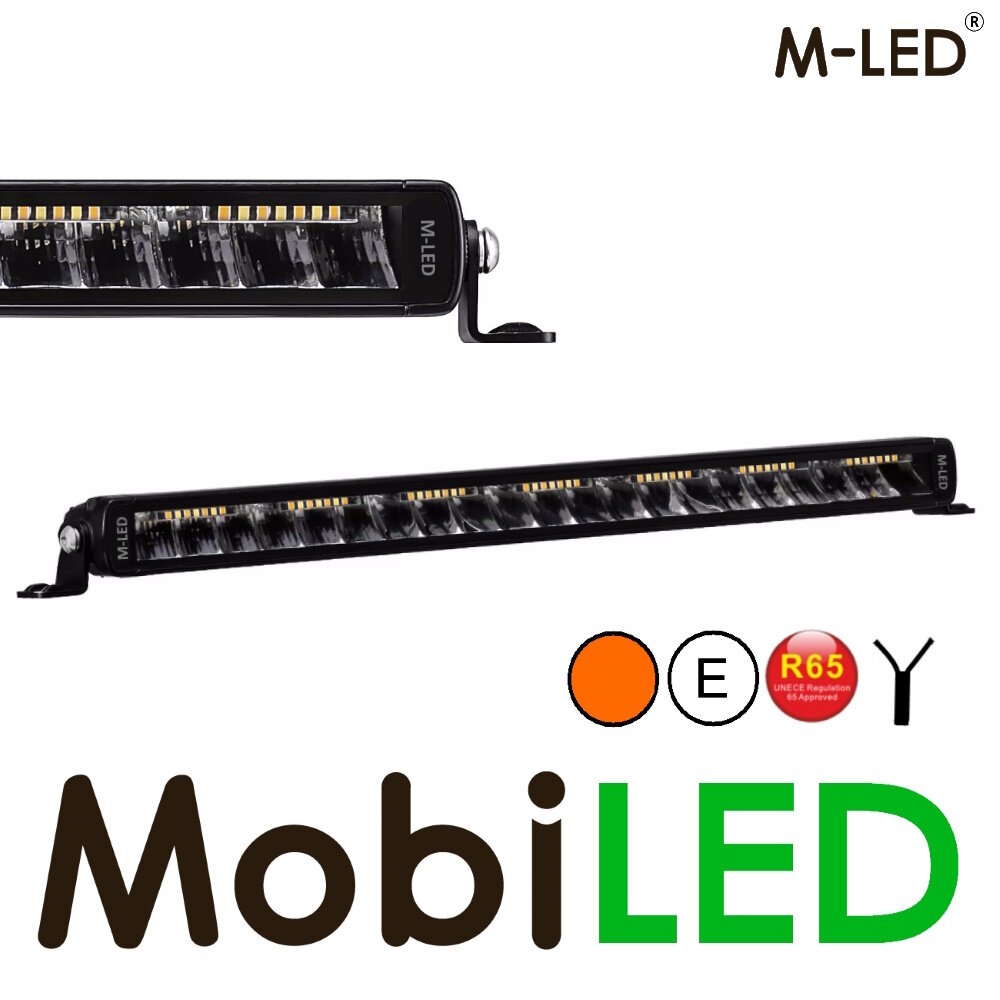

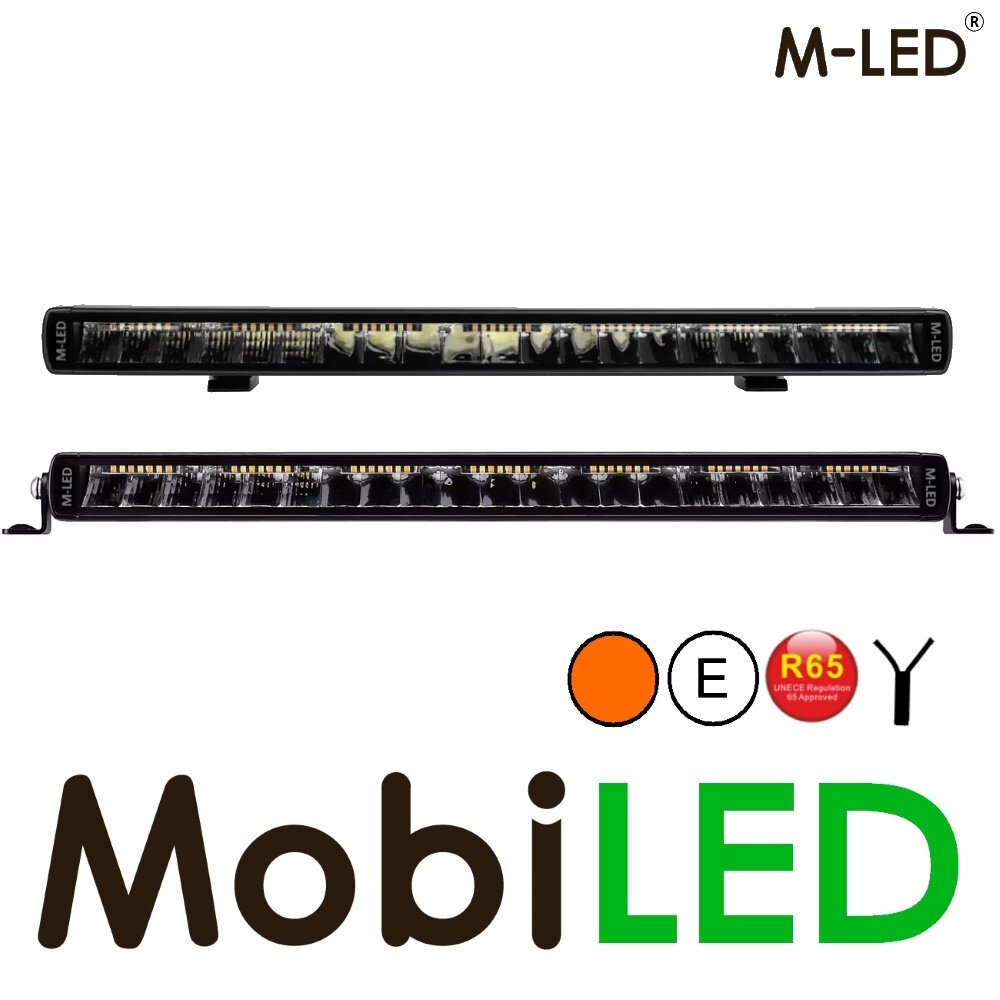

M-LED Sergeant Specialist full options - Combo Beam - R112/R7/R65

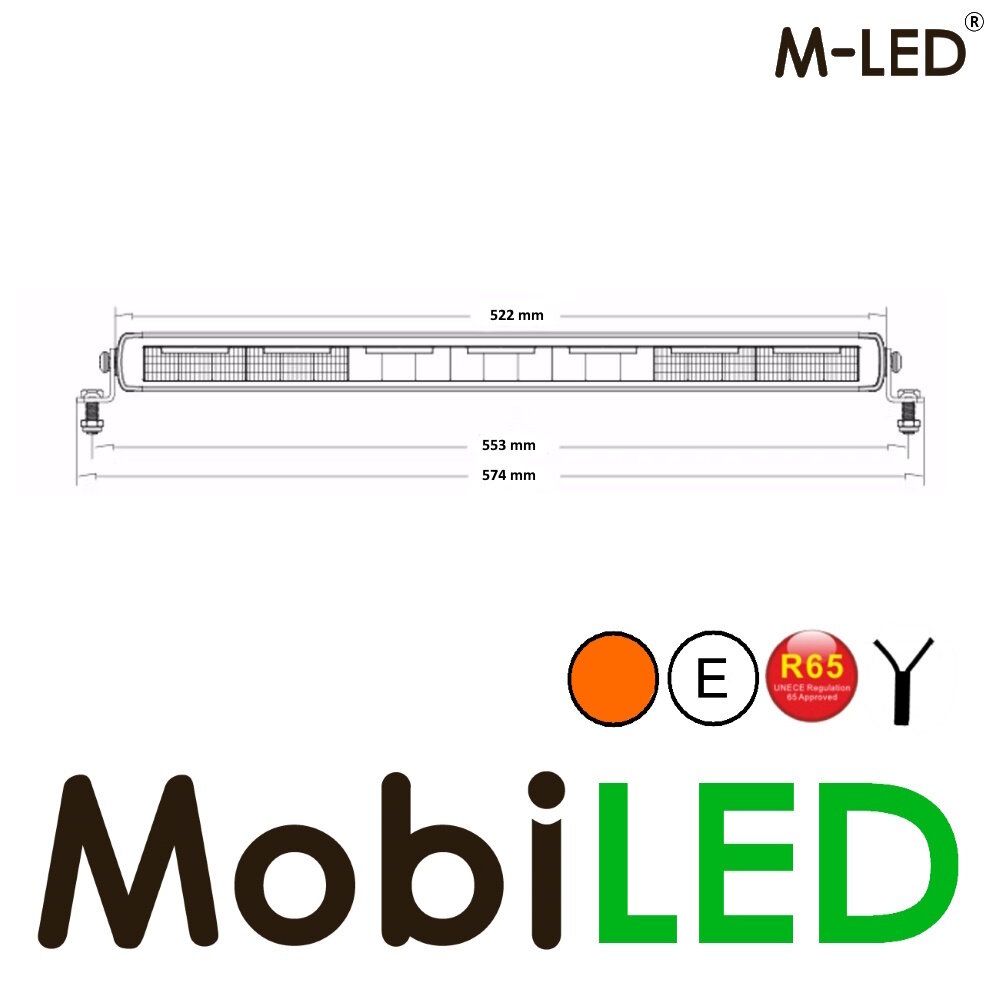

The M-LED Sergeant specialist is a 20 inch (52 cm) long full options LED bar and the latest development in the field of LED bars. The LED bar has a beautiful slim design and is equipped with a smooth seamless dark look front. Thanks to this finish, called Edge-less, dirt is less likely to accumulate because it cannot adhere properly. This will keep you in good light for longer.
The Osram LEDs have a high light output and provide a bright white light. The bar has the following functions:

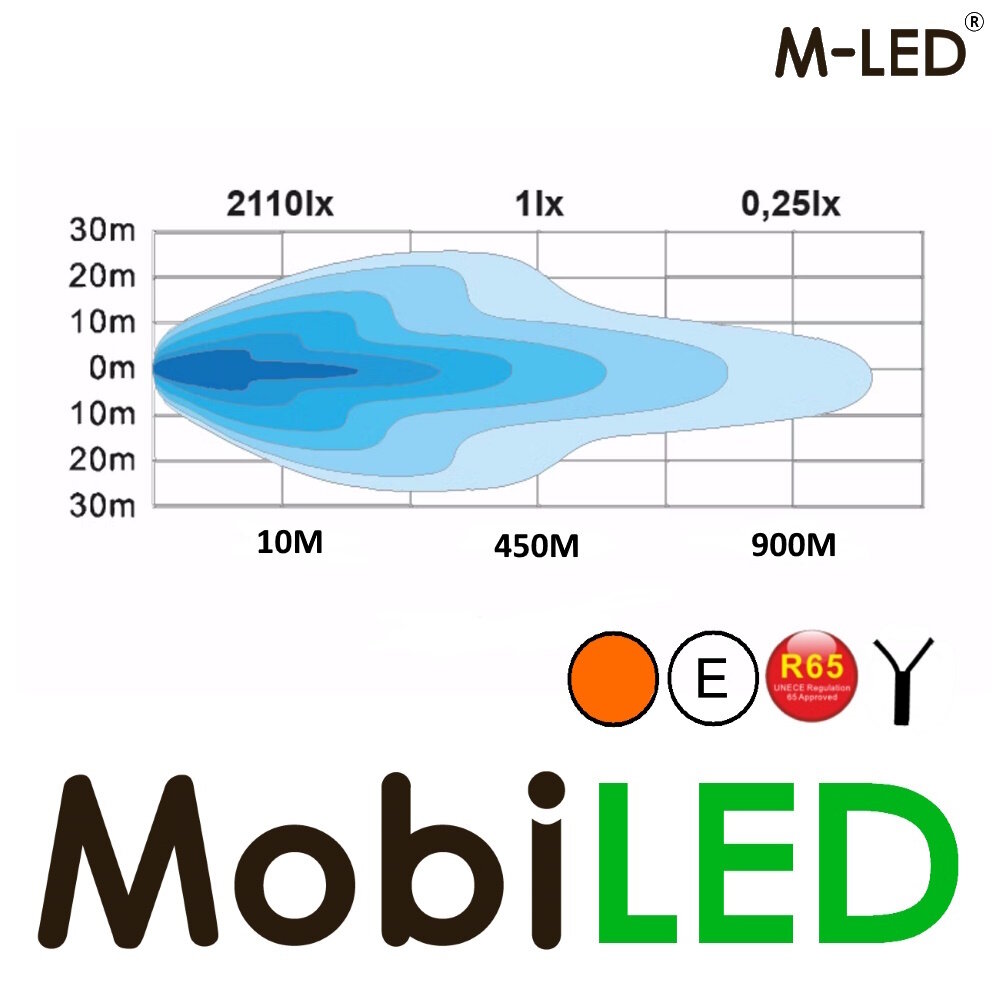

• High beam (E-mark R112)

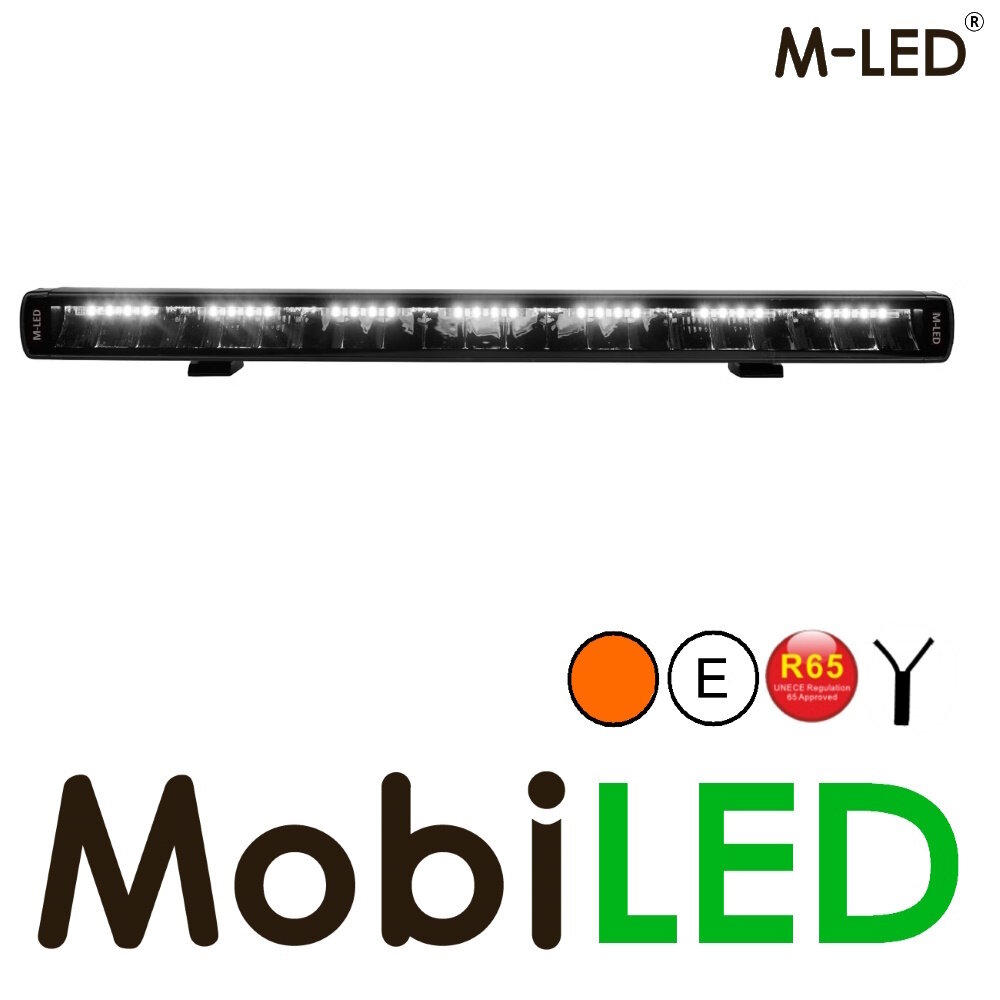

• Position light White (E-approval R7)
• Position light Amber (no E-mark)

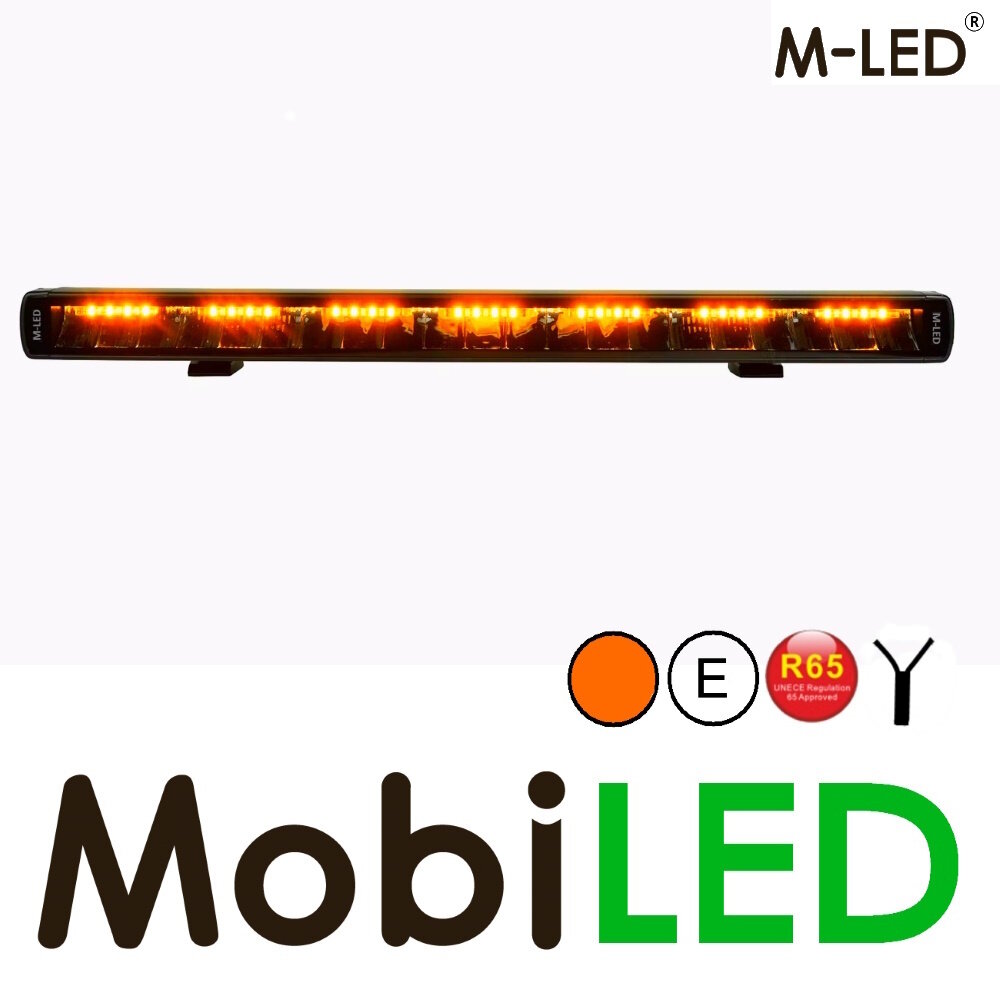

• Amber flashes (E-mark R65)

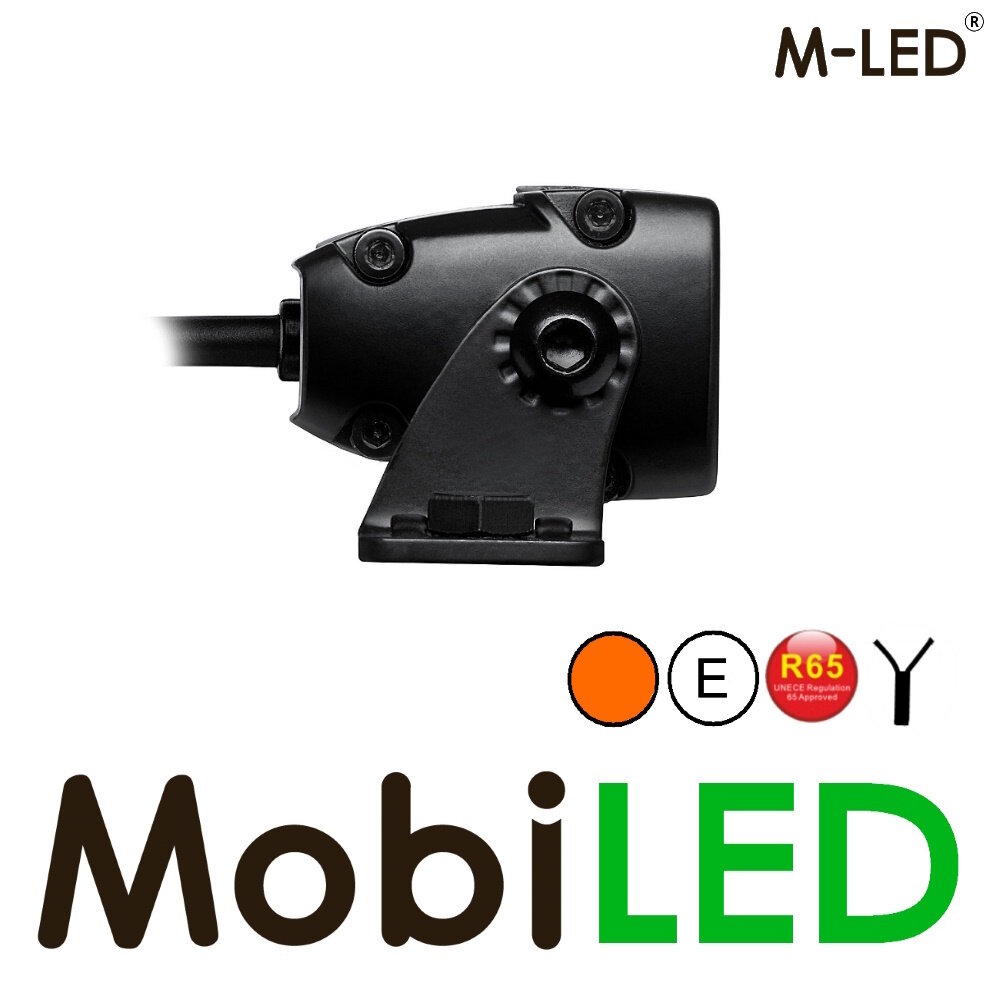

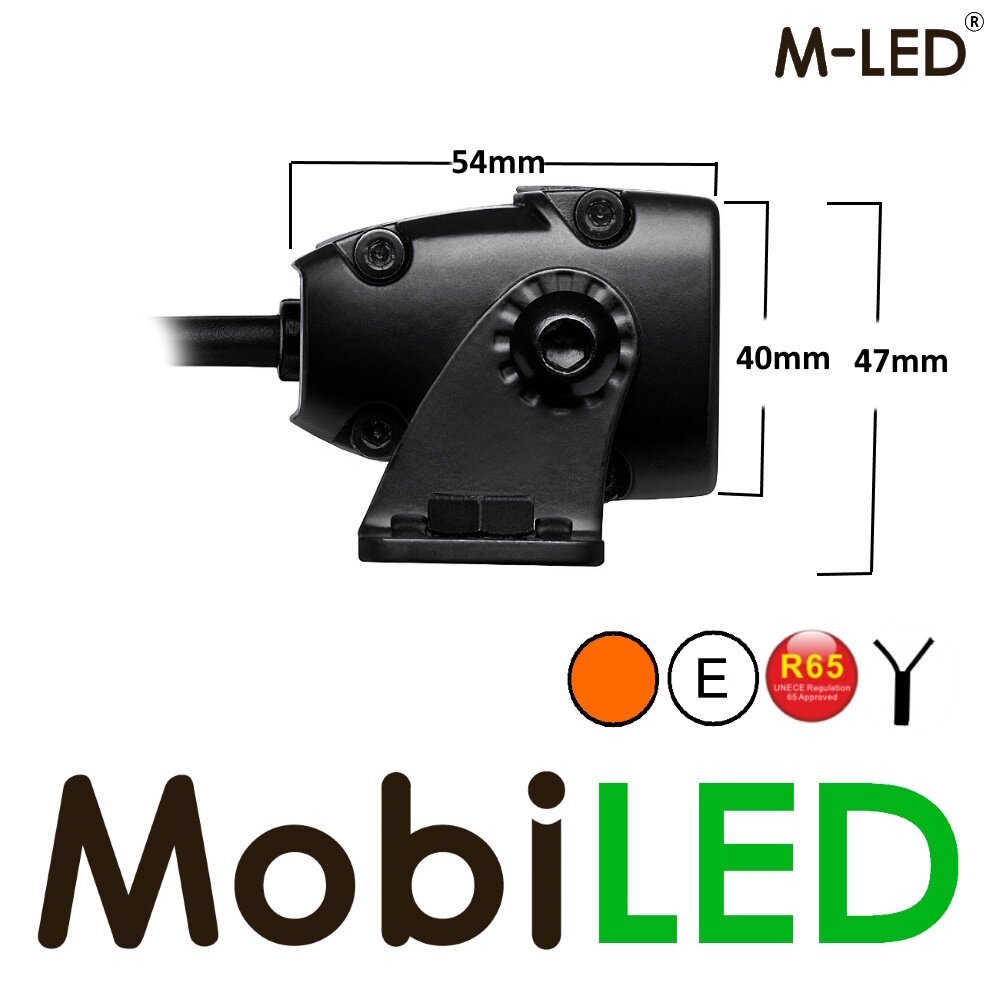

The bar is supplied with 2 sets of mounting brackets as standard. Side supports so that the bar can be hung upright or mounted at the rear. Supports for top or bottom mounting. These can be slid along the length of the bar for easy installation in new or existing holes.

Connection diagram:

• Black: - Earth
• Red: + LED bar
• Yellow: + amber position light
• Grey: + white position light
• Green: + amber flash
