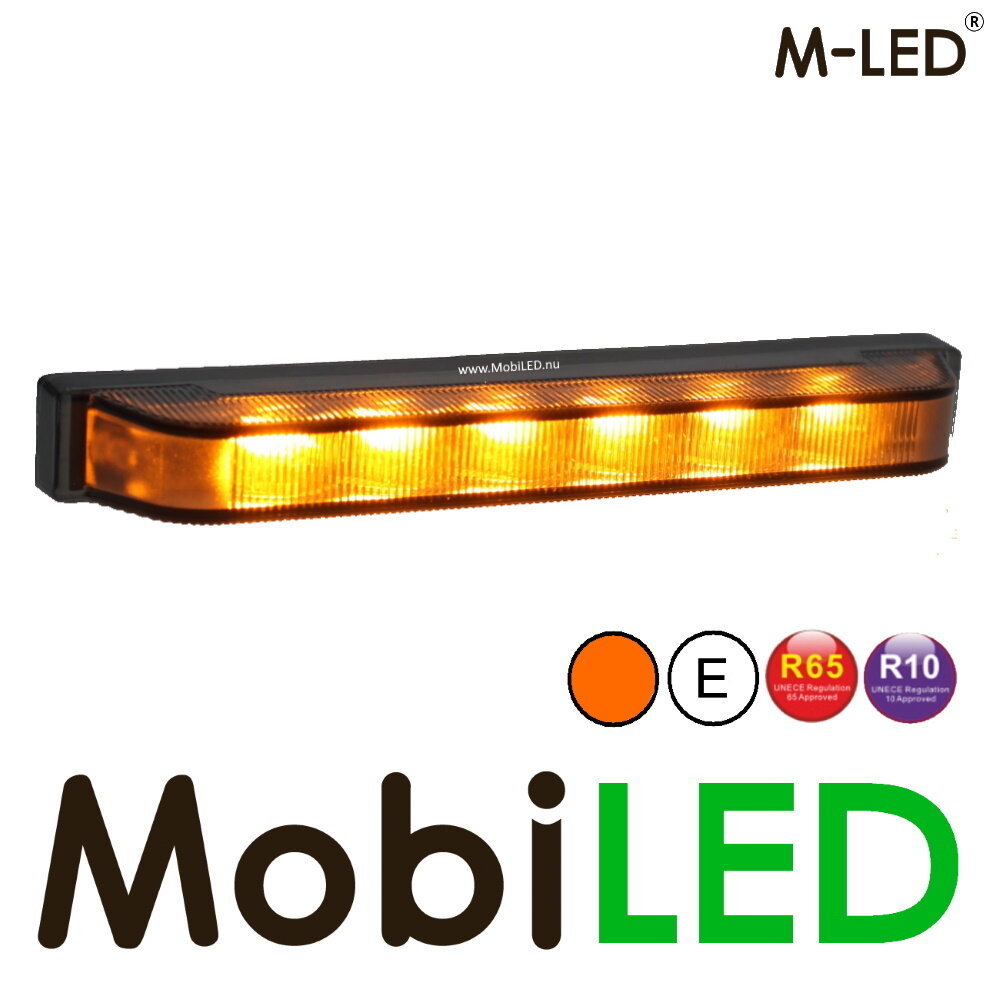

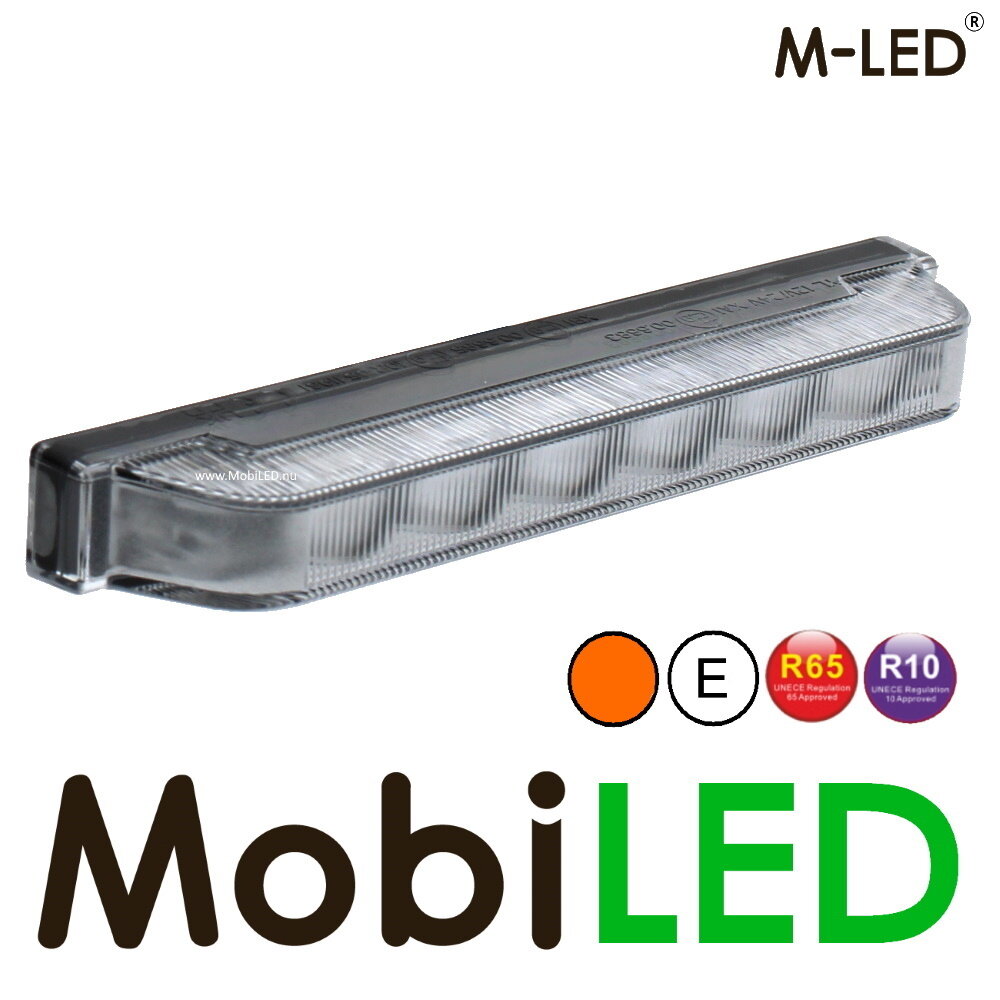

M-LED Ultra narrow flasher amber 6 LEDs E-mark

This is an ultra narrow grill flasher. The flasher is amber in color and ECE approved in R65 class 1. It has 6 LEDs and 22 different flash patterns, including continuously on. There are several mounting methods. It can be synchronized with up to 14 other flashers. Moreover, it is equipped with a memory function.

Specifications:

• Voltage: 12-24 V multi-voltage
• Number of LEDs: 6
• Flash patterns: 22
• Dimensions: 135 x 14 x 25 mm
• Certification: E-mark R10, R65
• Rating: IP67/IP69K

Flash patterns:

1. Single
2. Single slow
3. Double
4. Double slow
5. Triple fast
6. Quadruple fast
7. Quadruple slow
8. Octuple fast
9. Octuple slow
10. Twelvefold
11. Sixteen times
12. Single split
13. Double split
14. Quadruple split
15. Eightfold split
16. Single split accelerated
17. Double split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Continuously on
22. #18,19,20 and 21 without change

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection with black for low intensity
• Yellow: pattern selection and synchronization
