Strands FOR9T Scale position light Amber 10-40 volts






The Scale position light creates a new look for your vehicle. The lines of the position light are hidden in the dark lens (smoke look) and become visible when activated. The light frame of the edge light is stepped. From the edge of the frame to the center of the extreme light, the height difference is approximately 10 mm. The FOR9T hexagon pattern in the lens gives an extra boost and a surprising look.
The light works on 10-40 Volts, making it compatible with almost all vehicles. It is also E-approved according to ECE R148 (R91). The FOR9T Scale complies with the EMC certificate ECE R10.
The FOR9T Scale side marker is easy to install thanks to a 5 meter cable. The housing is made of high-quality, corrosion-free polycarbonate and is IP-rated IP67, so you can be sure that it will be a lasting addition to your vehicle. To protect your product and the surface of the vehicle, we recommend using the included EVA pad during installation.
Product specifications
- Article number
- ZM410

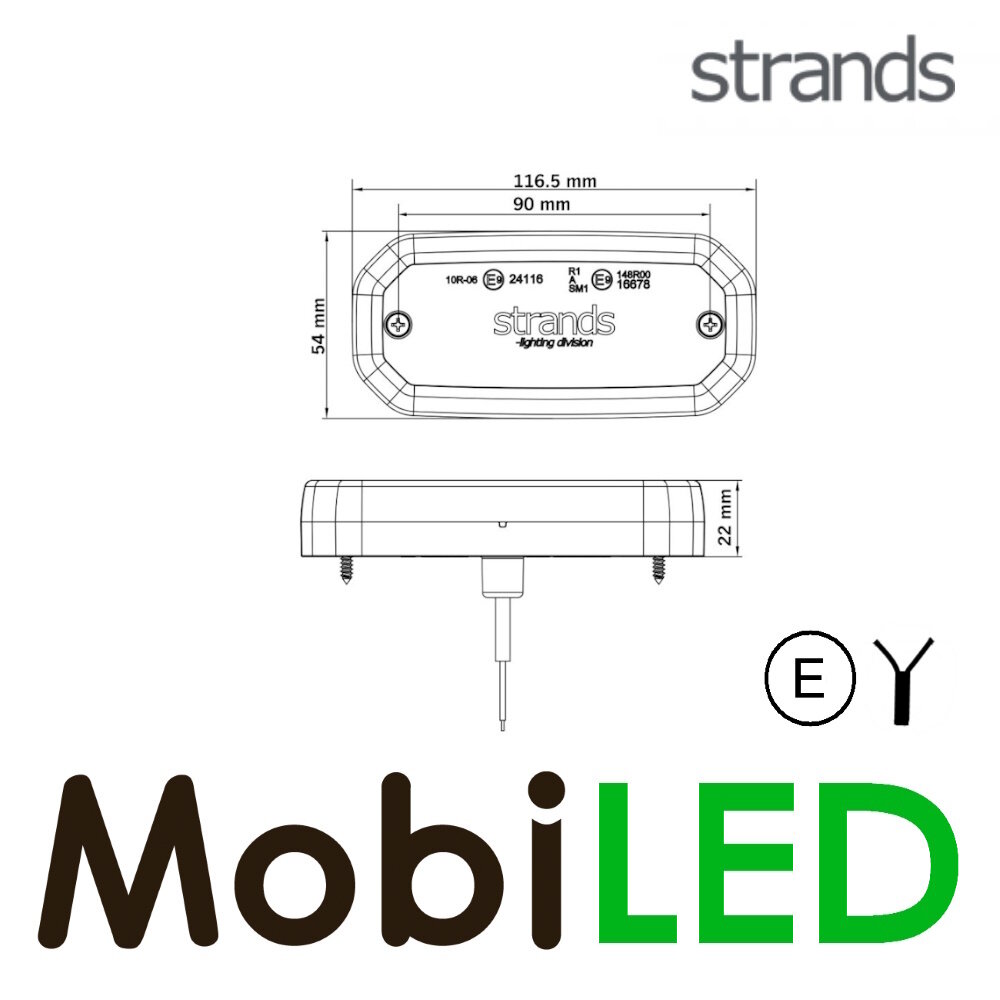

- Length (cm)
- 11,65
- Height (cm)
- 5,4
- Depth (cm)
- 2,2
- Shape
- Elongated
- Tension
- 10-40V
- Light colour
- Amber
- Number of LEDs
- 58
- Lens material
- PC
- Lens colour
- Dark
- Housing material
- PC
- Mounting type
- Screw
- Mounting options
- Flat mounting
- Bolt spacing / bolt size (cm)
- 9
- Connection
- Cable
- Cable Length (cm)
- 500
- Flush-mounted / surface-mounted
- Surface-mounted
- Operating temperature
- -30°C - +65°C
- Certification
- ECE R148 (R91), R10
- IP rating
- IP67
- Vehicle side
- Side
- Position light function
- Yes
- Packed per
- 1
- Manufacturer article number
- 850452
