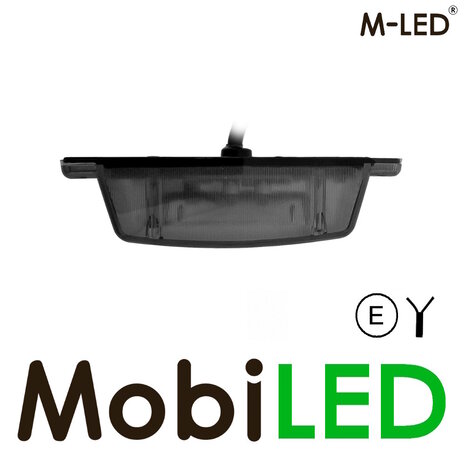

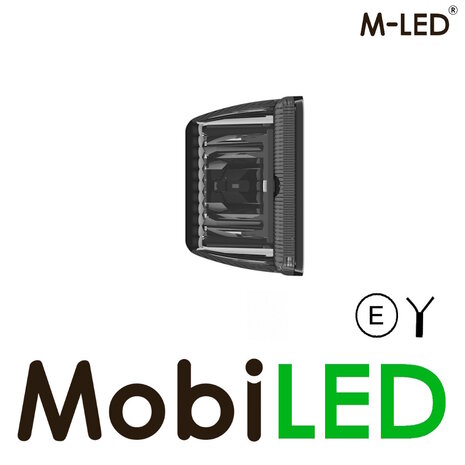

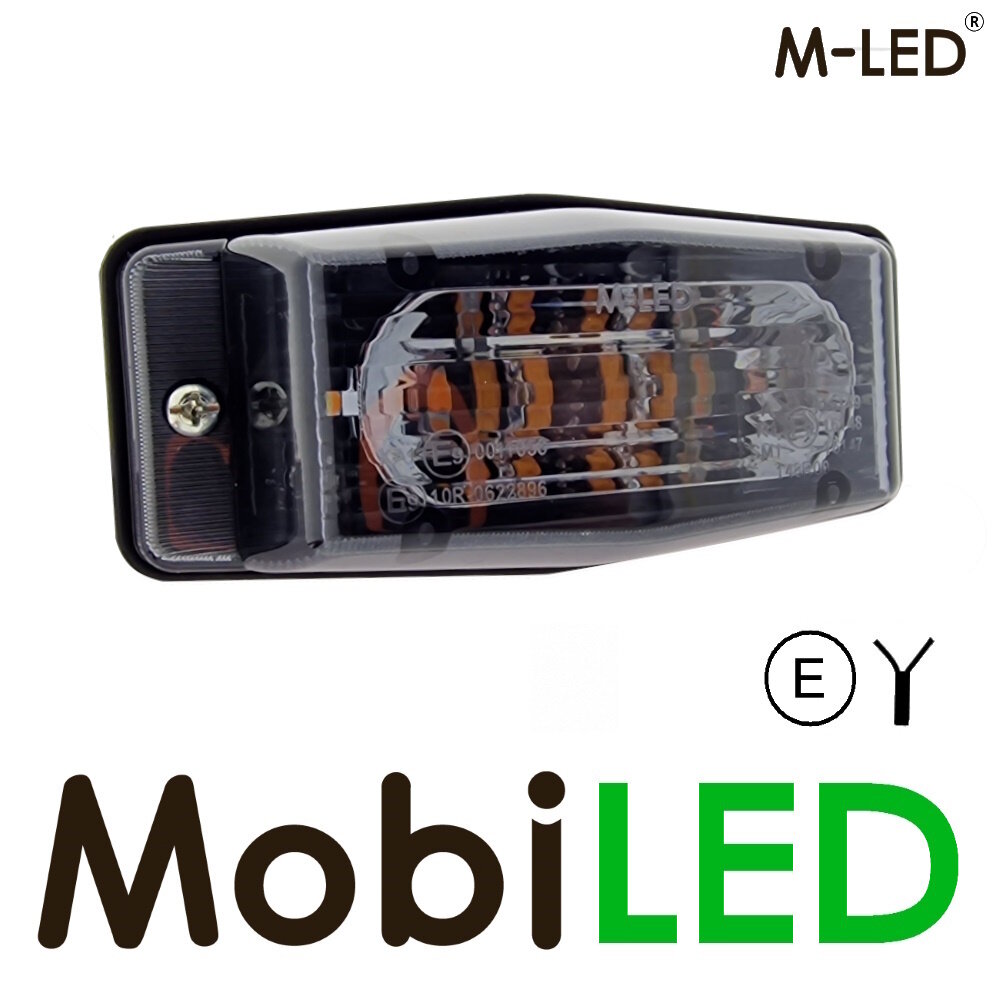

M-LED Double Burner amber/white classic style smoke lens

The M-LED double-burner: classic elegance combined with modern functionality.
MobiLED developed the M-LED double-burner at request of oldschool purists. The characteristic and recognisable look of the halogen double-burner in a contemporary LED version, without making concessions to the well-known luminous pattern. By keeping the same mounting dimensions as the halogen version, it can be replaced one-to-one by the M-LED double-burner.
Of course, this double-burner is suitable for 10 to 30 volts. Replacement for Hella ref. 2BM 001 321-001.

Features:

• Dual functionality: a powerful double-burner in a compact design. This saves space on the vehicle as well as in the warehouse.
• Classic look: classic duo-lamp design with the advantages of modern LED lighting.

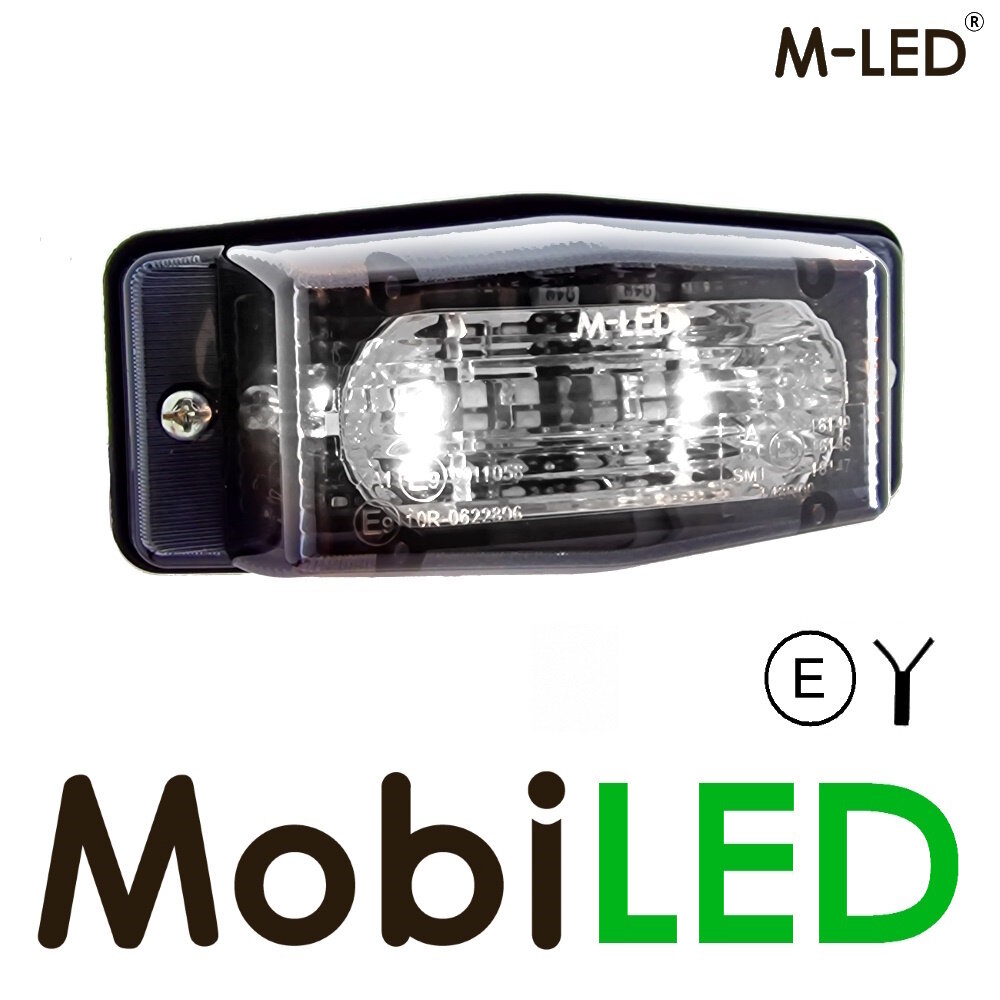

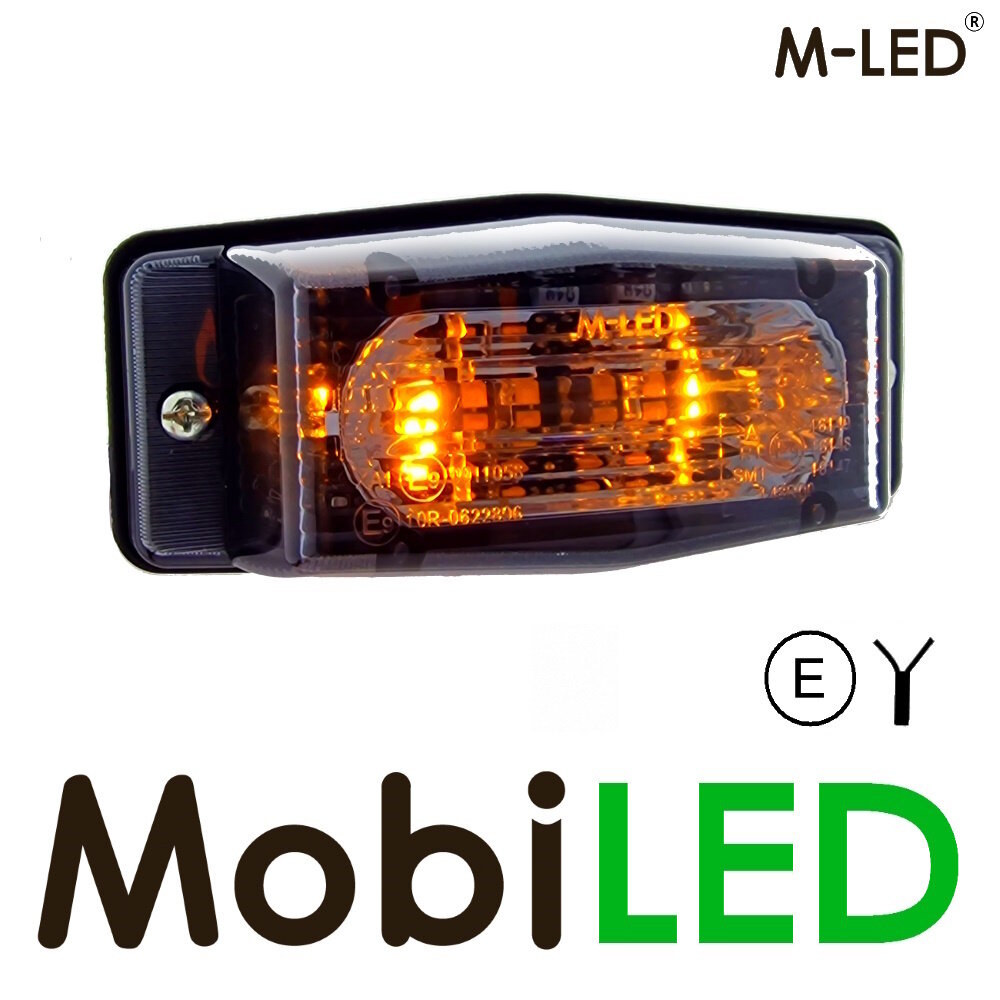

• Two-colour marker light: switch from bright white to warm orange marker light on the fly.
• Maintenance-free: no hassle of replacing bulbs thanks to long-life LED technology. The housing is sealed off so the inside does not corrode.

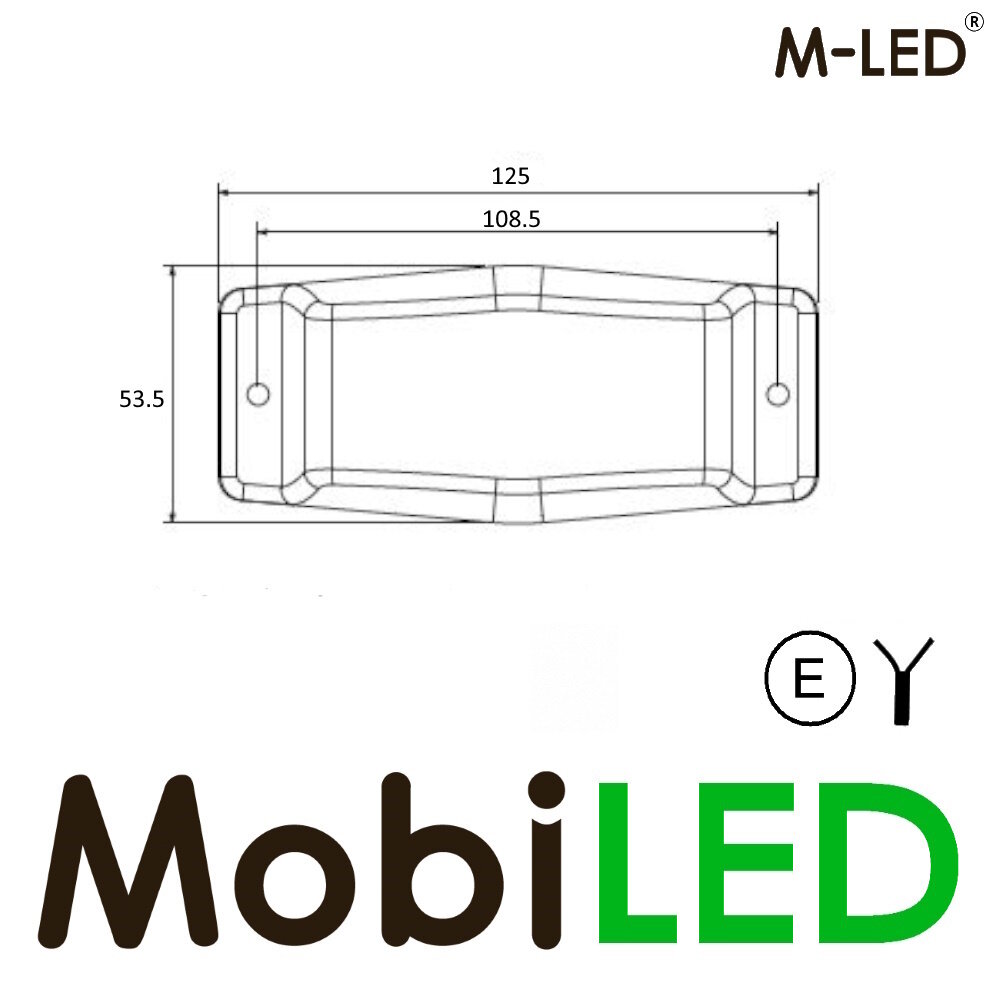

• Quick installation: thanks to the same dimensions as the old duo lights, the M-LED double-burner can be installed in a jiffy. Supplied with two metres of cable as standard.
• Fully certified: amber and white position light, strobe and radio interference suppression.

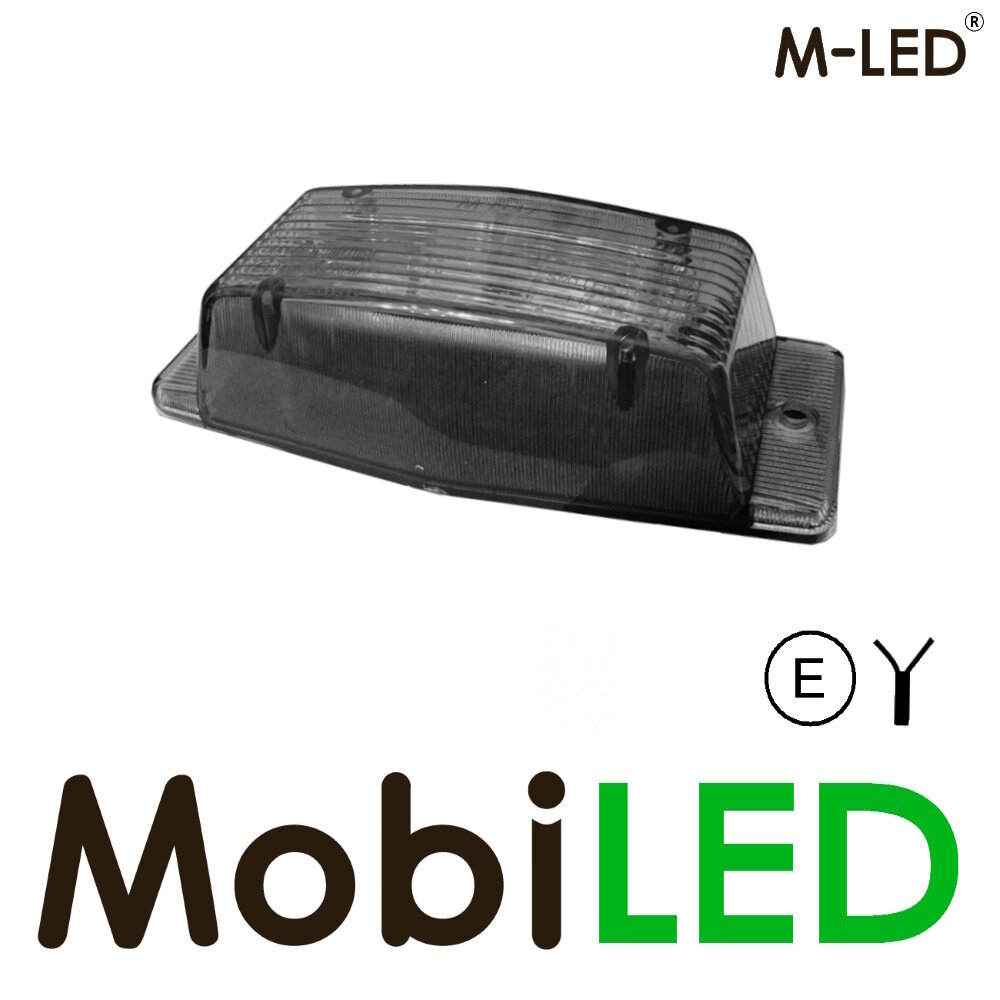

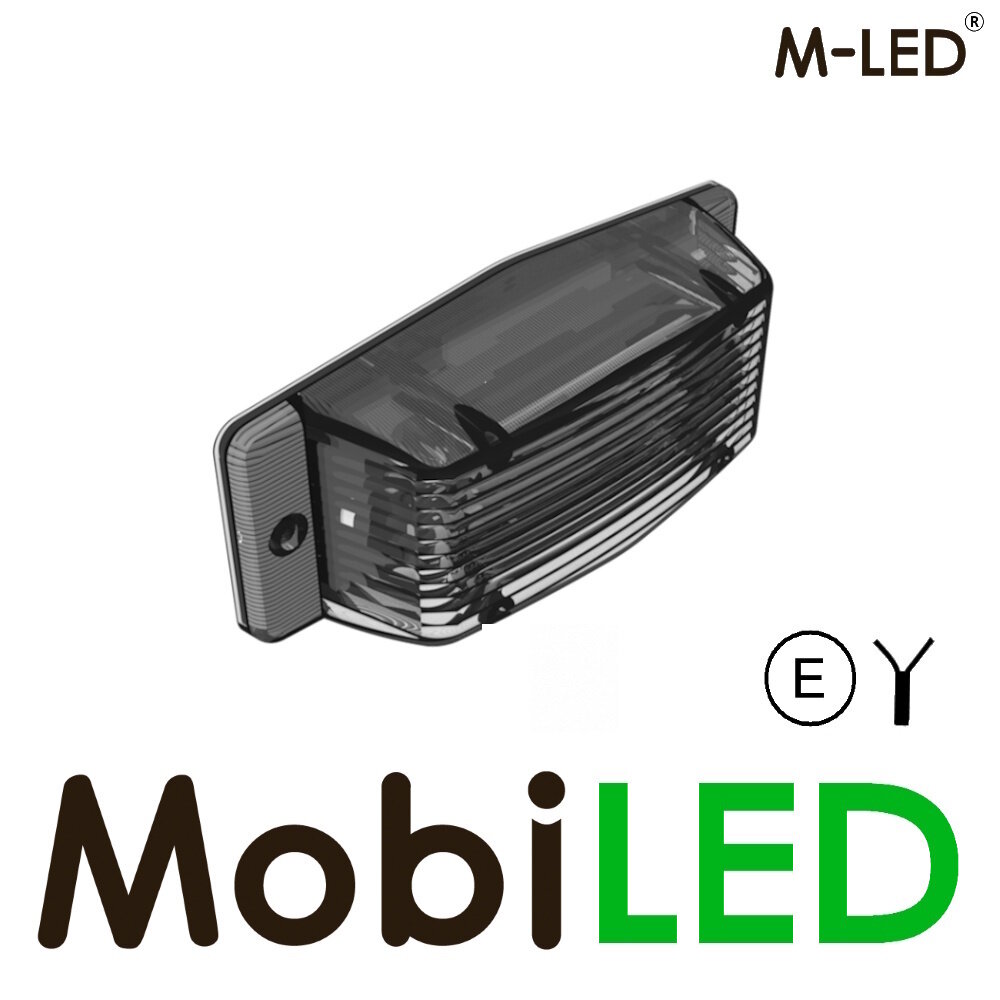

The M-LED double-burner is available in different versions. This is the version with a dark lens (smoke) and white/amber position light.

Connection diagram:

• Black: mass
• Green: amber position light
• Orange: white position light
