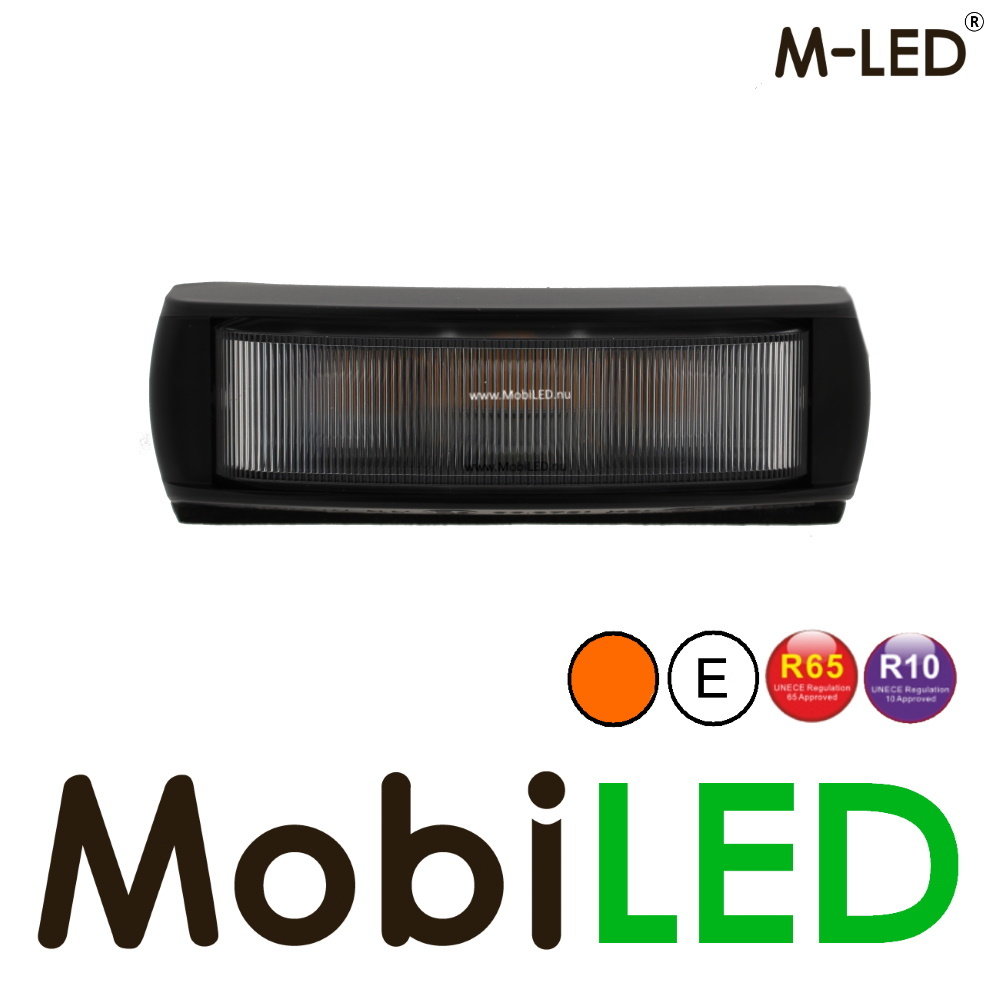

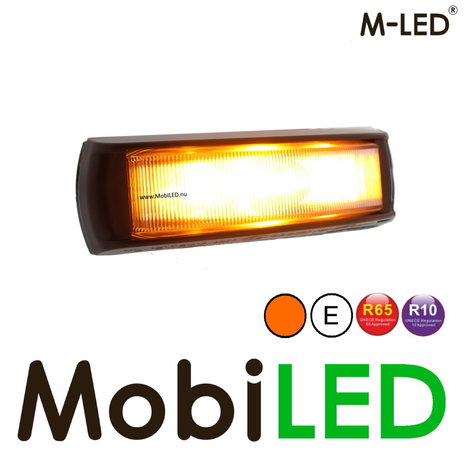

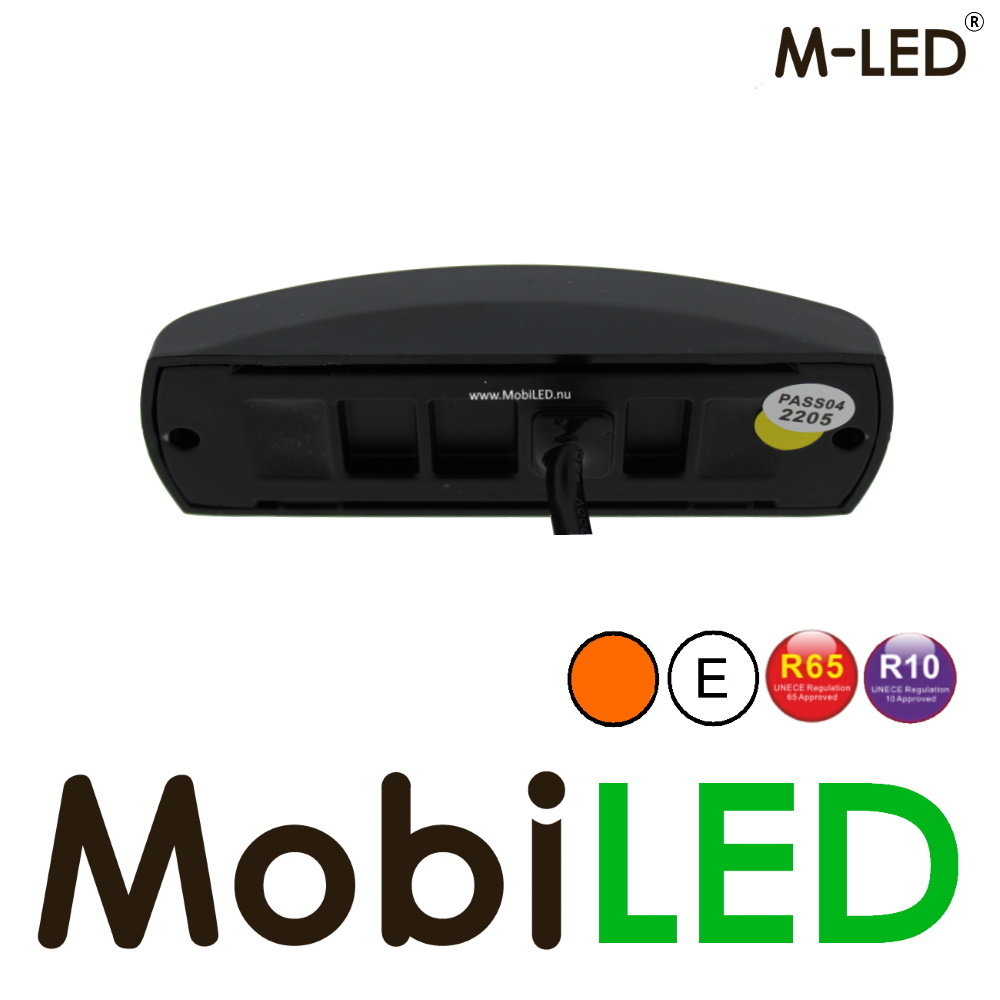

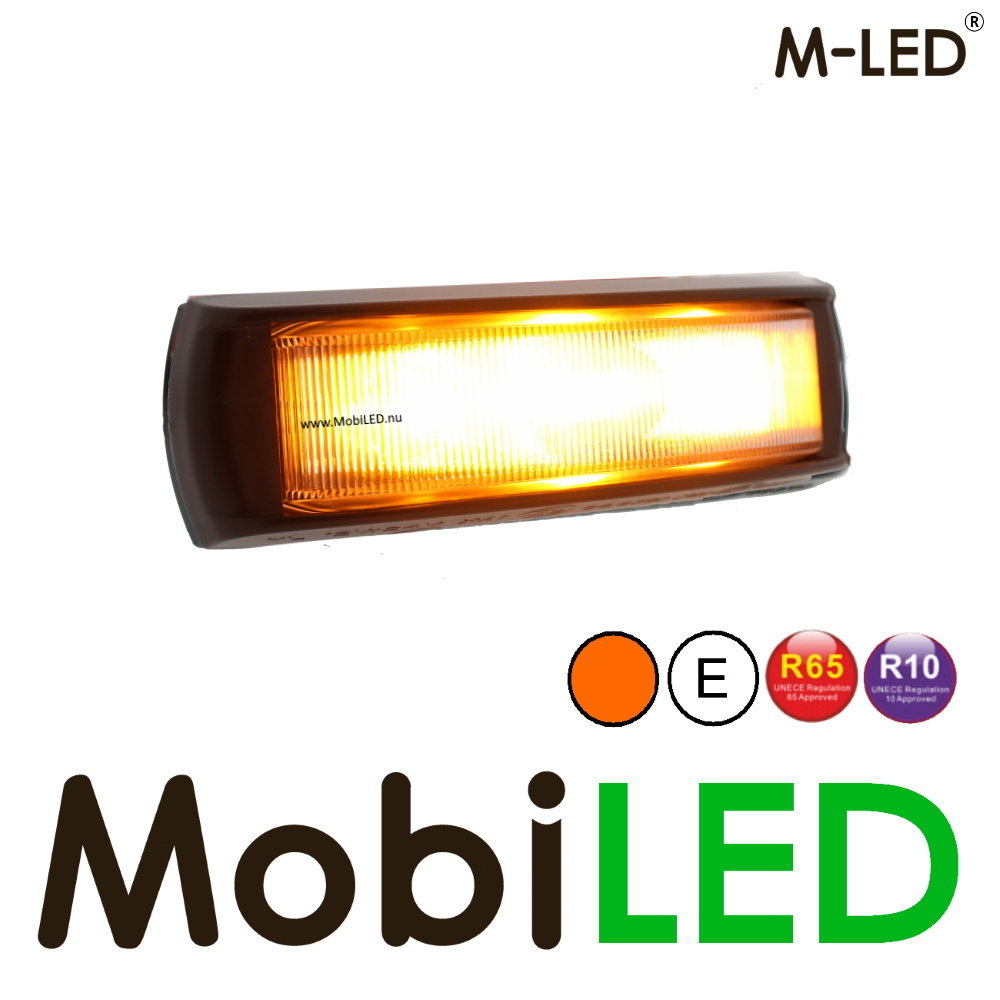

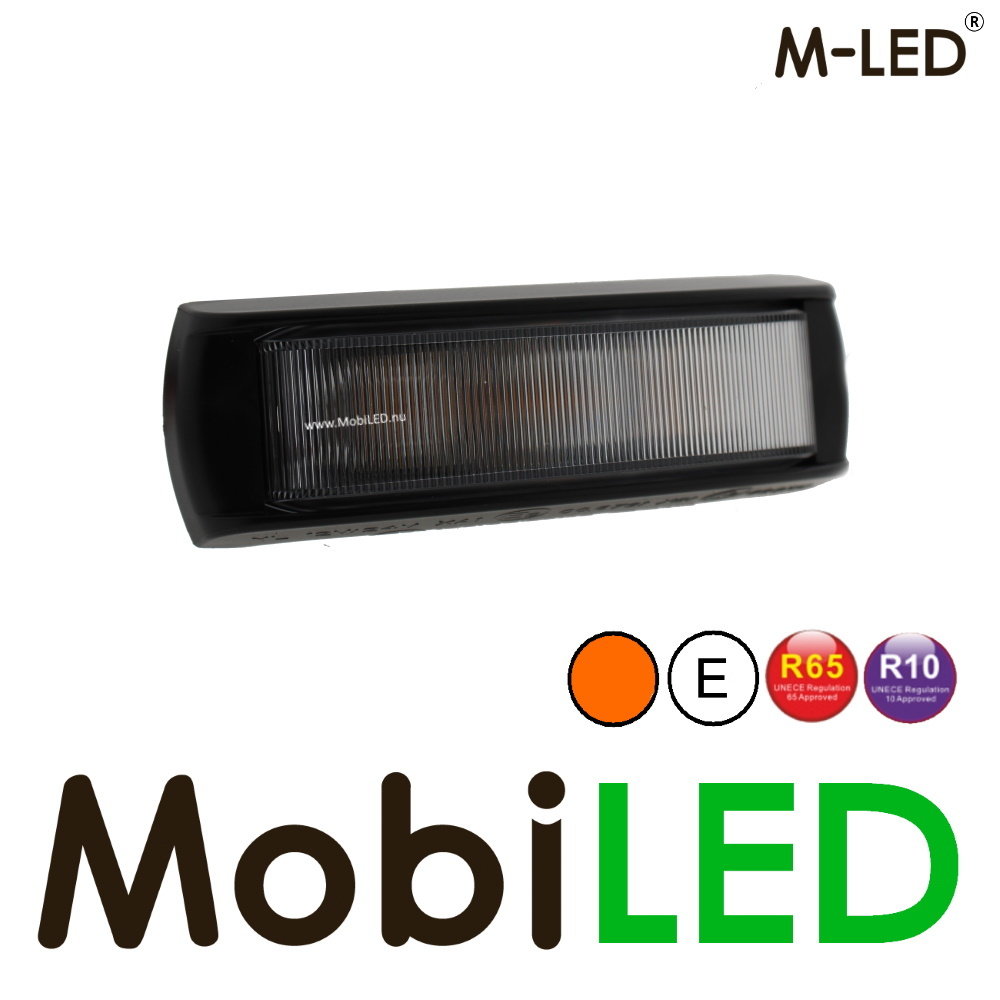

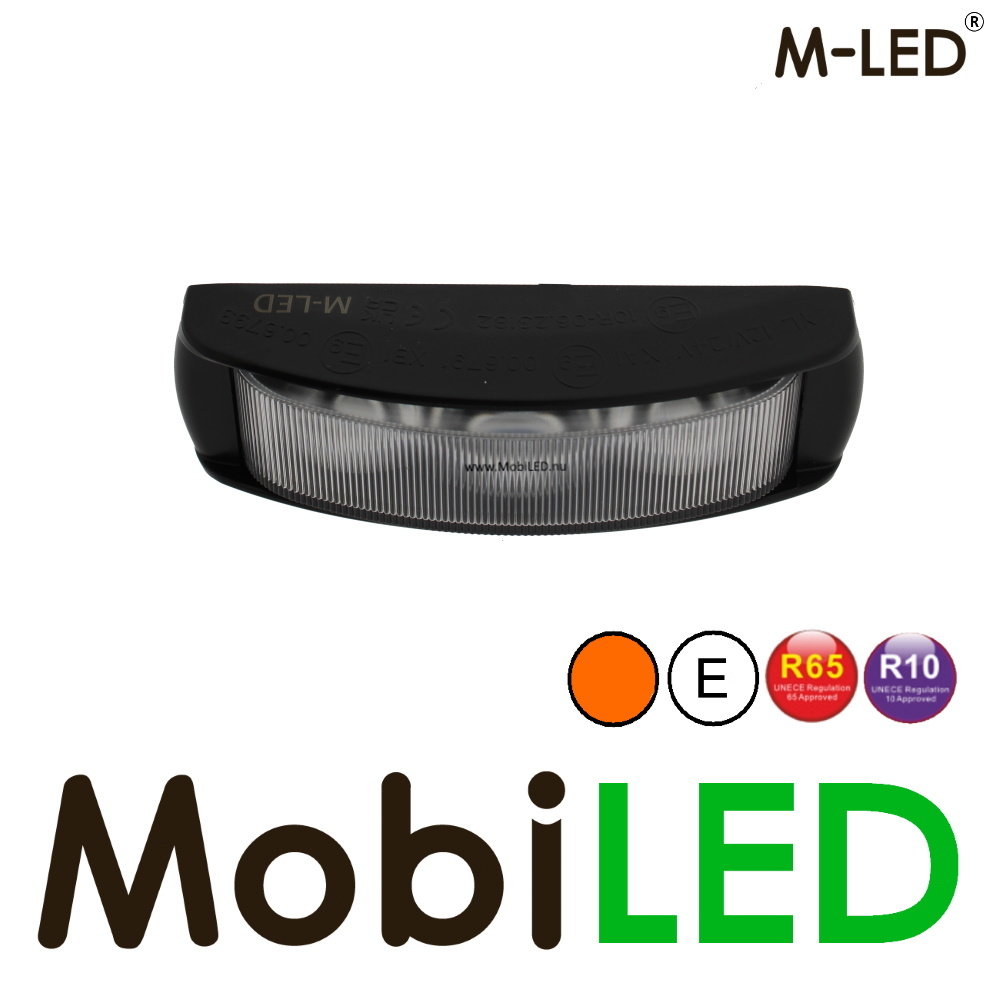

M-LED Wide angle flasher amber 4 LEDs E-mark

This is a flasher with wide-angle range. The flasher is amber in color and ECE approved in R65 class 1. It has 4 LEDs and 22 different flash patterns. It can be synchronized with up to 14 other flashers. In addition, it is equipped with a memory function.

Specifications:

• Voltage: 12-24 V multi-voltage
• Number of LEDs: 4
• Flash patterns: 22
• Dimensions: 110 x 35 x 28 mm
• Bolt spacing: 95 mm
• Certification: ECE R10, R65 XA1
• Water resistance: IP67/IP69K

Flash patterns:

1. Single
2. Single slow
3. Double
4. Double slow
5. Triple fast
6. Quadruple fast
7. Quadruple slow
8. Eightfold fast
9. Eightfold slow
10. Twelvefold
11. Sixteenfold
12. Single split
13. Double split
14. Quadruple split
15. Eightfold split
16. Single split accelerated
17. Double split accelerated
18. SOS flash
19. Series (1,8,3,9,4,18)
20. Series (2,7,9,11,14,16)
21. Steady
22. #18,19,20 and 21 without alternating flash

Connection diagram:

• Black: mass
• Red: + VDC
• White: constant connection to black for low intensity
• Yellow: pattern selection and synchronization
