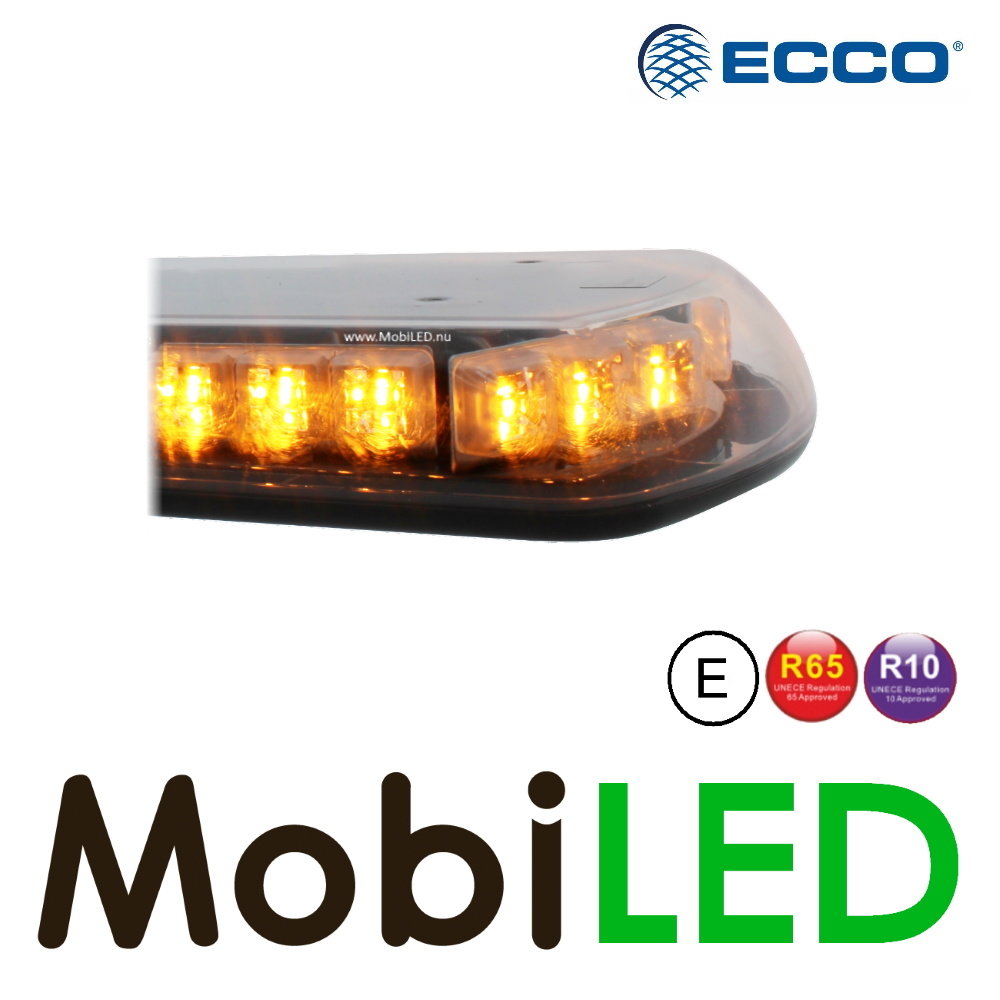

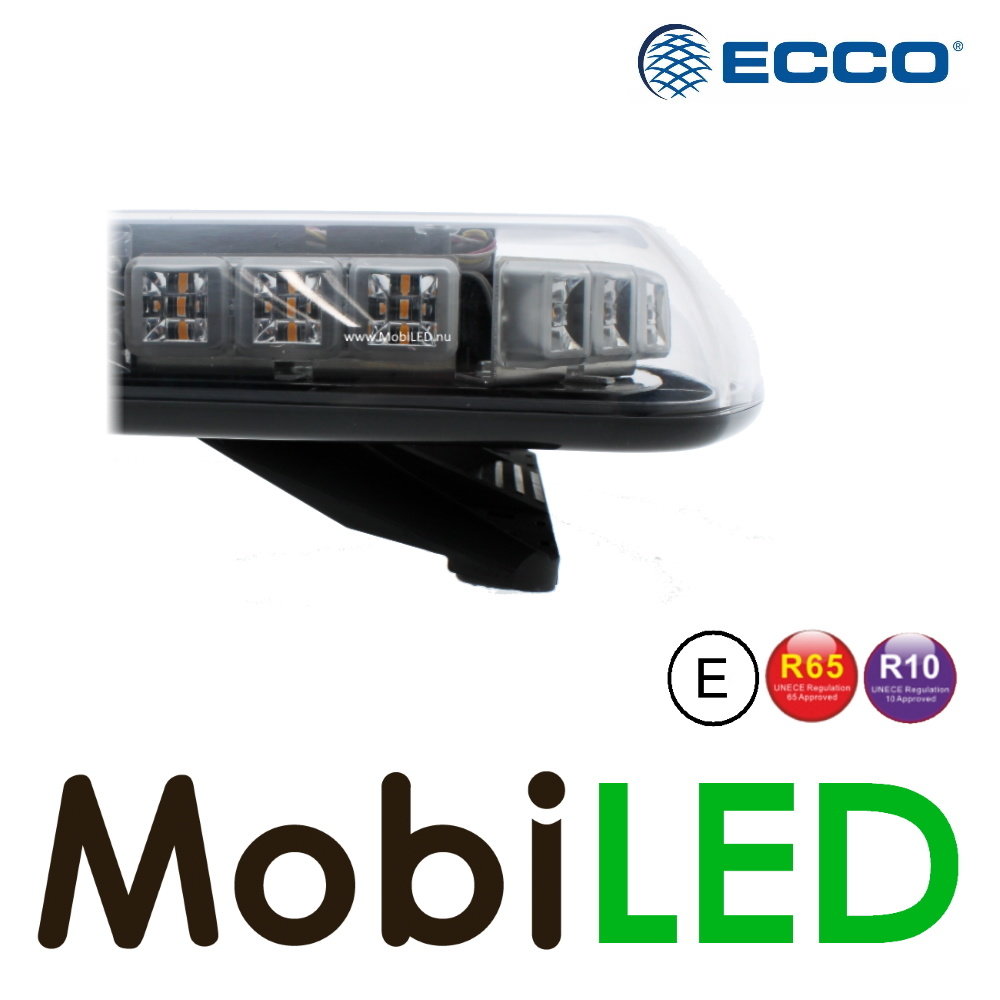

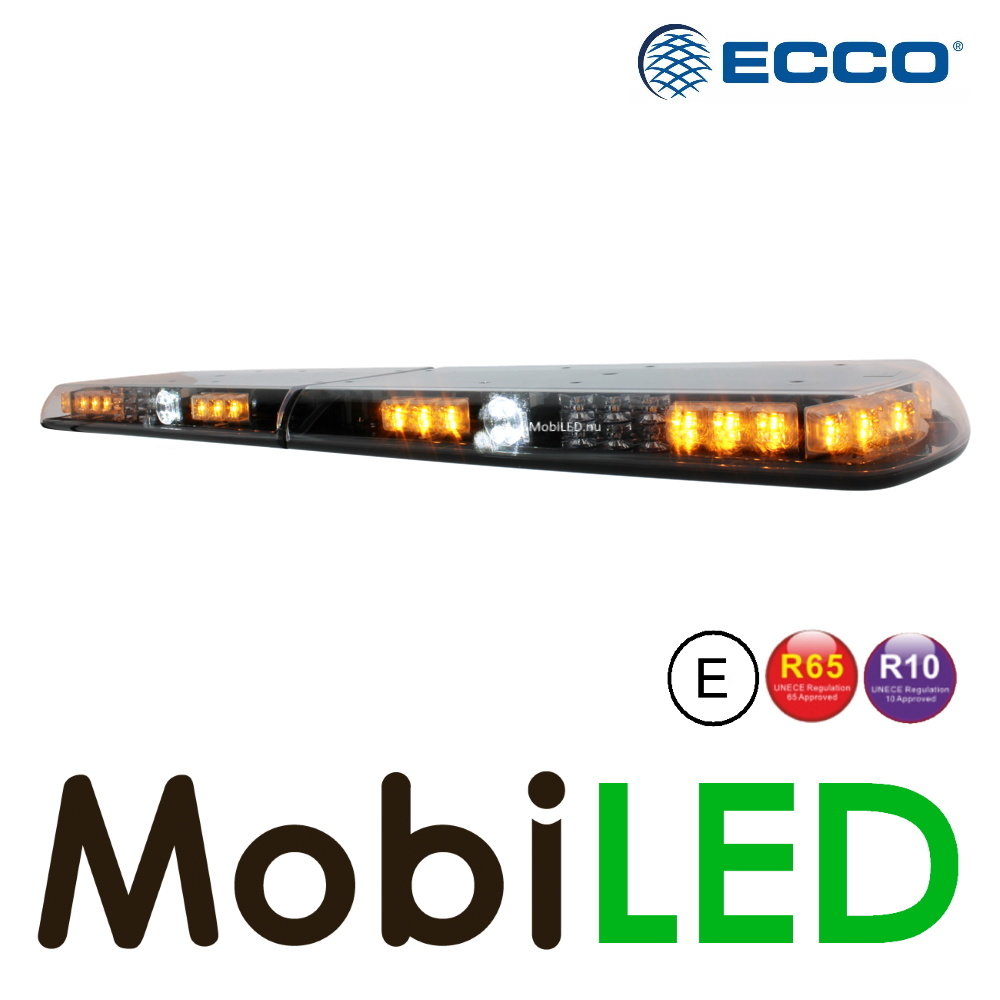

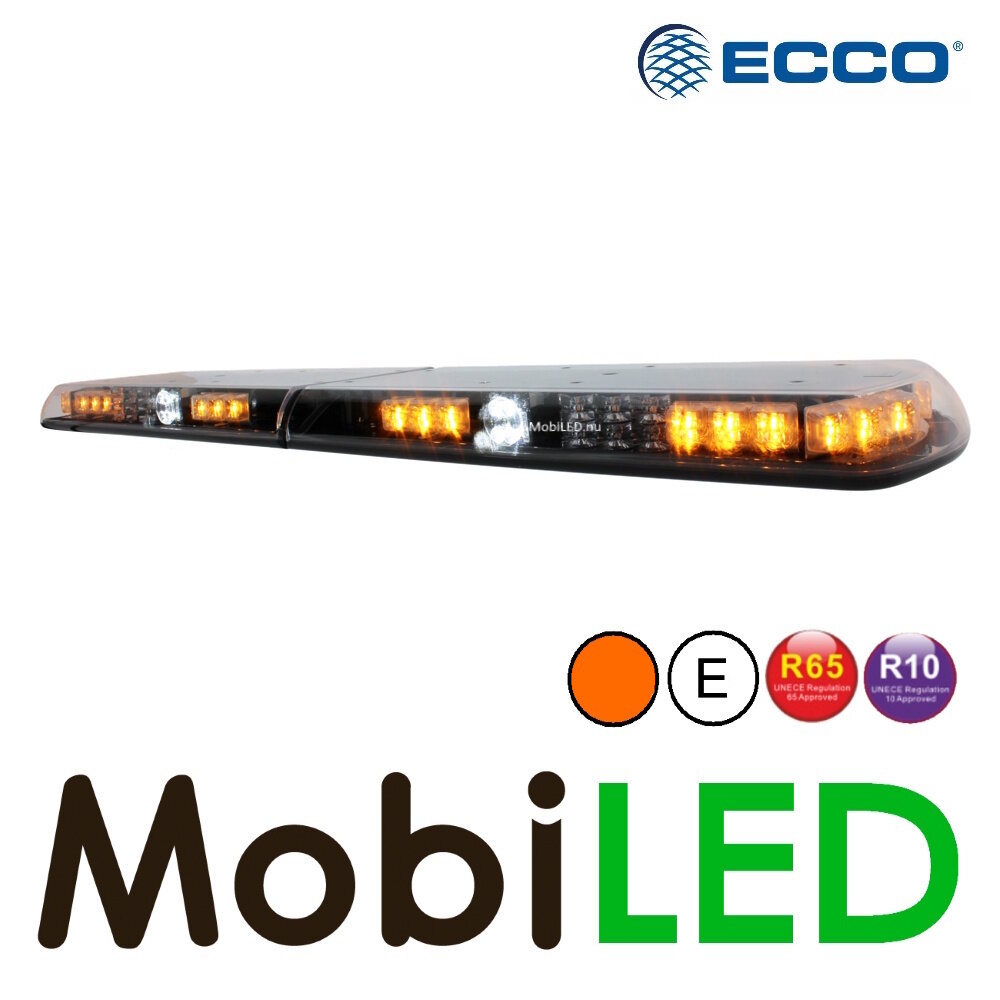

ECCO 12+ Series Flash bar and traffic advisor 1372 mm 10 LEDs, 2 work lights and tail lights

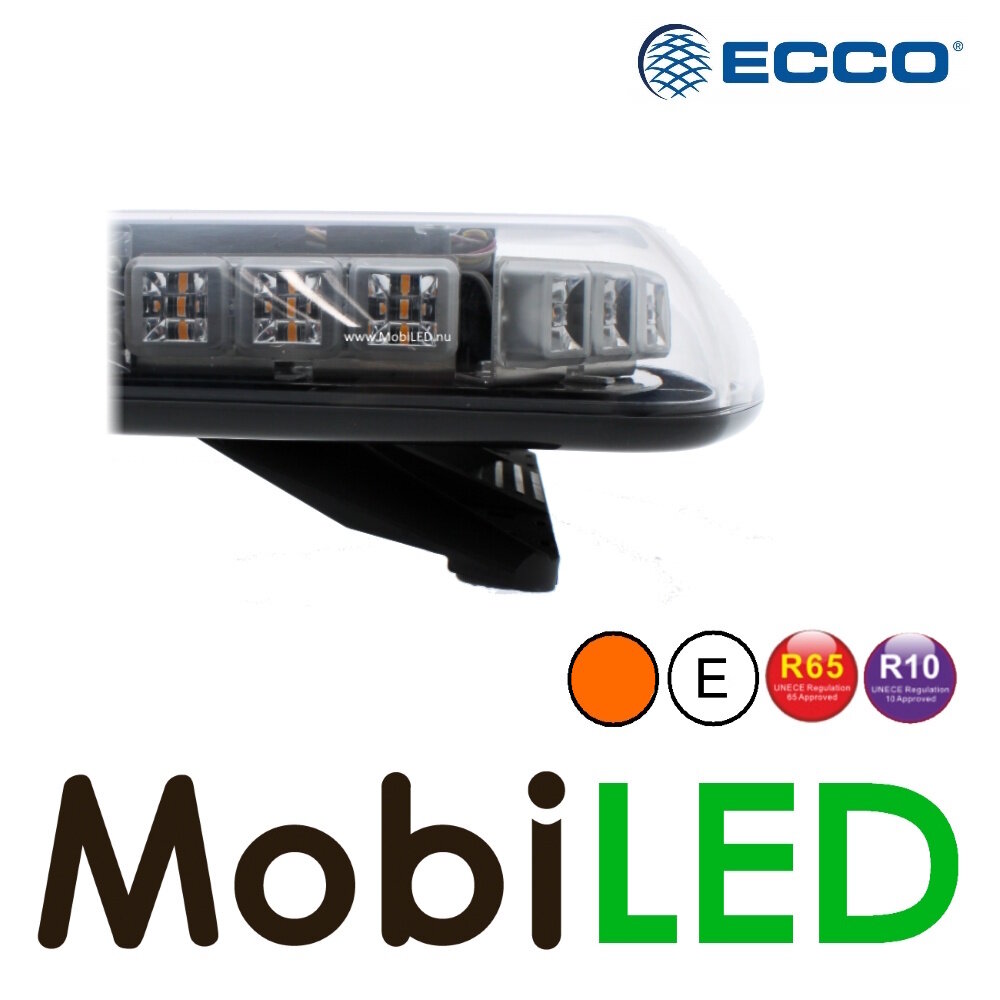

The 12+ series LED light bars are versatile and powerful warning devices suitable for a wide range of vehicle types and duties. Available in multiple length options and with sleek low-profile styling, durable aluminium chassis and a polycarbonate base and lens.

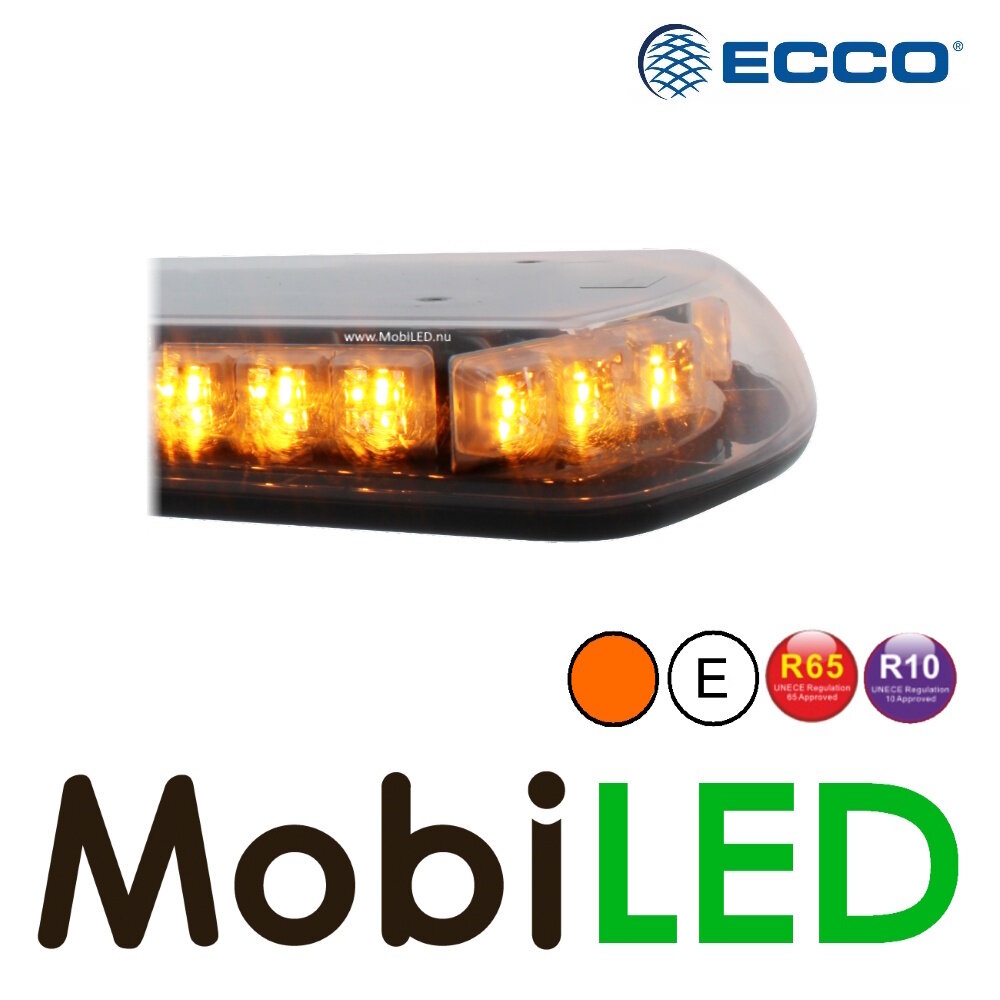

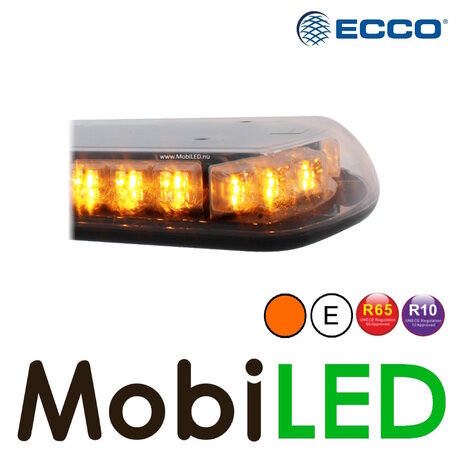

The series offers an exceptional EMC performance, Industry leading CISPR 25. The ICE optic warning modules offer brighter appearance for better visibility. The bar is R65 Class II approved so can be set to a night time brightness setting.
MobiLED offers a range of 11 standardized bars from 910 to 1524 mm length with different options. Custom configurations are available on request. The 12+ series LED lightbar supports three kinds of possible LED modules: warning, stop-tail-indicator, and alley/worklight.

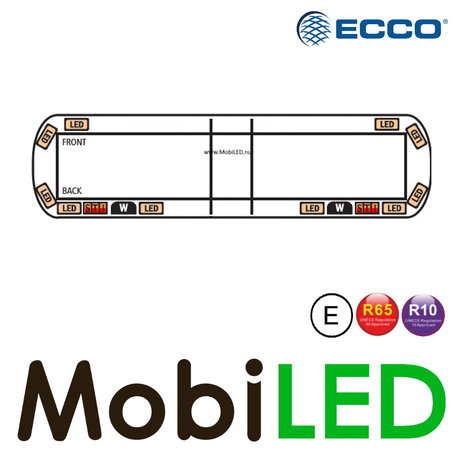

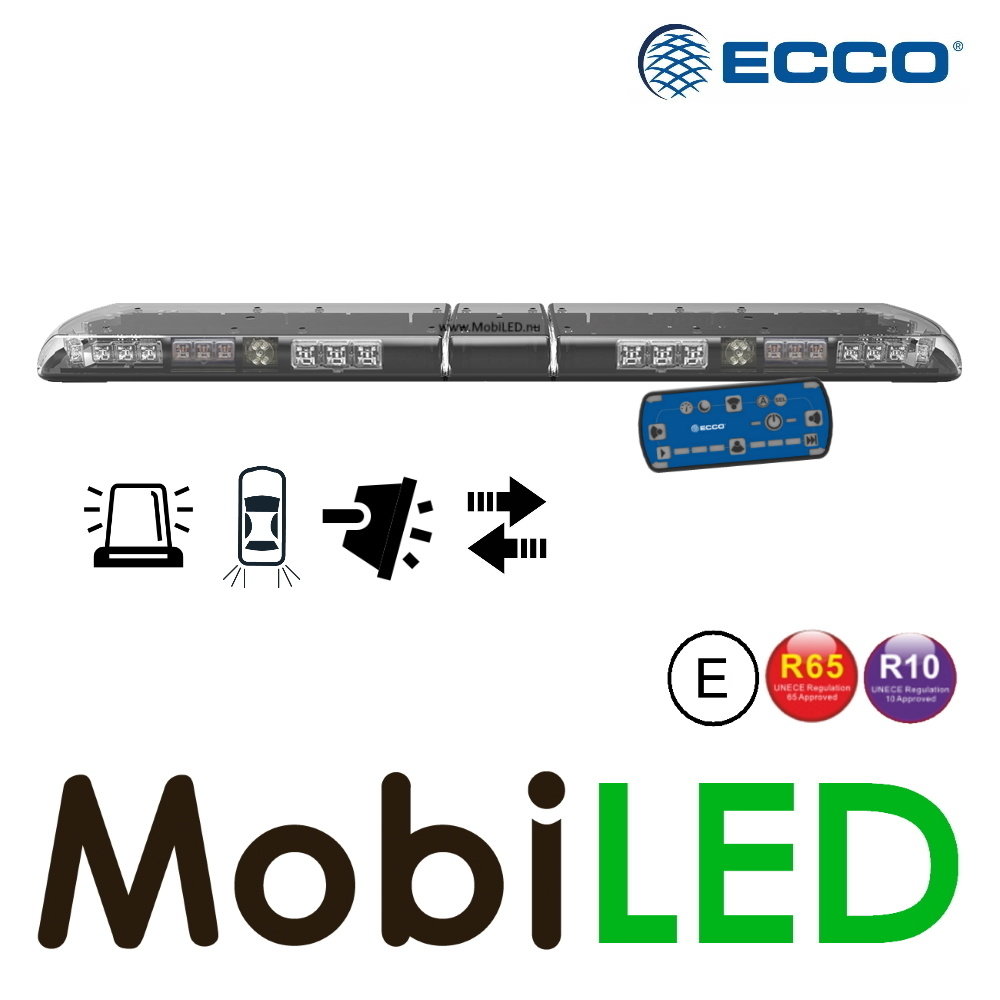

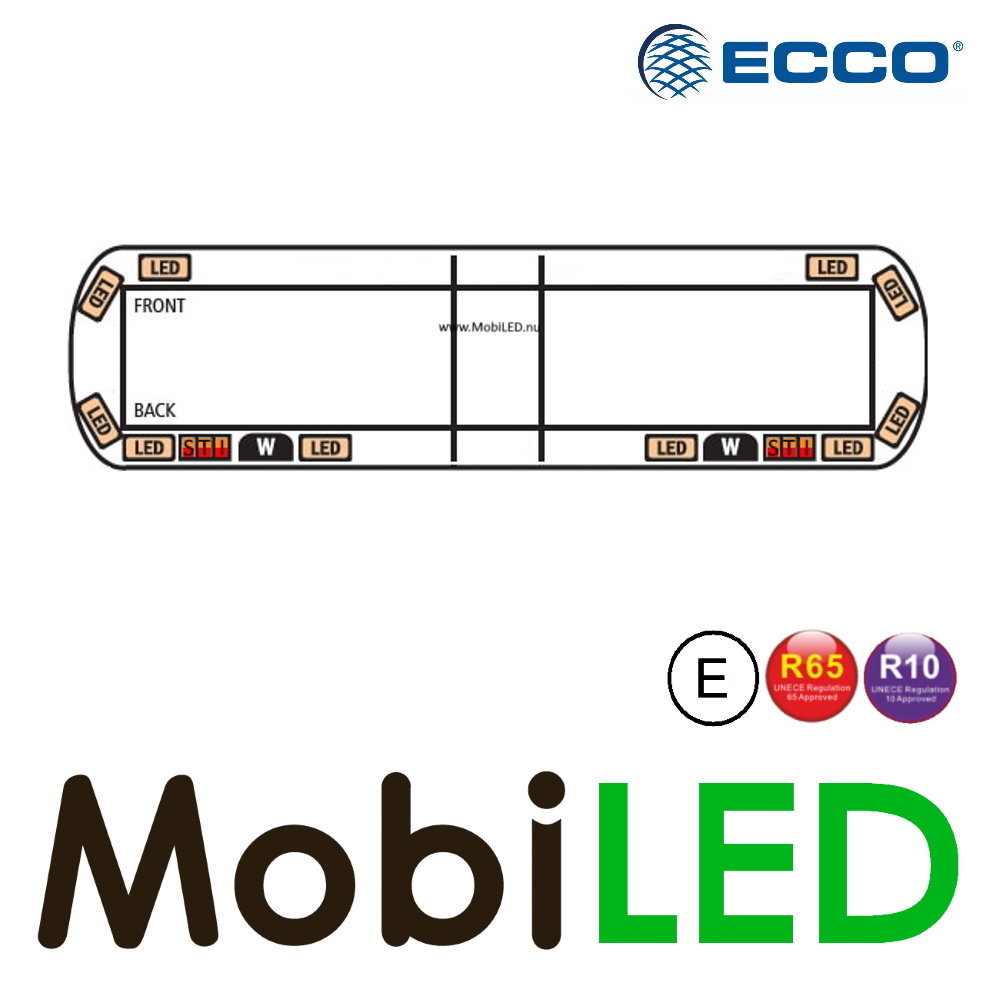

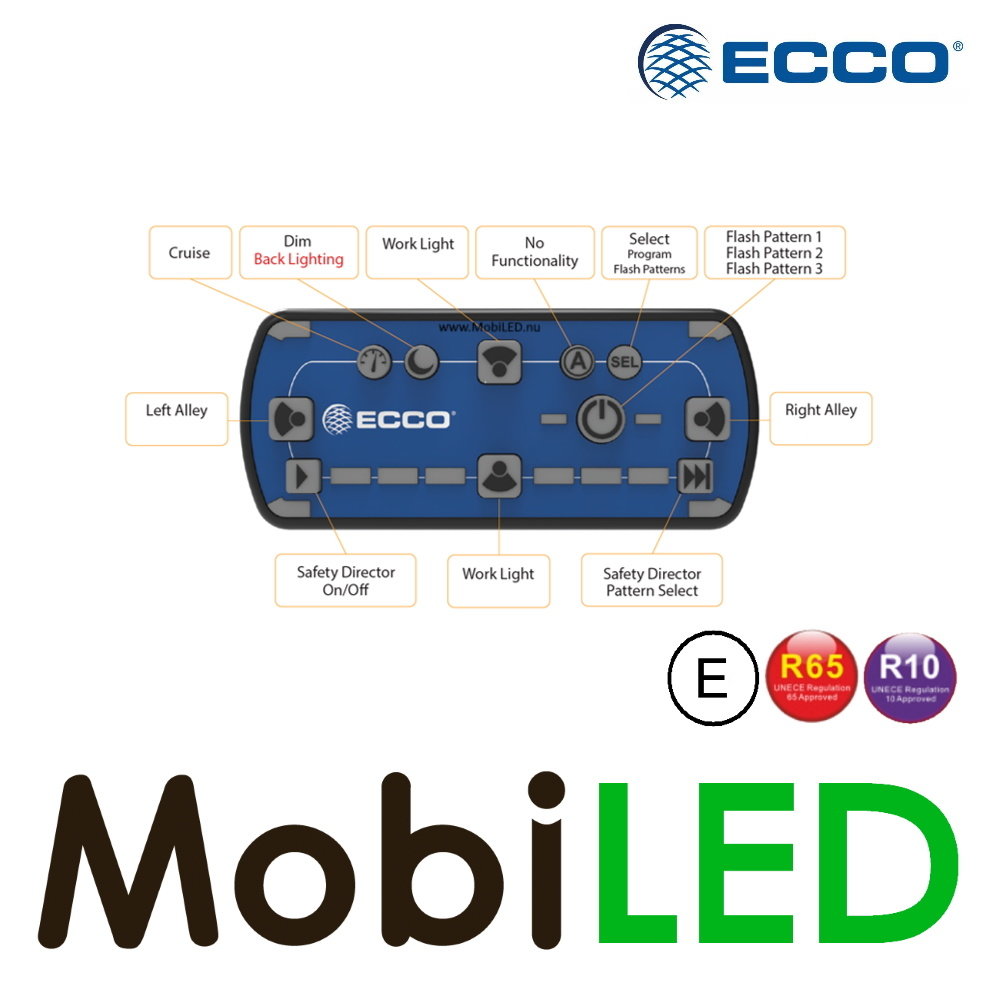

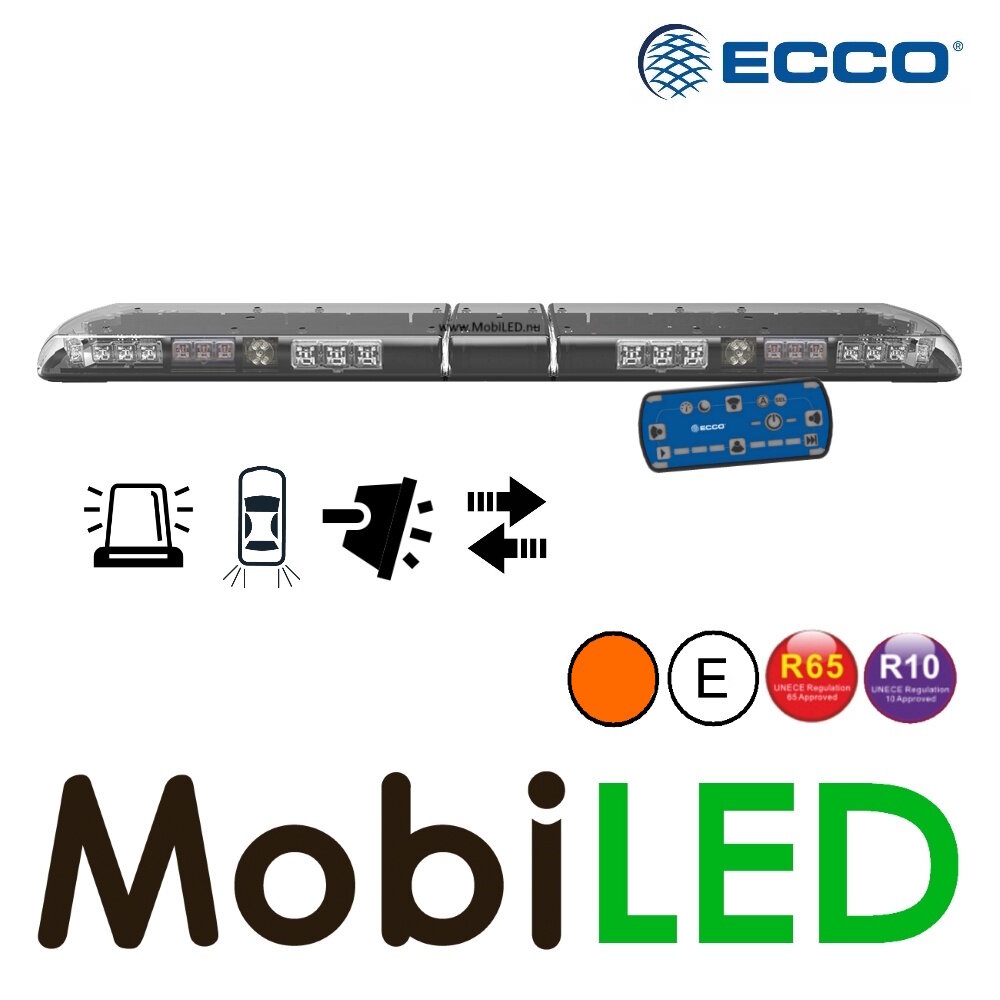

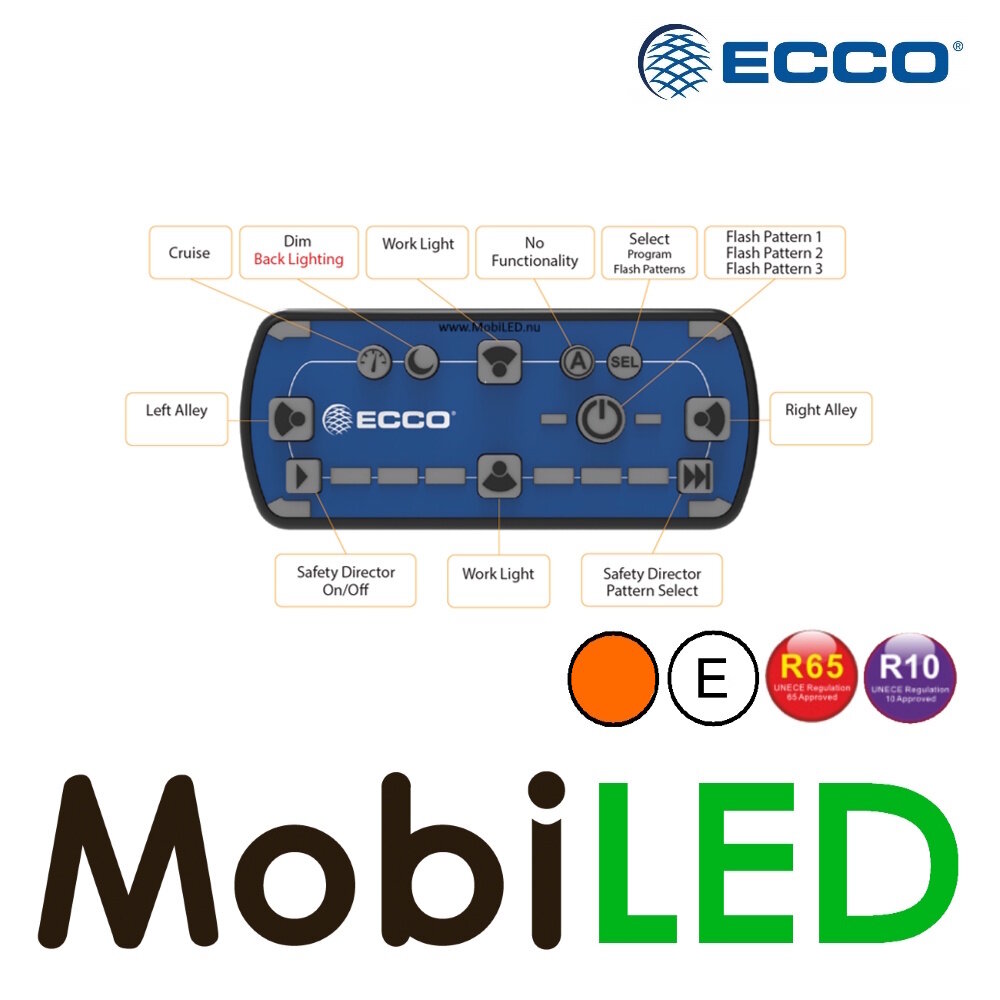

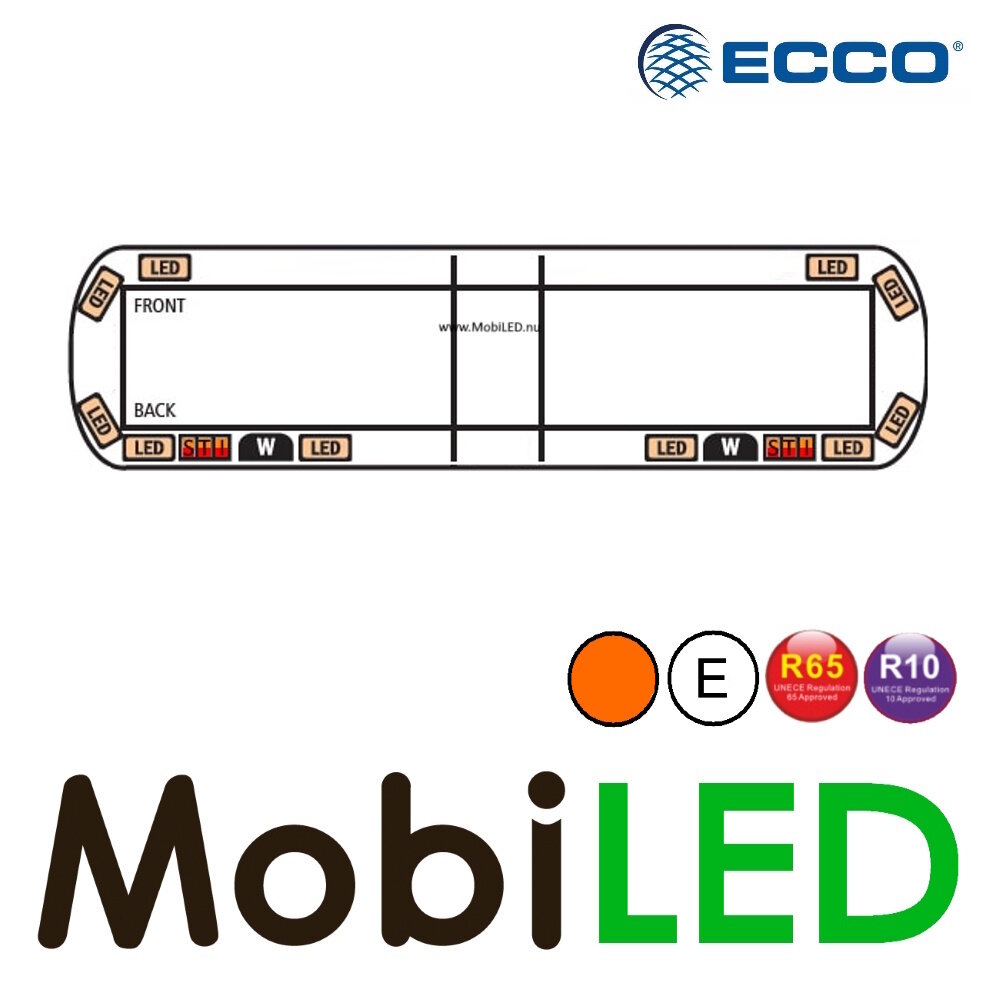

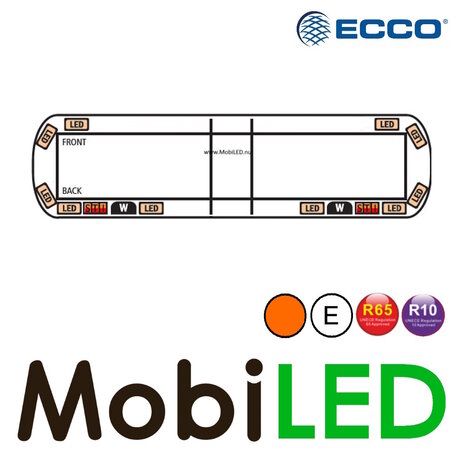

This 1372 mm flashbar is equipped with 8 LED warning units positioned at the 4 corners of the bar and 2 additional units on the rear side. An advanced controller is supplied for operating the bar from within the vehicle.
On the rear side, this bar is equipped with 2 work lights and 2 stop/tail/indicator units.
The bar is equipped with 8 R65 approved flash patterns, 3 of which can be stored as a preset on the controller. The 6 rear warning units can be separately used with 11 patterns including left and right moving patterns.
For this bar customization is possible in the form of extra warning units on the front and rear side and/or extra worklights to the front and sides. Please contact us for more information.

Connection diagram rear lights:

• Black: Mass
• White: Position light
• Blue: Indicator left
• Yellow: Indicator right
• Pink: Brake light
