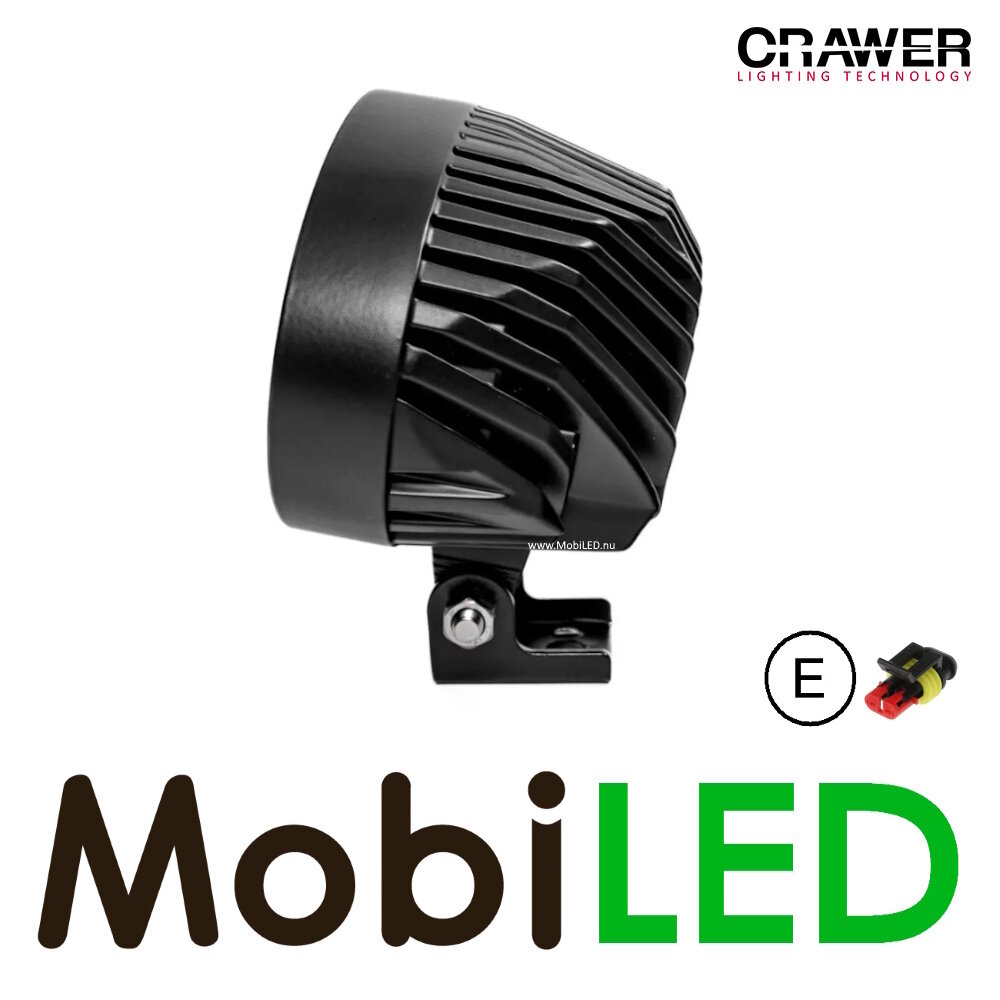

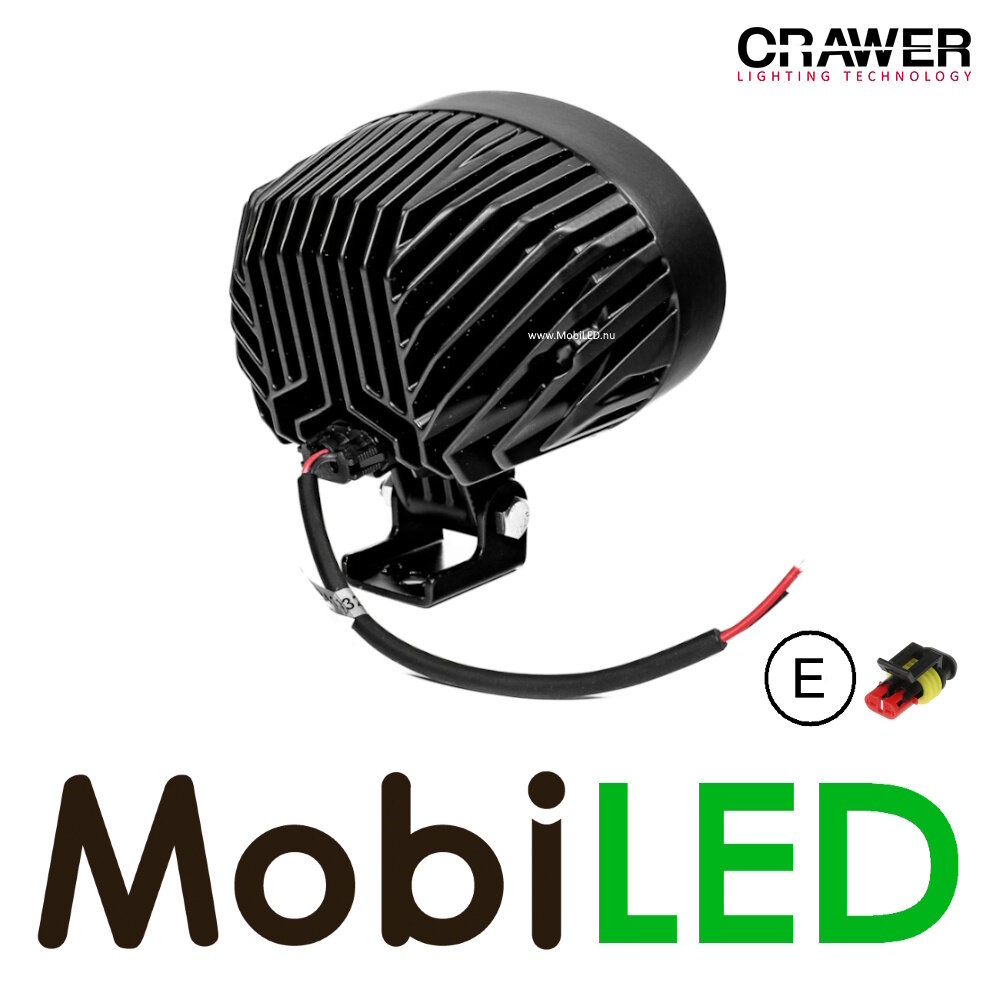

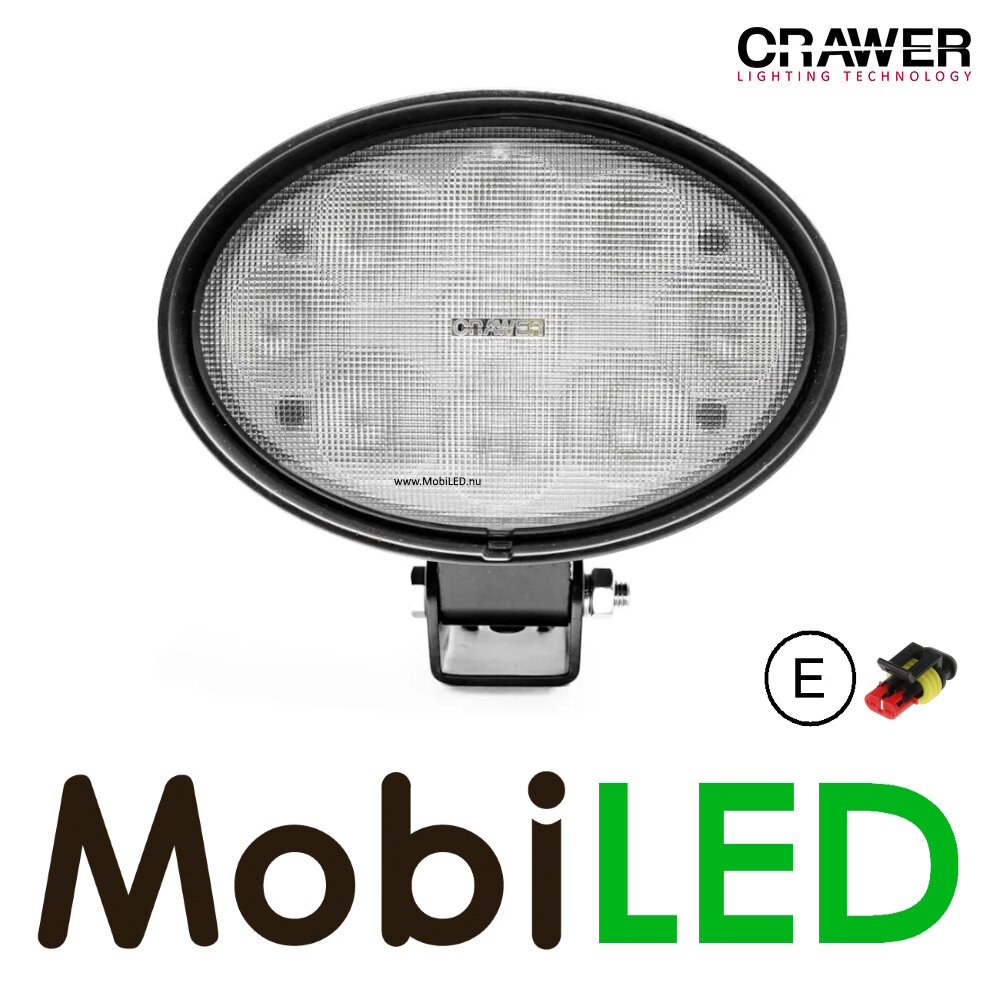

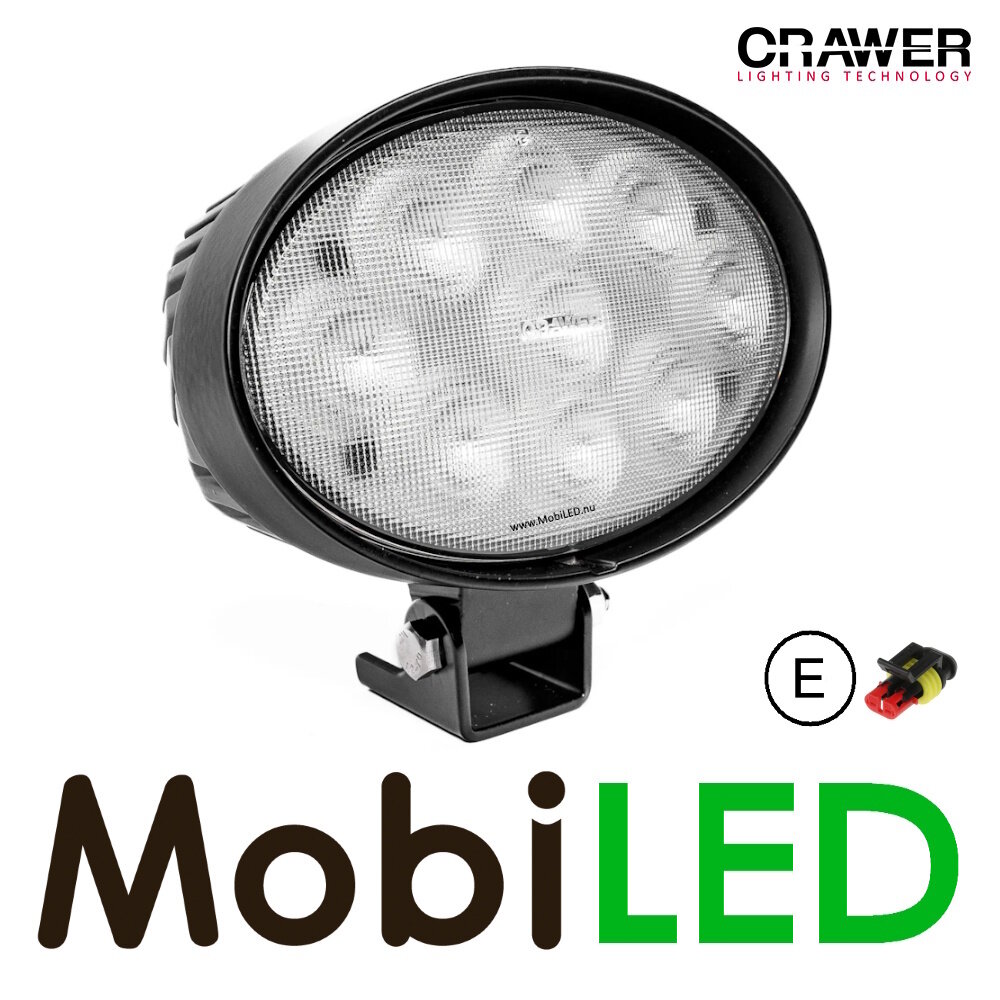

Crawer work lamp 65W oval EMC





This oval work light from Crawer is suitable for most American John Deere tractors. The perfect replacement for the original halogen lamps. It can be mounted on the mudguards or hung on the cabin.
The housing is made of powder-coated aluminum. Due to the shape of the mounting bracket, the lamp can be mounted in any position. The bracket is included. The lamp is equipped with a 9005/9006 connector.
Suitable for: John Deere 7720, 7730, 7820, 7830, 7930, 8120, 8130, 8220, 8230, 8320, 8330, 8330T, 8420, 8430, 8430T, 8520, 8530, 8245R, 8270R, 8295R, 8320R, 8345R.
Product specifications
- Article number
- WL417

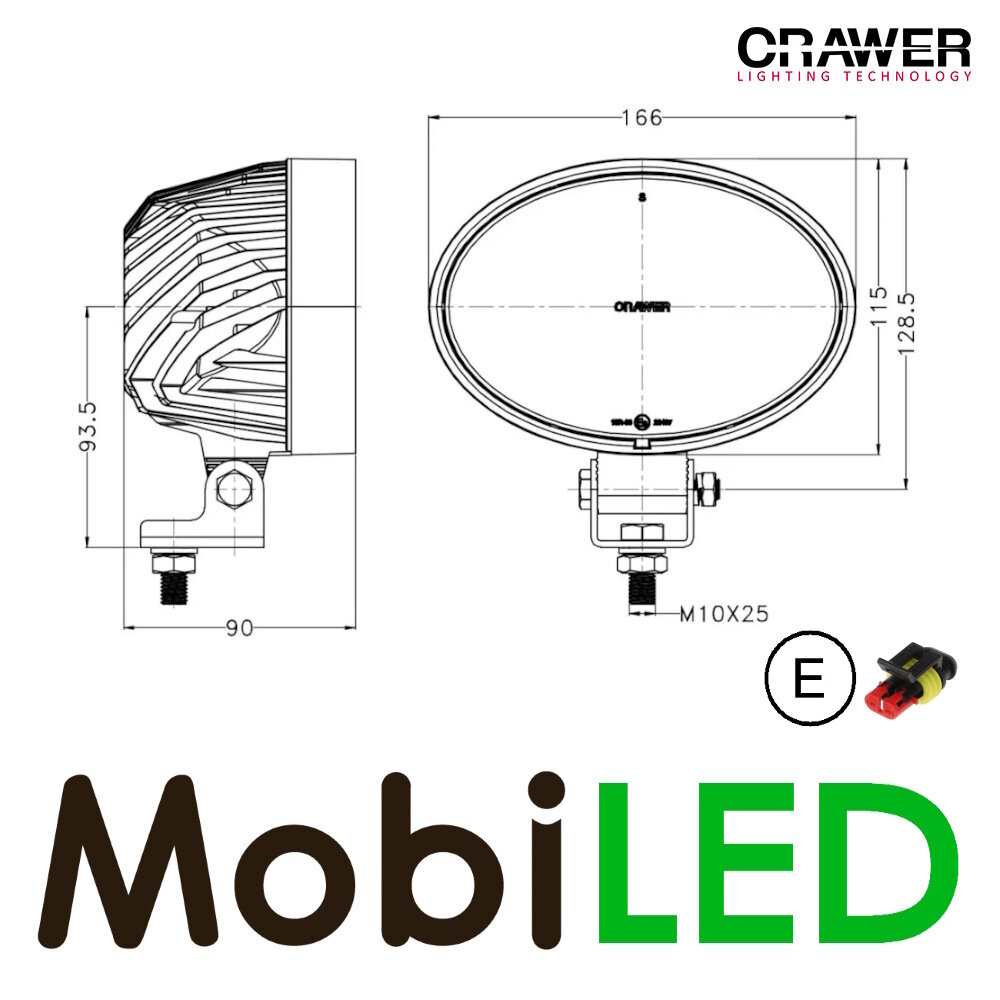

- Length (cm)
- 16,6
- Height (cm)
- 11,5
- Height incl bracket (cm)
- 12,85
- Depth (cm)
- 9
- Shape
- Oval
- Tension
- 9-32V
- Power
- 65W
- Lumens
- 6500
- Light colour
- Bright white (6000-6500K)
- Number of LEDs
- 13
- Lens material
- PC
- Housing material
- Aluminum
- Mounting bracket material
- Steel
- Mounting type
- Bolt / bracket
- Connection
- 9005/9006 connector
- Flush-mounted / surface-mounted
- Surface-mounted
- Certification
- CE, EMC (CISPR Class 4)
- IP rating
- IP67
- Packed per
- 1
- Manufacturer article number
- CR-1037-60 / 6095419387396
