Wiring kit 1 lamp position light (12V)

Wiring kit for 1 LAZER lamp with position light (12V)

The ideal solution for connecting one LAZER lamp/led bar with position light. The installation is quick, easy and reliable.

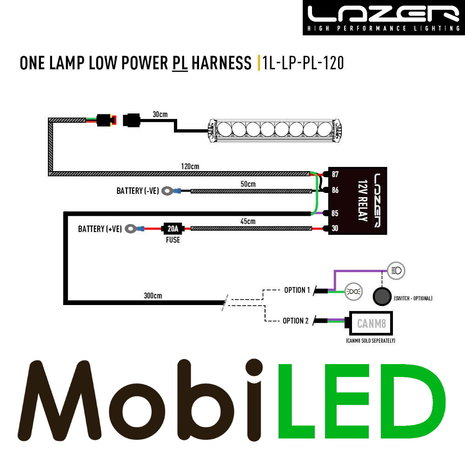

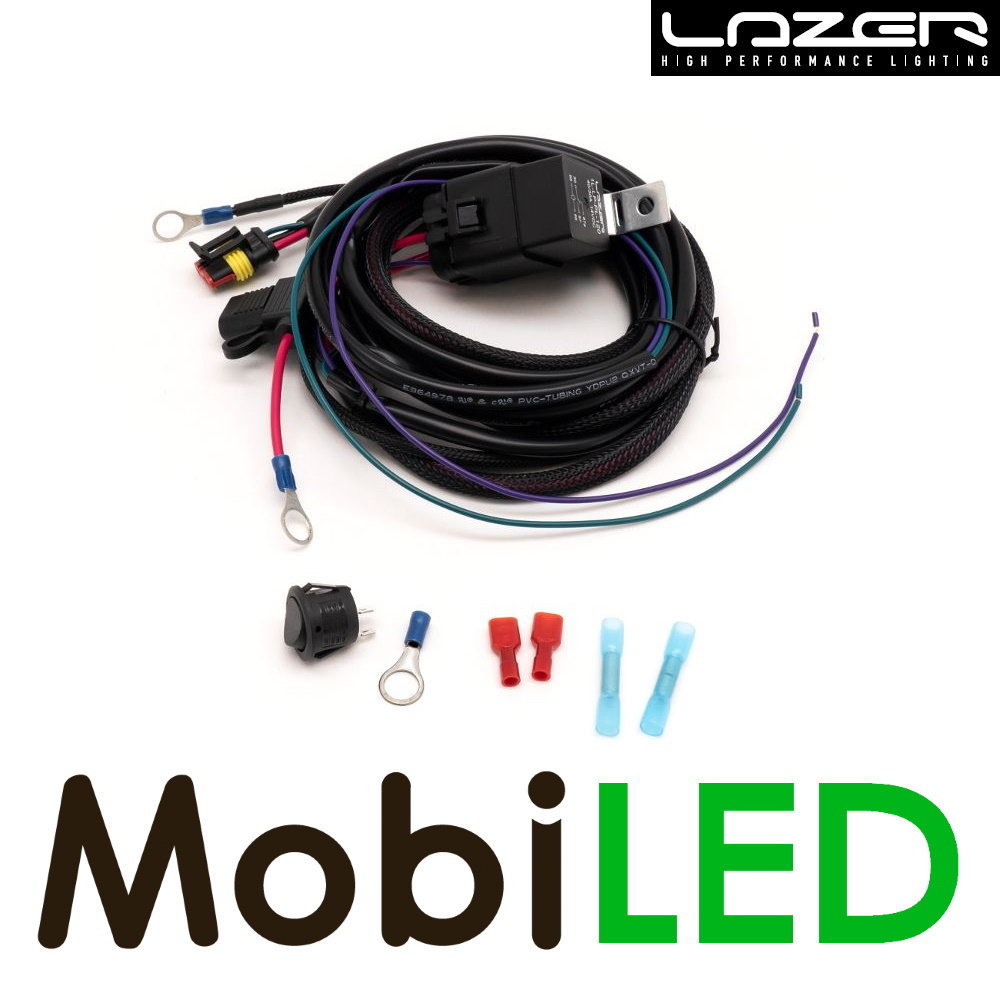

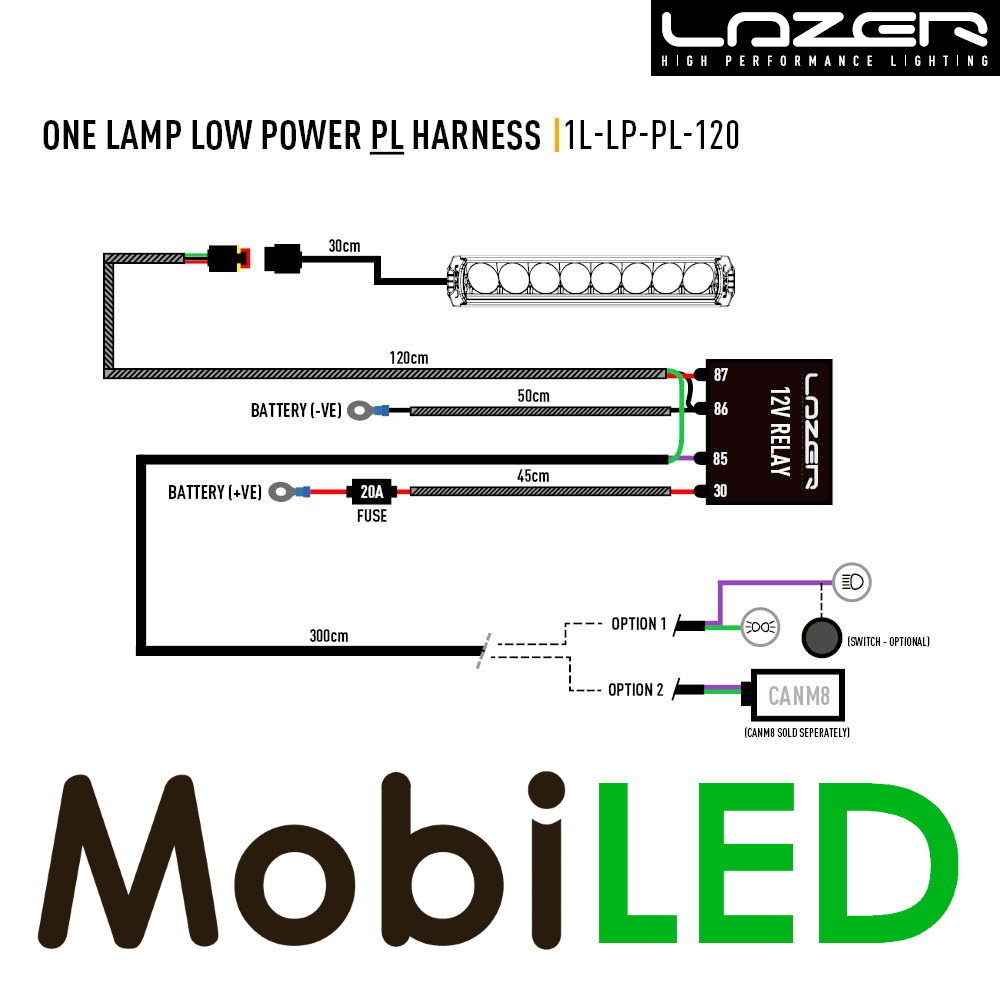

The kit consists of:

• 12V Relay with a battery terminal (-)
• 20A Fuse with a battery terminal (+)
• 1.2m Cable with a 3-pin superseal plug (female) for connection to the lamp/led bar
• 3m Cable with an on/off switch that can be mounted in the vehicle
• Connection material for connecting the lamp/led bar parallel with the standard lighting of the vehicle

Compatible with the following LAZER lights:

• Triple-R 750
• Triple-R 850
• Triple-R 1000
• Triple-R 1250
• Linear-12 elite with position light
• Linear-18 elite with position light
• Sentinel standard with position light
