Wiring kit 4 lamps low power with splice (12V)

Wiring kit 4 lamps low power (12V) with splice

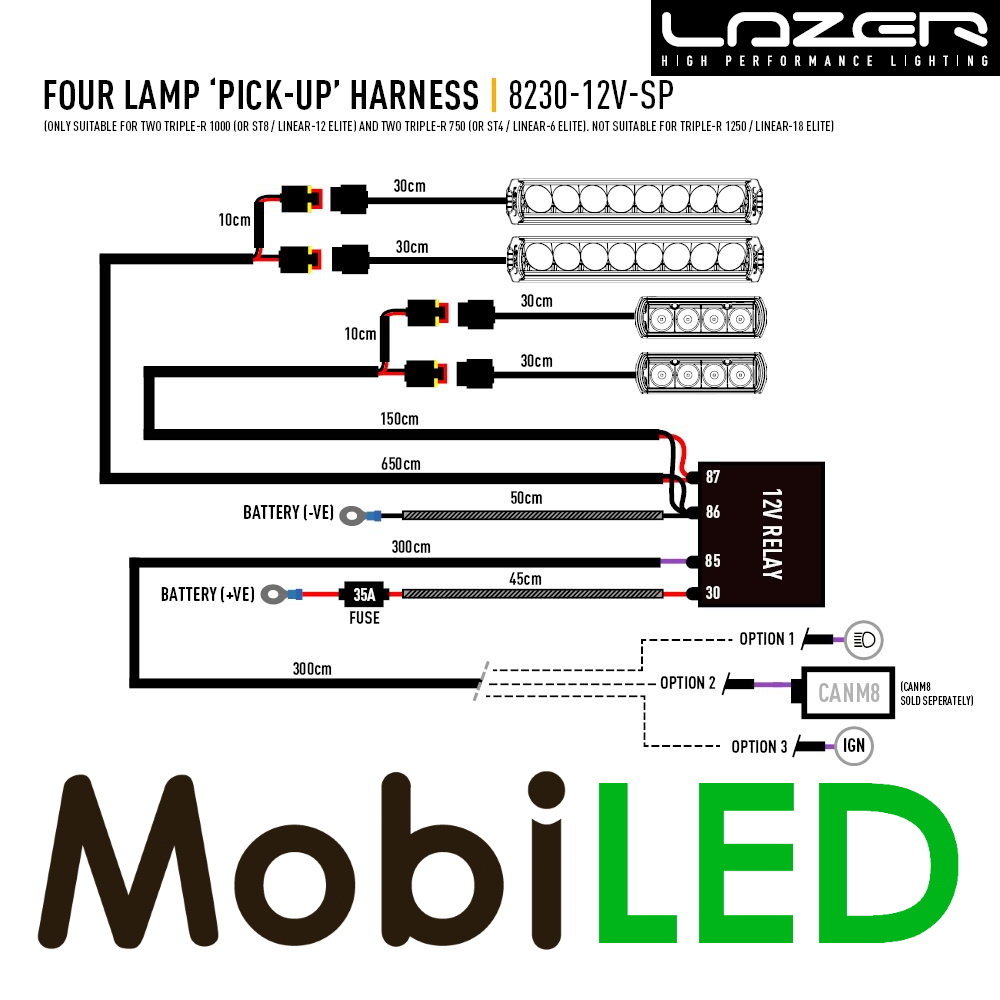

The ideal solution for wiring four E-mark approved LAZER high performance LED floodlights, typically on pickup trucks where there is a requirement for 2x lights on the front of the vehicle, and 2x lights on the roof/sports bar . Only suitable where lamps without additional position light function are used. Installation is quick, easy and reliable with a 2-pin superseal connection and no configuration procedures. The kit includes a 12V relay, 35A fuse, battery terminal on one end and 1.5m and 6.5m flex on the lamp leads, making the operation of Lazer products parallel to the standard high beam bulbs on your vehicle possible.
All LAZER lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring to your vehicle system.

Compatible with:

• Triple-R 750 Elite
• Triple-R 850 Elite
• Triple-R 1000 Elite
• Linear-6 Standard / Elite
• Linear-12 Standard / Elite
• Linear-18 Standard / Elite
