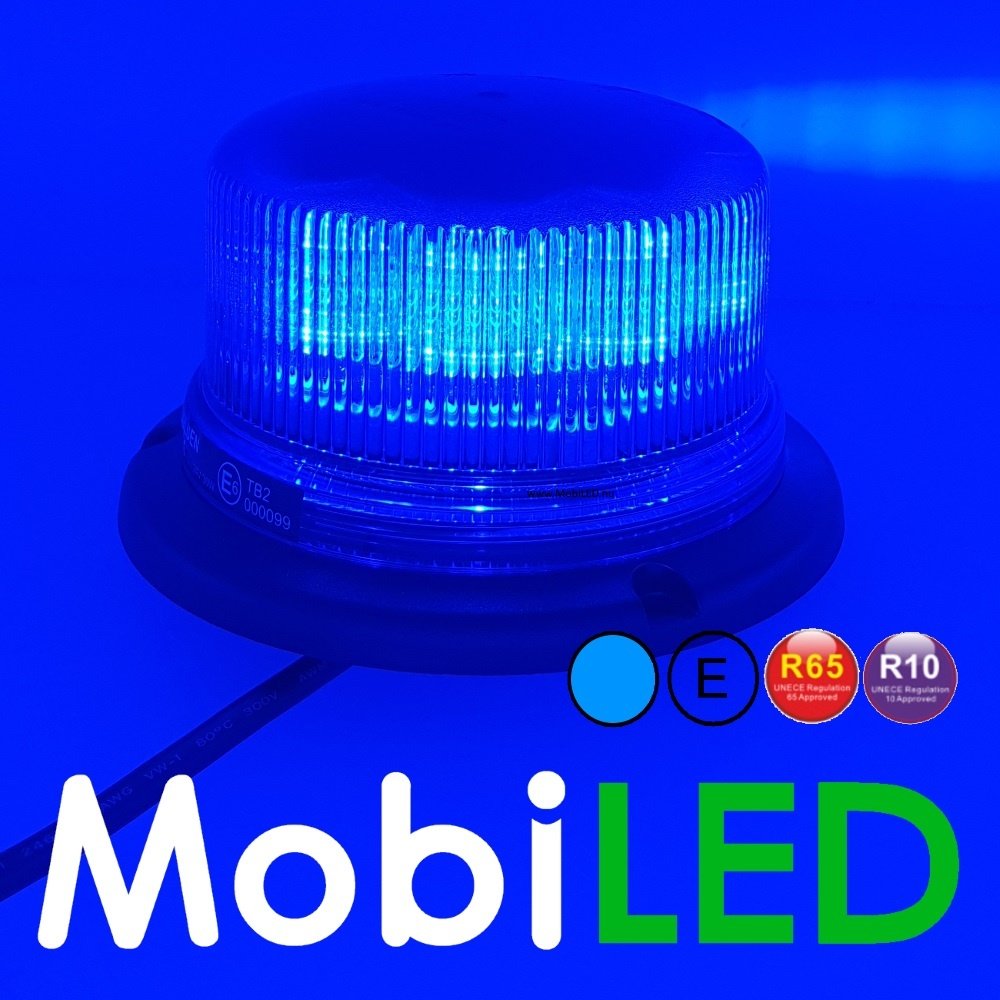

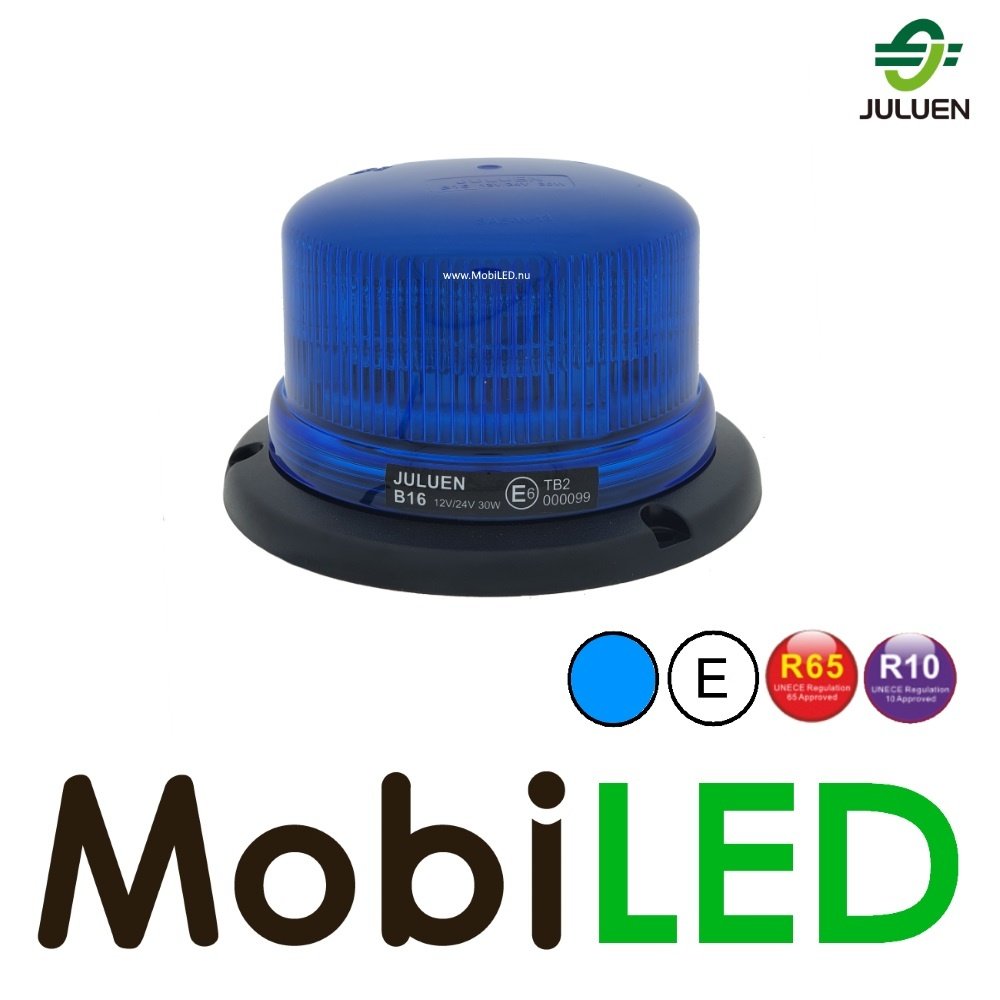

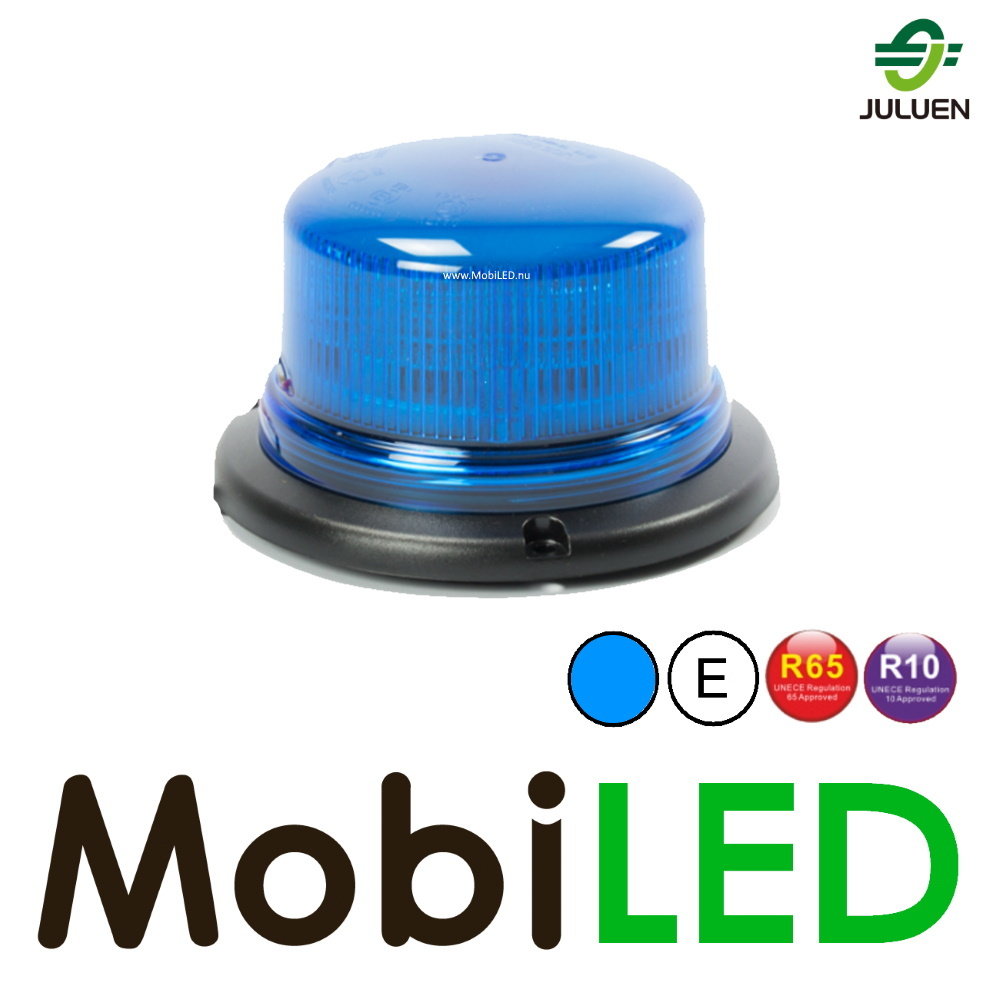

B16 Rotating beacon / flash lamp Blue 14 patterns fixed mounting 10-30 VDC R65 class 2

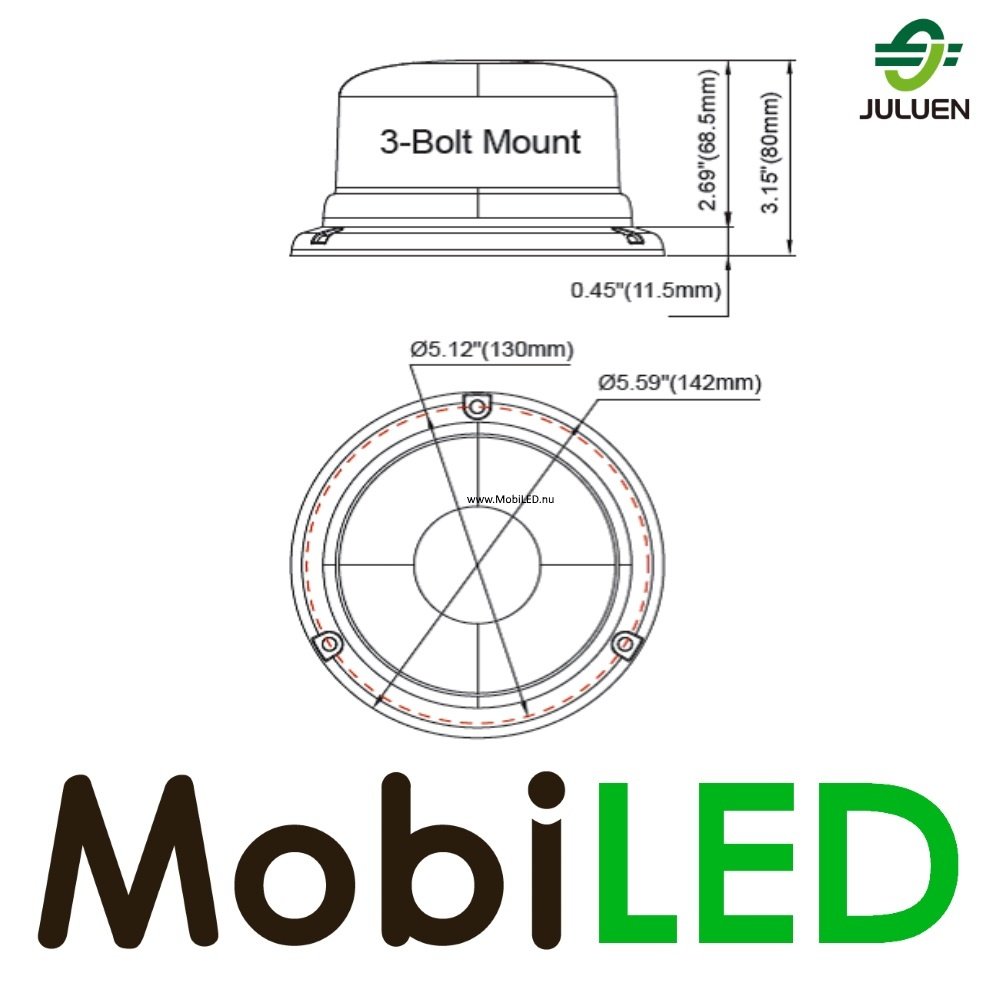

The B16 is a compact LED flash lamp with a total height of 80 mm, excluding base. The lamp is equipped with a cable. Synchronization and simultaneous alternating flashes can be set with the cabling, the manual is included in the packaging. The beacon is set by the factory to the double flash pattern, R65 approved. The patterns can be changed by a button that is incorporated in the lamp.
The flash lamp light is fully certified in accordance with ECE R65 class 2 and/or class 1 and is therefore dimmable. It is compact, robust and has great flash power. The lamp meets all standards and also performs under tough conditions.

Flash Patterns:

1. Double R65 (2Hz)
2. Single (2 Hz)
3. Quadruple (2Hz)
4. Single
5. Double
6. Quadruple
7. Quintuple
8. Mega
9. Ultra
10. Single quadruple
11. Single H / L
12. Rotator for one column
13. Double column rotator
14. Double rotator x5 - > Quint x5

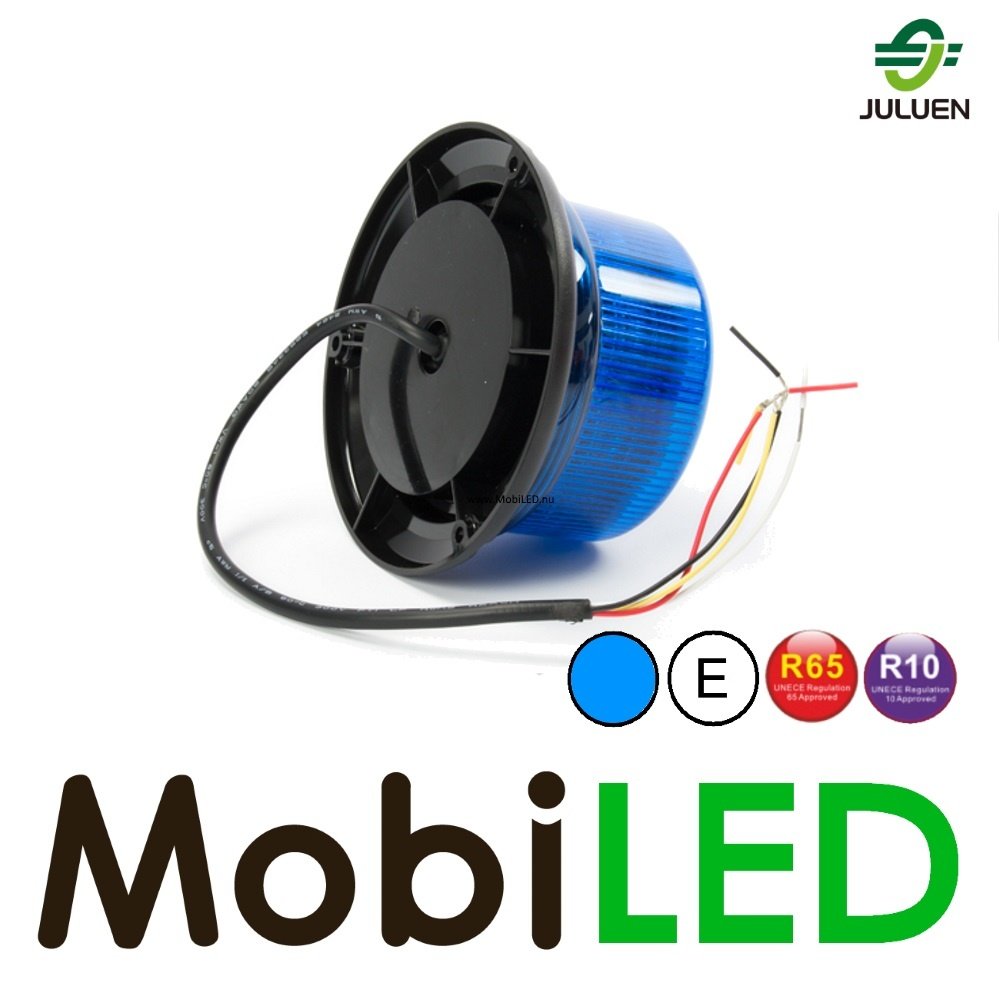

Connection diagram:

• Red: plus
• Black: mass
• White: day and night mode
• Yellow: set flash pattern, sync and simultaneous/alternating flashing
