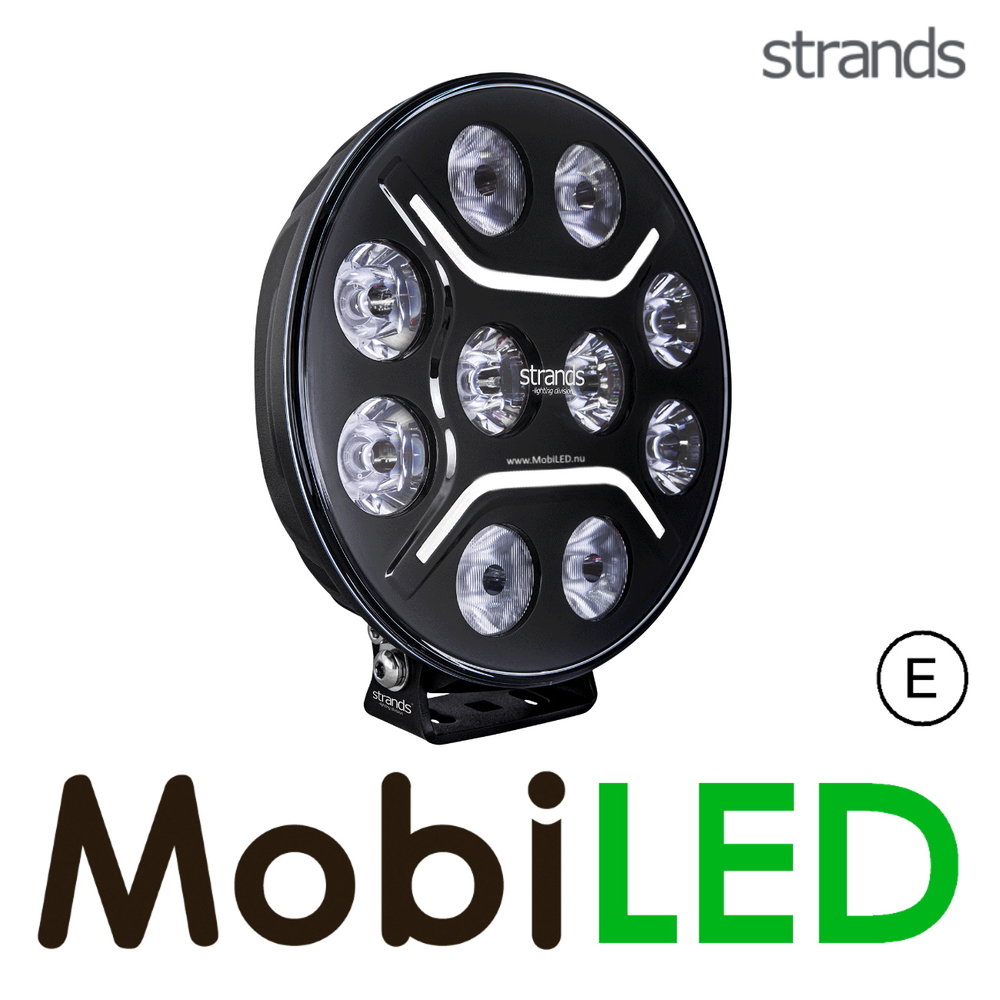

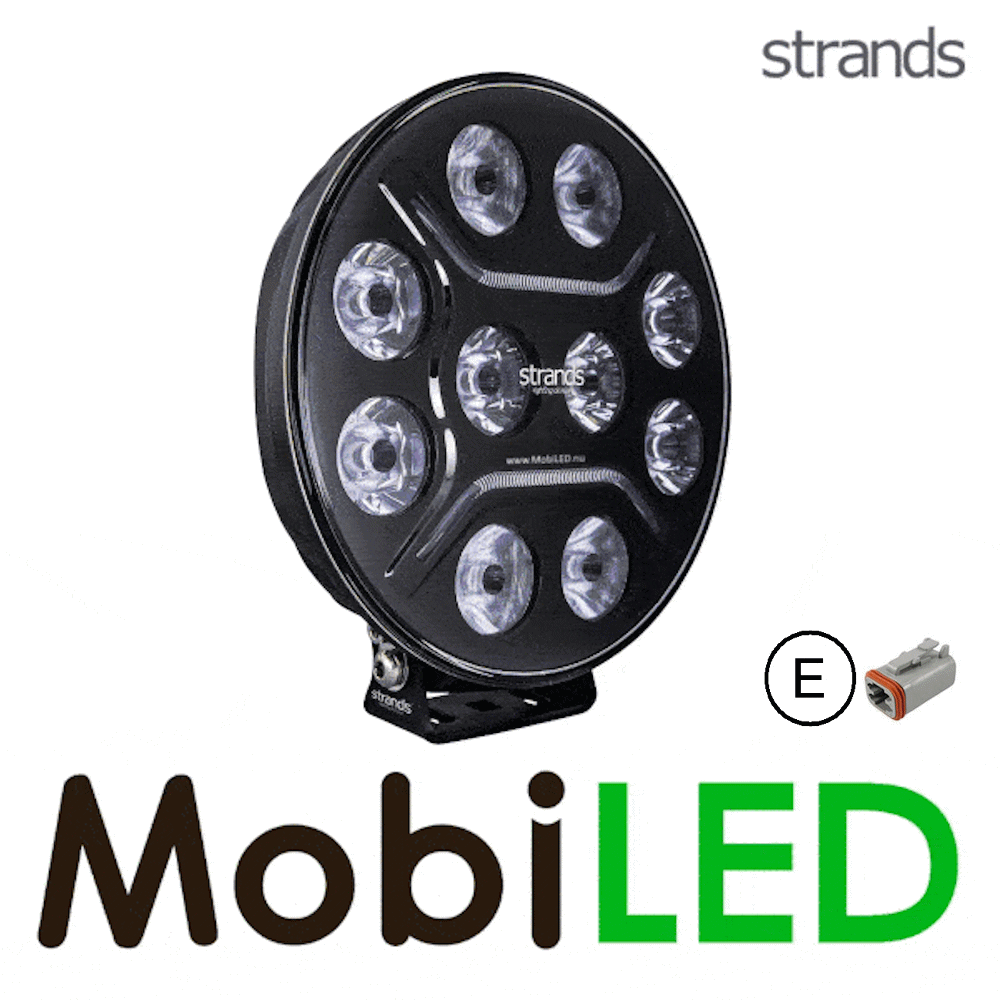

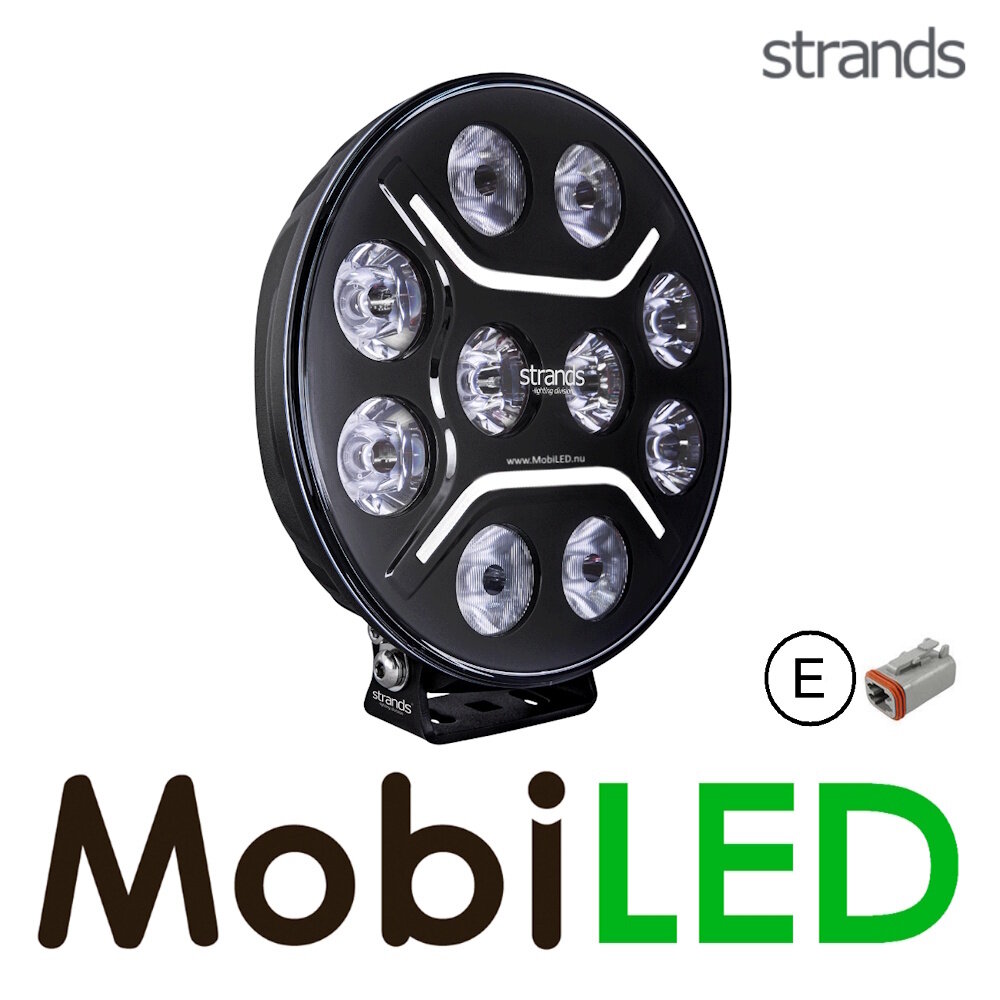

Strands Dark Knight Intense 9 inches

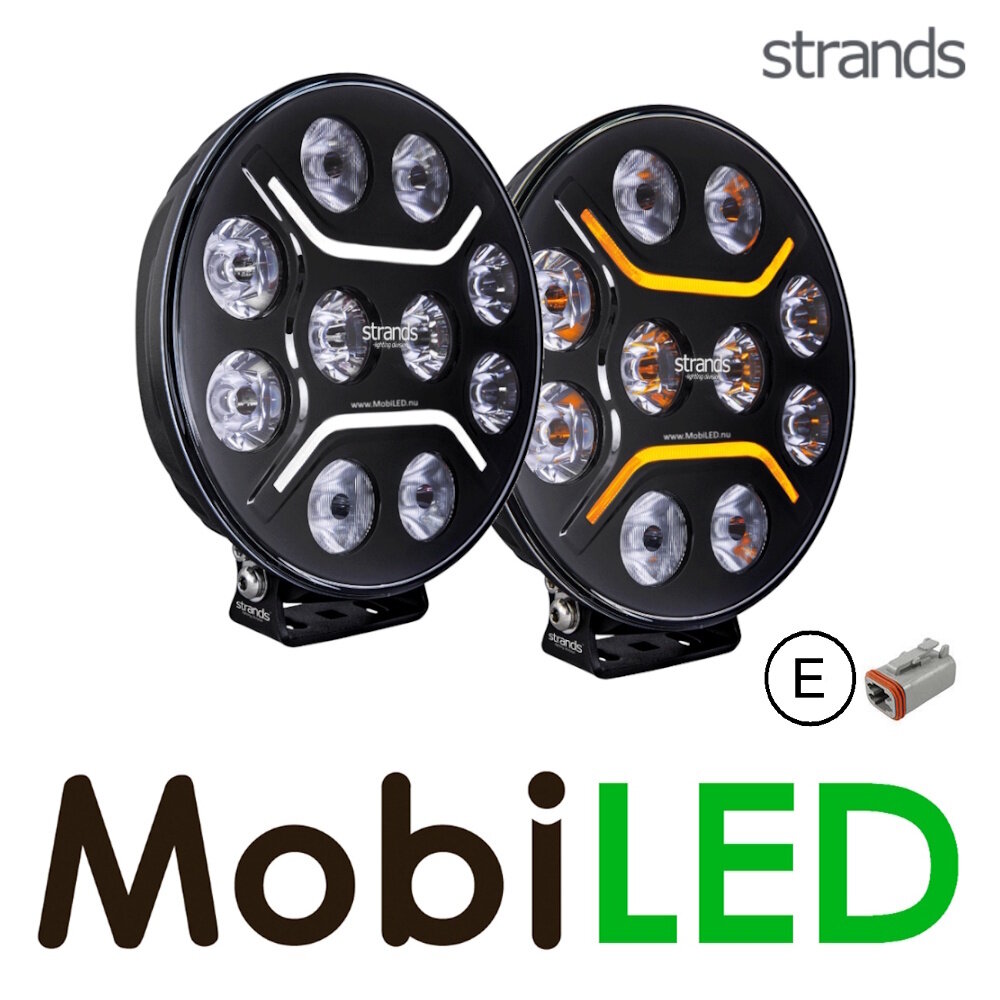

Strands Dark Knight Intense 9"

In addition to a great light output and a stylish design, this 9" spotlight from Strands also has an innovative position light that slowly rises to full strength when switched on. Of course, as with most Strands lamps, there is also the choice between white or amber position light and the lamp has all the necessary approvals.

Price per piece.

Specifications:

• Number of LEDs: 14
• Voltage: 9-36 V DC
• Power: 150 W (theoretical) / 125 W (actual)
• Light output: 14000 lm (theoretical) / 11000 lm (actual)

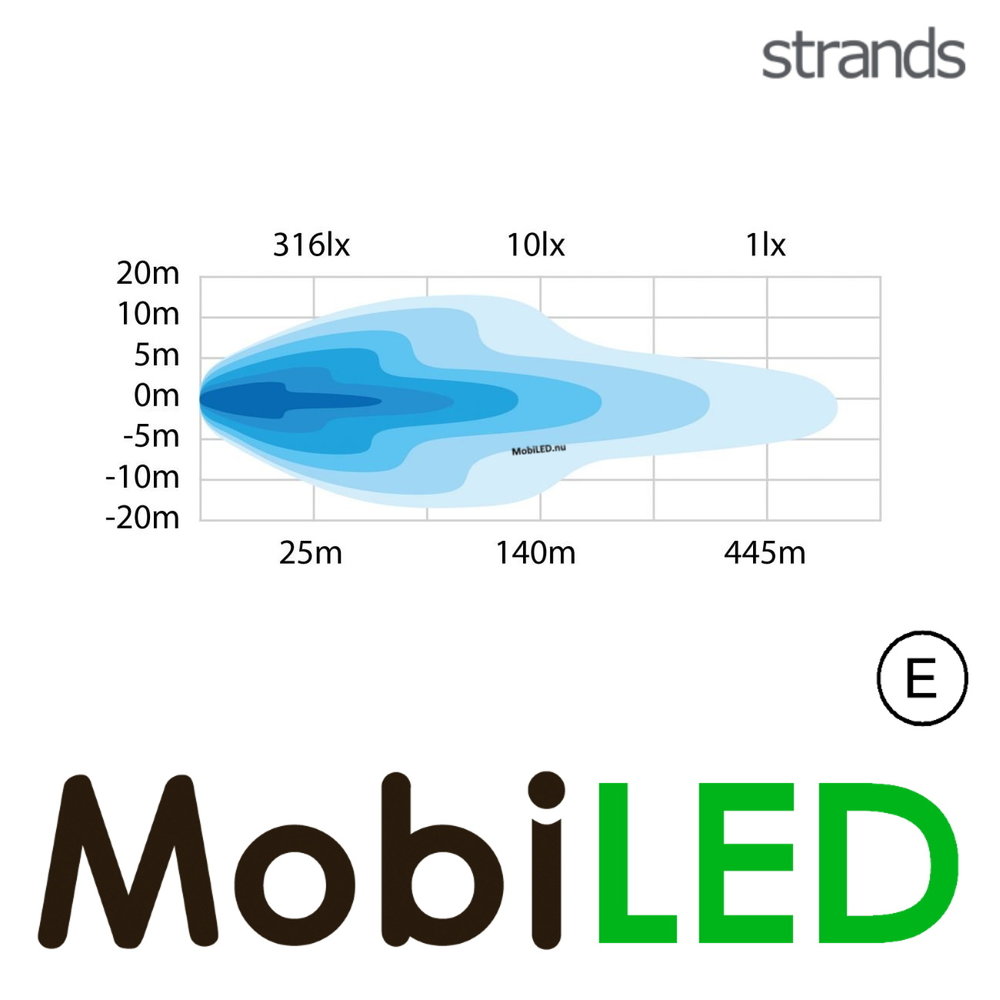

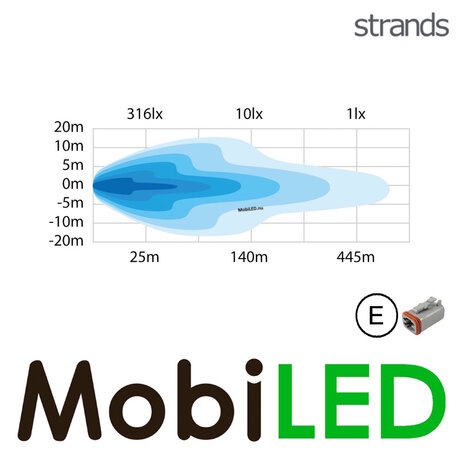

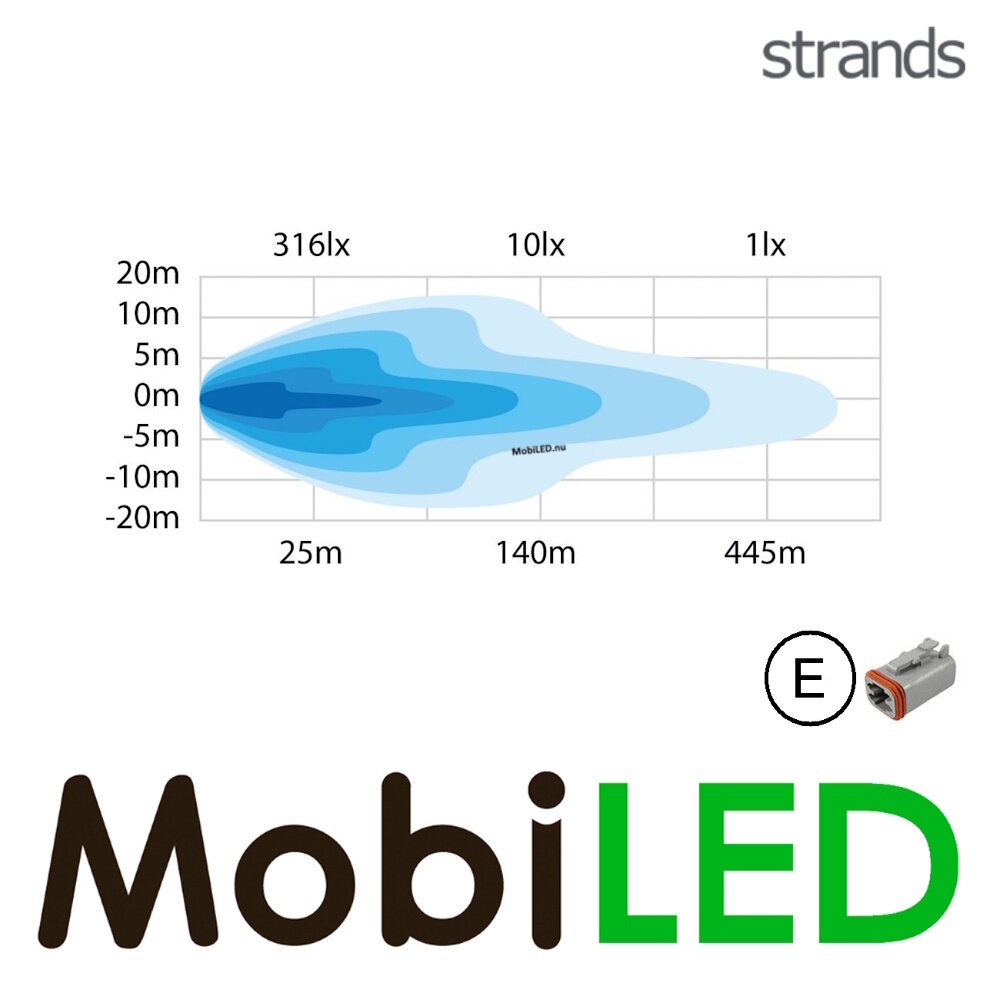

• 1 LUX @ m 445
• Light temperature: 6000K
• Rating: IP68, IP69K
• Lens colour: clear
• Color LEDs: white and amber
• Beam Pattern: Combo

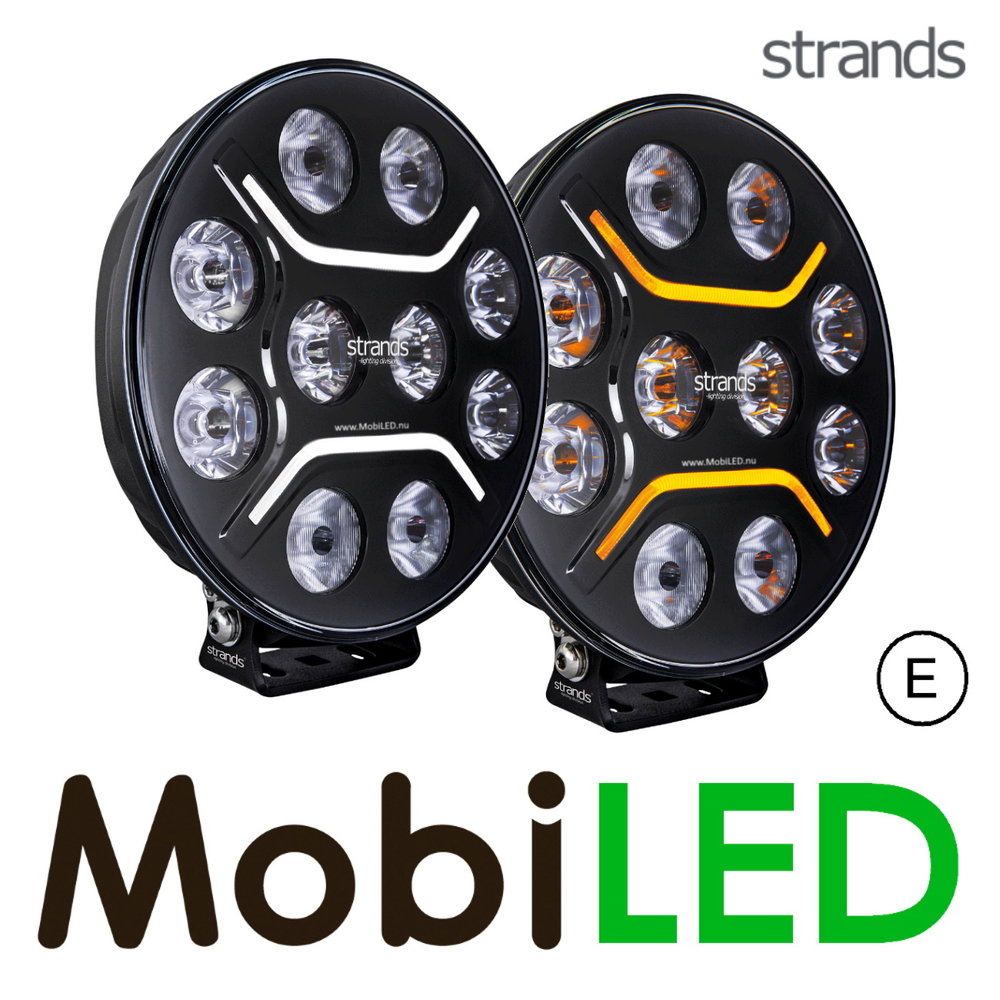

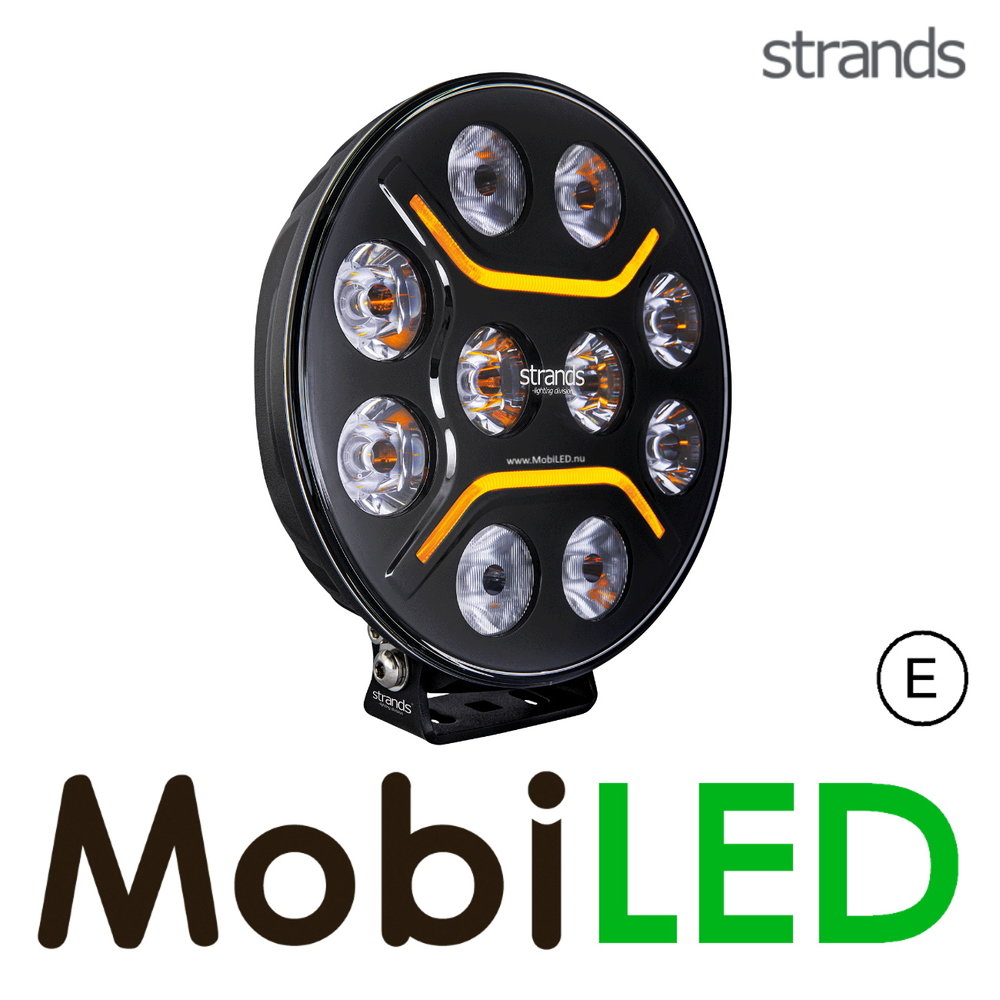

• Position light: white and amber

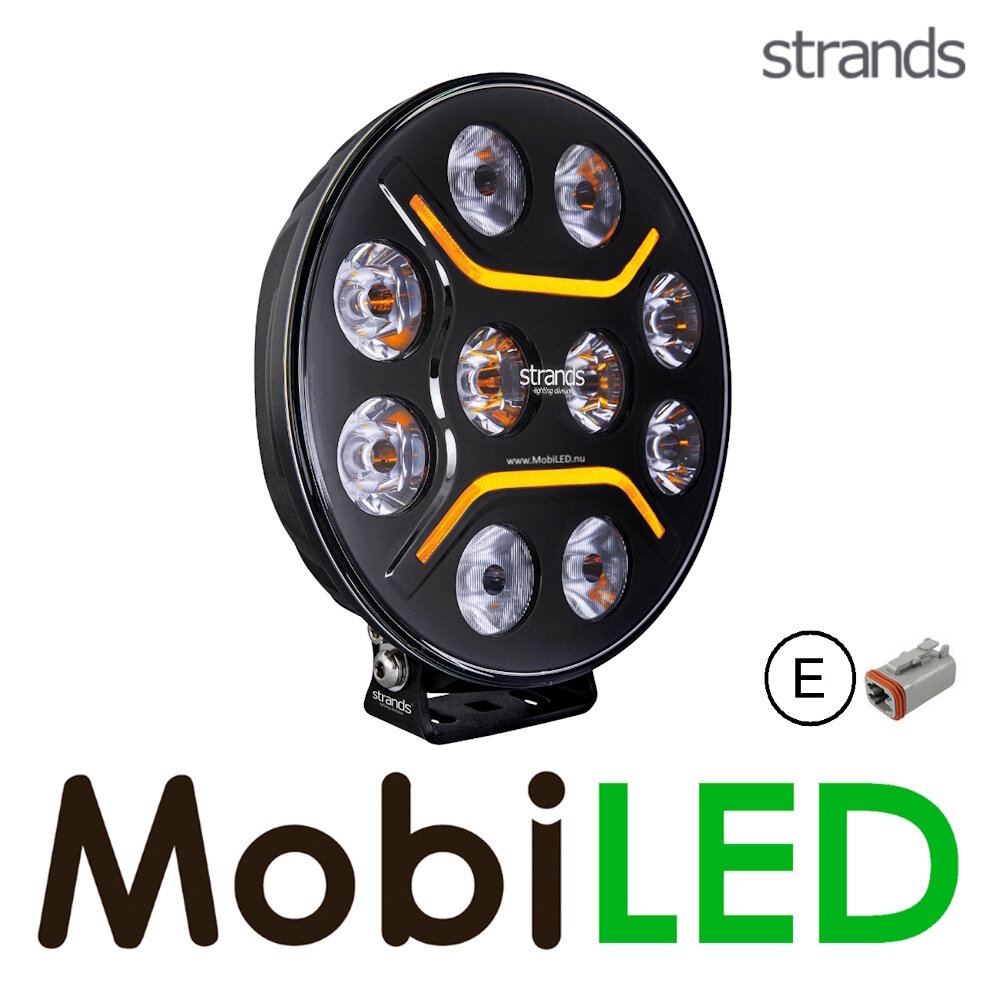

• Connection: DT-4 connector (included)
• Cable length: 500 mm
• Connection material: stainless steel bracket
• Material housing: aluminum
• Material lens: polycarbonate
• Dimensions lxdxh: 218 x 70 x 218 mm
• Height including bracket: 233.5 mm
• Diameter: 218 mm
• Operating temperature: -20°C - +45°C
• Certification: R112 (ref 45), R7, R10

Installation diagram:

• Black: - (earth)
• Red: + (positive)
• White: white position light
• Yellow: amber position light
