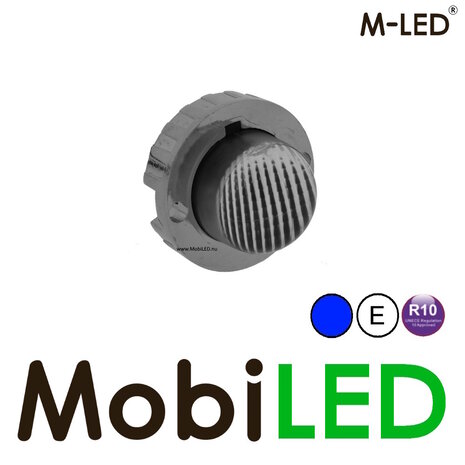

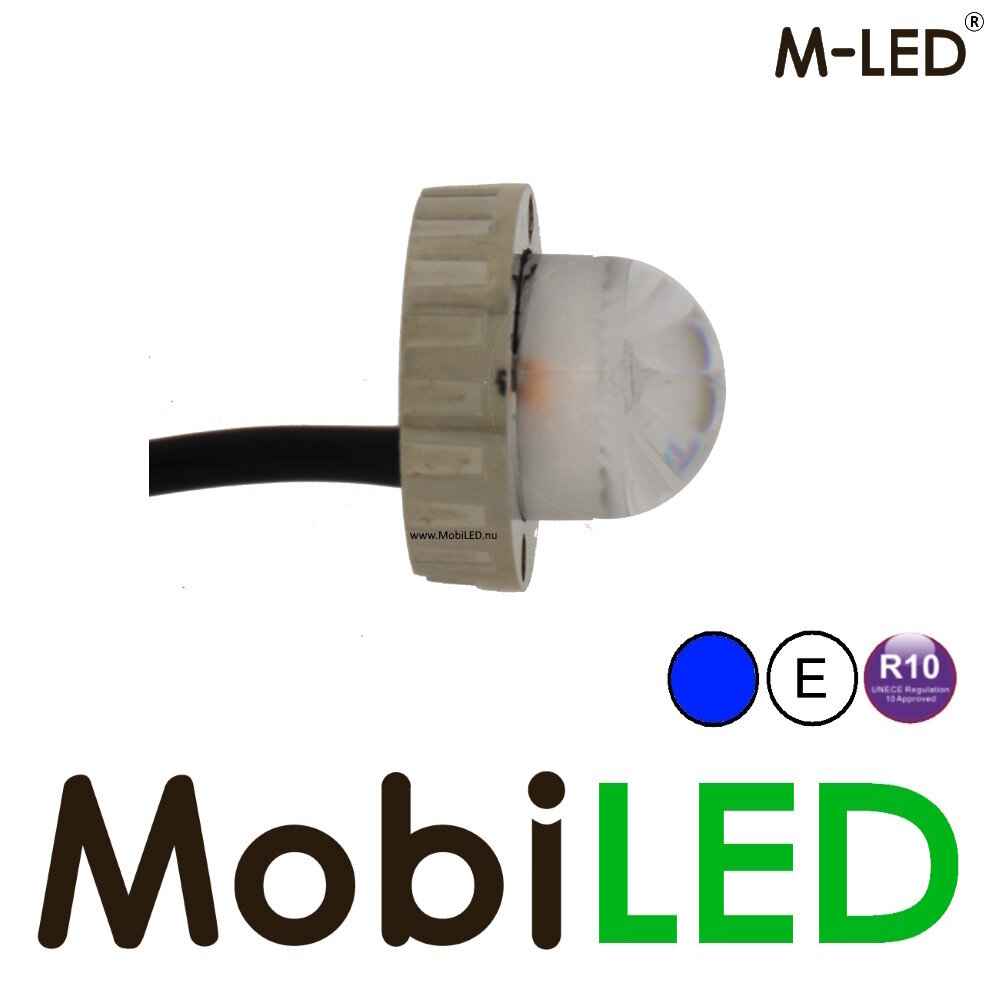

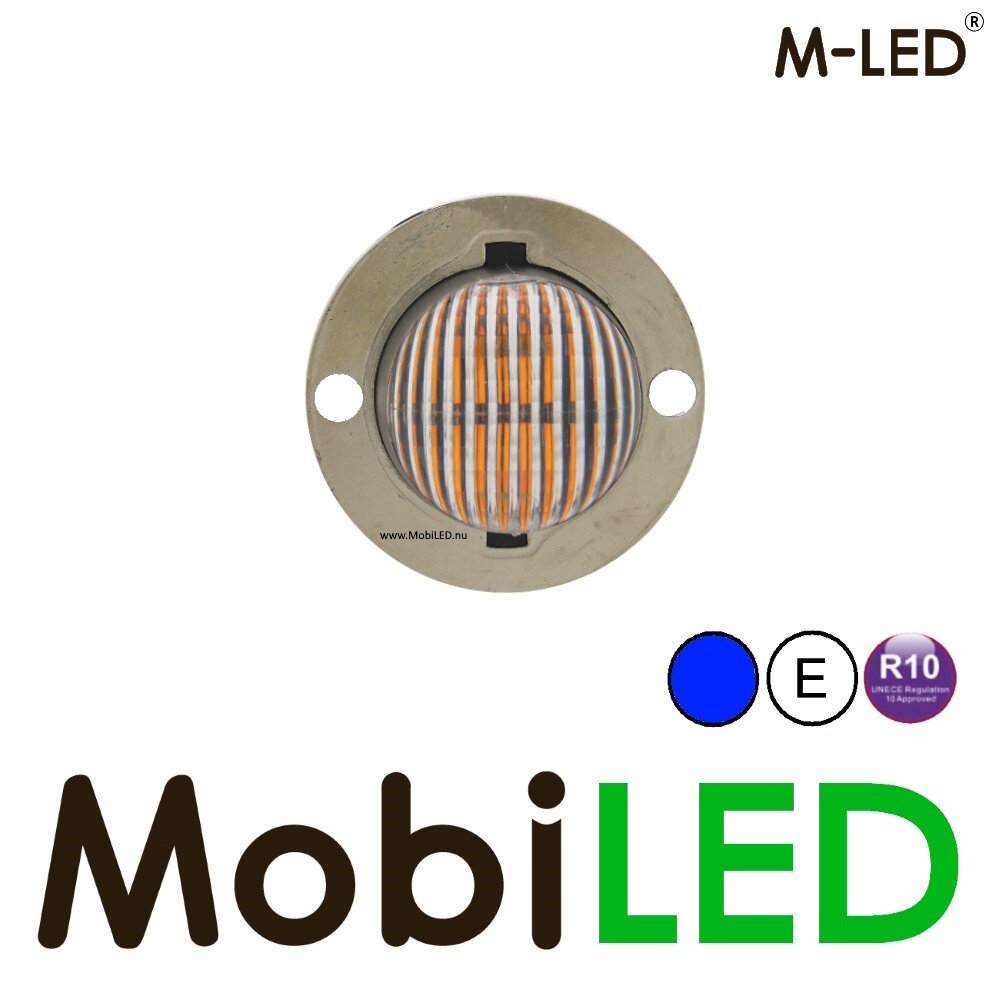

M-LED Undercover recessed/surface-mounting flasher blue E-mark

This robust flasher is suitable for professional use and has ECE R10 certification. The powerful flasher is equipped with 12 LEDs and produces a bright light image. A plastic lens amplifies the light extra and guarantees good distribution. An aluminum housing ensures good heat conduction. Hole size for mounting is 25 mm.
The hide away flasher has 21 pre-programmed patterns including continuous on. Pairing and synchronization works fine. This flasher can of course be used on both 12 and 24 volts (multi-voltage). This version is suitable for installation into the grill.

Specifications:

• Voltage: 12–24 V (multi-voltage)
• Color: blue
• Version: built-in
• Number of LEDs: 21
• Lens: PC
• Housing: aluminum
• Dimensions: 40 x 25 mm
• Certification: E9, ECE R10

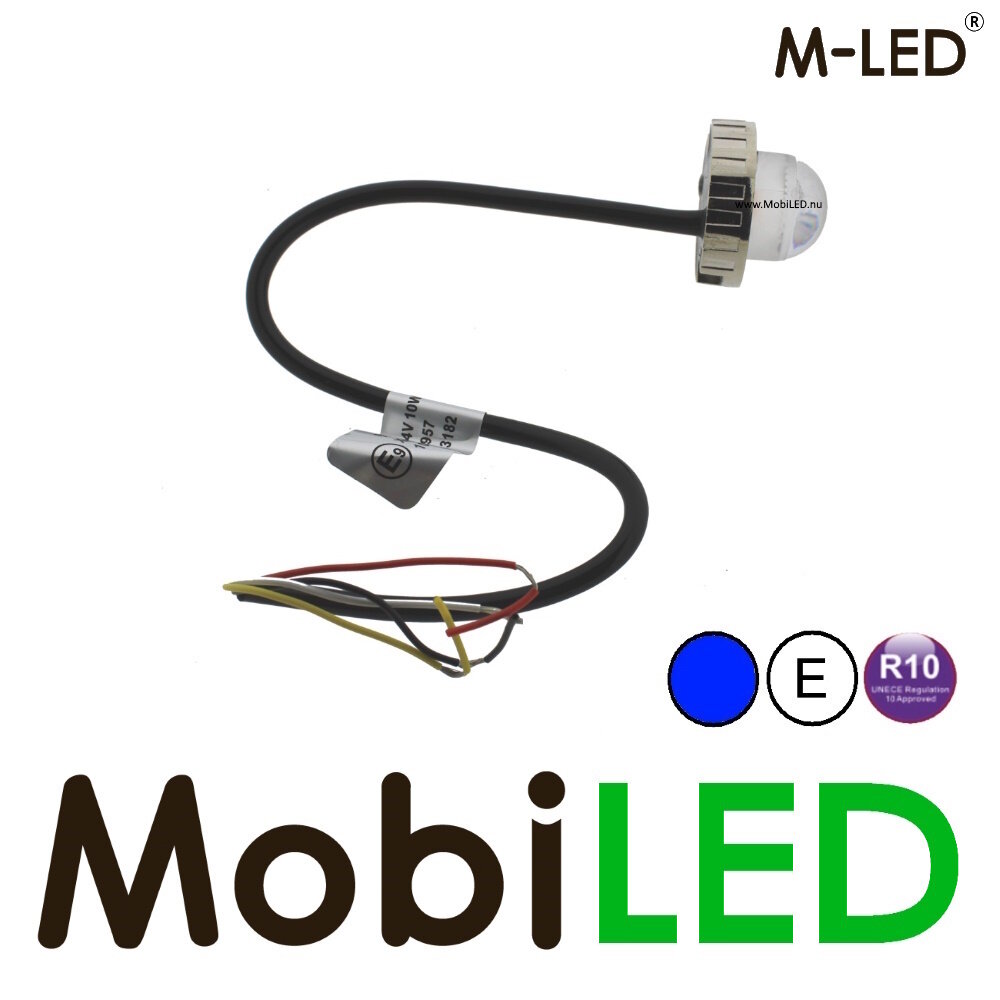

Connection diagram:

• Black: mass
• Red:  VDC
• Yellow: synchronization and pattern selection
• White: together with black for lower intensity
