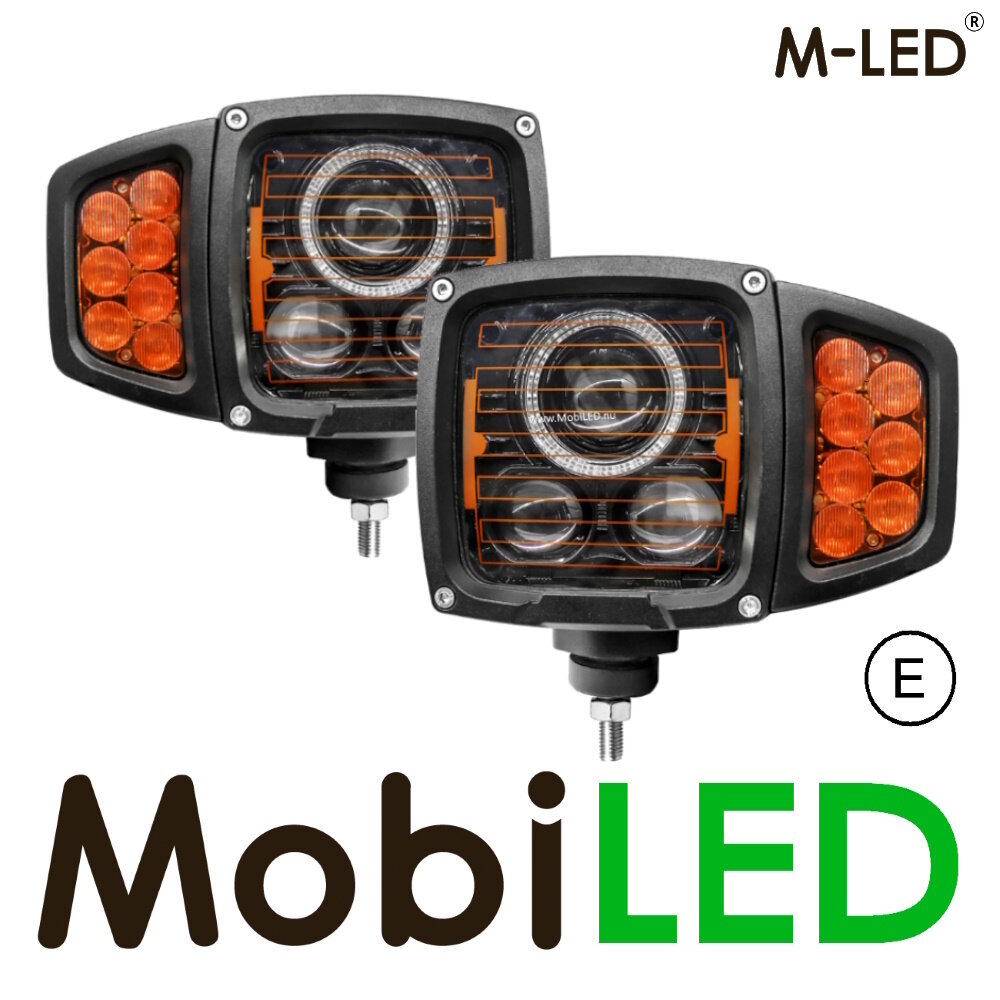

M-LED Set Heavy duty heated headlight E-mark

Set headlight units for heavy duty work on, for example, snowplows, excavators or trucks. A sturdy die-cast aluminum housing and, thanks to the built-in heating function and a waterproof rating IP66/69, can be used in all weather conditions.

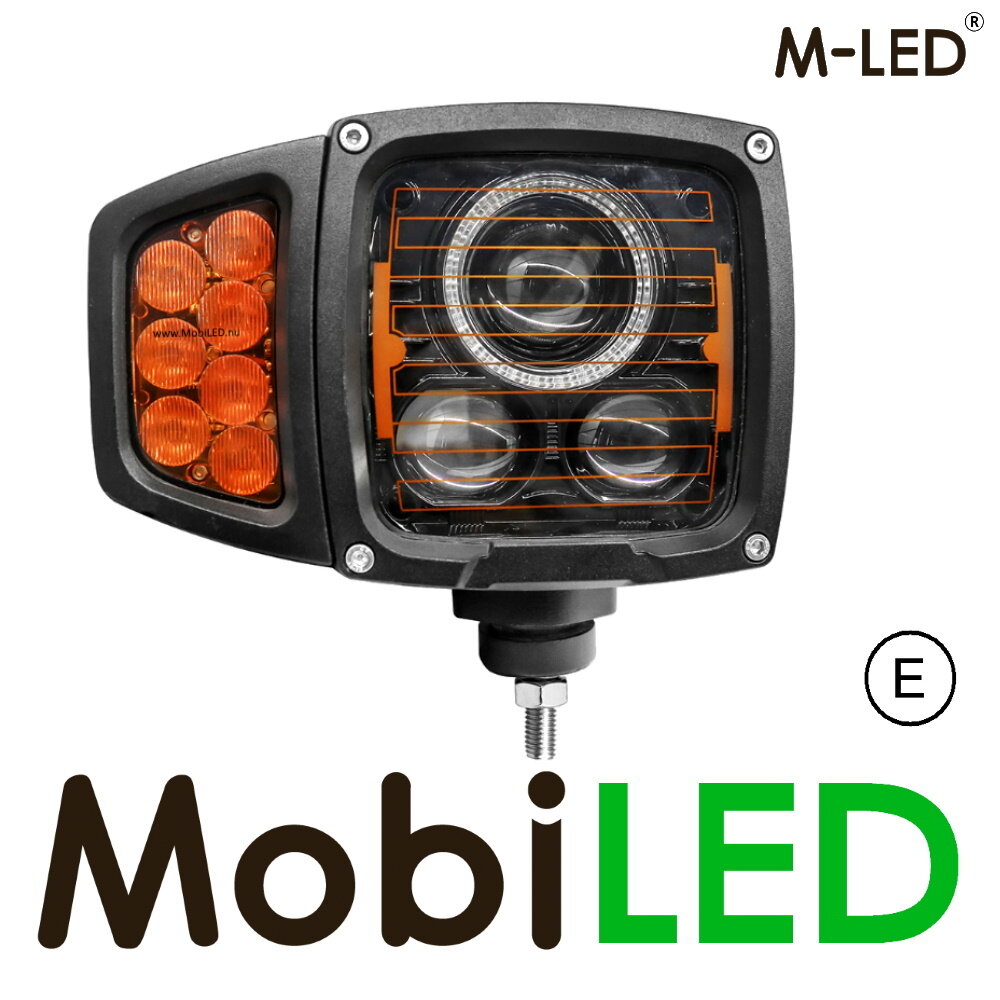

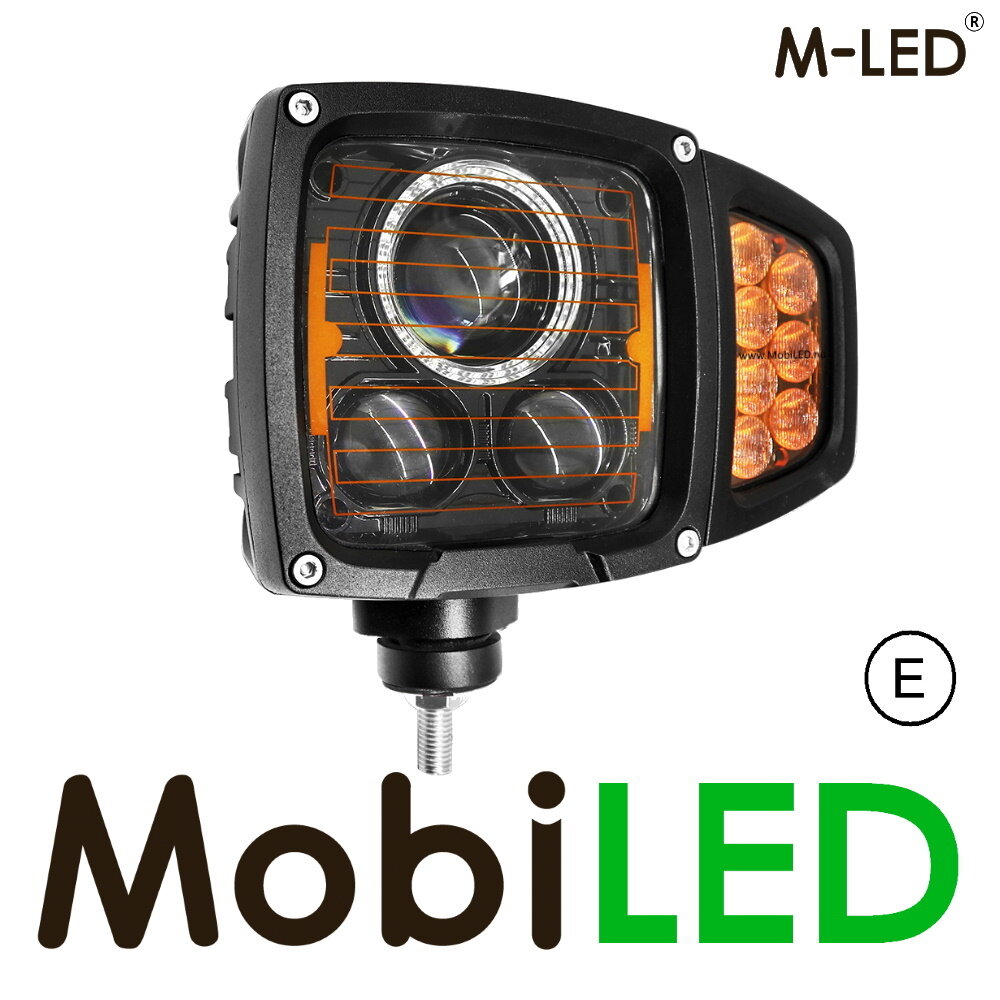

The flashing light can be mounted on the left, right and above the lamp or can be omitted completely. The high-quality LEDs in combination with the reflector facing technology provide more light with less power.

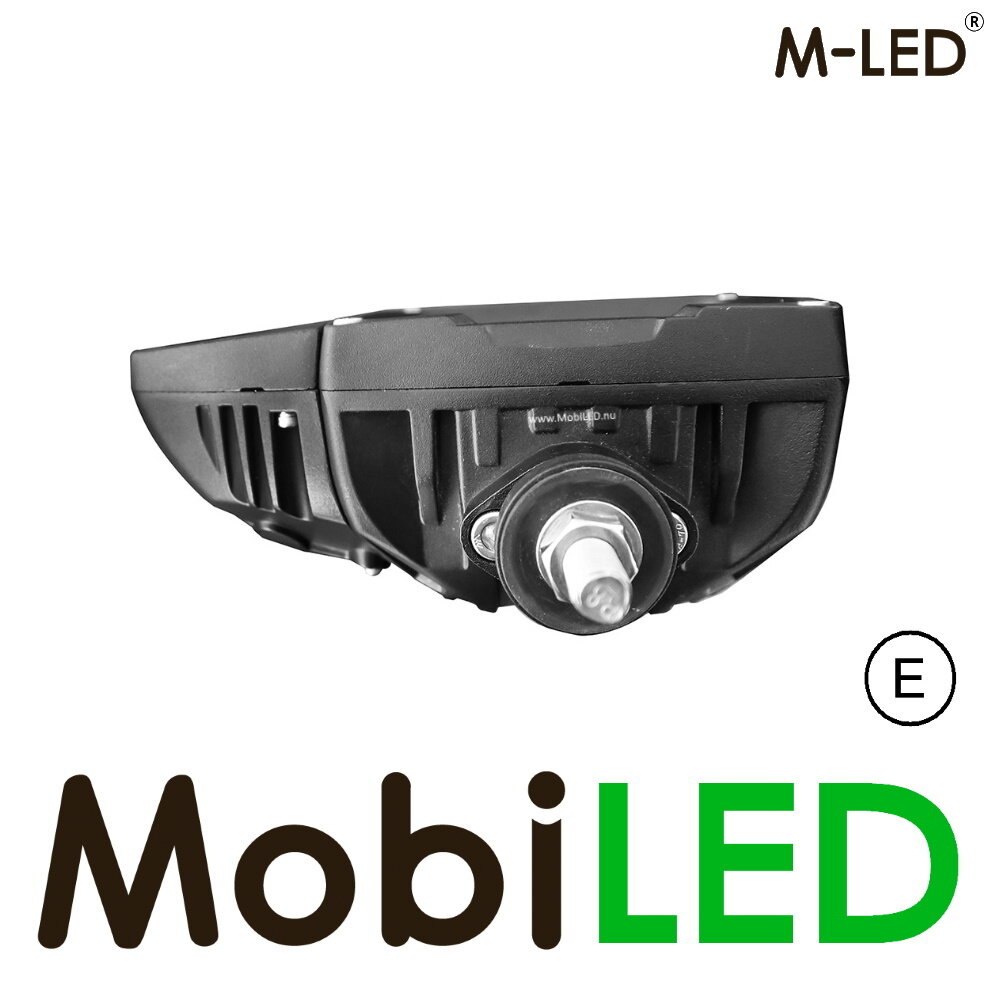

The heating function is activated automatically. The lamp mounting bracket can be mounted both under and at the back of the lamp.

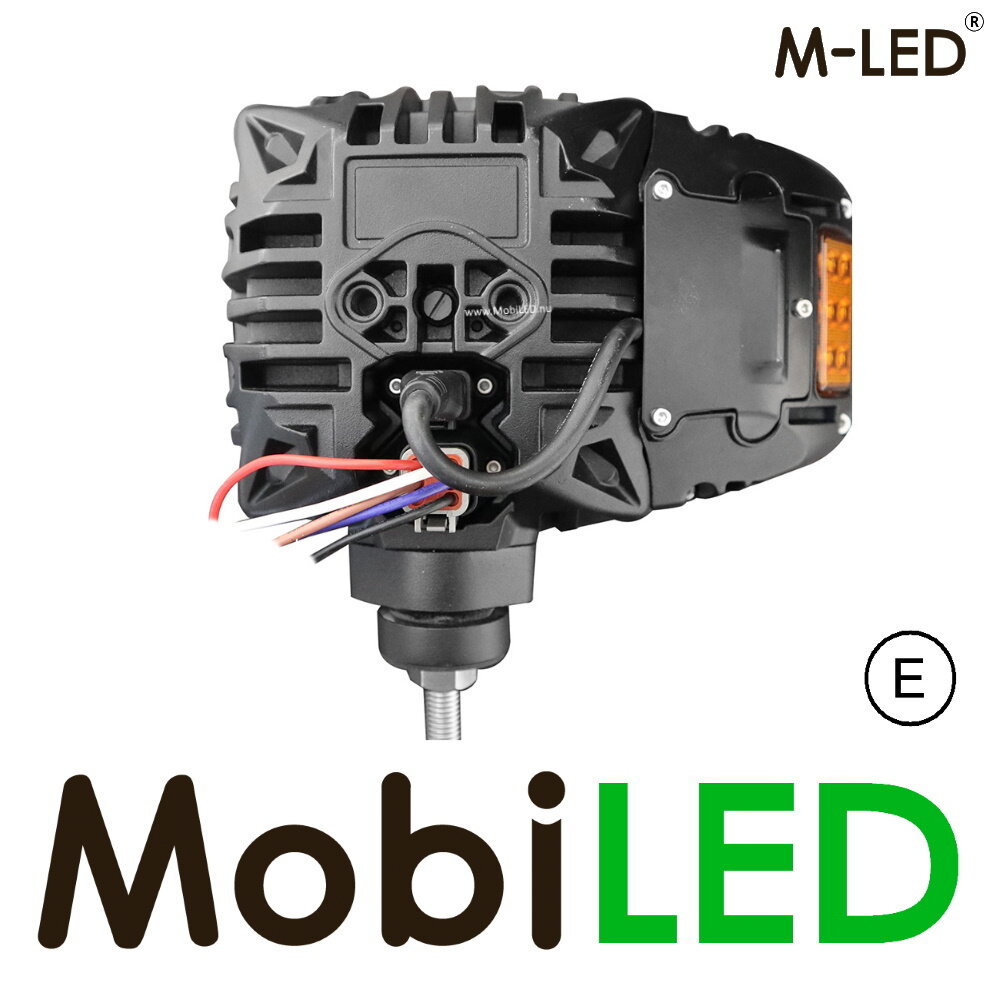

This set comes with an already connected 6-pin deutsch connector and about 40 cm of cable.

Features:

1. Dipped beam
2. High beam
3. Daytime running lights
4. Flashing light
5. Headlight heater

Specifications:

• Voltage: 10-30 Volts DC

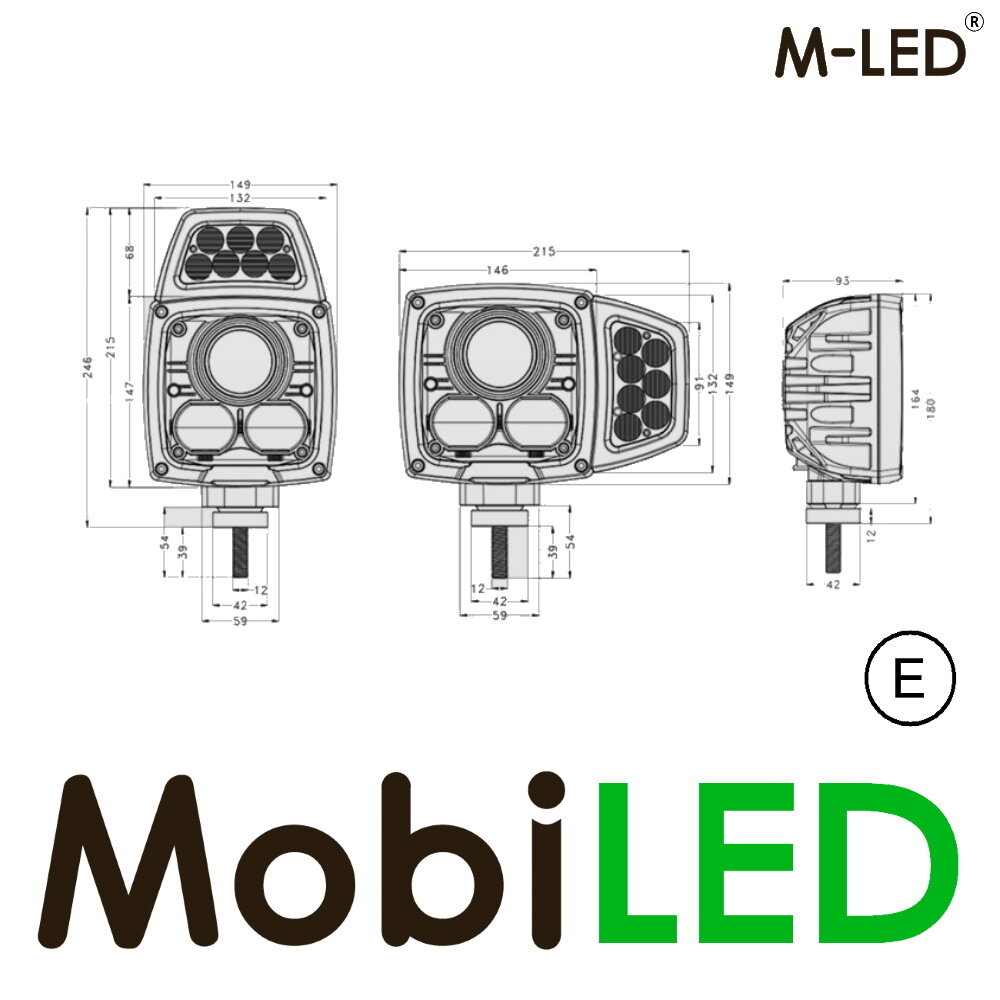

• Dimensions: 229 x 173 x 106mm
• Power: dipped beam 30W, high beam 60W, direction indicator 12W, daytime running lights 12W
• Consumption: dipped beam 2.5A, high beam 5A, turn signal 1A, daytime running lights 1A
• Light color: white 5700-6500K, amber 1600-1800K
• Water resistance: IP66/6K9K
• Housing: aluminum alloy
• Lens: tempered glass
• Lifespan: >30,000 hours
• Operating temperature: -40 ℃ - + 50 ℃
• Certification: E-mark

Connection diagram:

• Black: Mass
• Red: high beam
• Brown: low beam
• Blue: turn signal
• White: daytime running lights
