LAZER Triple-R 750 with position light 230mm 45W
Triple-R 750 with position light 8.6 inch 45W

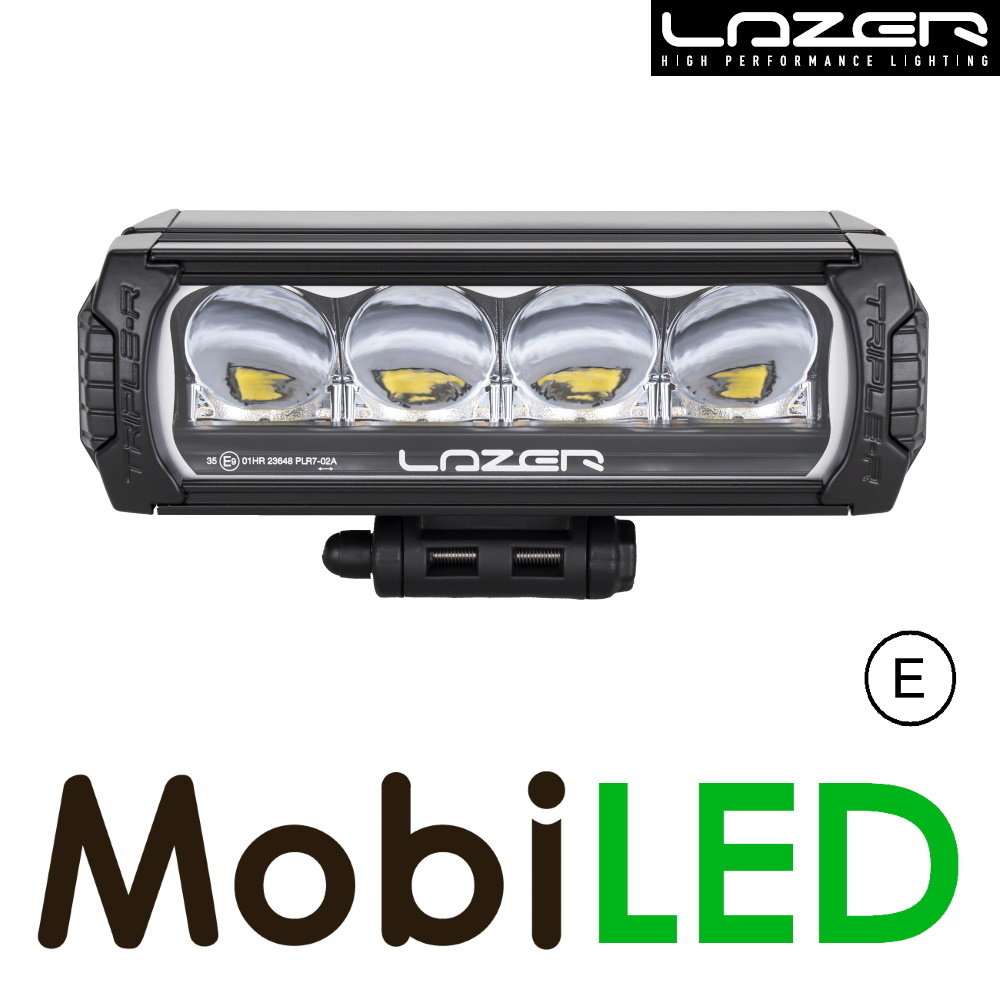

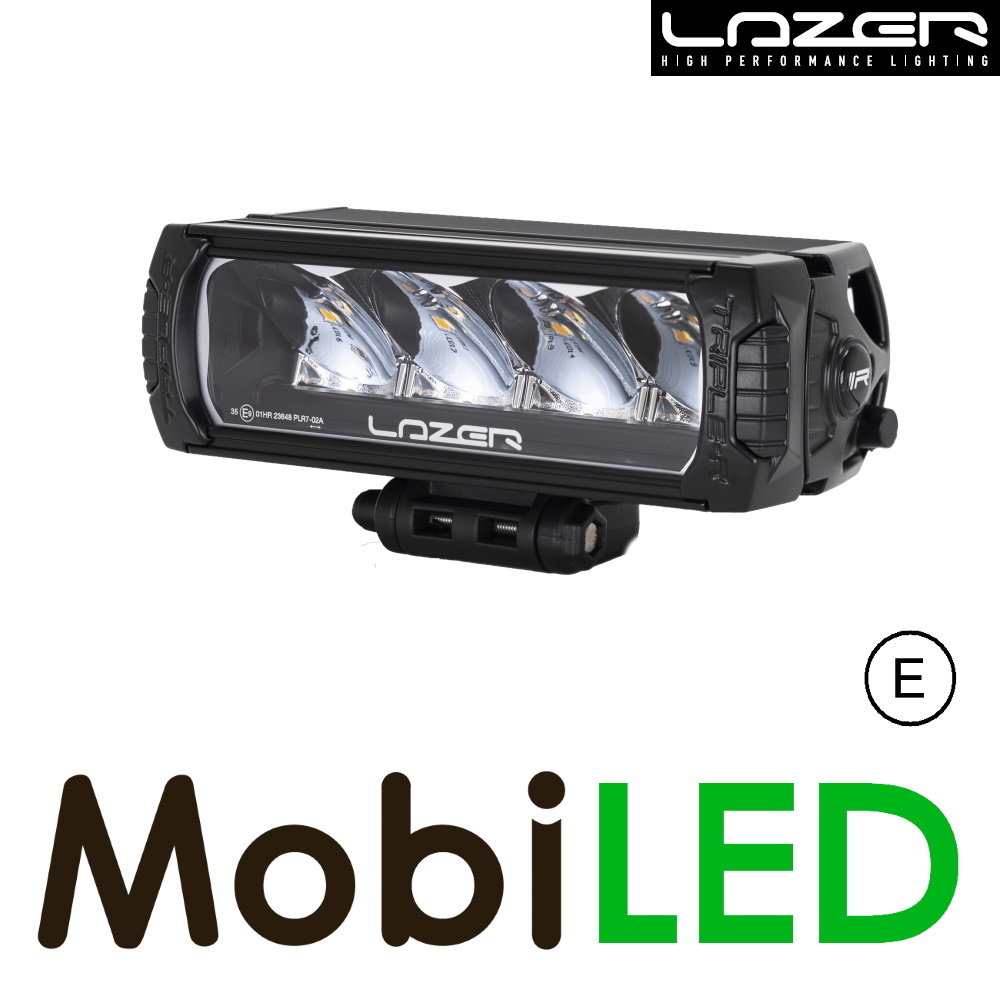

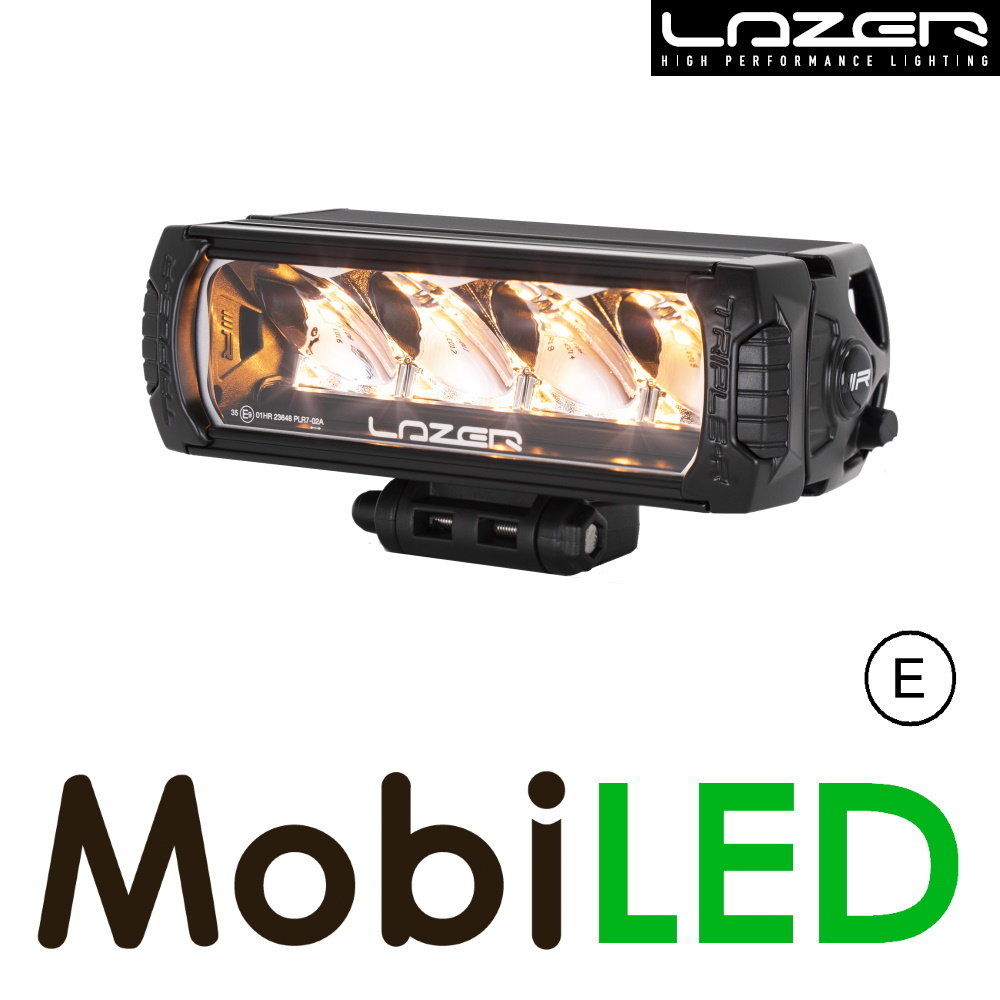

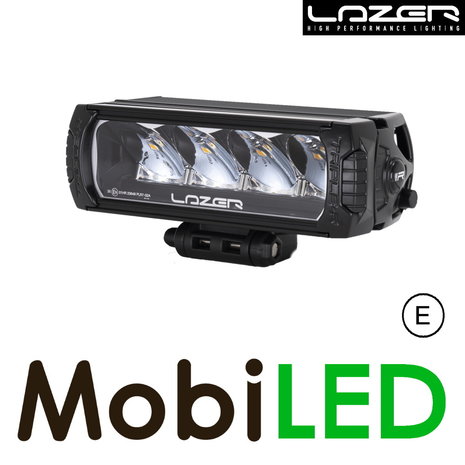

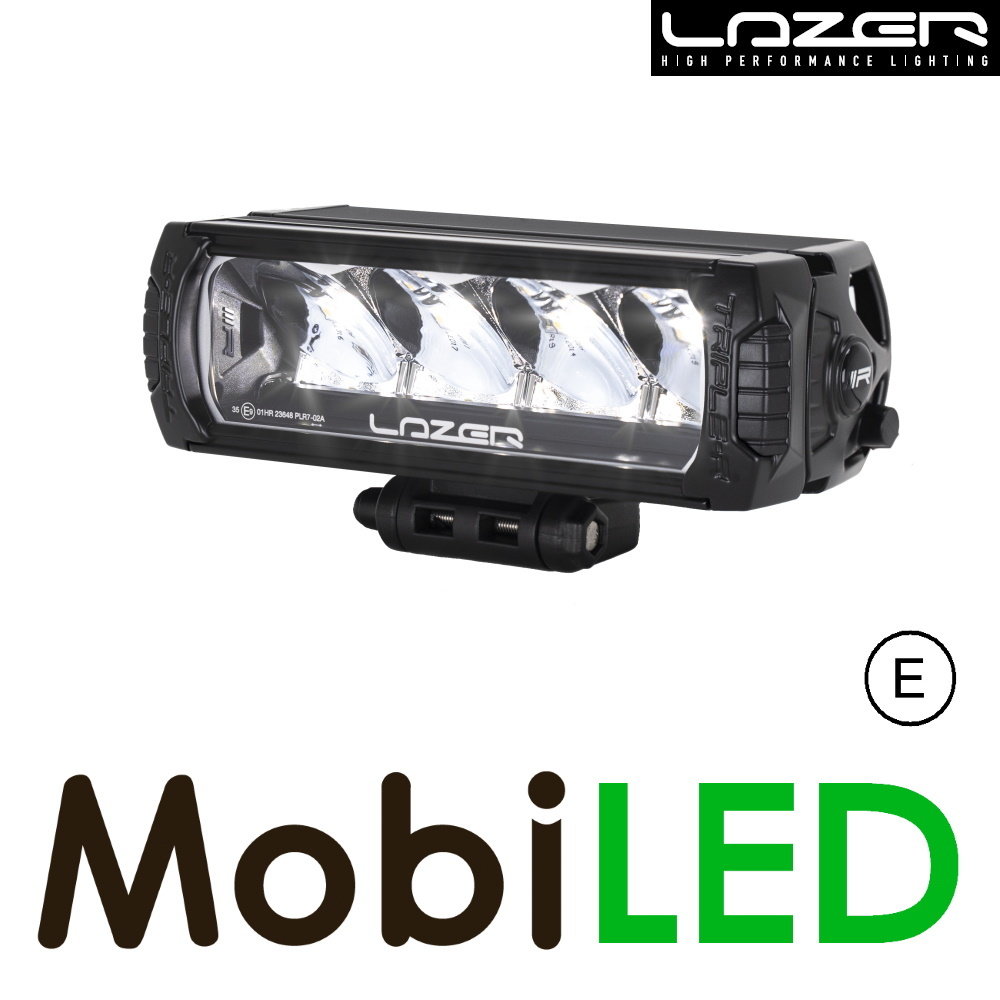

The LAZER Triple-R 750 with position light has an exceptional light output. The 11W LEDs and the ultra-reflective vacuum metallic lens deliver spot beam pattern and still providing excellent left/right spread. On installing the lamp, either the white or the amber position light can be connected.

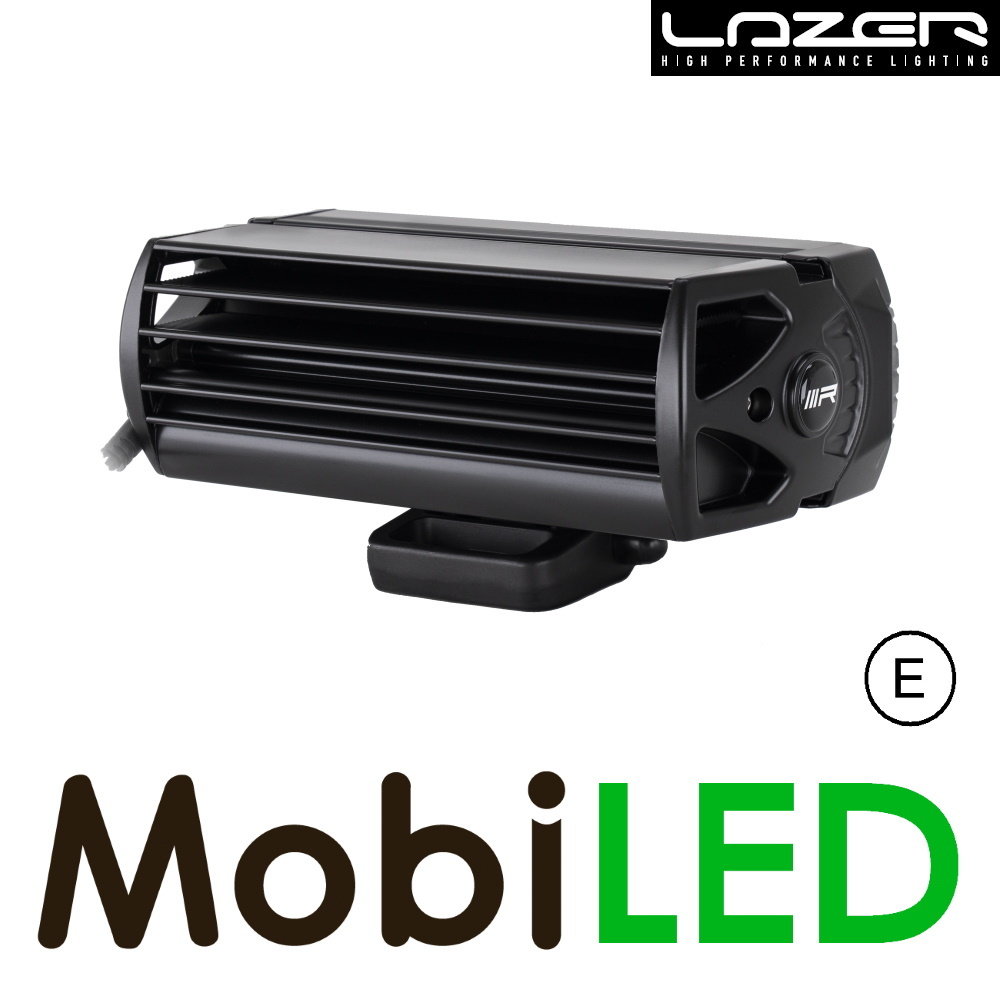

The electronic heat management system optimises light output making the LEDs last longer. The aluminium housing is anodised and powder-coated, offering protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.
The Triple-R 750 with position light is R112 B certified for on-road high beam function and R7 for the white position light.

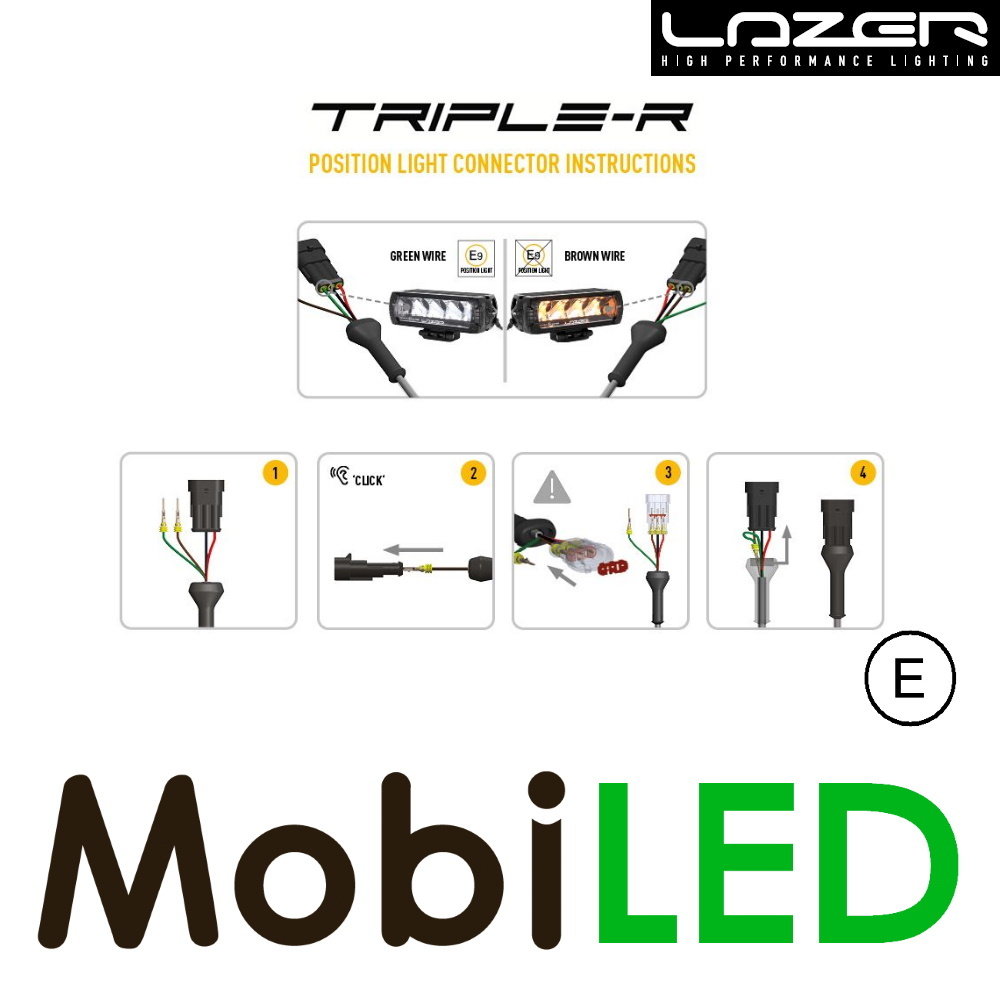

The LED bar can be mounted at the bottom with the supplied centre brackets. Side mounting is also possible, but the side brackets are not included. It comes with male/female 3-pin superseal connectors.
Triple-R LED bars impress, even before the sun goes down.
Specifications:
- Voltage: 10-32V
- Power: 45W
- Consumption at 14.4V: 3.1 amp
- Number of LEDs: 4
- Lumen theoretical: 4,620

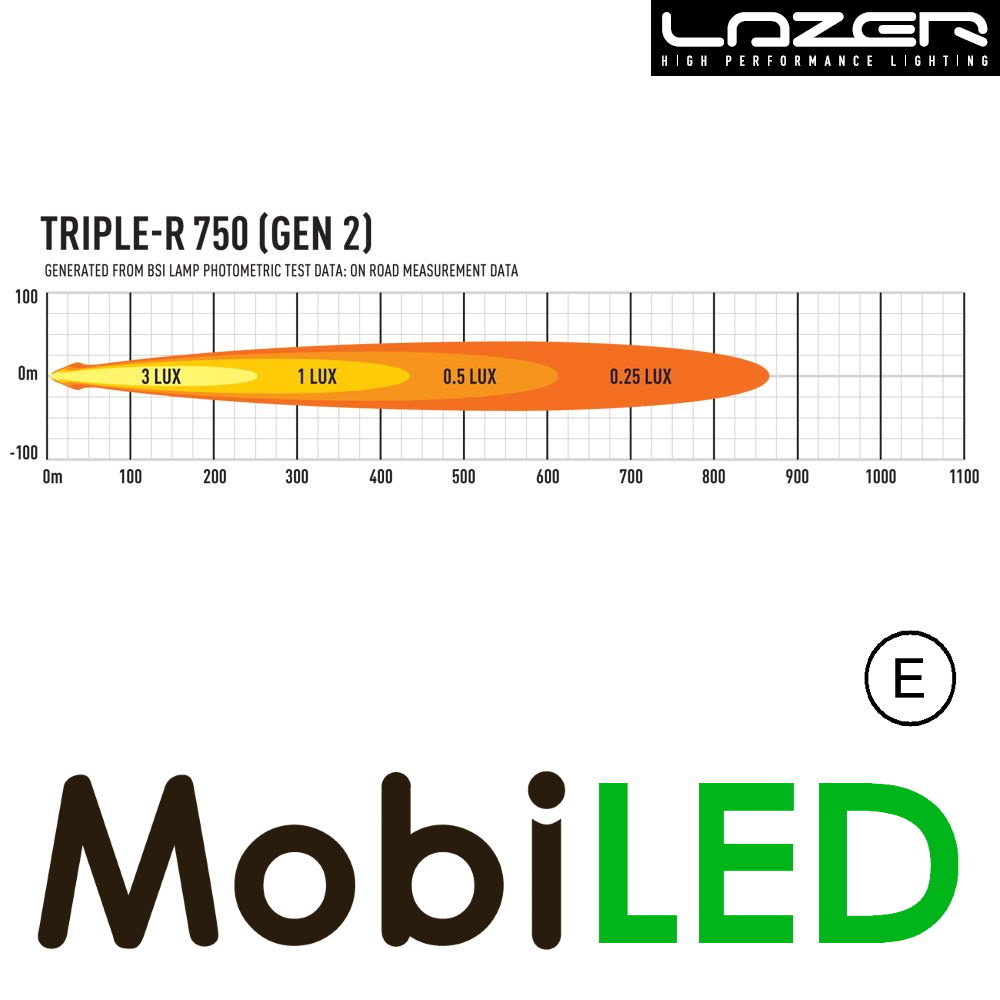

- Light range: 1 LUX @: 433 m; 0.25 LUX @: 866 m
- Light pattern: spot with a 19 degree angle
- Light color: 5,000K
- Startup time: 100 ms
- Water resistance: IP67
- Dimensions: 230 x 73 x 105 mm; 270 x 103 x 105 mm incl. brackets
- Housing: aluminum
- Mounting brackets: stainless steel
- Weight: 1 kg
- Certification: R10, R112, R7 for white position light
- Lazer part number: 00R4-G2-B
Product specifications
- Article number
- LB354
