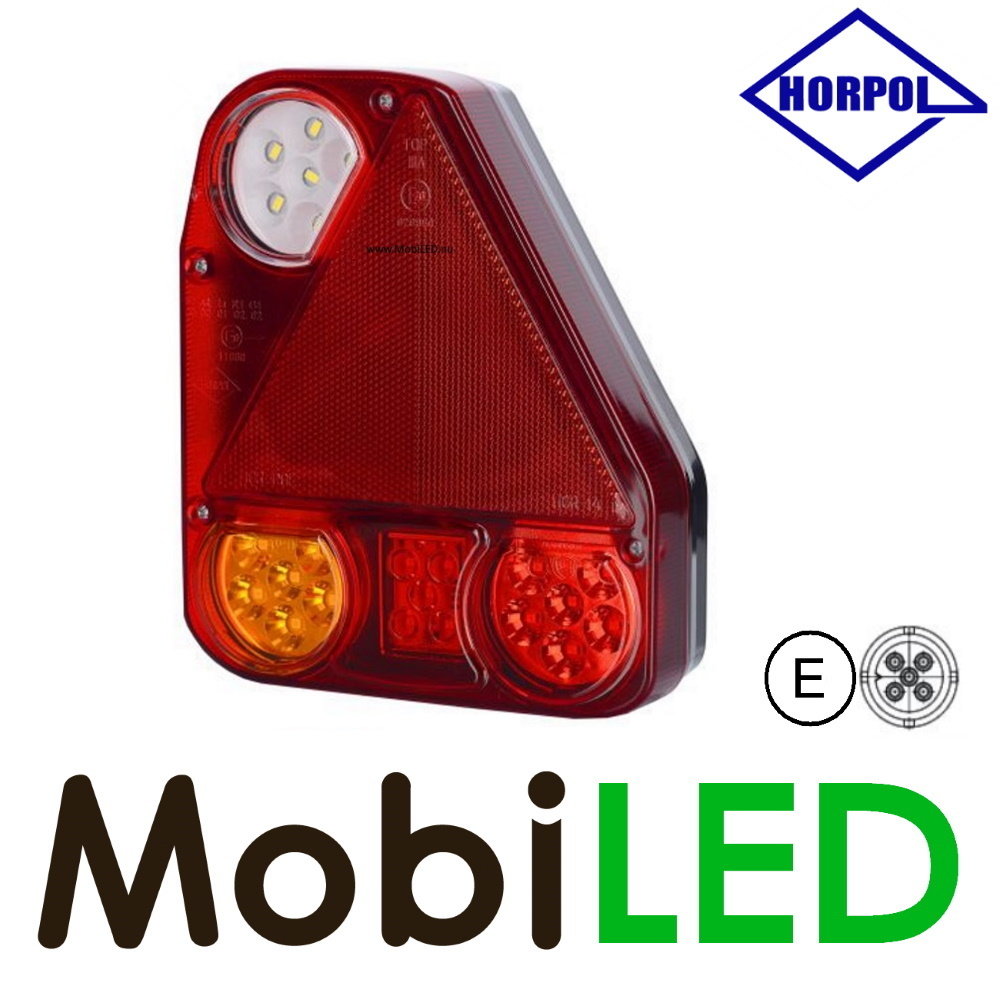

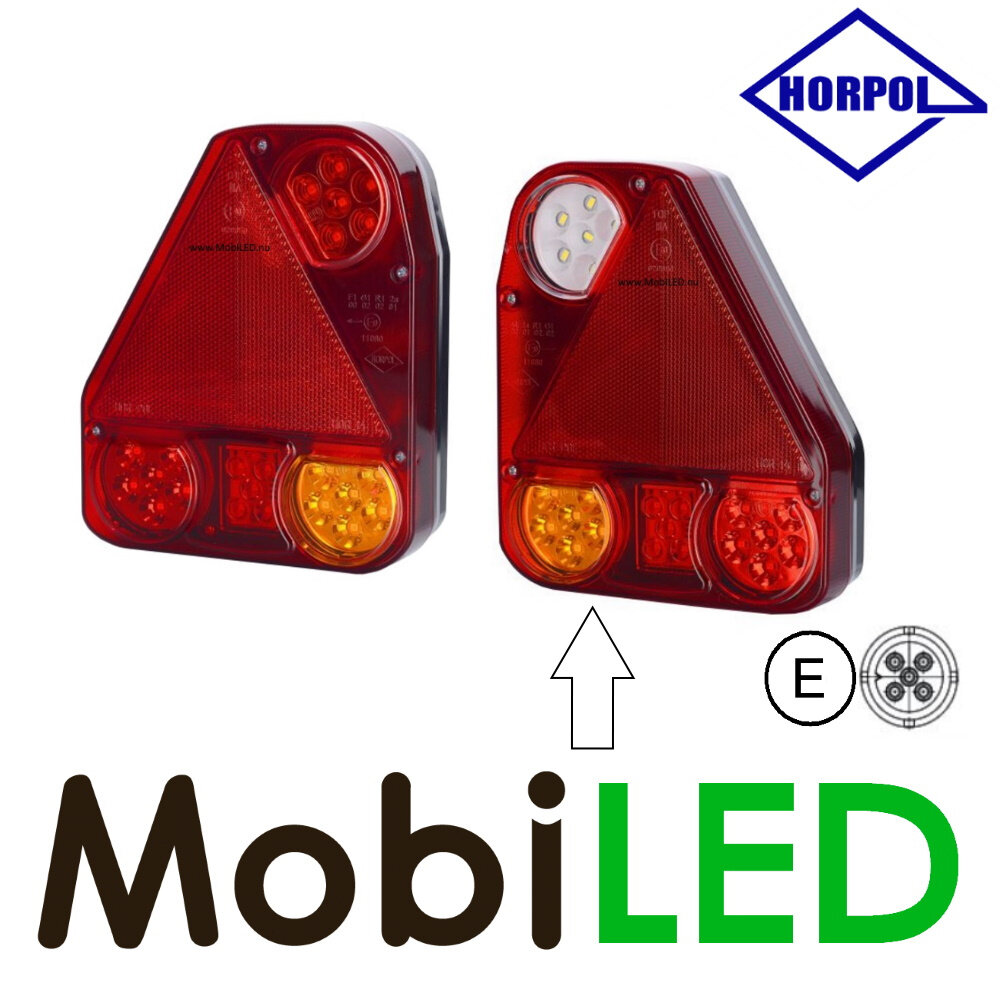

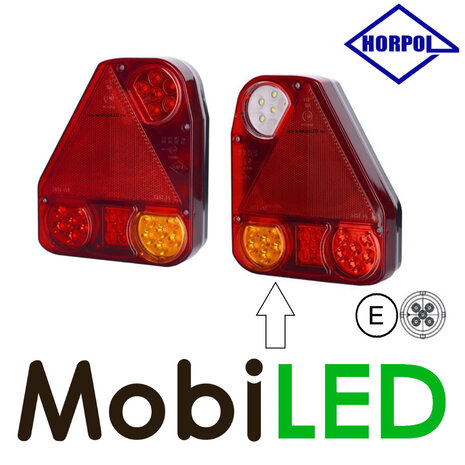

Triangular modular rear light right 4 functions bayonet

Triangular modular rear light right 4 functions with bayonet connection

Large rear light triangular in shape and fitted with a large triangular reflector. Modern technology with a modern look. Equipped with E-mark and with 4 light functions.
Damage to the lamp? The interior of this lamp can be replaced per light module and the housing is also available separately. This means that the entire module does not have to be replaced.
This lamp is suitable for 10-30 volts and can therefore be used widely.

Functions:

1. Rear light with reflector
2. Brake light
3. Turn signal
4. Reversing light

Specifications:

• Version: right
• Dimensions: 207 x 174 x 55 mm
• Bolt distance: 150 mm
• Connection: bayonet
• Voltage: 10-30 volts
• Certification: E-mark
• Number of functions: 4 + reflector

Homologation:

• HOR 14
• HOR-56-LED-S1
• HOR-56-LED-F1
• HOR-56-LED-AR
• HOR-56-LED-2A

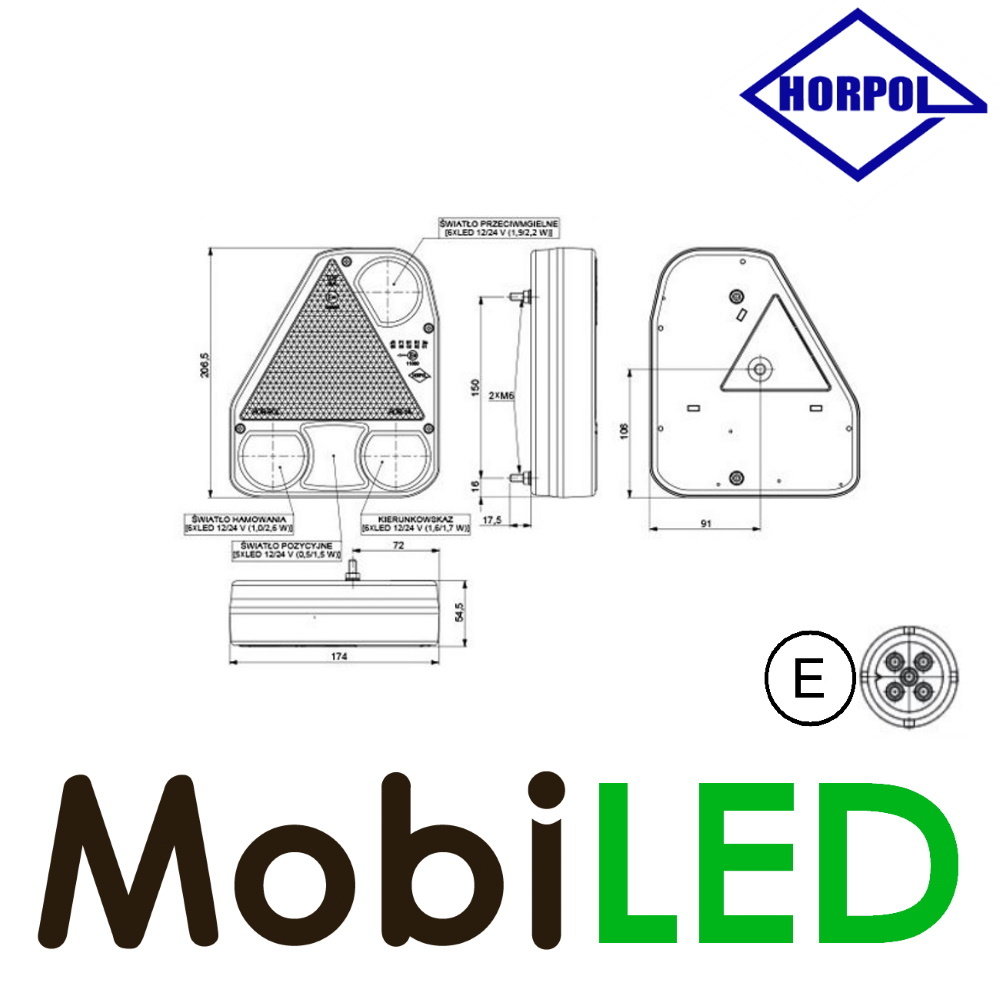

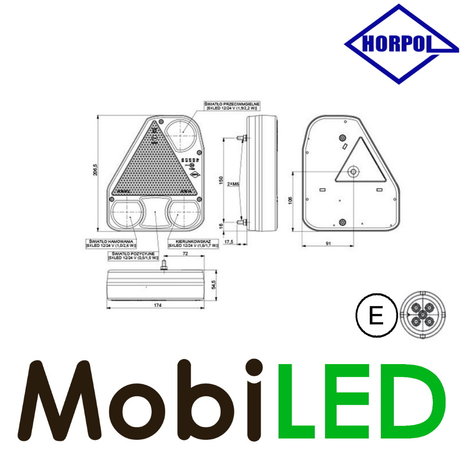

• Technical drawing
