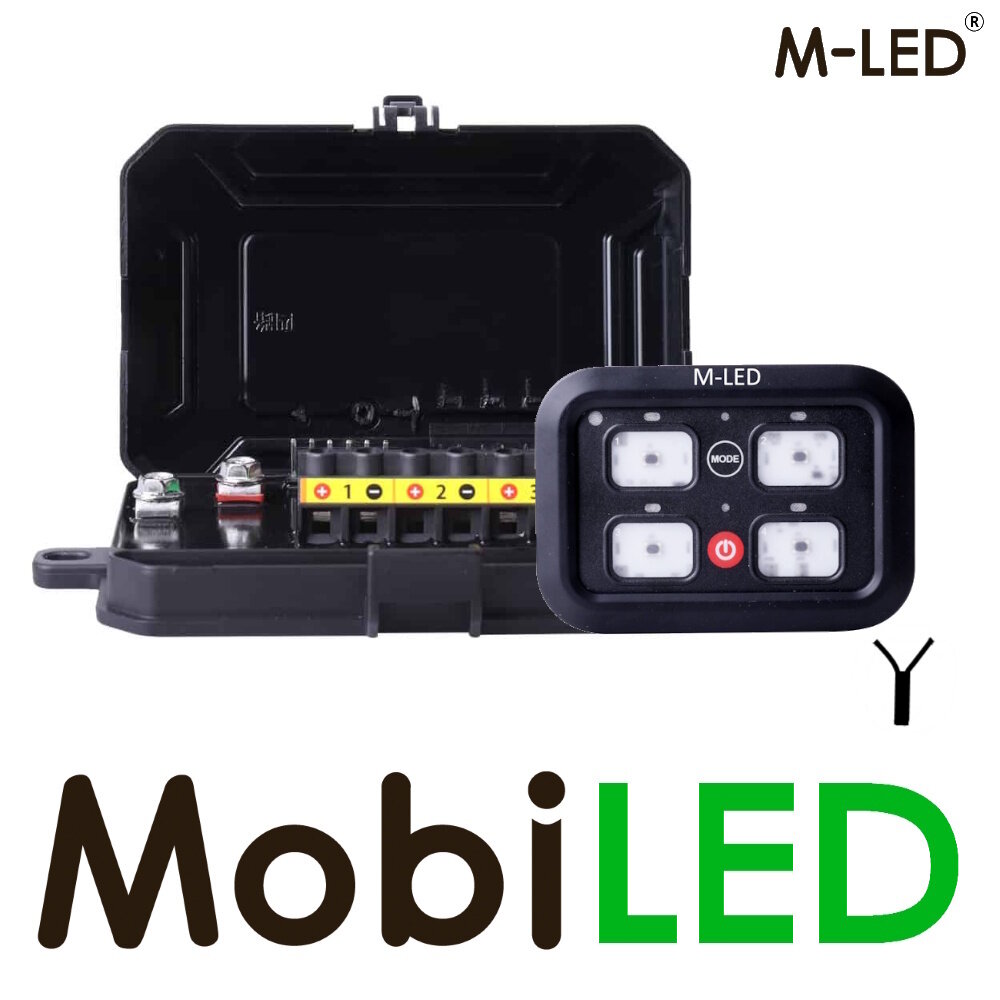

M-LED Control panel with power unit 4 buttons 12/24V

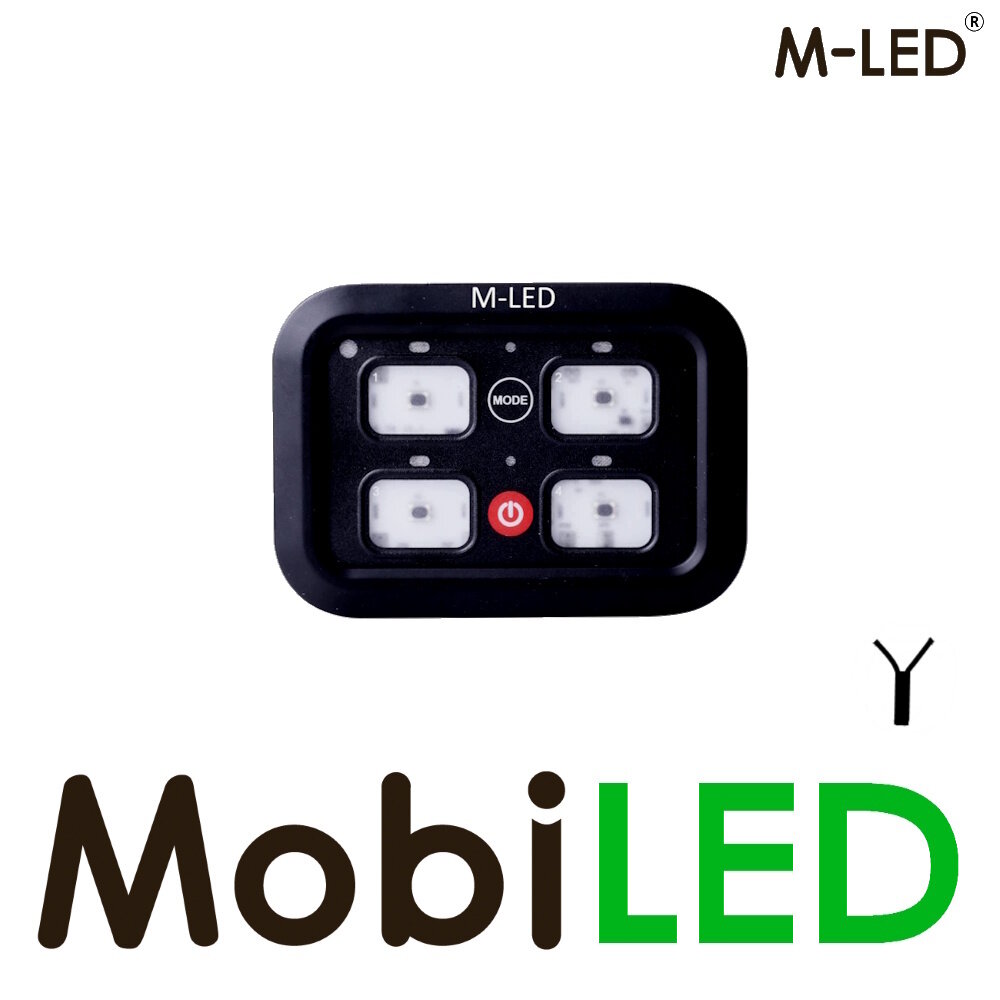

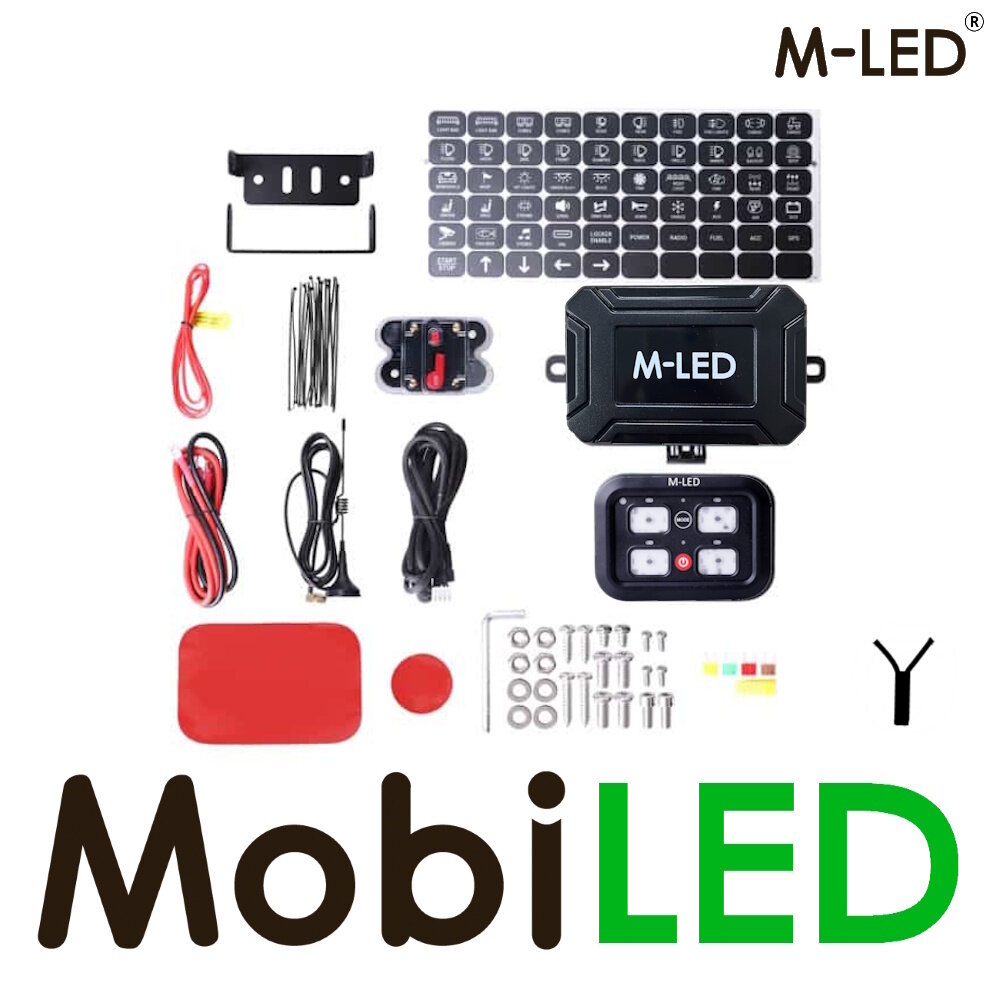

A complete set with control panel and power unit for connecting lighting, among other things. The panel has 4 buttons; each button can be set to 3 functions: on/off switch, pulse switch, or strobe switch. The buttons can be illuminated in various colors, and the intensity is automatically adjusted to the environment. Stickers are included for the buttons: 55 with various symbols and 5 without symbols. The panel can be mounted using the included bracket/mounting plate.

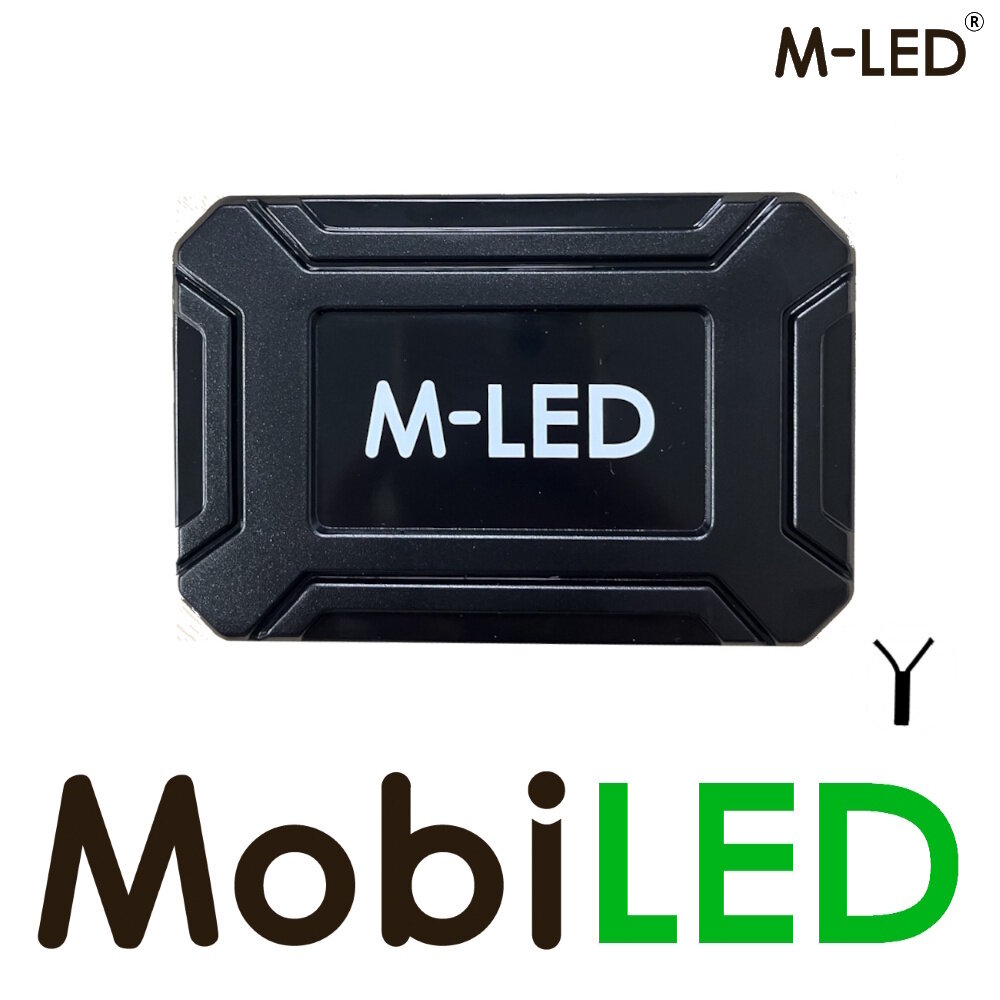

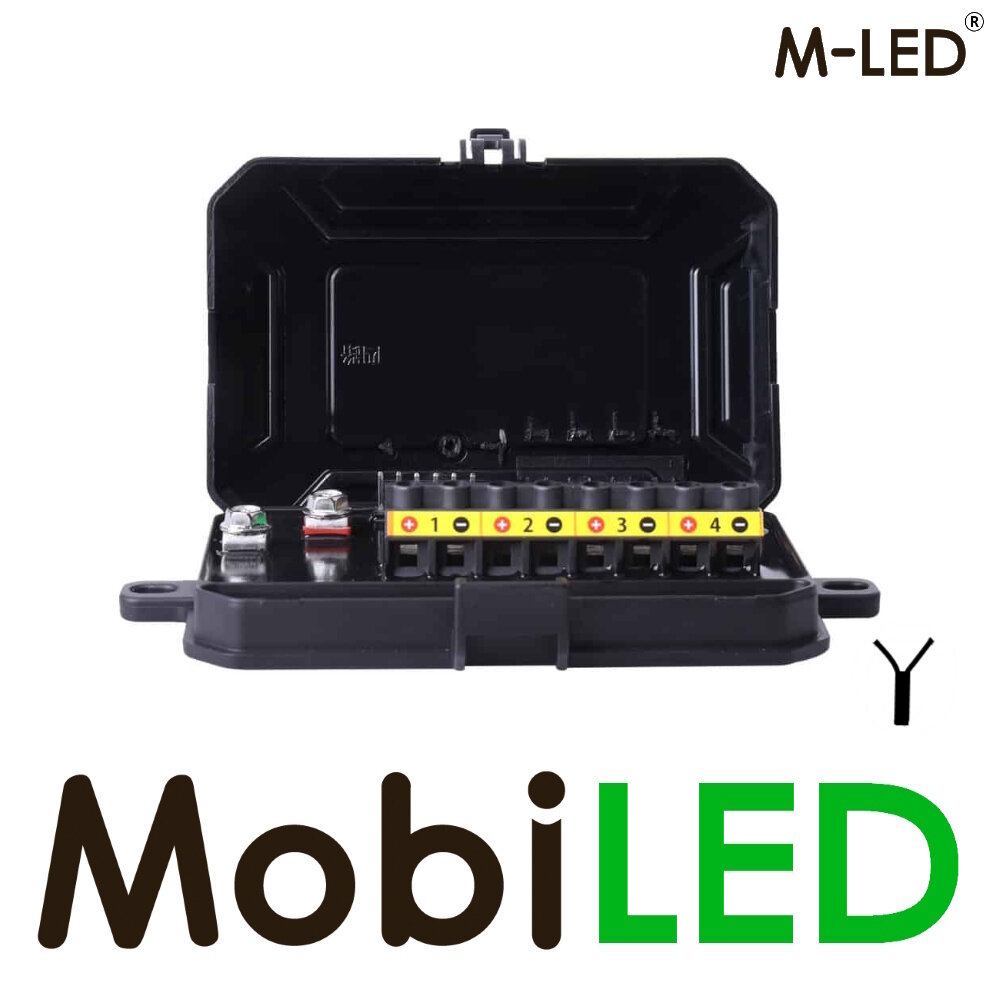

The set is equipped with a power unit featuring relays and fuses for all 4 connections; it is supplied as standard with 1x 5A, 1x 10A, 1x 20A, and 1x 30A fuse. Several spare fuses are also included. The maximum input current is 60A, for which a circuit breaker is included. The maximum output current is 480W at 12V and 960W at 24V.

Specifications:

• Input voltage: 12 or 24 V DC
• Maximum output power: 480 W at 12 V, 960 W at 24 V
• Maximum input current: 40 A
• Switch panel size: 95 X 68 x 13 mm
• Switch cabinet dimensions: 130 X 90 x 35 mm
• Material: high-quality ABS and aluminum
• Automatically dimming backlight
• Operating temperature: -40°C ~ +105°C
• DIY labels: 60 reusable labels
• Overvoltage protection, overcurrent protection
• Protection against reverse polarity and thermal protection
