Reversing camera kit, monitor and camera wireless (max 4 cameras)

Reversing camera set wireless

With this kit you can always reverse safely. The camera provides a good view of what is behind your vehicle. The monitor is the ideal tool to reverse safely and neatly without hitting obstacles or endangering people.

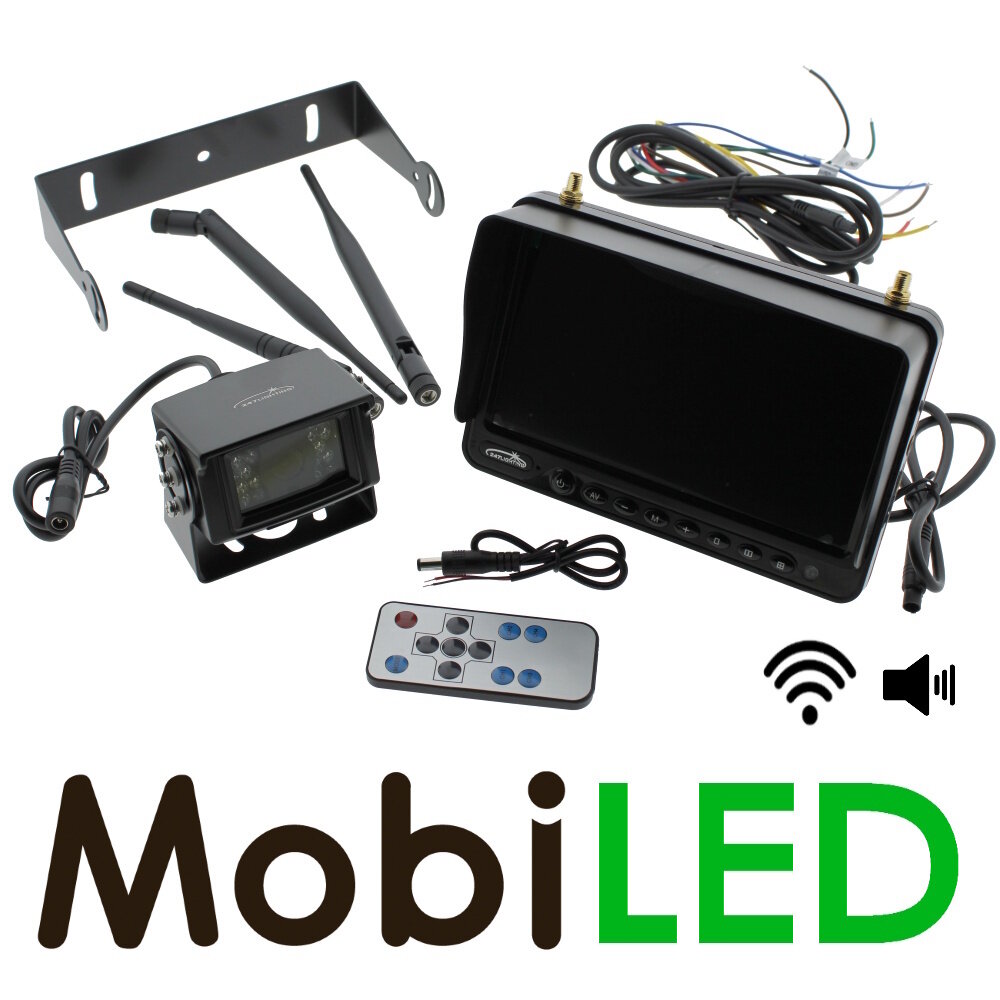

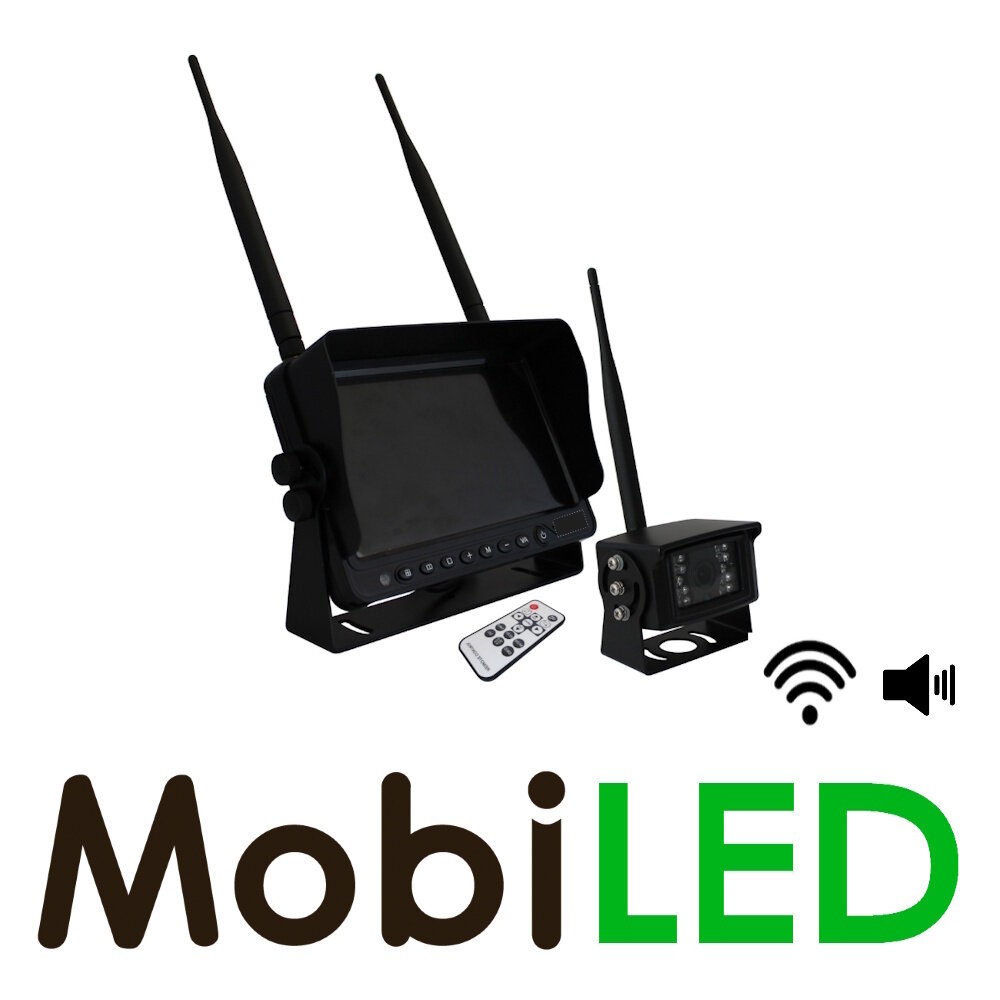

The set consists of a camera, monitor, remote control and necessary connection materials. The whole is multi-voltage and equipped with sound. This set can be expanded even further with 3 extra cameras and an extra extension cable. This version can display the connected cameras in split-screen mode.

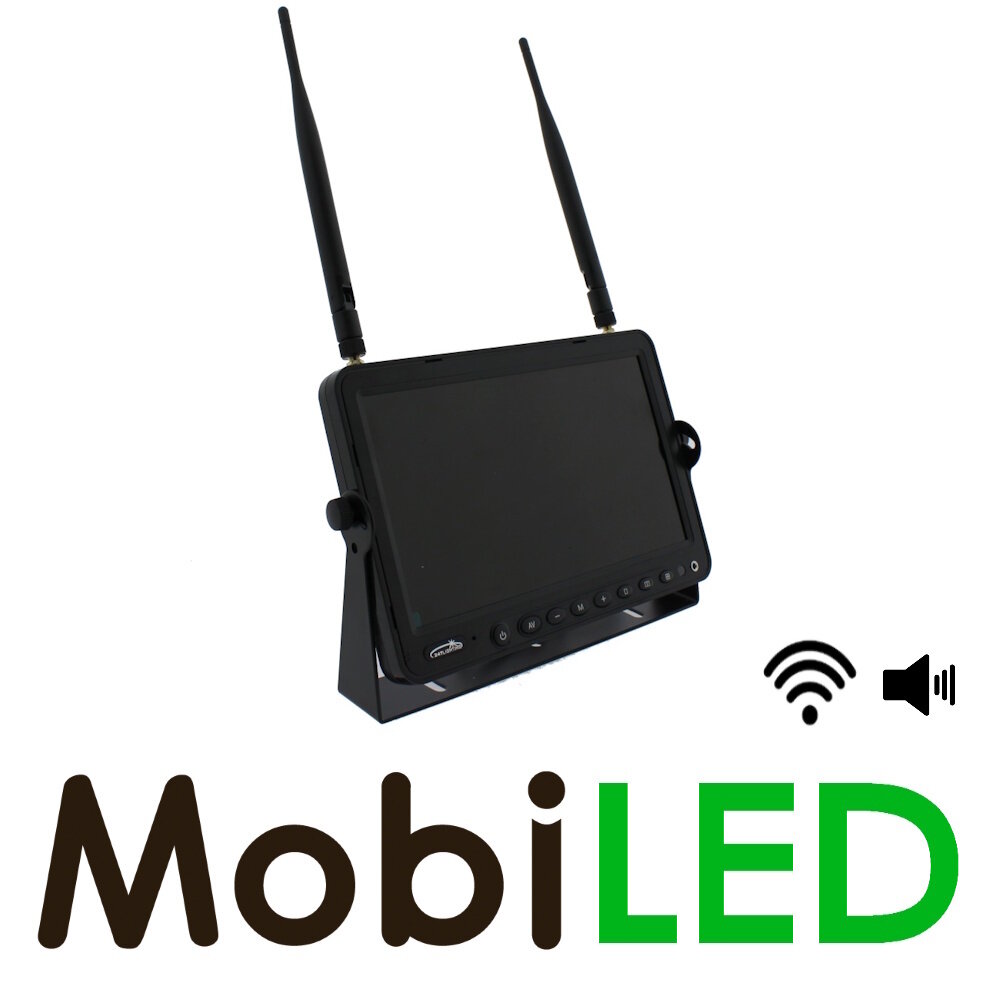

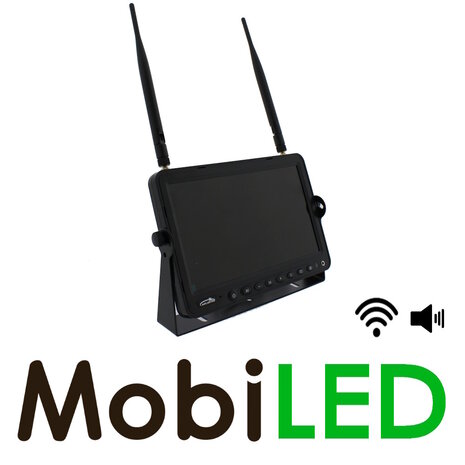

Monitor specifications:

• Screen size: 7 ”(178mm) digital TFT panel monitor
• Screen resolution: 800RGB (H) x 480 (V) DOT
• Video mode: NTSC / PAL (auto switch)
• OSD menu: brightness; Contrast; Color; Mode; Language setting; Mirror; Directive; Reset
• Video: Brightness: 450cd / m2 / Contrast: 500: 1
• Audio Input: 1 Way Audio Input
• Cable connection: 8-pin connection for additional camera
• Cable length: 1.95 m
• Bracket Mount: U
• Voltage: 12-32 volts
• Dimensions: 177 x 122 x 26 mm
• Certification: ECE approved Reg 10 / CE approved

Camera specifications:

• Operating System: CMOS
• Voltage: 12-32 volts
• NTSC: 976 * 494, PAL: 976 * 494
• Horizontal resolution (TV lines): 600TVL
• Audio function: no
• Built-in lens: 2.8mm
• Infrared LEDs: 18
• Night vision: 15m
• Viewing angle: 120 °
• Video output: 1.0Vpp / 75Ω
• Signal: unobstructed up to 100 m
• Cable length: 650 mm
• Dimensions: 75 x 63 x 48 mm
• Water resistance: IP67
• Certification: ECE Approved Reg 10, CE Approved
