X-Vision Genesis II 600 Hybrid

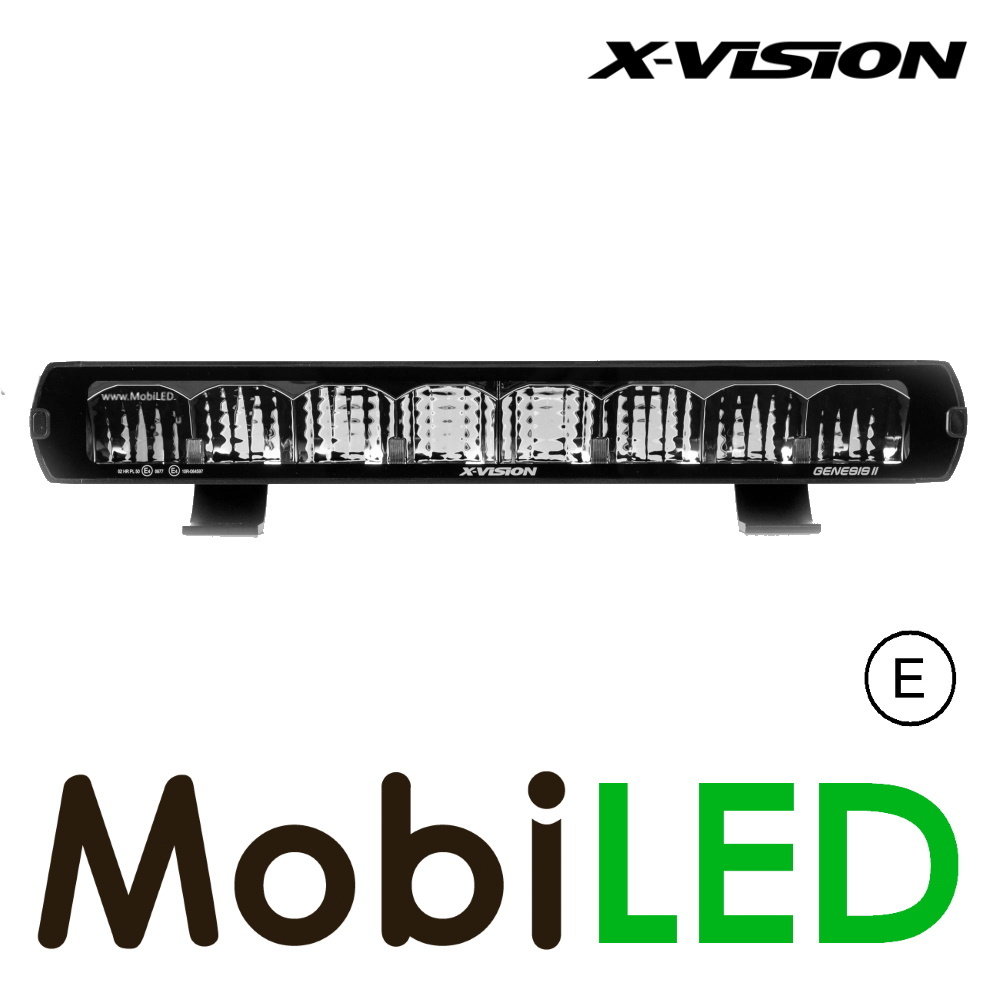

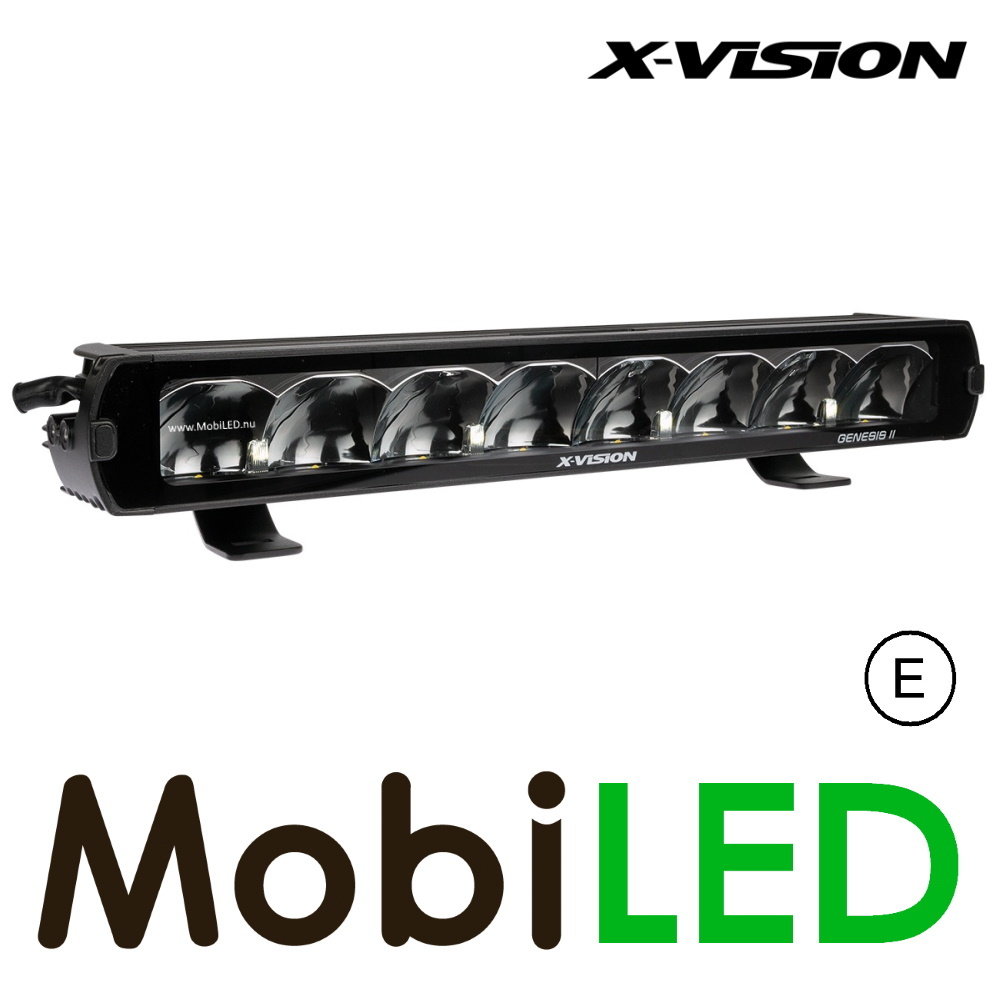

The Genesis II is a new evolution of the very popular X-Vision Genesis series, bringing new light patterns and a fresh new design. The lighting is frameless and straight with bright Gemstone position lights placed between the high beam LED modules. The new extremely long beam (spot) is new to support the well-known wide and strict hybrid beam models.

The eye-friendly color temperature of the first generation Genesis lamps is retained as a key feature of the new Genesis II lamps. Also the double-up function (full) is now available in all sizes of new series, please note that this is only suitable for off-road use.

The LED bar is equipped with a long cable, brackets for side and bottom mounting and all associated connection materials, see photo. Of course with E approval R10 and R112, except in the double-up function.

Specifications:

• Voltage: 9-36 V
• Power: 12V: 7.68A (full), 3.11A (R112)
• Range: 1 lux @ 650m (full), 475m (R112)
• Lumen: 7400 (full), 4000 (R112)
• Number of LEDs: 8
• Color temperature: 4500K
• Dimensions: 548 x 72 x 92 mm
• Reference: 50
• Water resistance: IP68
• Housing: aluminum
• Lens: PC
• Brackets: black stainless steel
• Approvals: ECE R10, R112

Connection diagram:

• Black (-): Earth
• Red (+): lighting, only off road
• Blue (+) with red: lighting, with E-mark for road use
• White (+): white parking light
