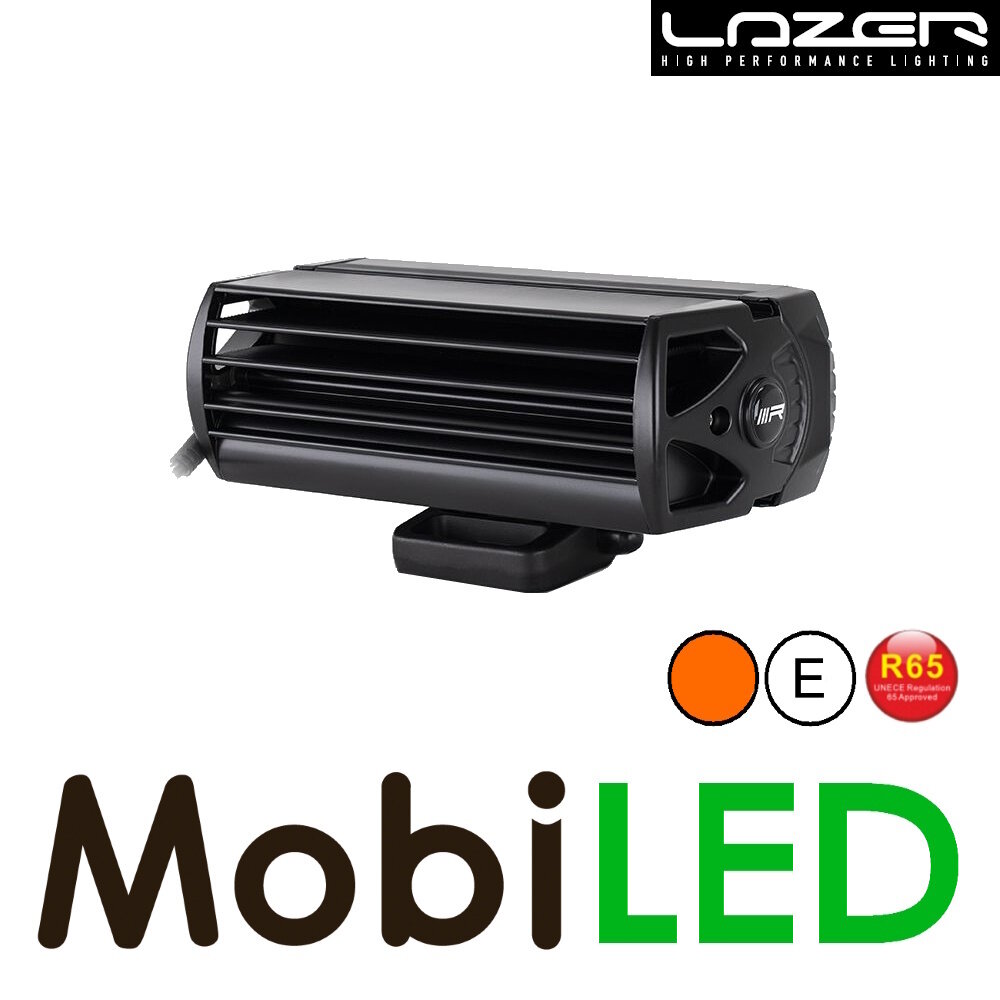

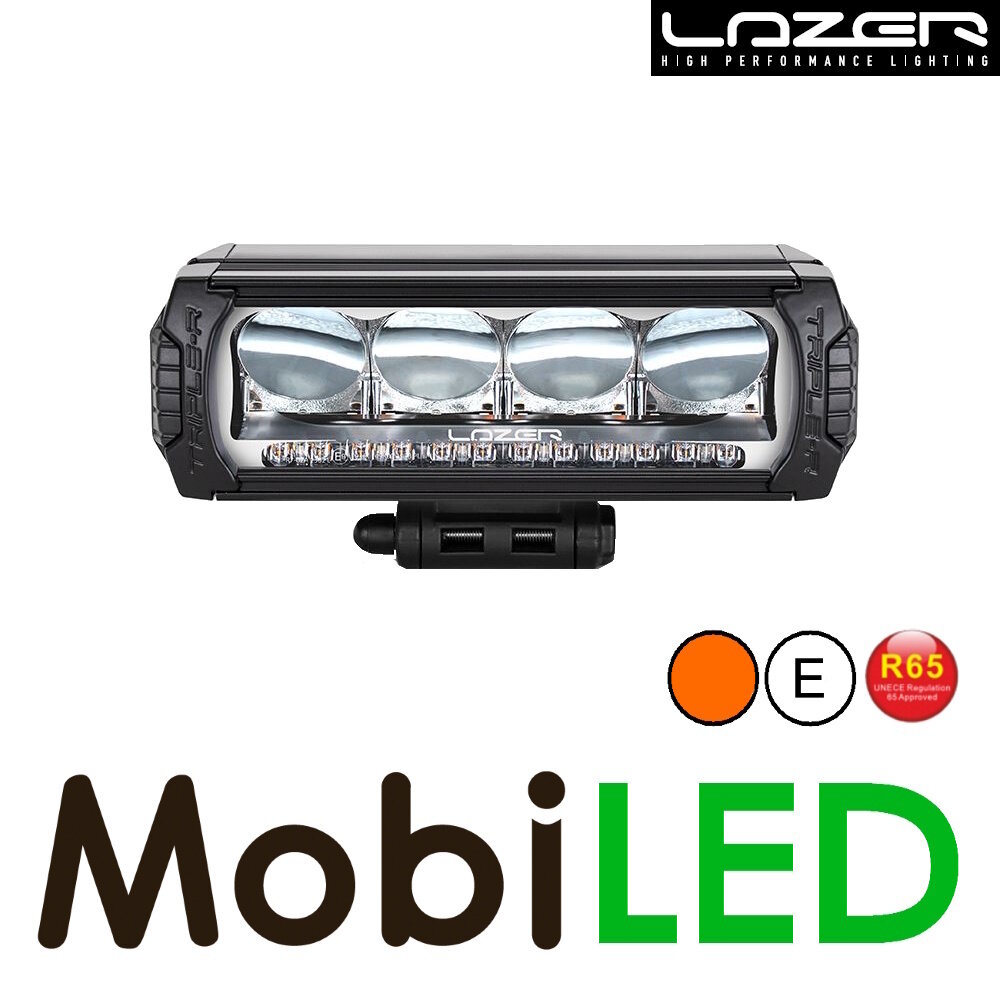

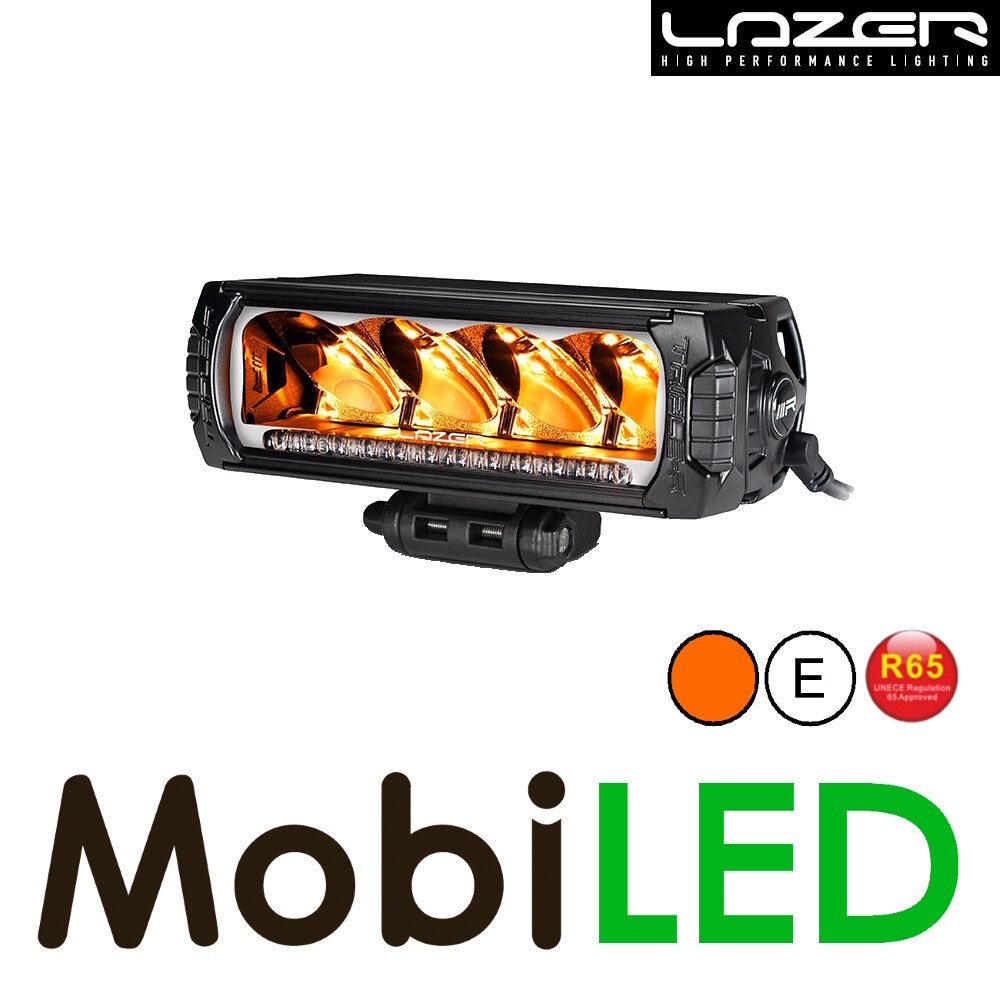

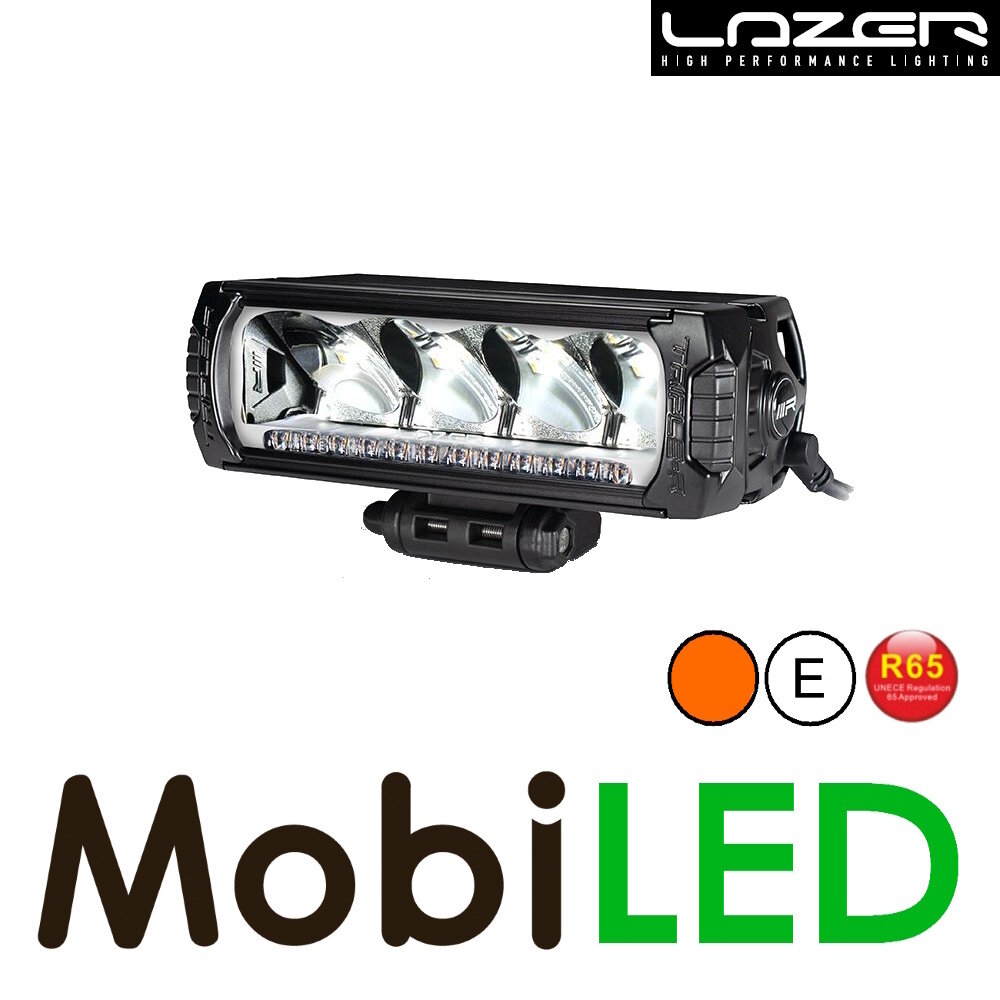

LAZER Triple-R 750 with flash light 230 mm 52W

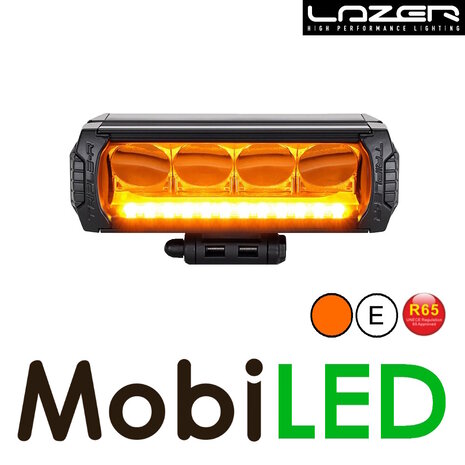

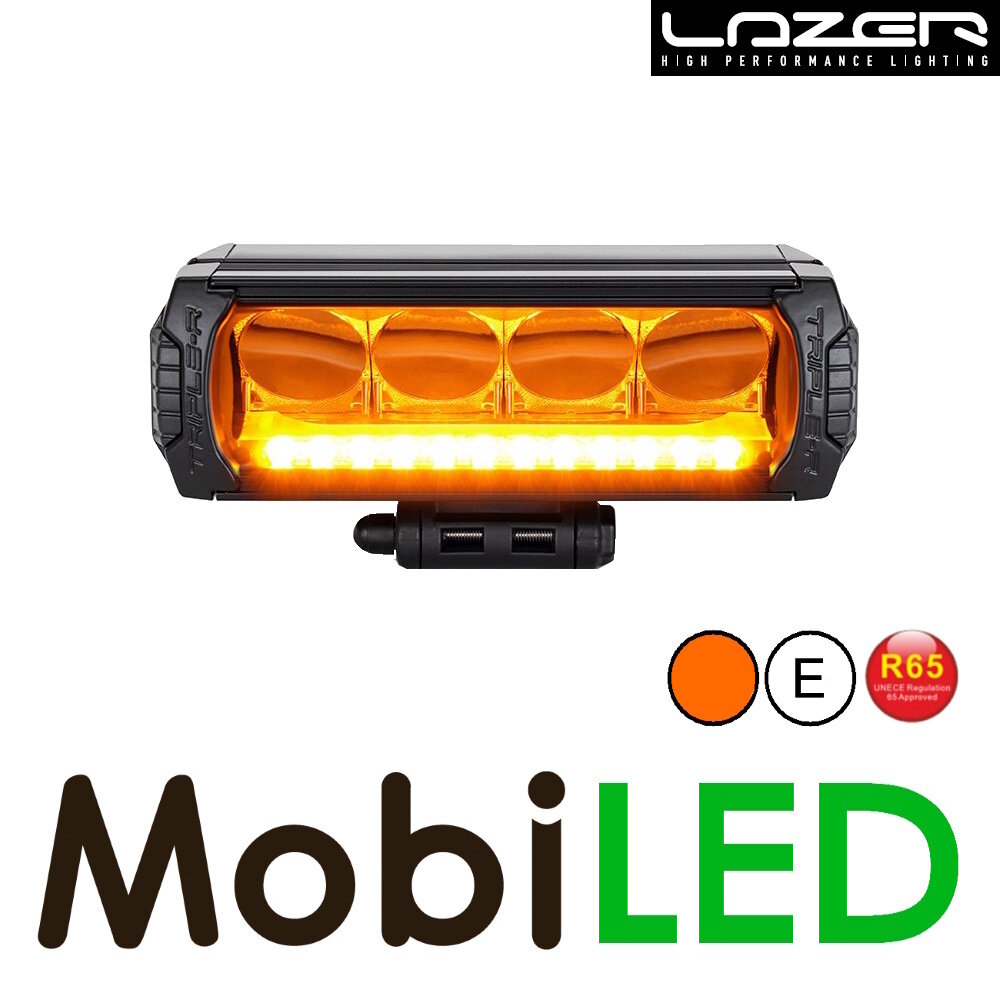

The LAZER Triple-R 750 with flash has an enormous light output. The LEDs and the ultra-reflective vacuum metallic lens provide a spot light beam with good light distribution to the sides. When connecting the lamp, the flash can be connected.
The electronic heat management system optimizes the light output, which makes the LEDs last longer. The aluminum housing is anodized and powder coated, which provides protection against corrosion and chemicals. The lens is made of virtually unbreakable polycarbonate with hardcoat lacquer.
The Triple-R 750 with position light is R112 certified for road use (so not in Boost mode).

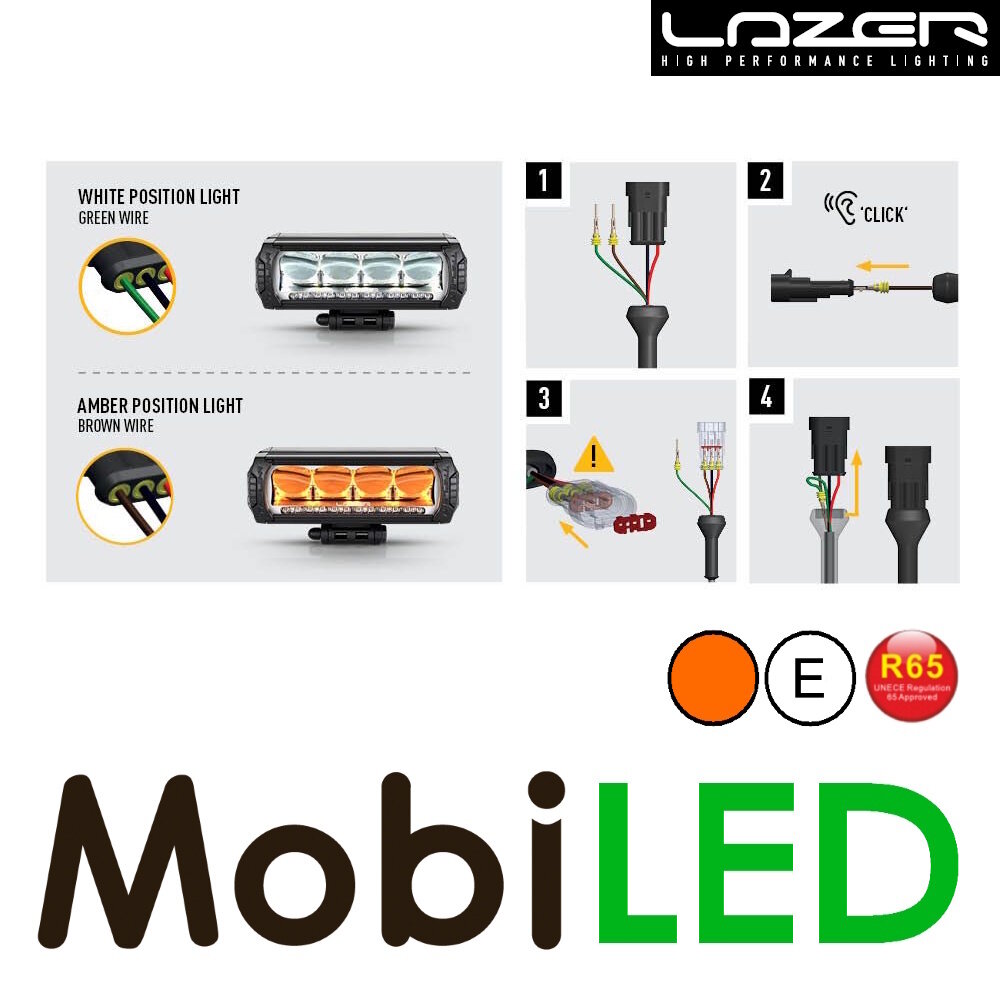

The LED bar can be mounted at the bottom with the supplied brackets. Side mounting is also possible, but the side brackets are not included. It comes with male/female 6-pin superseal connectors.
Triple-R LED bars make an impression, even before the sun goes down.
Video:
Product specifications
- Article number
- LB466

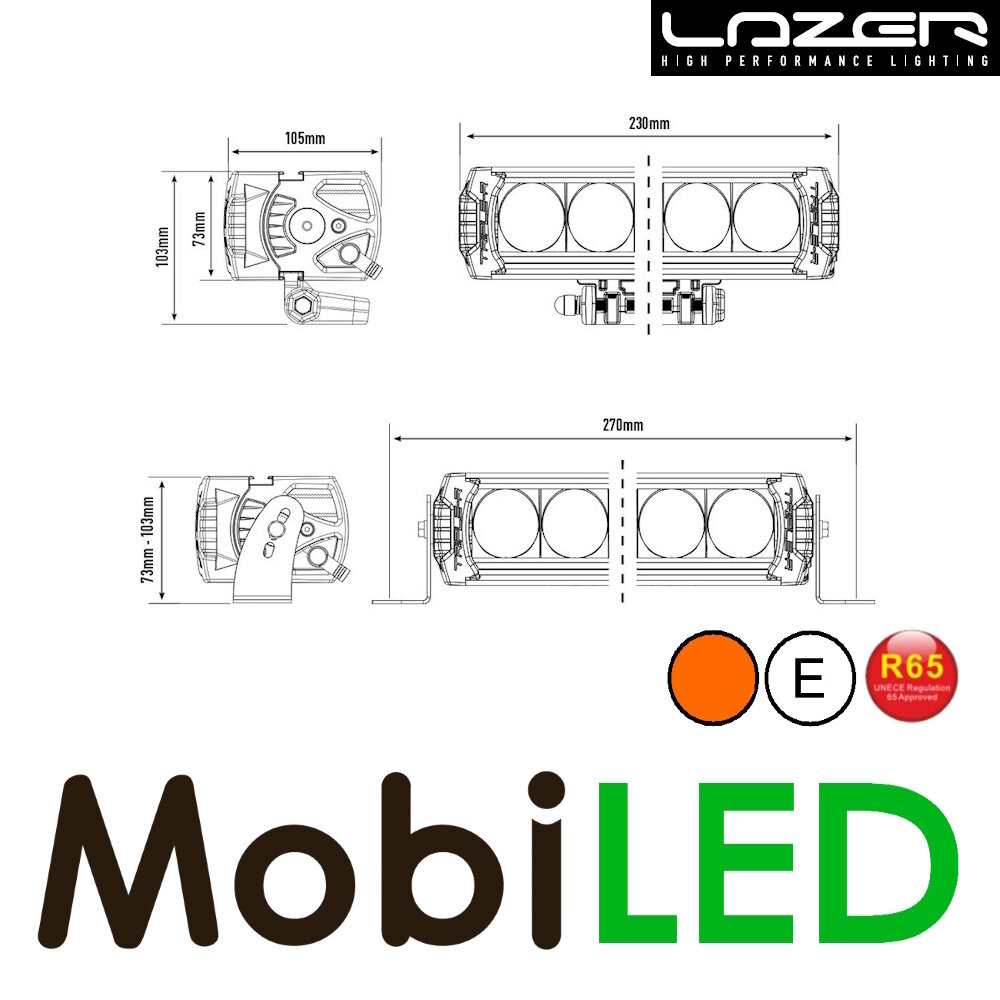

- Length (cm)
- 23 (27)
- Height (cm)
- 7,3
- Height incl bracket (cm)
- 10,3
- Depth (cm)
- 10,5
- Weight (gr)
- 1000
- Shape
- Elongated
- Tension
- 10-32V
- Power
- 52W (10W E-mark)
- Current draw
- 14,4V: 3,7A (0,7 E-mark)
- Lumens
- 5400 theoretical (3078 E-mark)
- Number of LEDs
- 4
- High beam function
- Yes
- Light image
- Spot

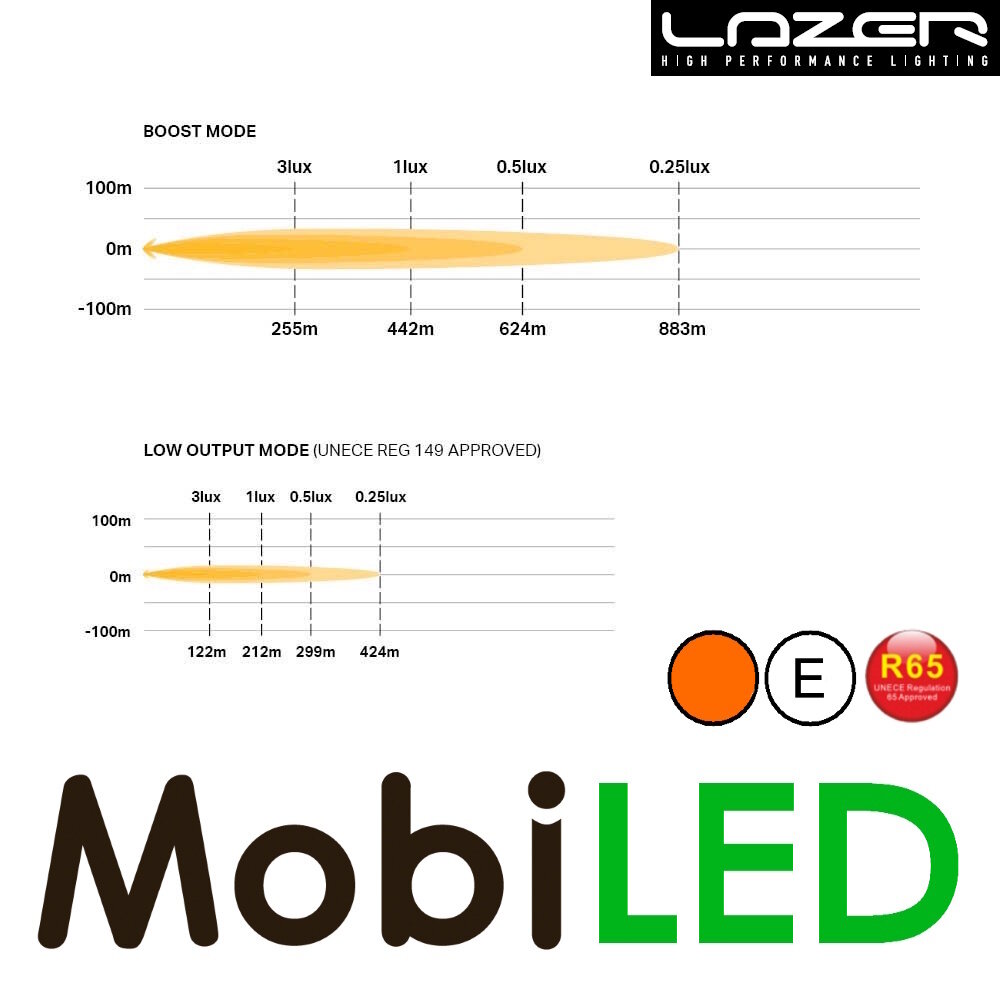

- Beam range
- 1 lux@442 m (212 E-mark) 0,25lux@883 m (424 E-mark)
- Housing colour
- Black
- Lens colour
- Transparant
- Housing material
- Aluminum (powder coated)
- Lens material
- PC
- Mounting bracket material
- Stainless steel
- Mounting type
- Bottom mounting
- Connection
- Superseal connector
- Cable Length (cm)
- 25
- IP rating
- IP68
- Certification
- ECE R149 (E-mark) ECE R148 (white), R10, R65 (XA1)
- Packed per
- 1
- Manufacturer article number
- 00R4-BCN-B / 5061003760303
