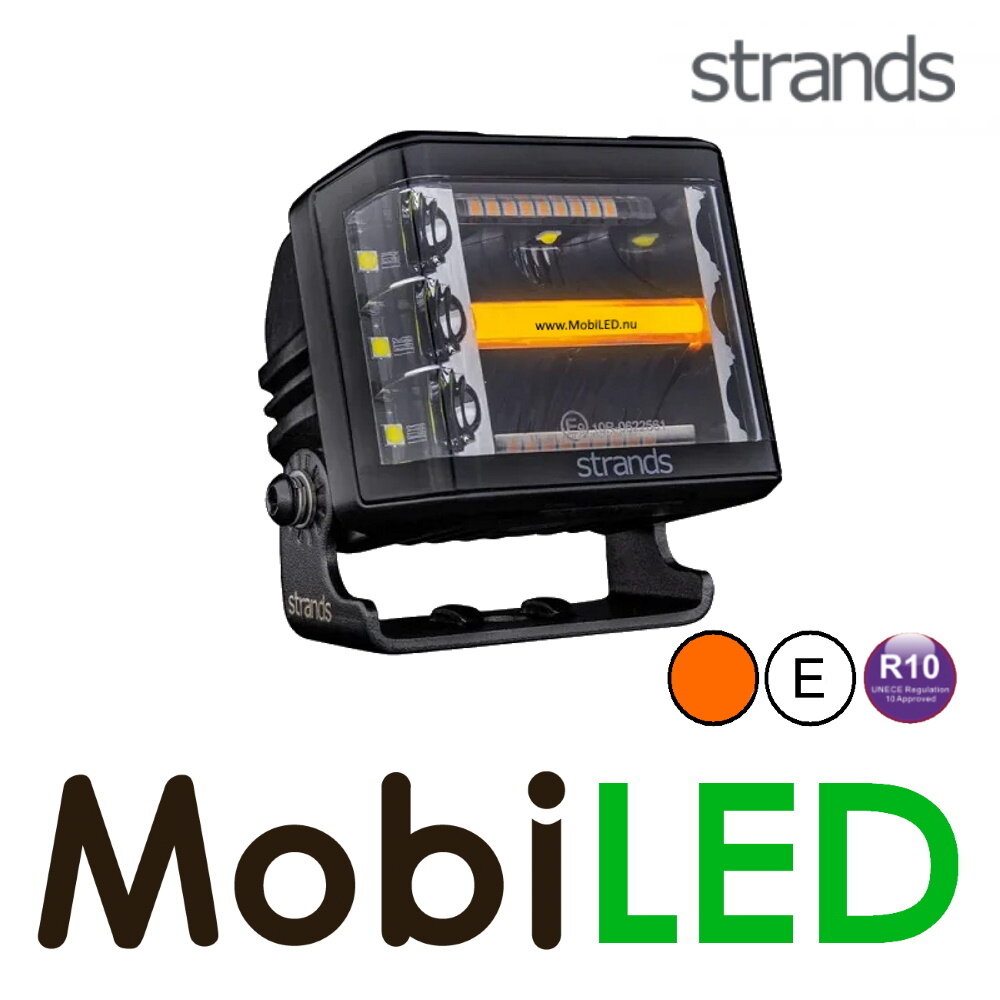

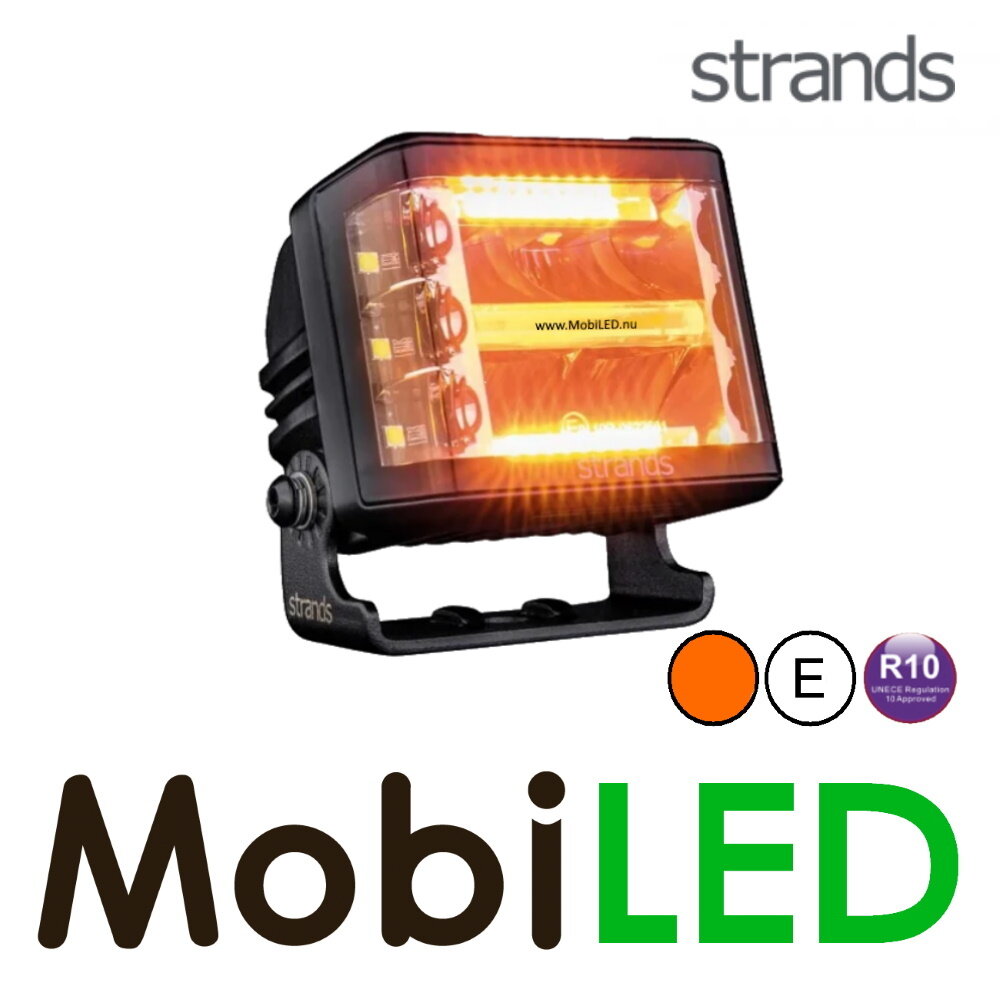

Strands Siberia Red Fox

Strands Siberia Red Fox

This side shooter/work light is built to revolutionize. The accessory lighting and design are a bold unit, a class apart. Work light, side shooter, floodlight, amber or red position light and a flash. With this Strands Siberia Red Fox you get it all. Made to attract attention with a breathtaking look.
The lamp has 32 LEDs with a light output of 8400 lumens, so always plenty of visibility, both day and night. Multi-voltage is self-evident.

Specifications:

• LED type: Osram
• Number of LEDs: 32
• Voltage: 9-32 V DC
• Power: 41 W work light, 22.5 W flash, 1.5 W position light
• Light output: 8400 lumens
• Range: 1 Lux @ 160m
• Light color: 6000K
• Number of flash patterns: 1
• Water resistance: IP67/69K
• Light image: wide (flood)
• Position light: amber and red available
• Connection: Deutsch 6 pins (male / female provided)
• Cable length: 500 mm
• Dimensions: 93 x 74 x 75 mm
• Height incl. mounting: 87.5 mm
• Operating temperature: -20℃ to +45℃
• Certification: ECE R10

Connection diagram:

• Black: ground wire
• Red: + work lamp
• Gray: + red position light
• Yellow: + amber position light
• Green: + flash
