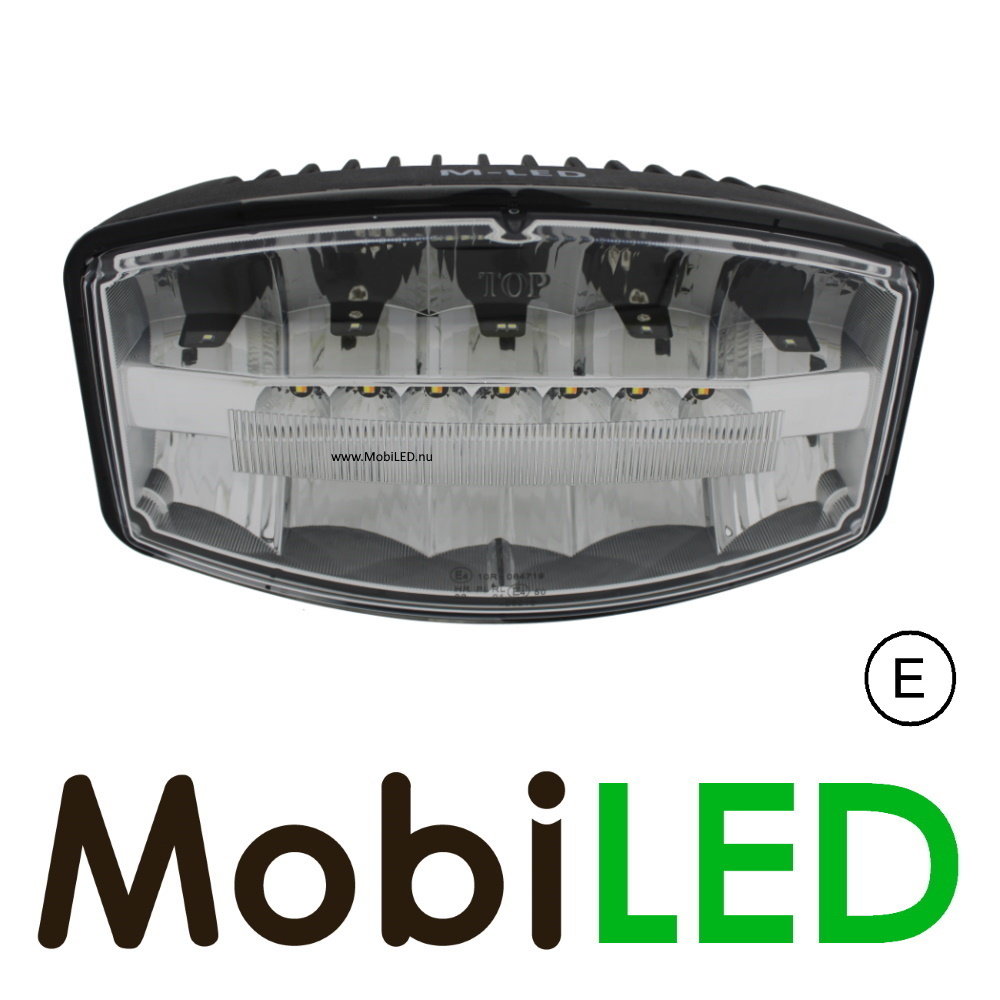

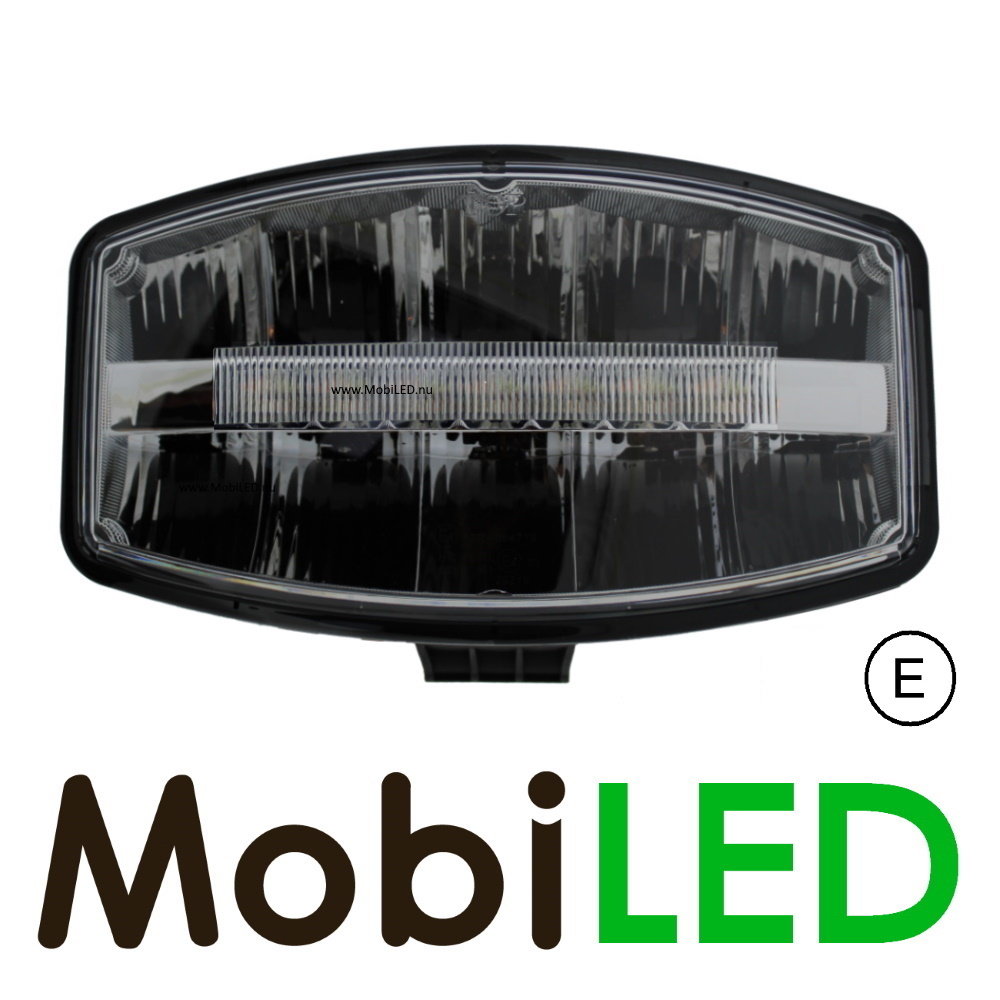

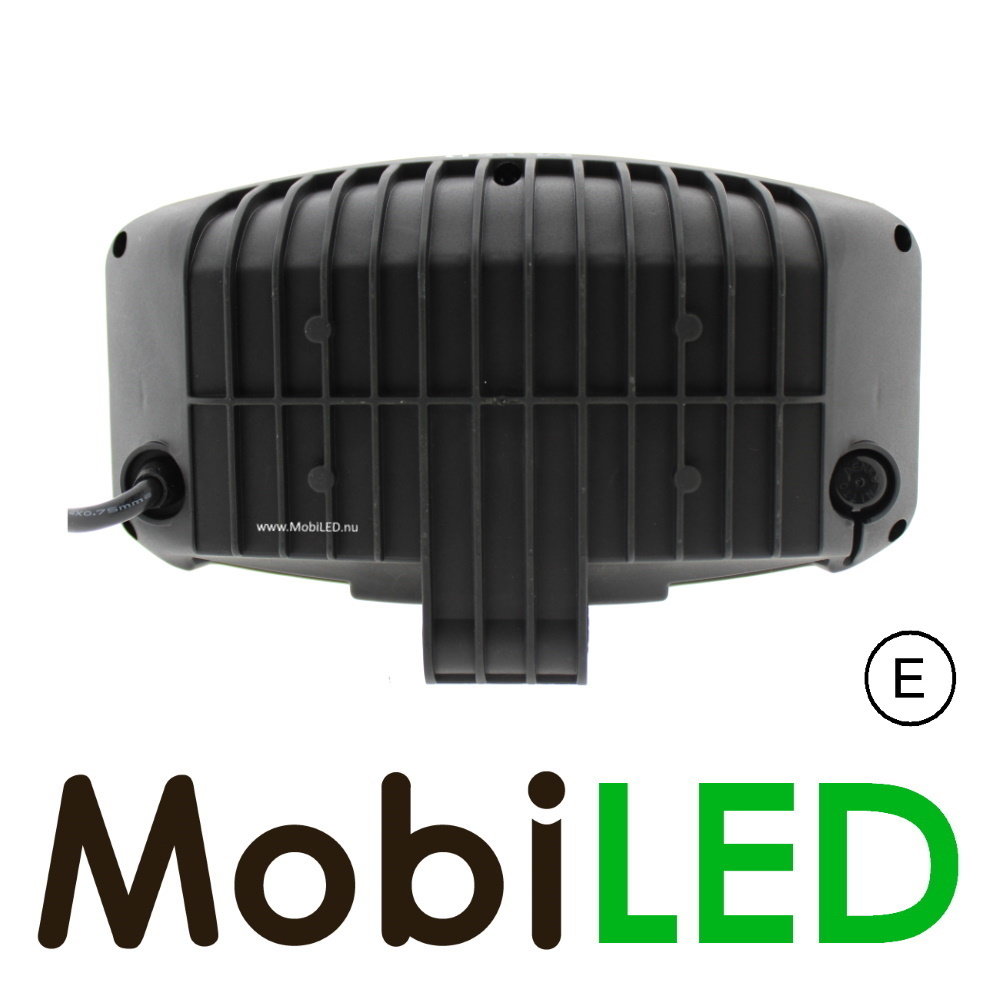

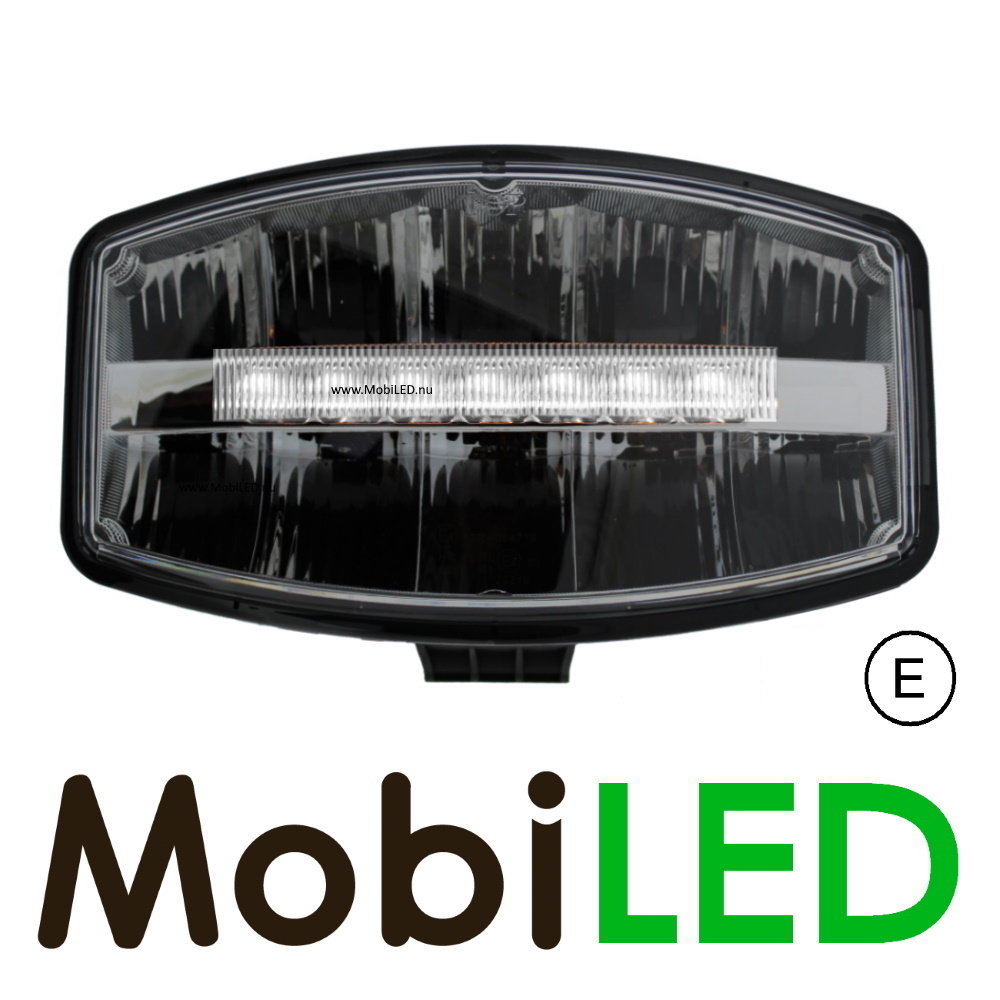

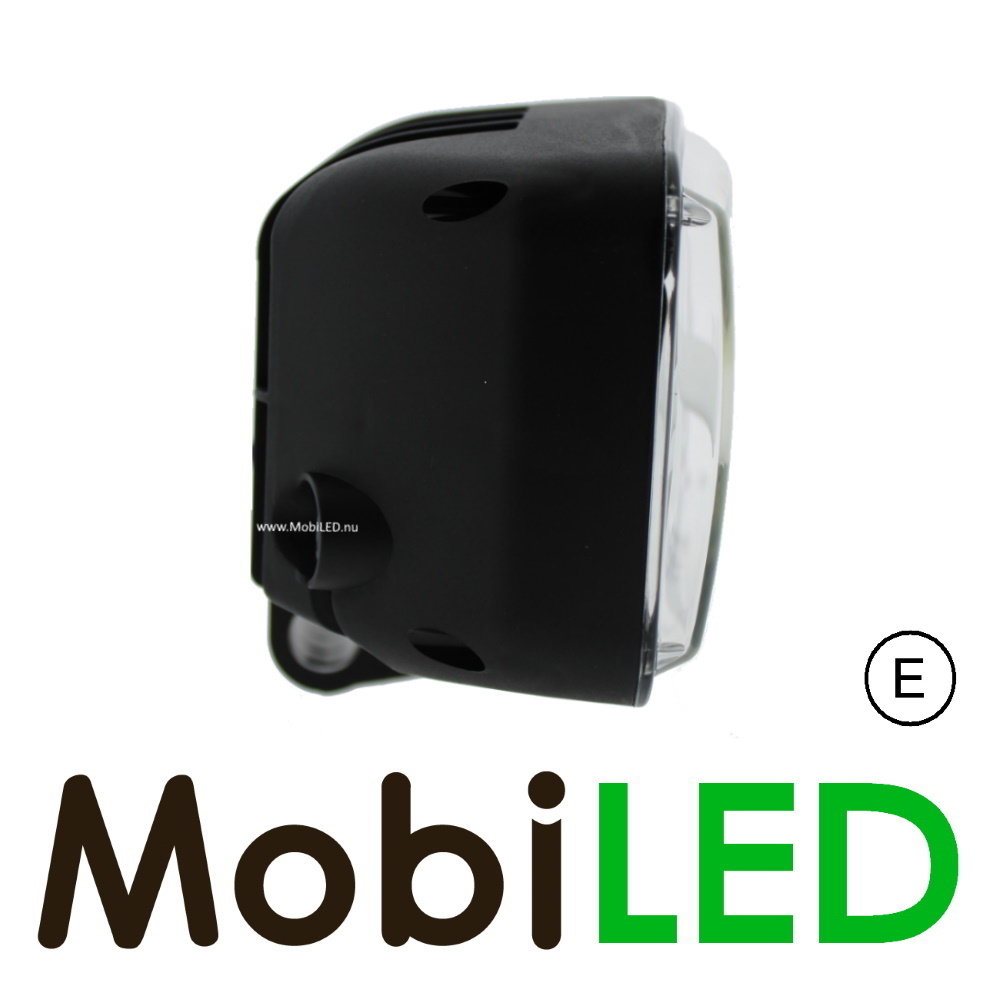

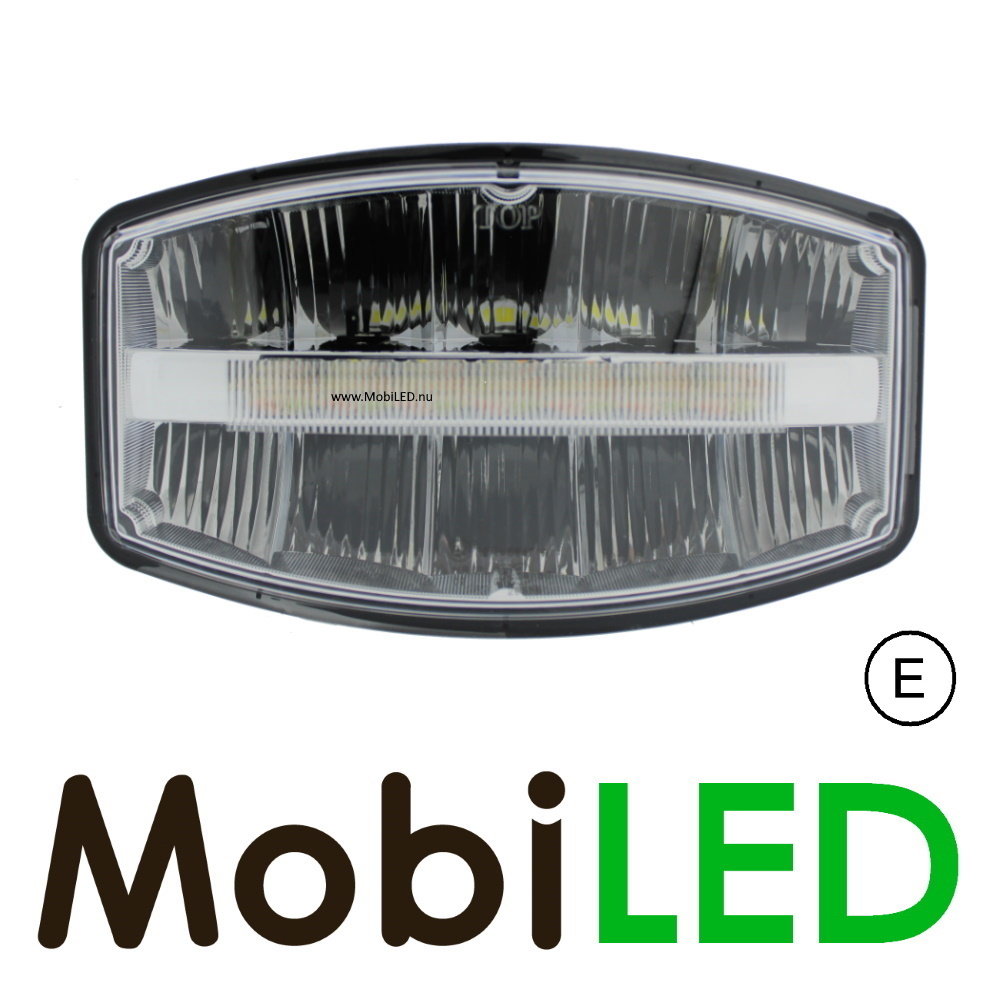

Spotlight with white position light E-mark

High beam with white position light E-mark

Beautifully designed high-beam unit with LED lighting. It is equipped with high beam and white position light. With its 12 LEDs of 4 Watt each, a strong luminous flux of 2800 lumen is created. It is, of course, multi-voltage. The lamp is fully certified with ECE R10, R112 and R7, EMC CISPR 25 class 5.

The work lamp is made of graphene. Graphene is more than 200 times stronger than steel, an excellent thermal and electrical conductor, flexible, very thin and transparent. The lens is made of polycarbonate and the bracket for mounting is made of stainless steel.

Specifications:

• Voltage: 12-24V
• Power: 48 W (high beam: 48 W, position light: 4.5 W)
• Light output: 2800 + 196 lumens
• Current at 24 V: 1.25 A, 0.0625 A position light
• Number of LEDs: 12 x 4W high beam, 9 x 0.5 position light
• Water resistance: IP6K9K
• Light distance: 275 m @ 1 lux
• Lens: polycarbonate
• Housing: graphene
• Mounting: stainless steel bracket M8 / M10 bolt
• Dimensions: 244.4 x 138.4 x 110mm
• Certification: ECE R10, R112 and R7, EMC CISPR 25 class 5
