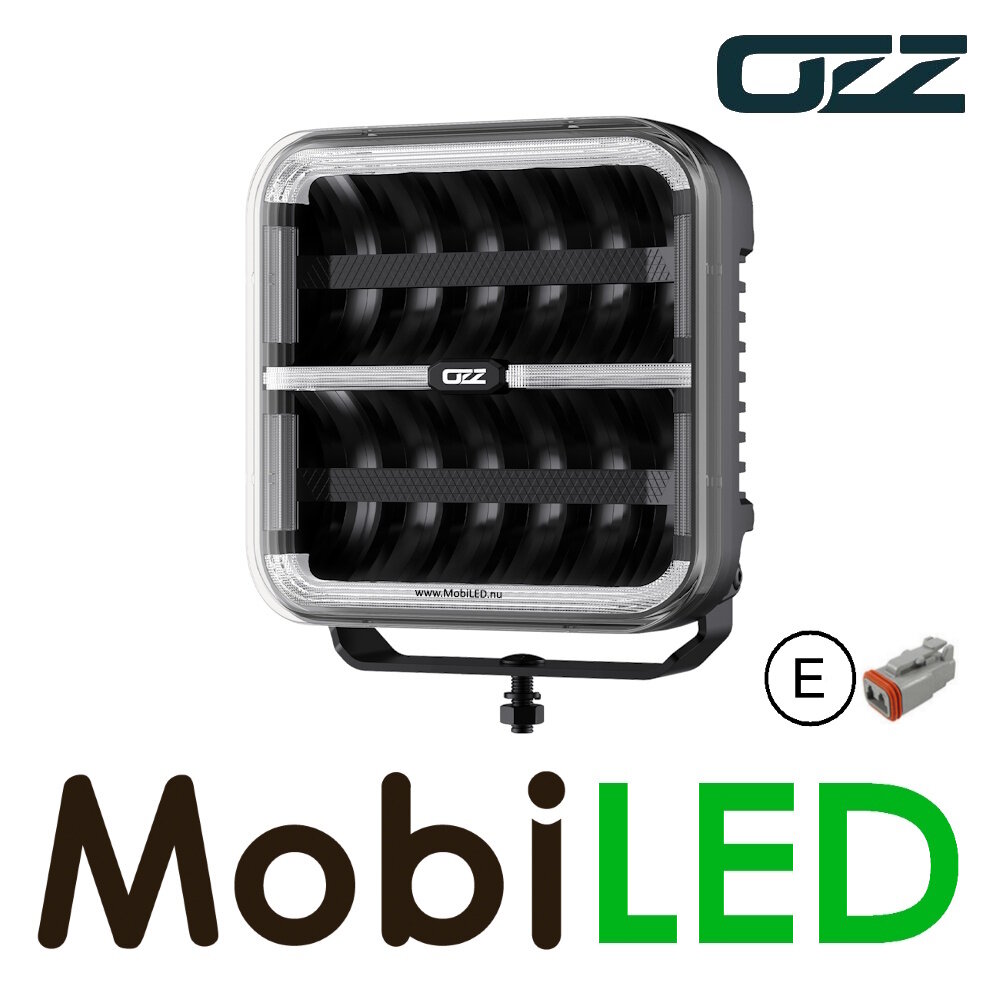

OZZ SQR 9" Square dynamic start-up dual color, boost function Black









The OZZ SQR series literally breaks with tradition. With a square design that defies convention and redefines the possibilities of vehicle lighting. Meet the first of a new generation of driving lights. Packaged in a square housing, designed to fit more tightly, shine brighter, and look sharper than ever before.
Every detail is intentional. From the curved lens that adds a premium finish to the dynamic position light with depth effect and the integrated strobe mode for customized intensity, the SQR series is designed to blend in, yet stand out.

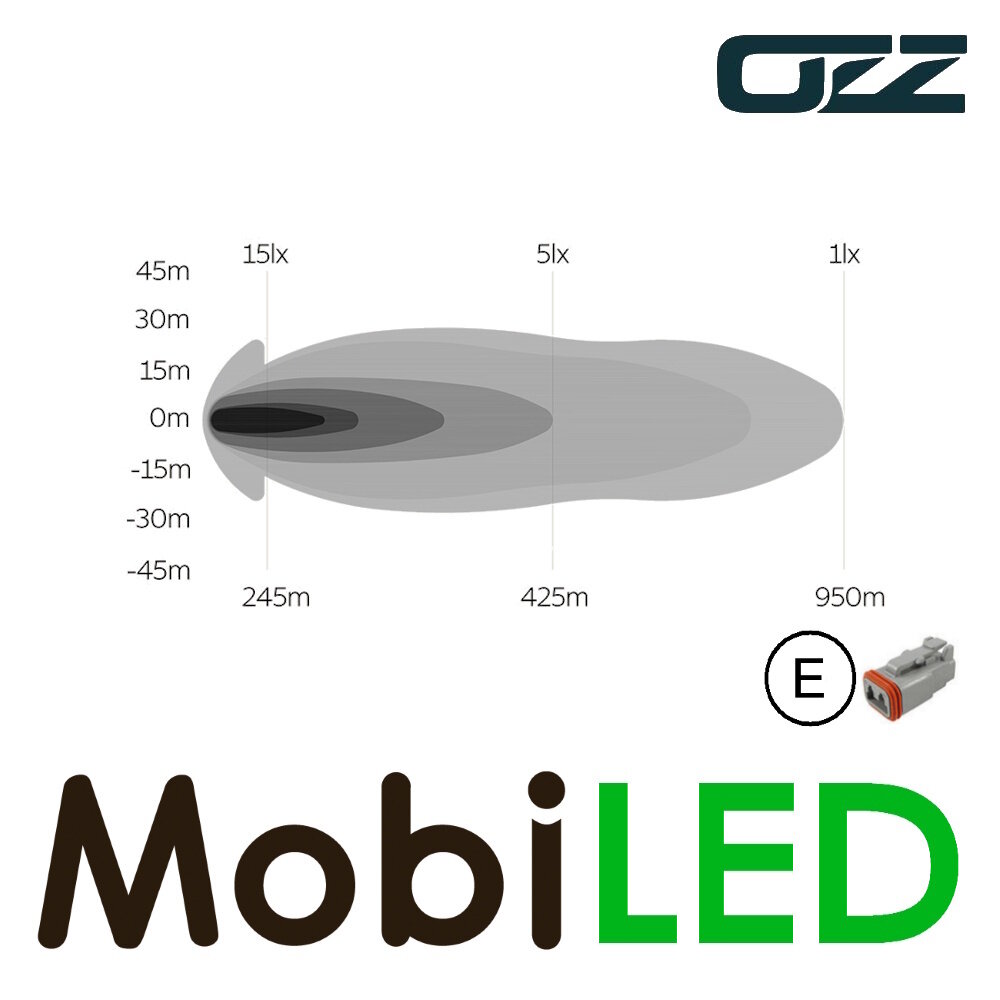

It is fully E-approved, making it suitable for road use throughout Europe. But when you need that little bit extra, the boost function maximizes the light's performance, with a maximum light output of 1 lux at 950 meters for the 9-inch and 1 lux at 650 meters for the 7-inch.
Note: Cutting off the connector will void the warranty.
Product specifications
- Article number
- VS194
- Tension
- 9-32V DC
- Power
- 60 Watt, Boost 160 Watt
- Lumens
- Theoretical 21.000 Lm , werkelijk 5.000 Lm , Boost 12.000 Lm
- Light colour

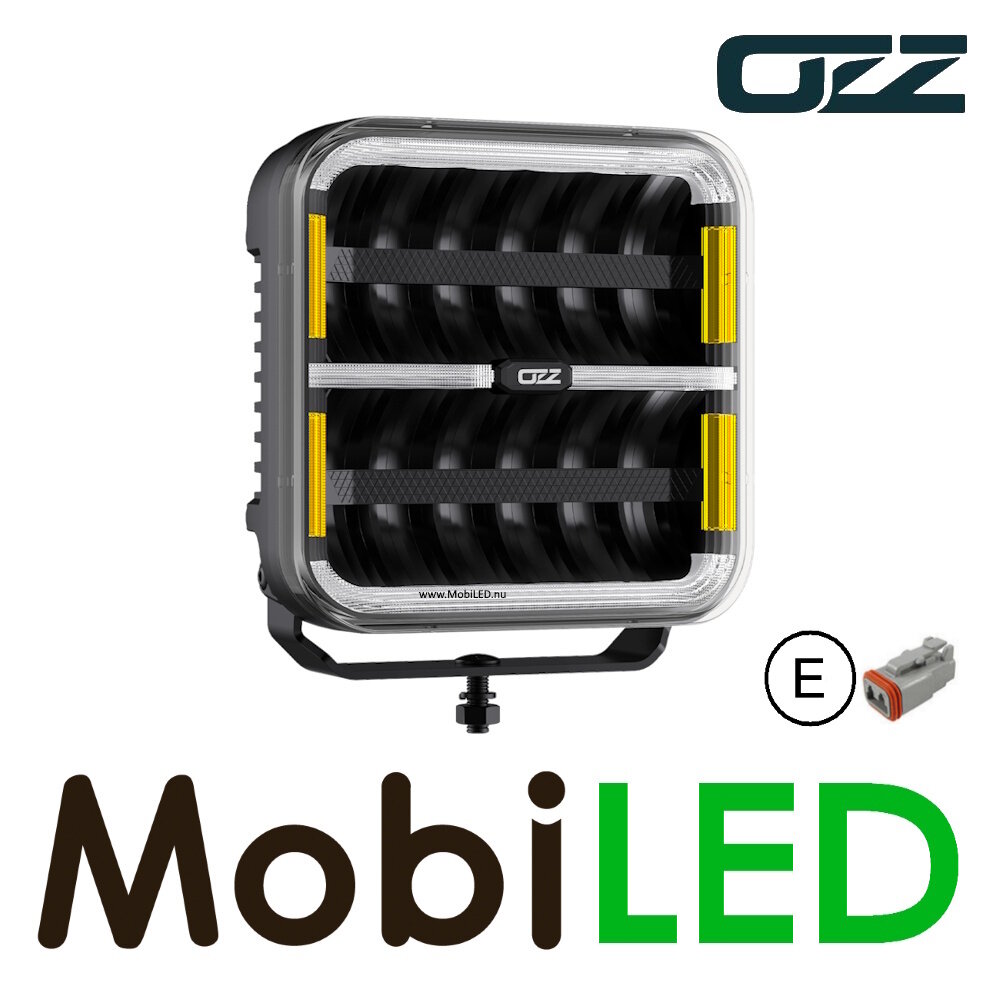

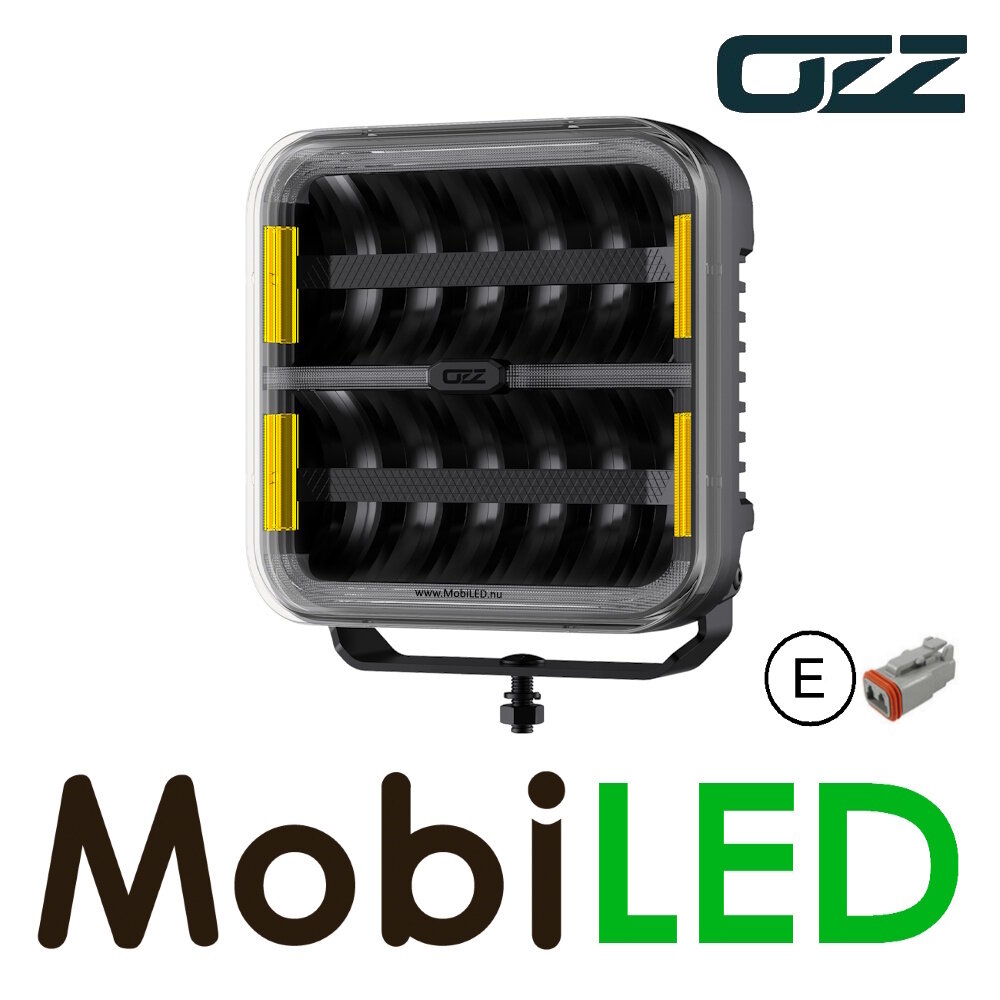

- 5.000K daylight, Position white/amber
- Number of LEDs
- 24
- LED Type
- Osram
- Light image
- Driving beam

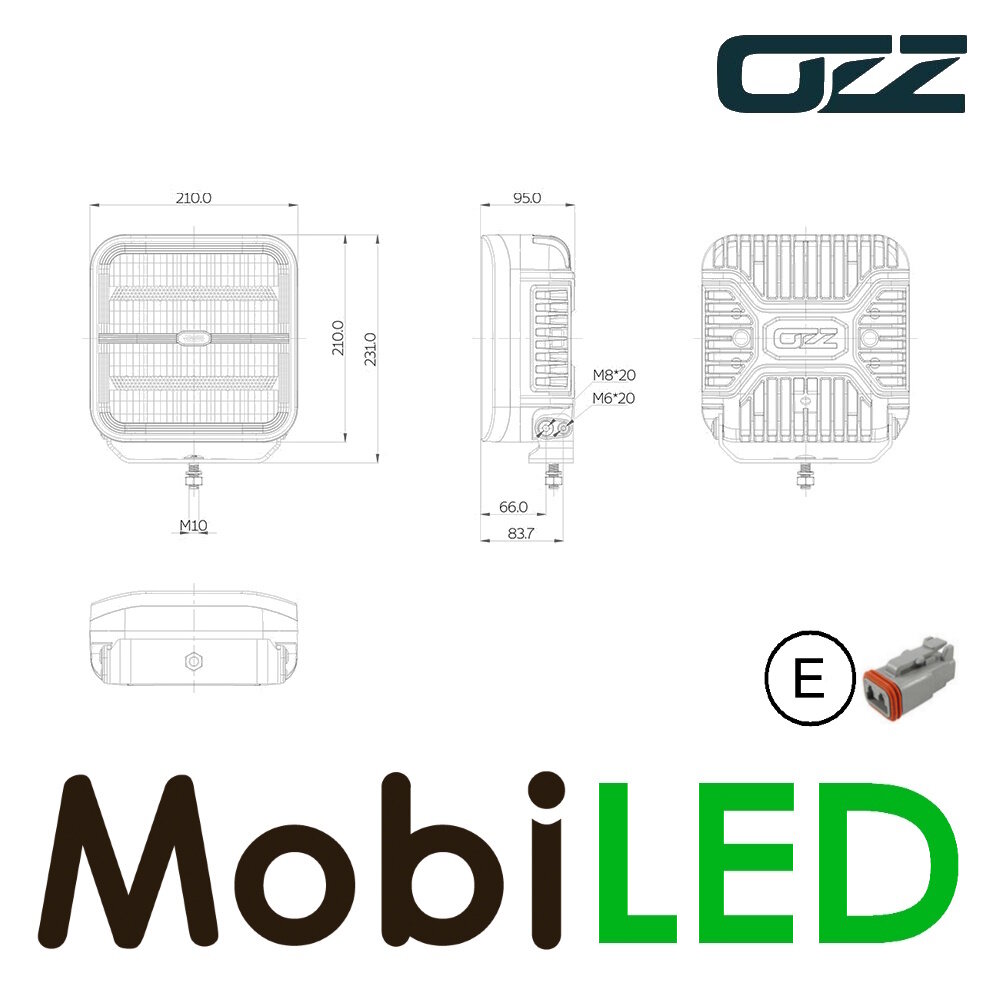

- Length (cm)
- 21
- Height (cm)
- 23,1 incl bracket, 21 without bracket
- Depth (cm)
- 9,5
- Weight (gr)
- 4500
- Shape
- Square
- Lens material
- impact-resistant polycarbonate
- Housing material
- Aluminium
- Mounting type
- M10
- Connection
- DT connector
- Cable Length (cm)
- 100
- Operating temperature
- -40 – +60°C
- IP rating
- IP68/IP69K
- Certification
- ECE R149, R148, R65, Ref 50
- Packed per
- 1
- Manufacturer article number
- 88112 / 7350166880316
