Control panel with power unit 6 buttons 12V

Product description

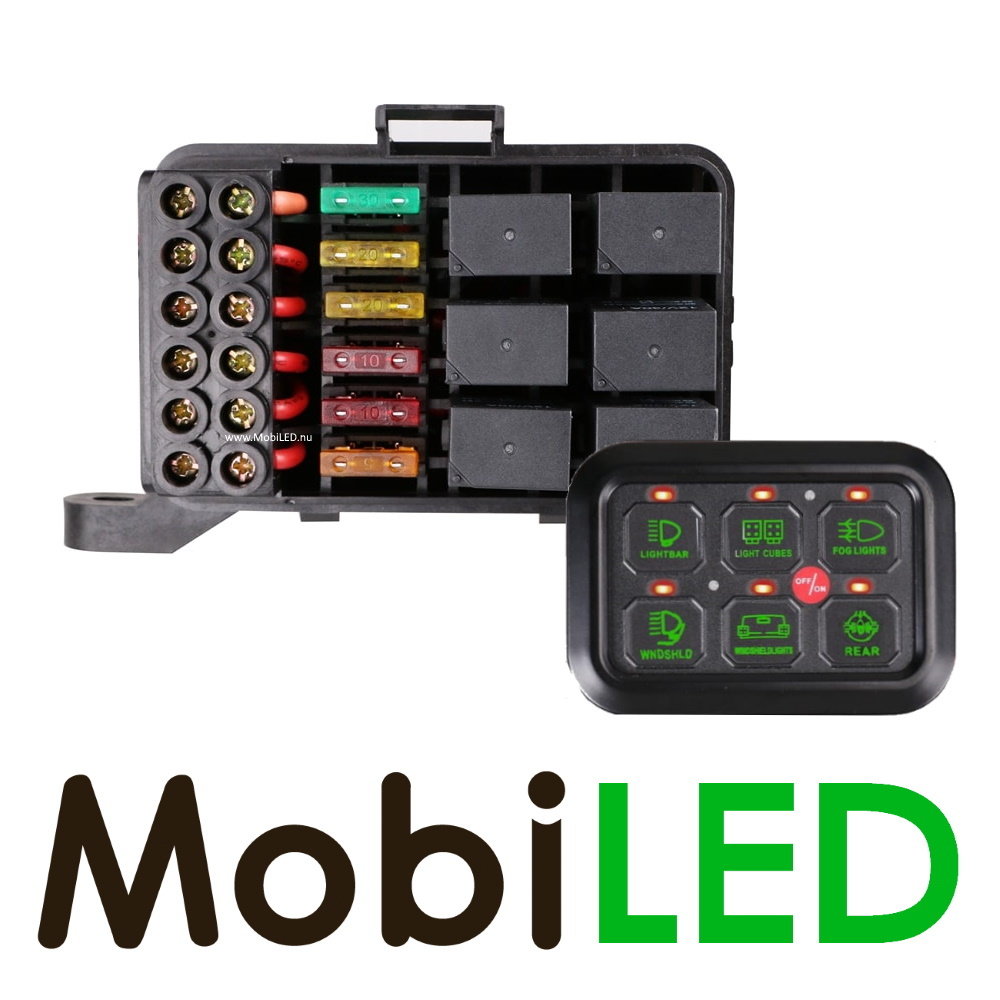

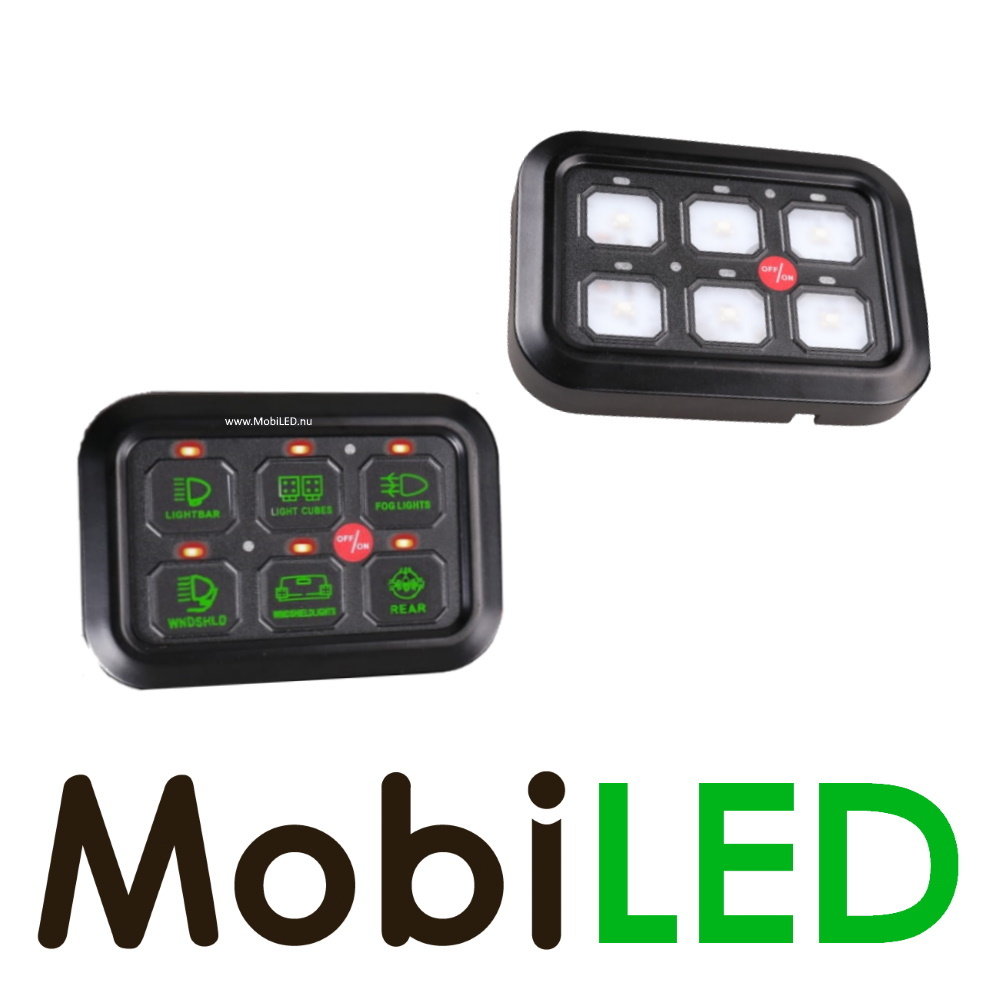

A complete set with control panel and power unit for connecting lighting, among other things. The panel has 6 buttons, each button can also be set as an on/off switch or a pulse switch. The buttons are illuminated green and the intensity is adjusted to the brightness of the environment. The panel is therefore more illuminated during the day than at...

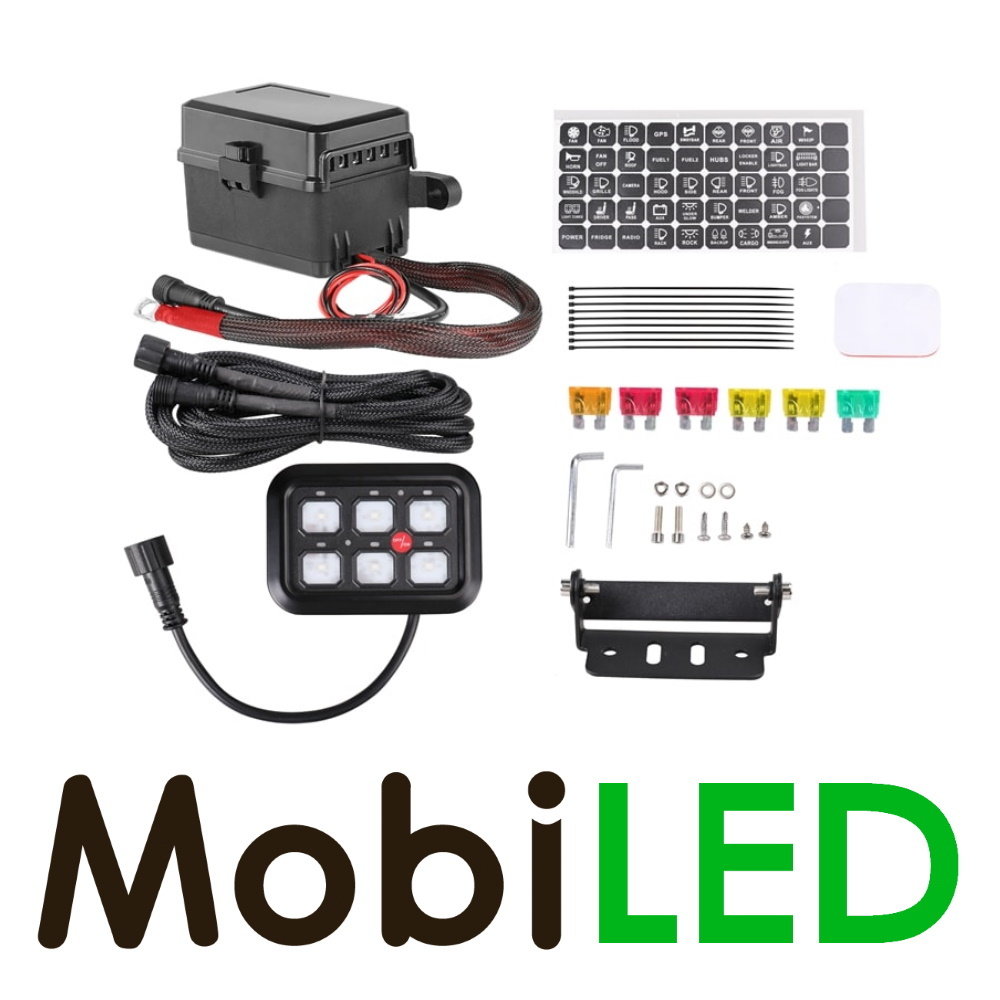

A complete set with control panel and power unit for connecting lighting, among other things. The panel has 6 buttons, each button can also be set as an on/off switch or a pulse switch. The buttons are illuminated green and the intensity is adjusted to the brightness of the environment. The panel is therefore more illuminated during the day than at night. Stickers are included for the buttons, 45 with various symbols and 5 without symbols. The panel can be mounted with a bracket or with 3M tape, both are included.

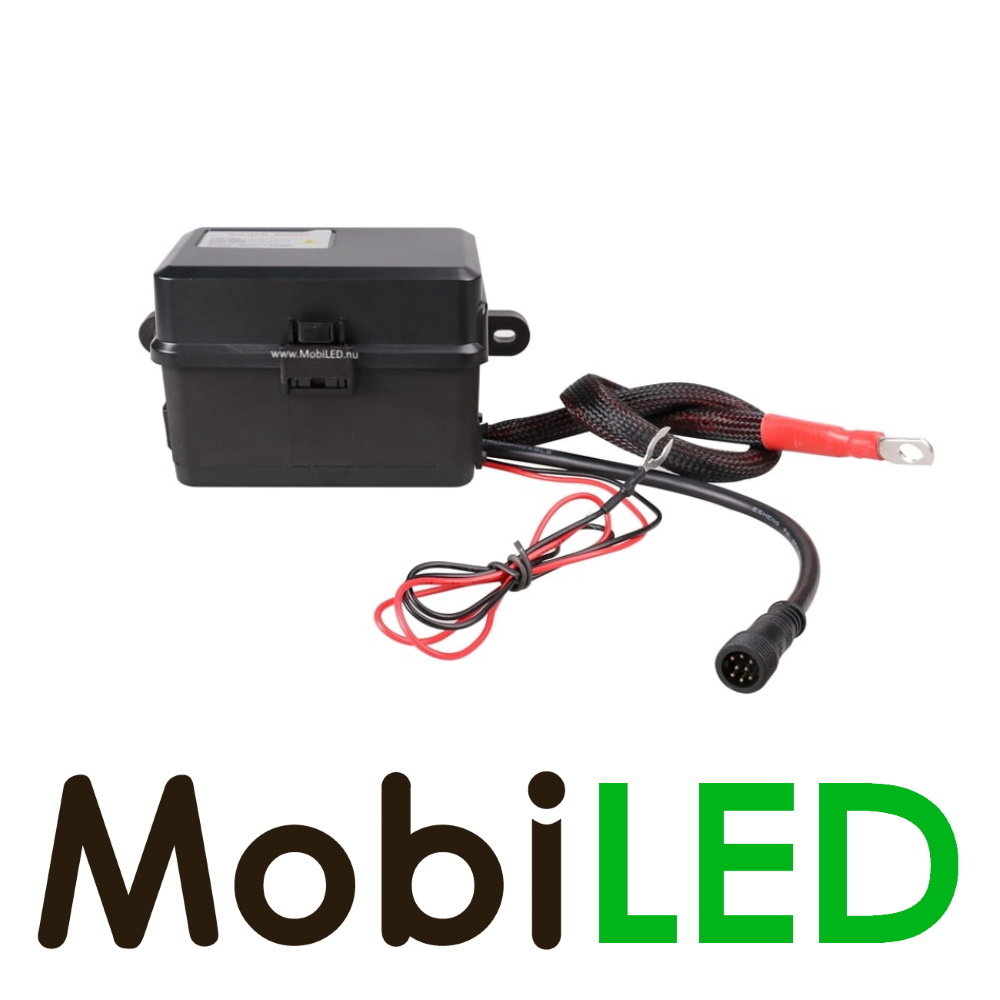

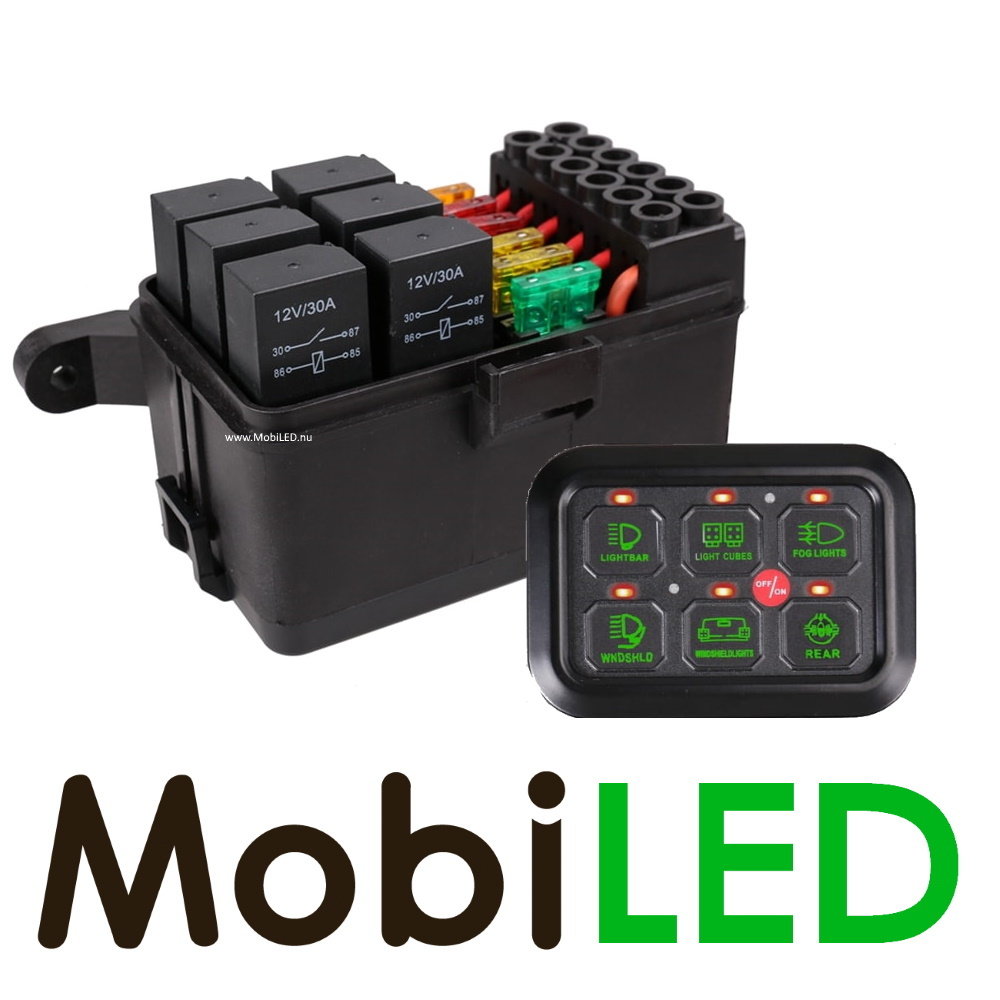

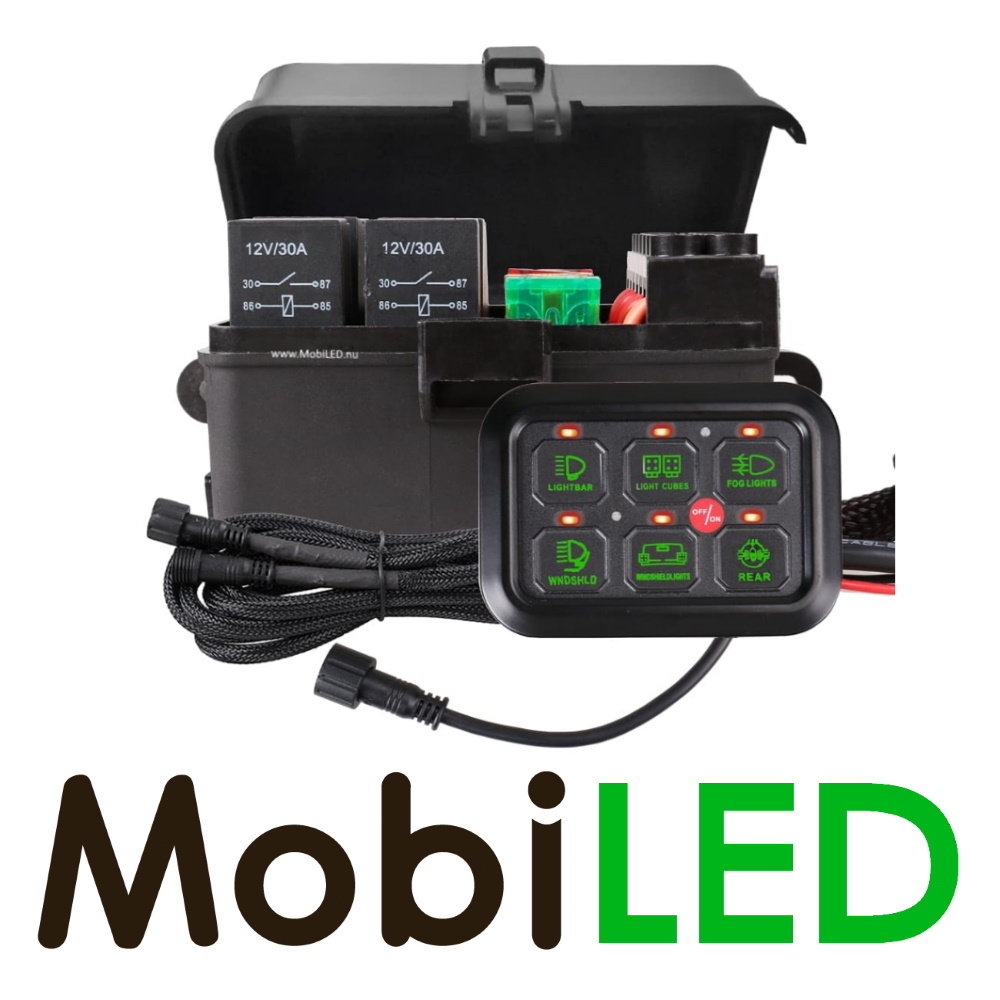

The set is equipped with a power unit with relays and fuses for all six connections, it comes standard with 1x 5A, 2x 10A, 2x 20A and 1x 30A fuse. The same amount of spare fuses are included. The maximum load is 60A / 720W. A 2.5 meter long cable connects the panel to the power unit.

Specifications:

  • Input voltage: 12V DC
  • Maximum output power: 720 W
  • Maximum input current: 60 A
  • Switch panel size: 95 X 68 x 9 mm
  • Switch panel material: high quality ABS and aluminum
  • Dimensions control box: 159 X 90 X 83 mm
  • Control box material: high-quality ABS
  • Auto-dimming backlight
  • Operating temperature: -40°C ~ +105°C
  • 50 pieces of reusable switch labels
  • Overvoltage protection, overcurrent protection

Product specifications

Article number
AM717

✅ Smart combination

AM717 + AM773

Control panel with power unit 6 buttons 12V

Control panel with power unit 6 buttons 12V

AM717 + AM773

€164,90
(€136,28 excl. VAT)
